Child Seat Tether Attachment

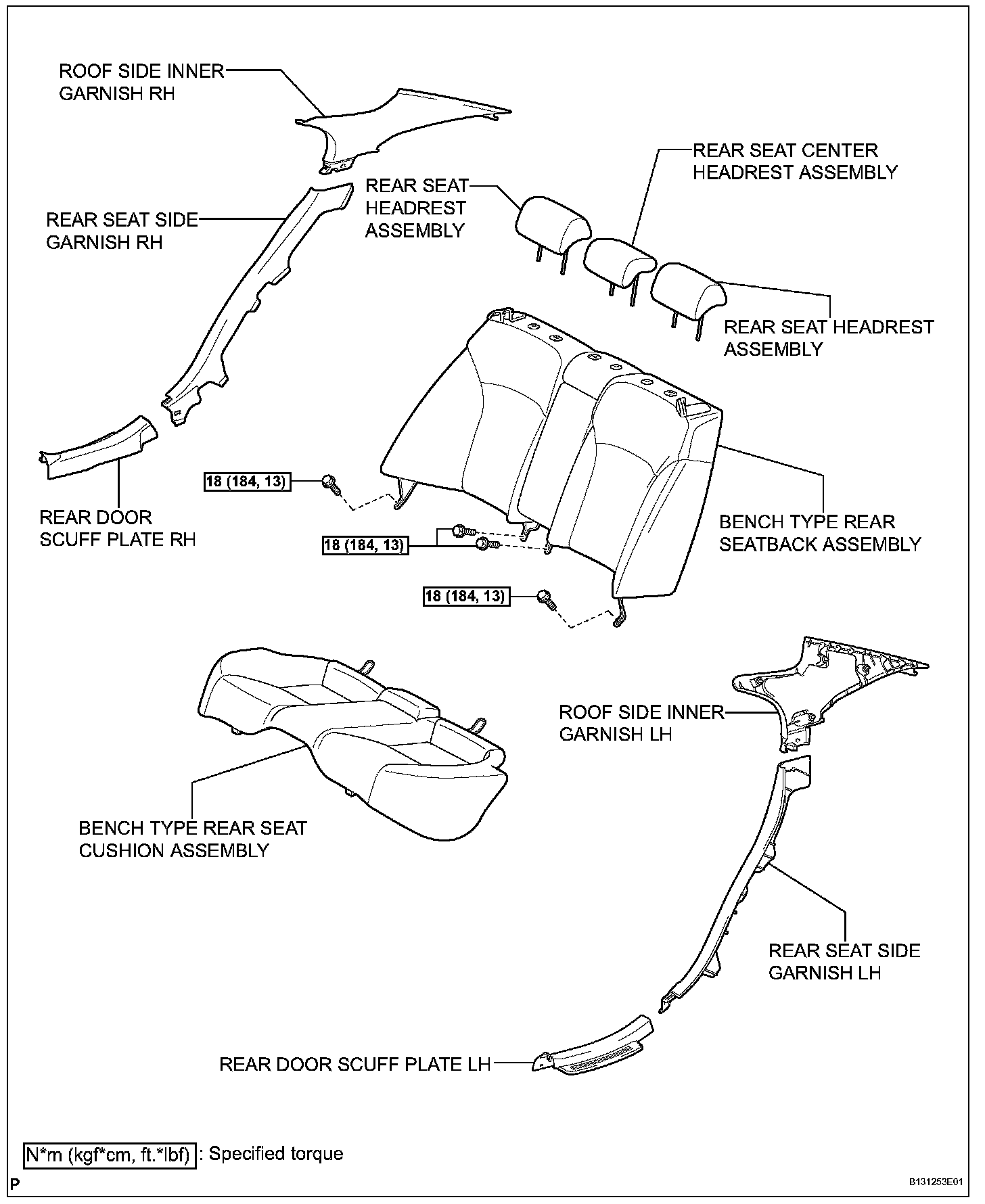

Child Restraint Seat Tether Anchor:

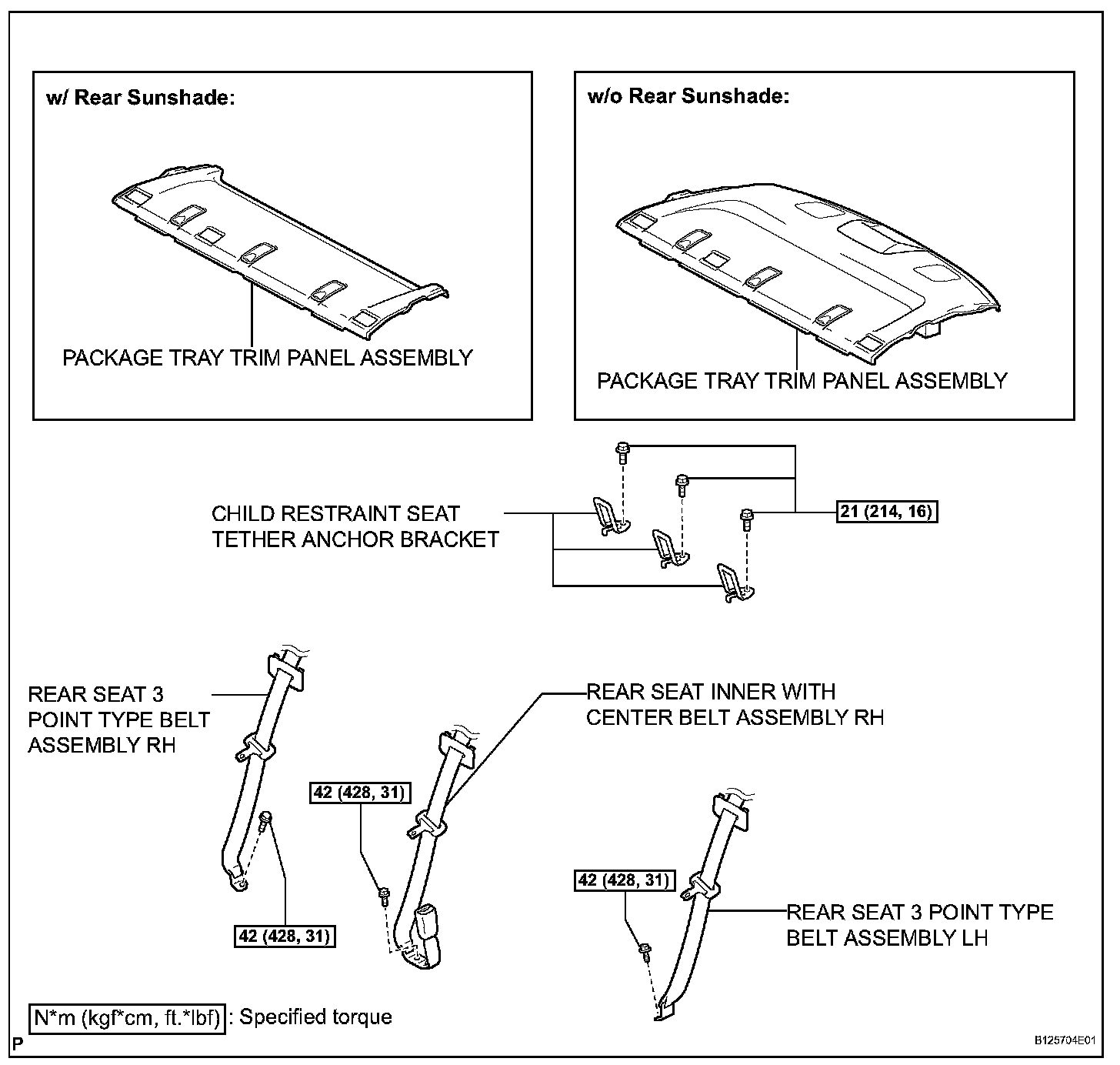

Child Restraint Seat Tether Anchor:

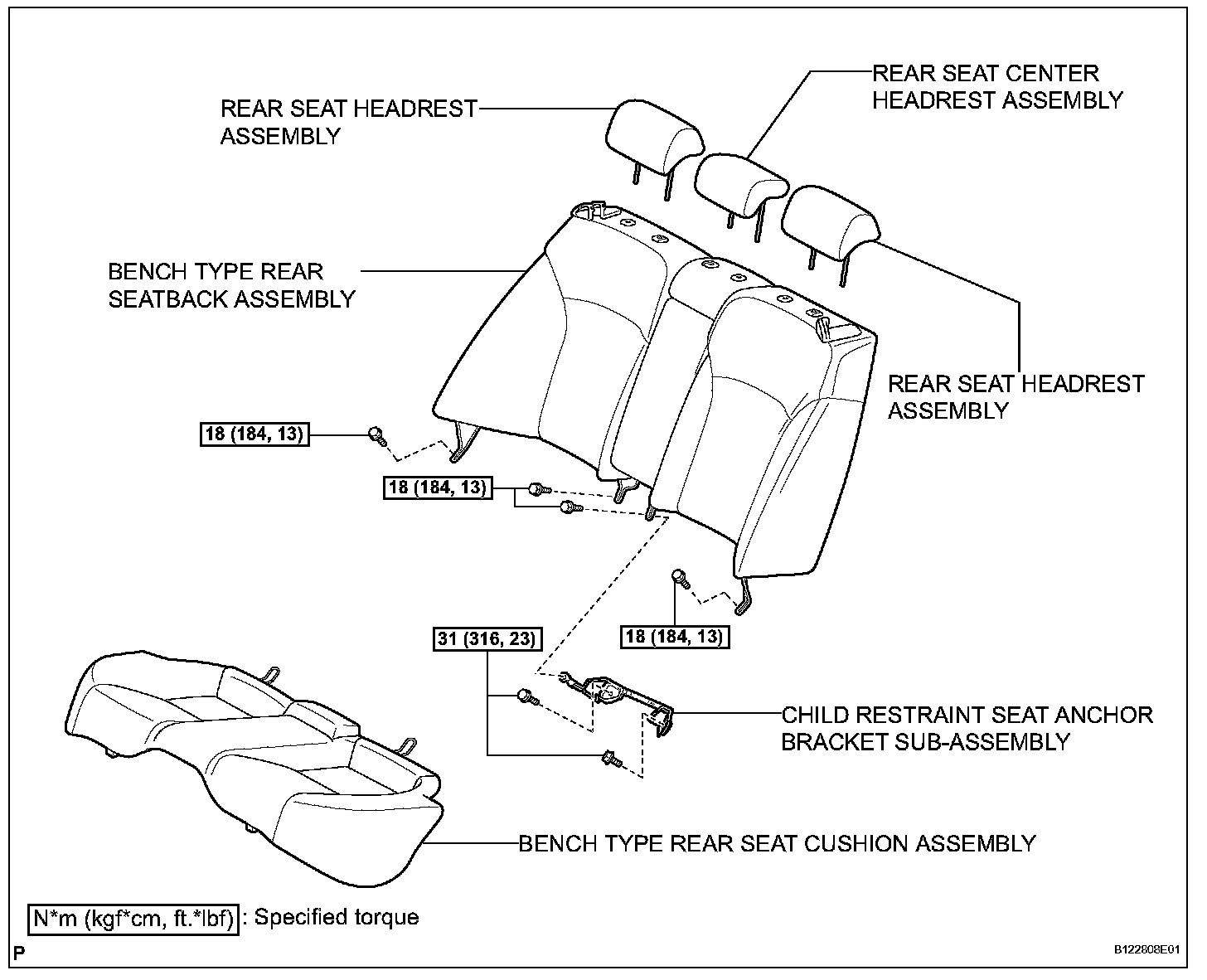

Child Restraint Seat Anchor Bracket:
