Oxygen Sensor

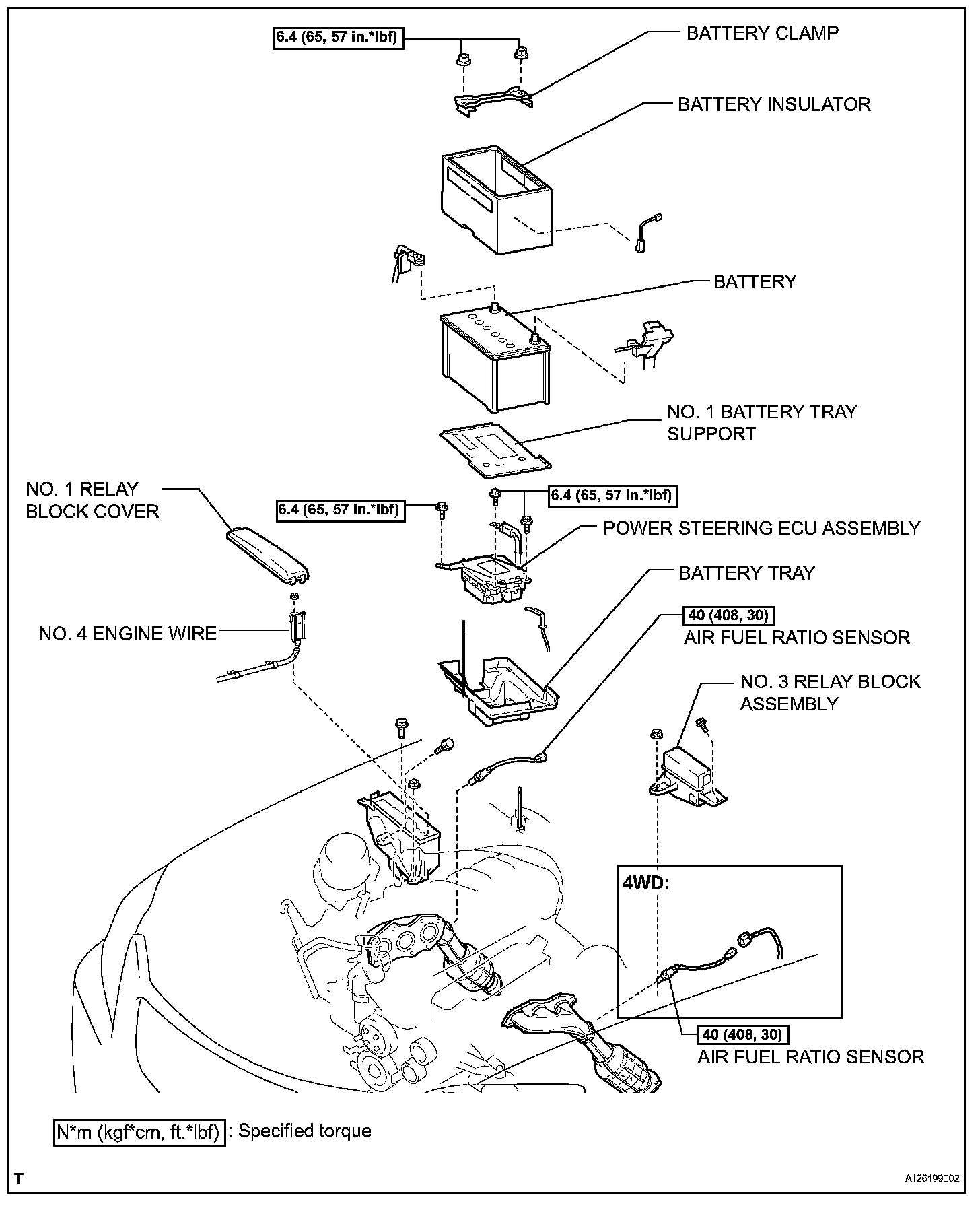

Air Fuel Ratio Sensor (for Sensor 1):



Air Fuel Ratio Sensor (for Sensor 1):



Air Fuel Ratio Sensor (for Sensor 1):

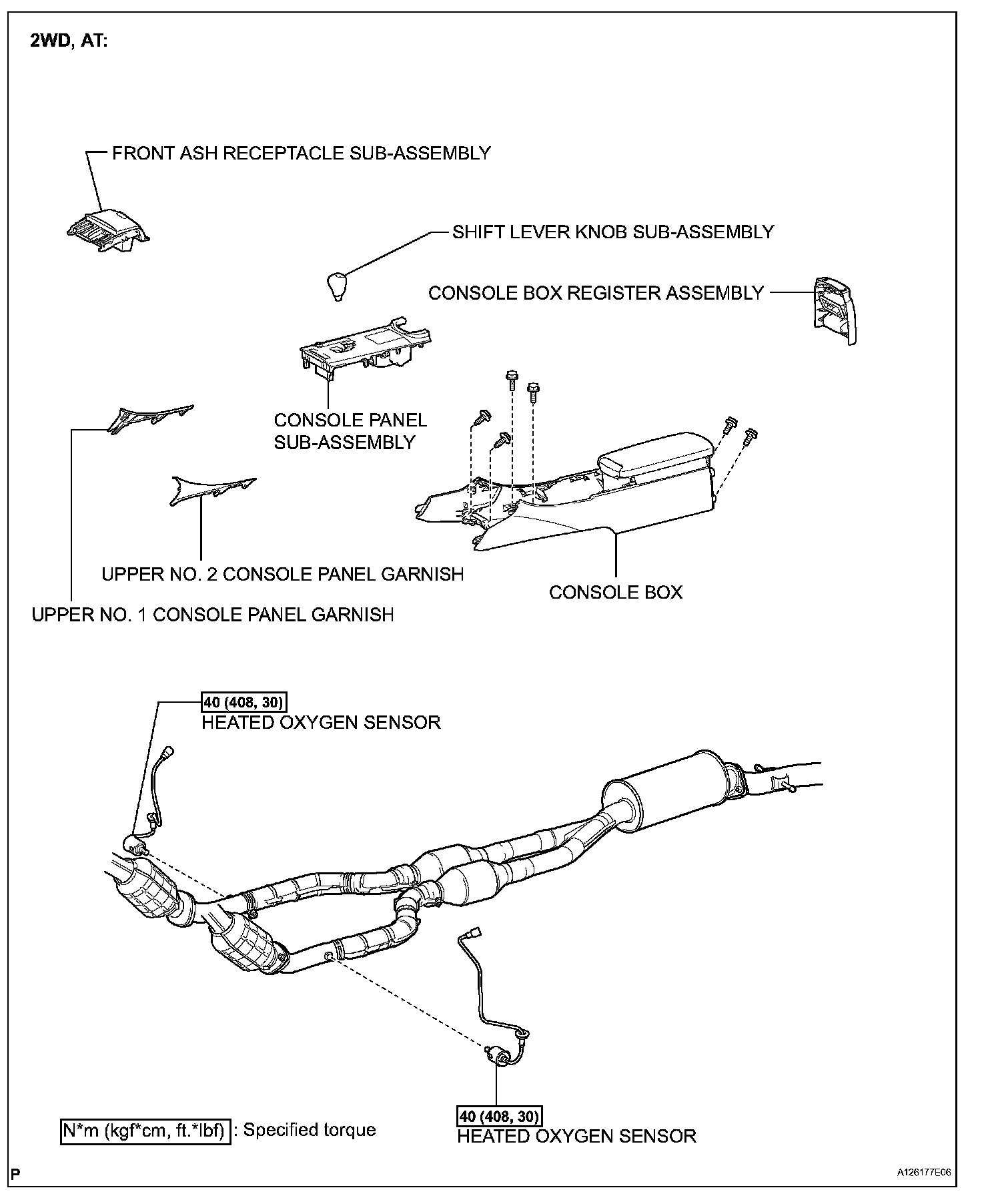

Heated Oxygen Sensor (for Sensor 2):

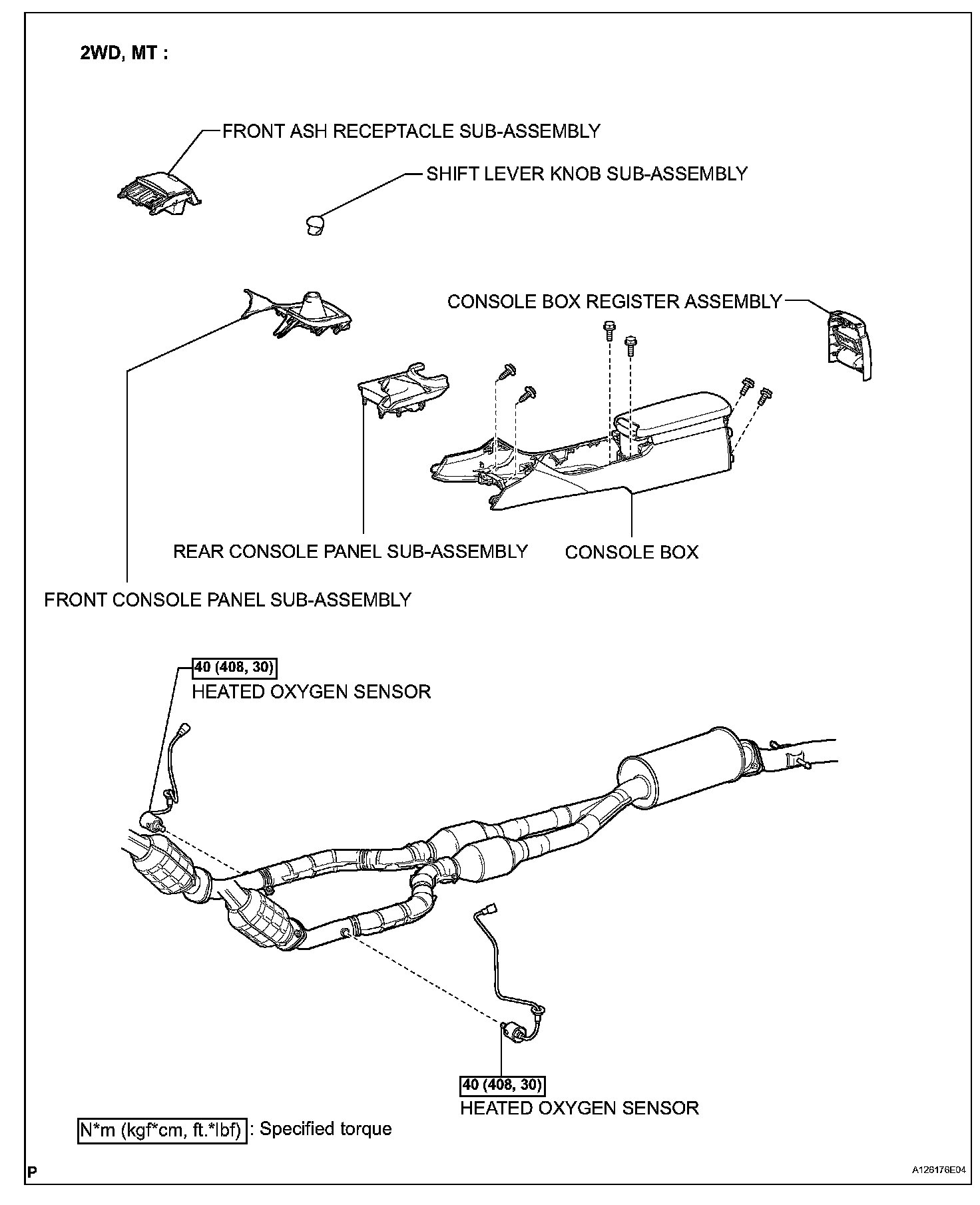

Heated Oxygen Sensor (for Sensor 2):

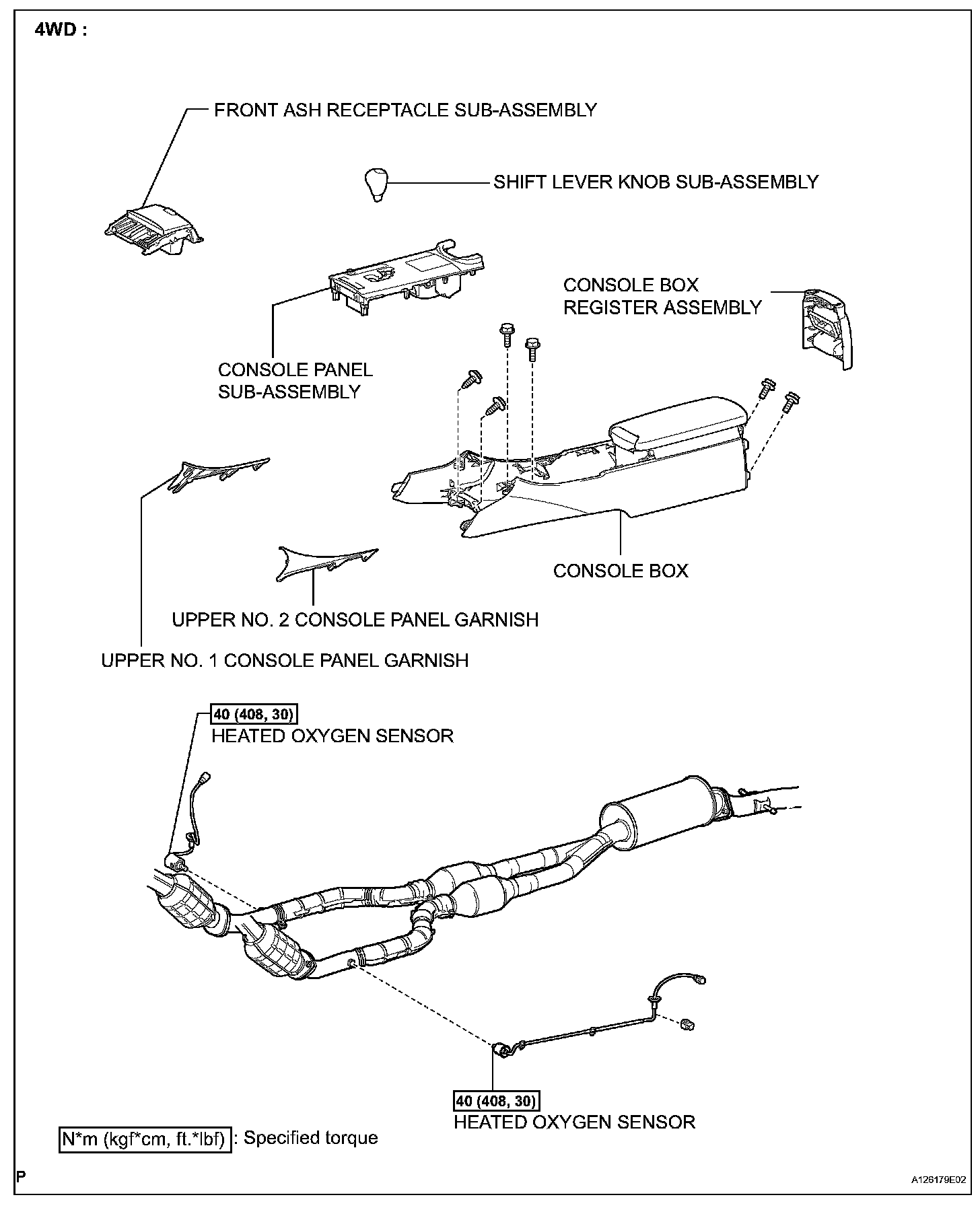

Heated Oxygen Sensor (for Sensor 2):

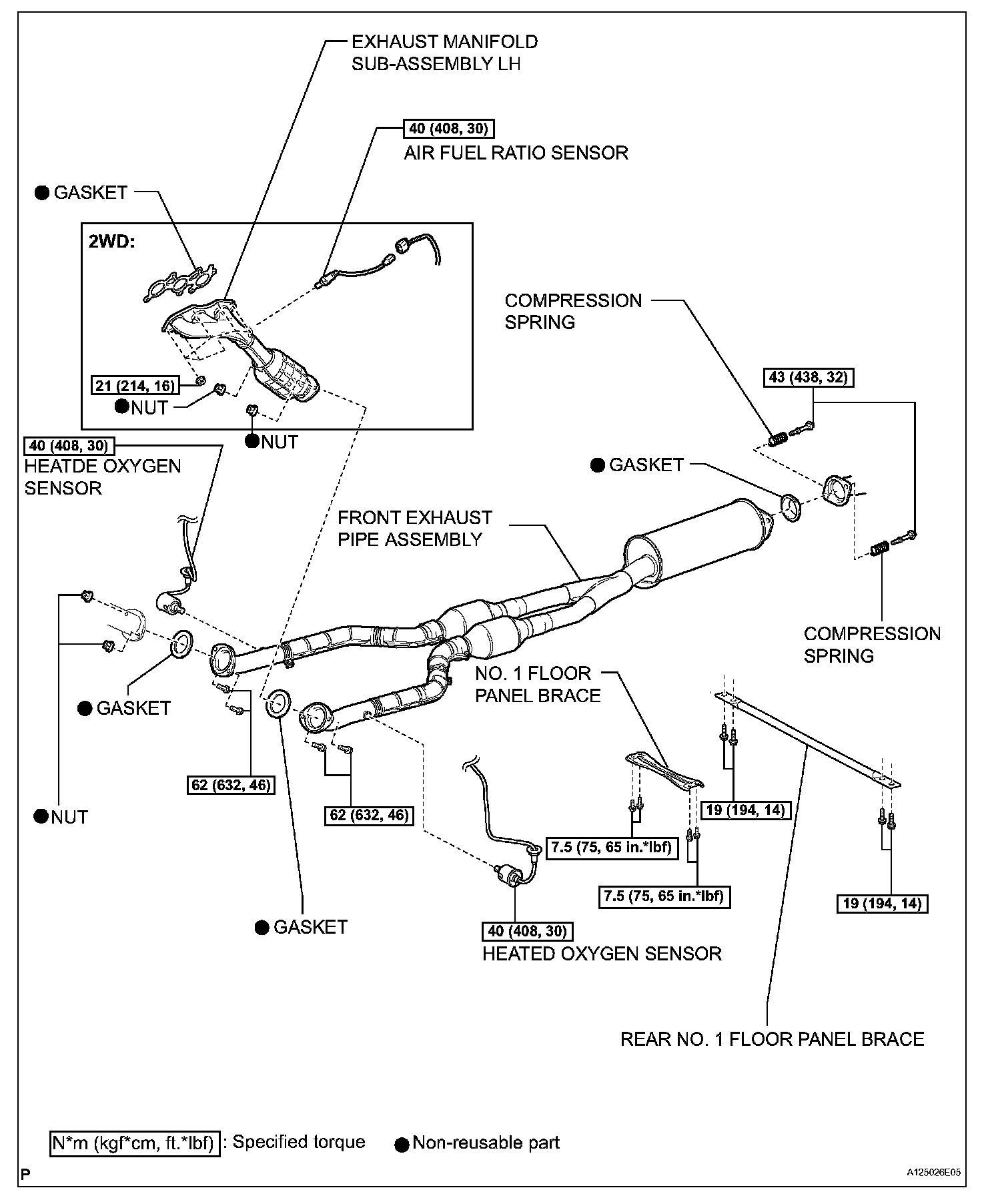

Heated Oxygen Sensor (for Sensor 2):



Heated Oxygen Sensor (for Sensor 2):
