Home
>>
Lexus
>>
2006
>>
IS 250 AWD V6-2.5L (4GR-FSE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Antenna, Navigation
Antenna, Navigation

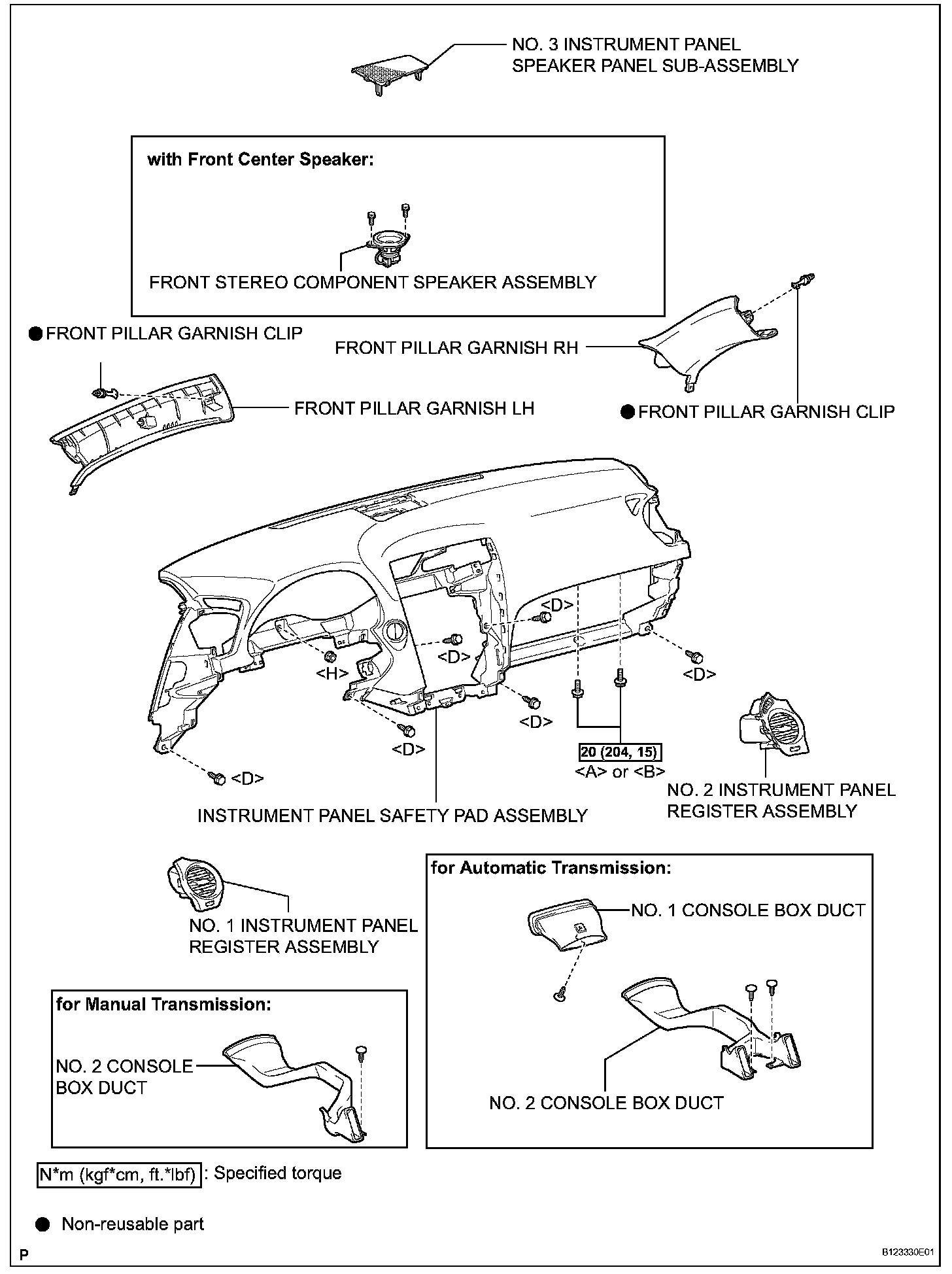

Navigation Antenna:

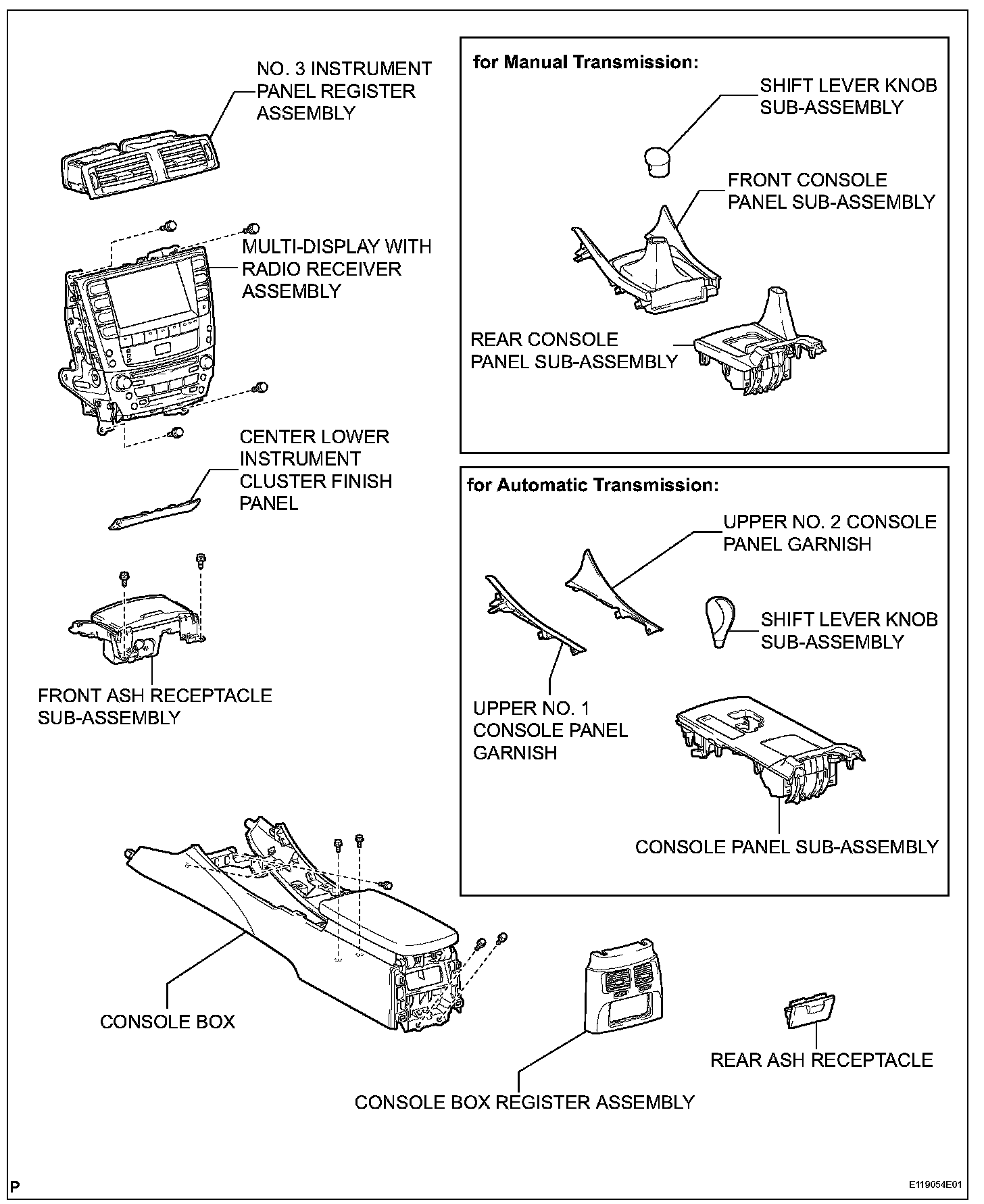

Navigation Antenna:

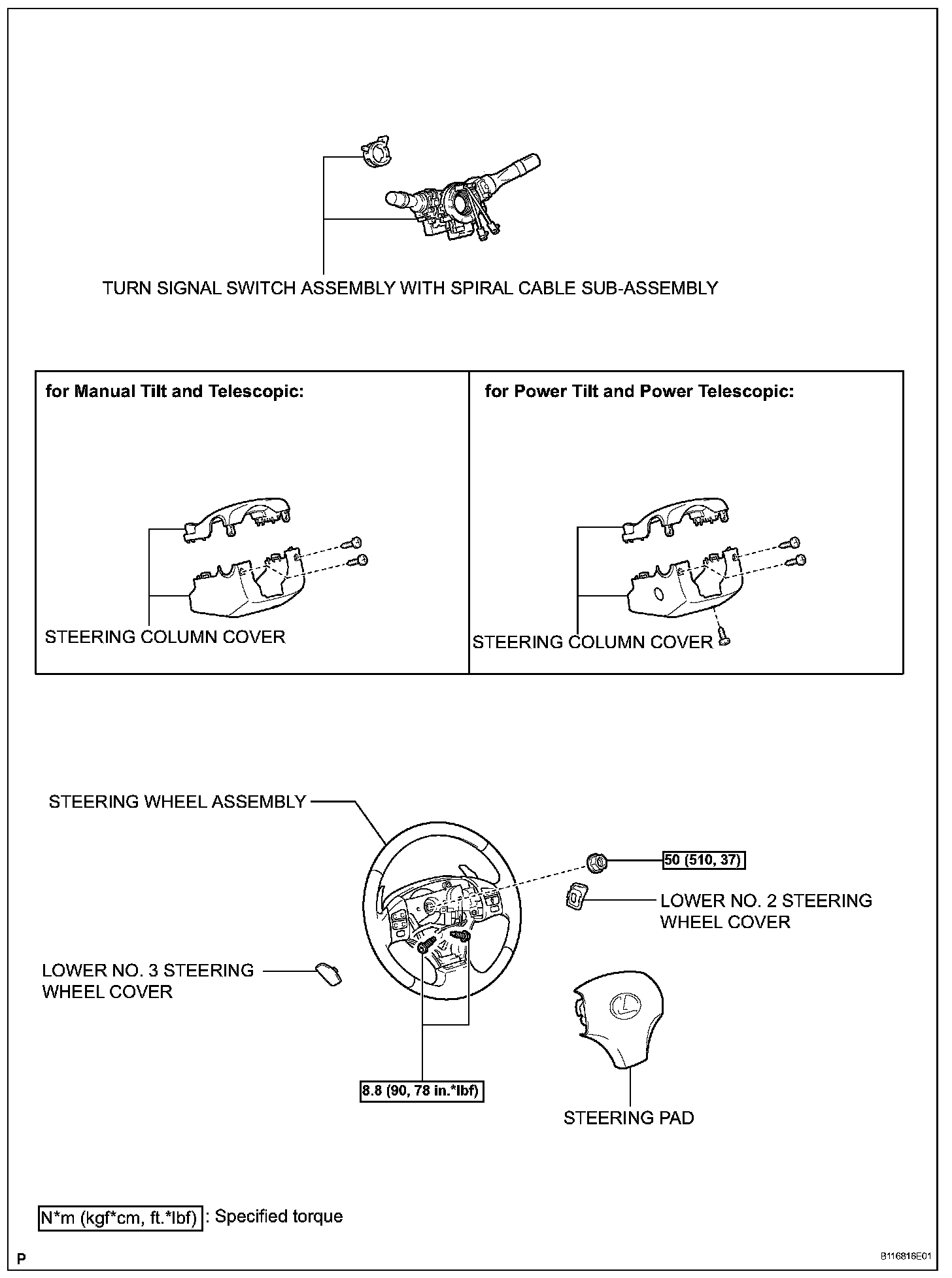

Navigation Antenna:

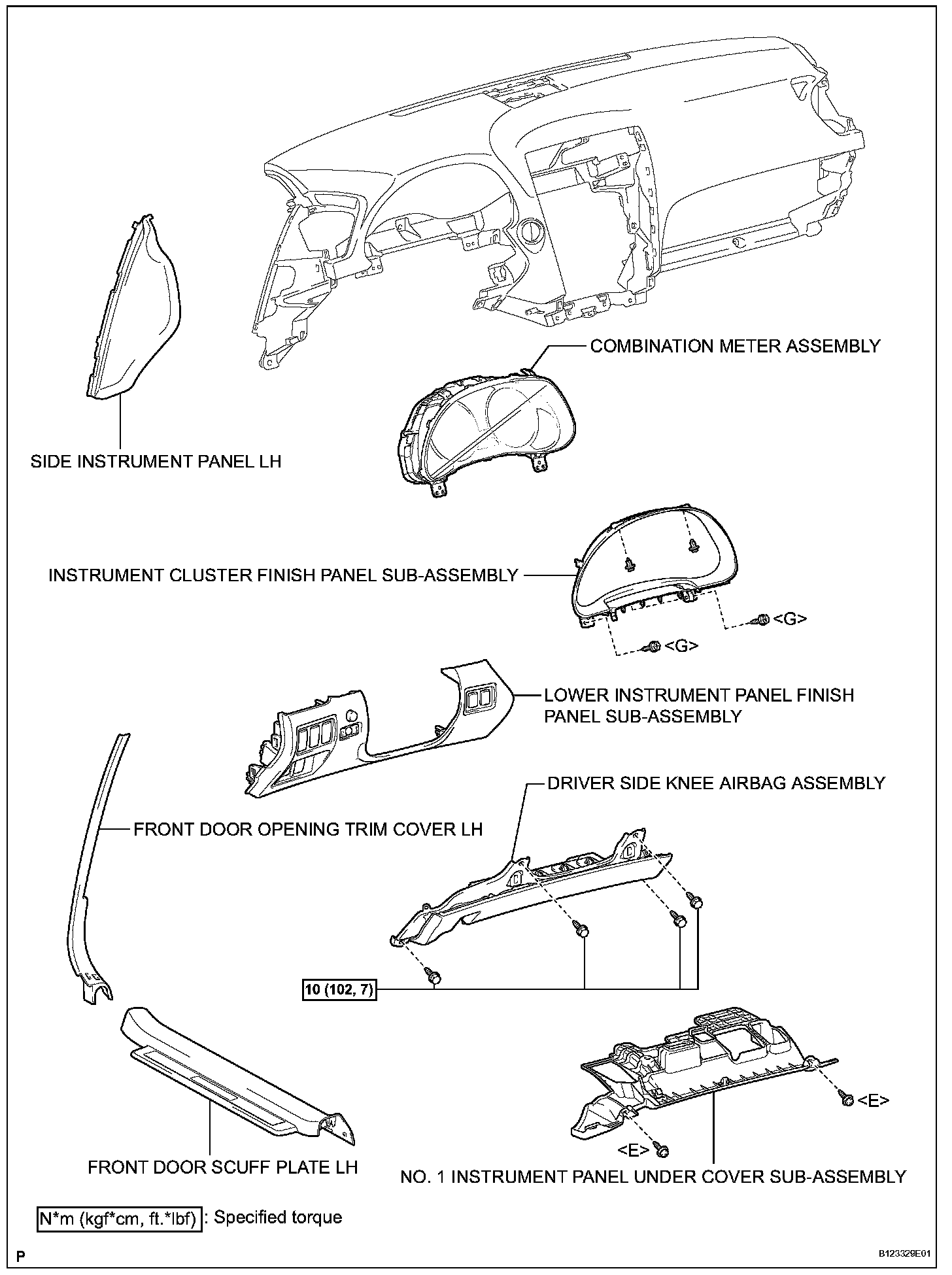

Navigation Antenna:

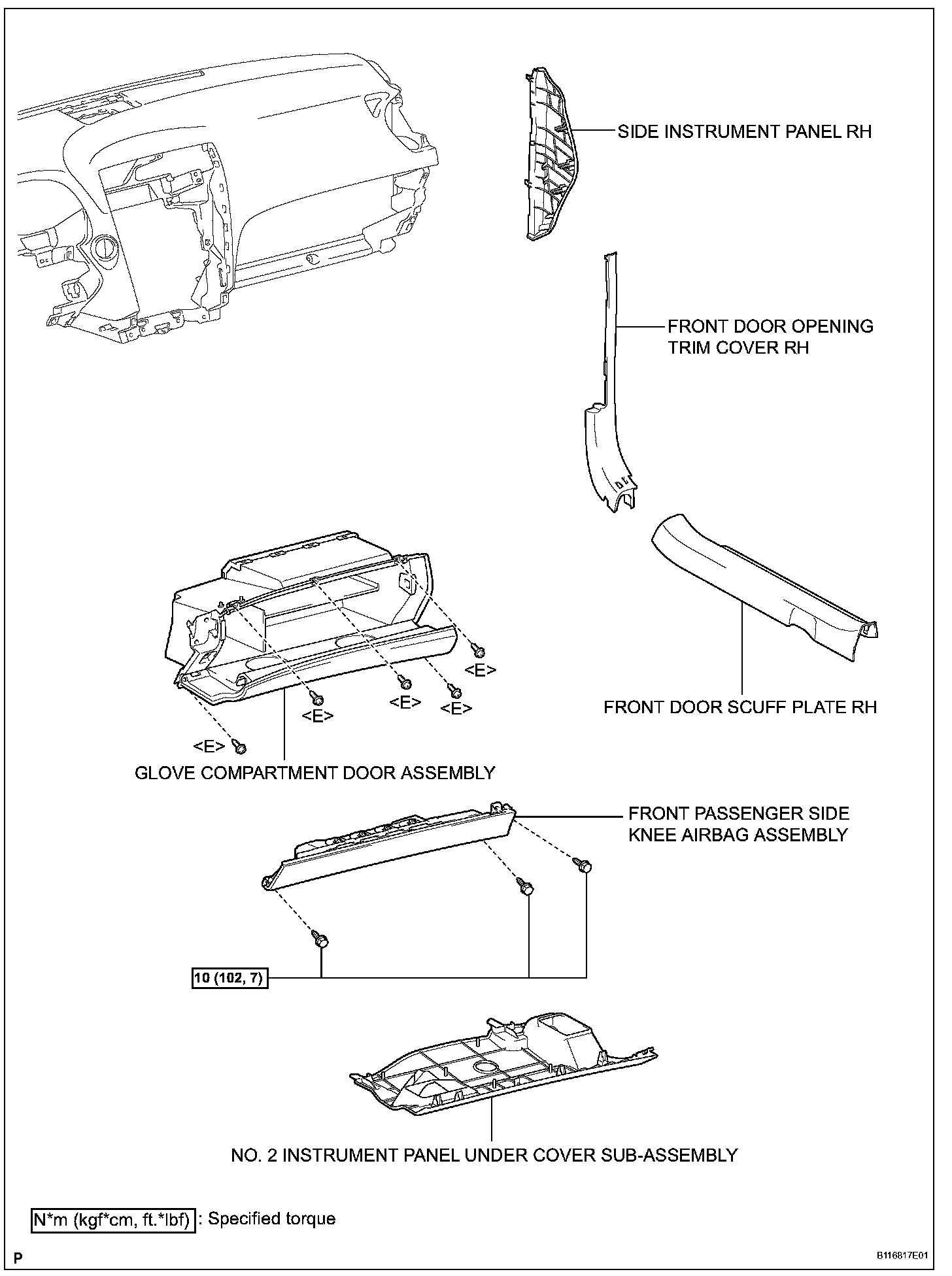

Navigation Antenna:

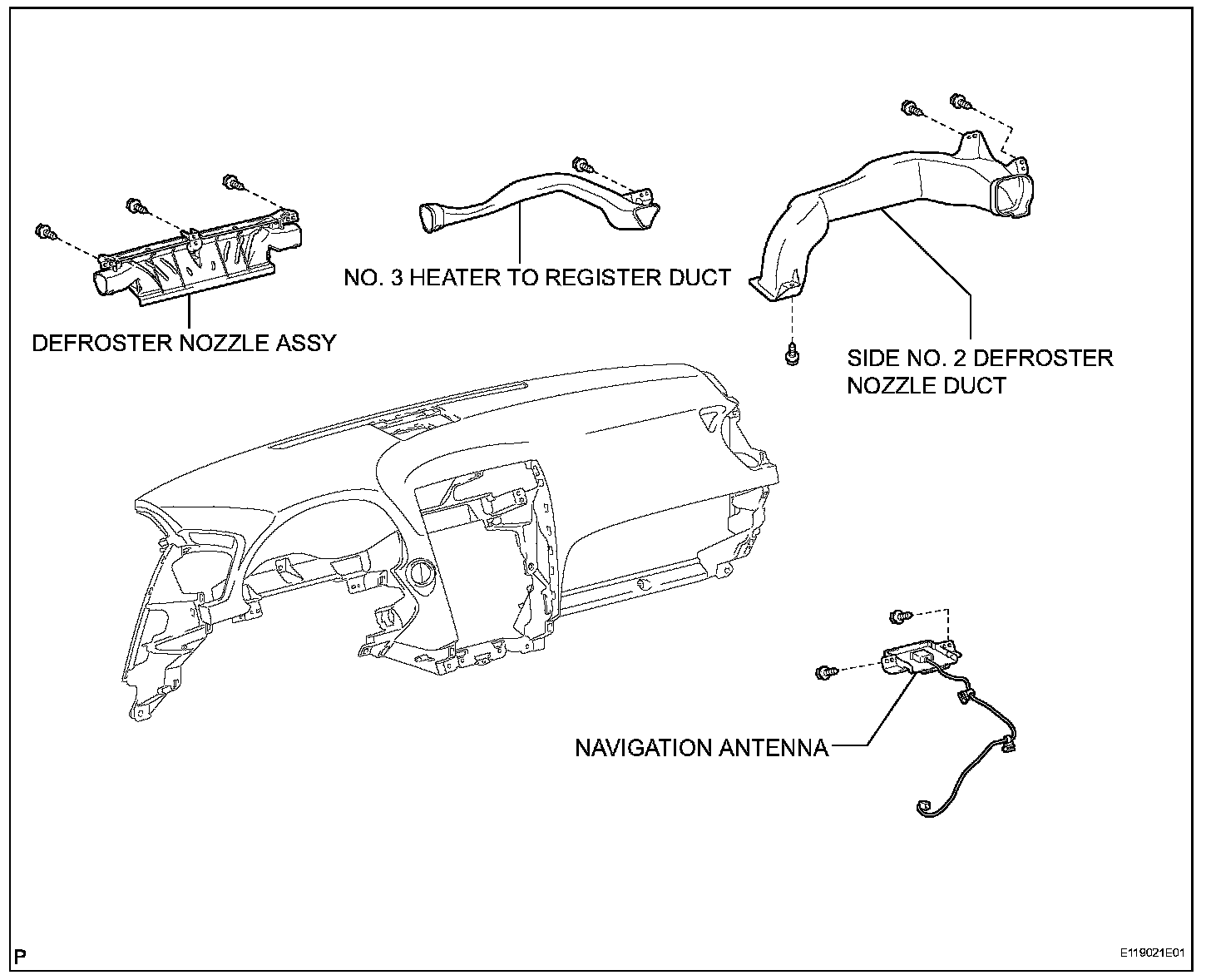

Navigation Antenna:
