Air Bag

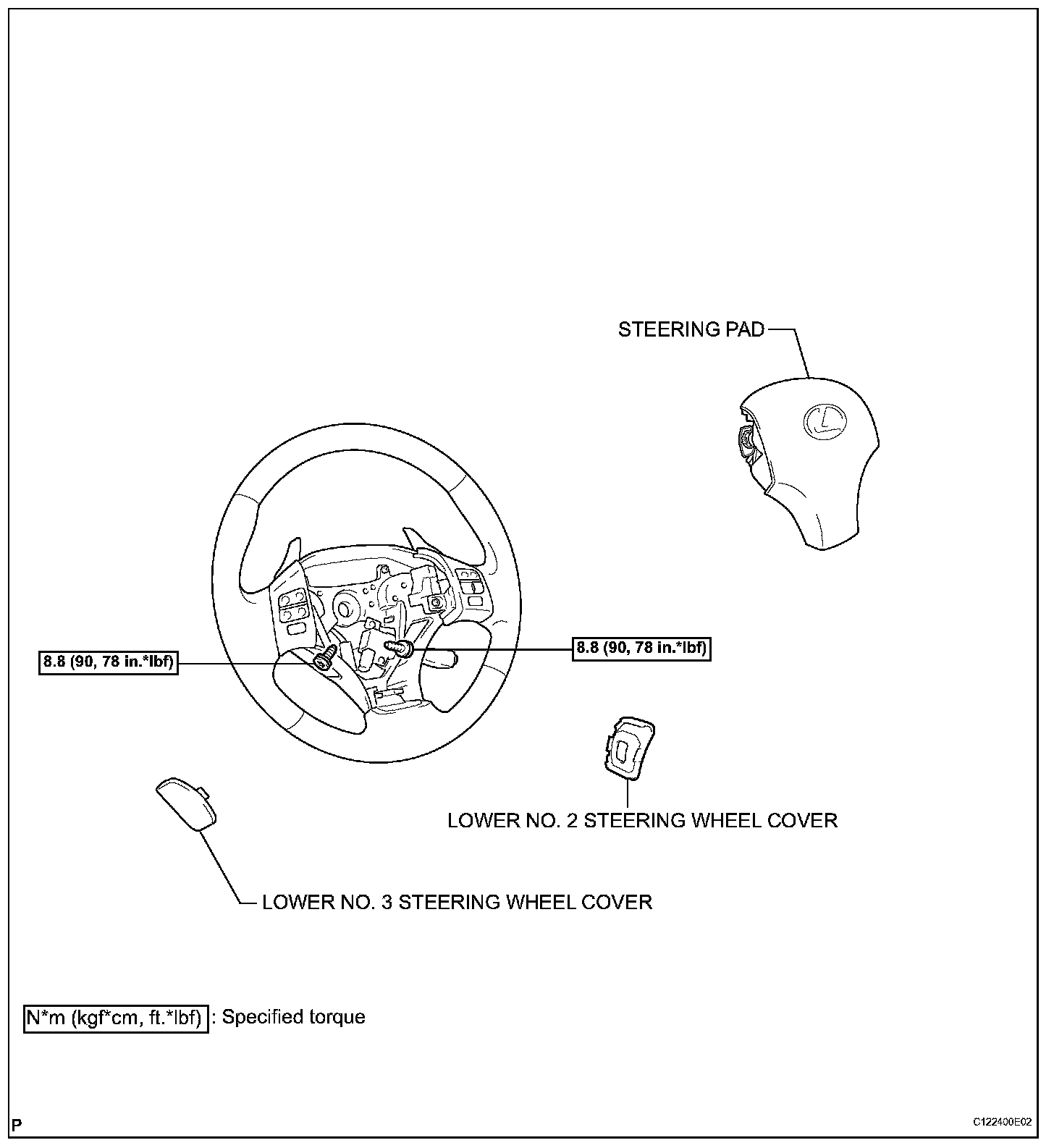

Steering Pad:

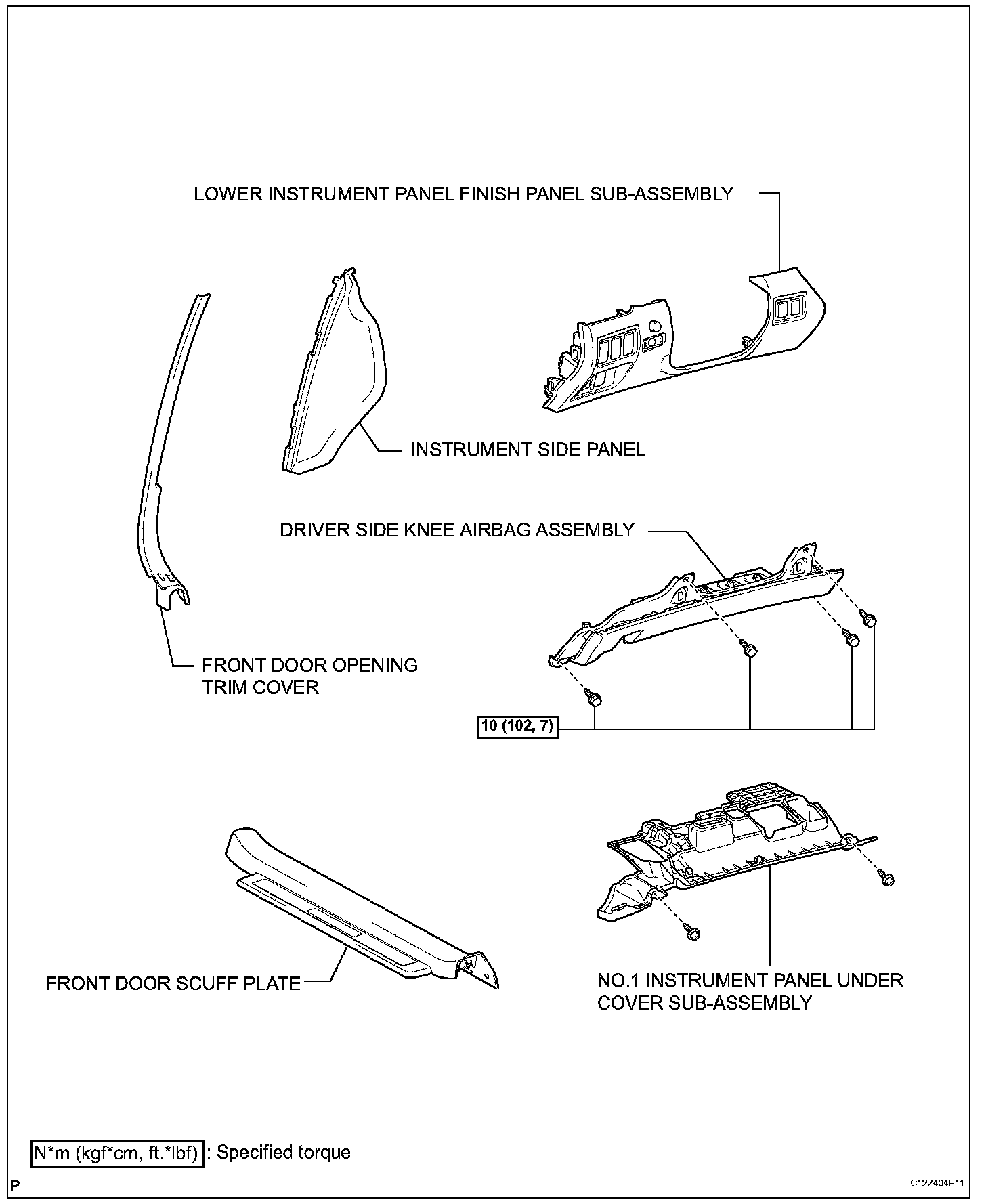

Driver Side Knee Airbag Assembly:

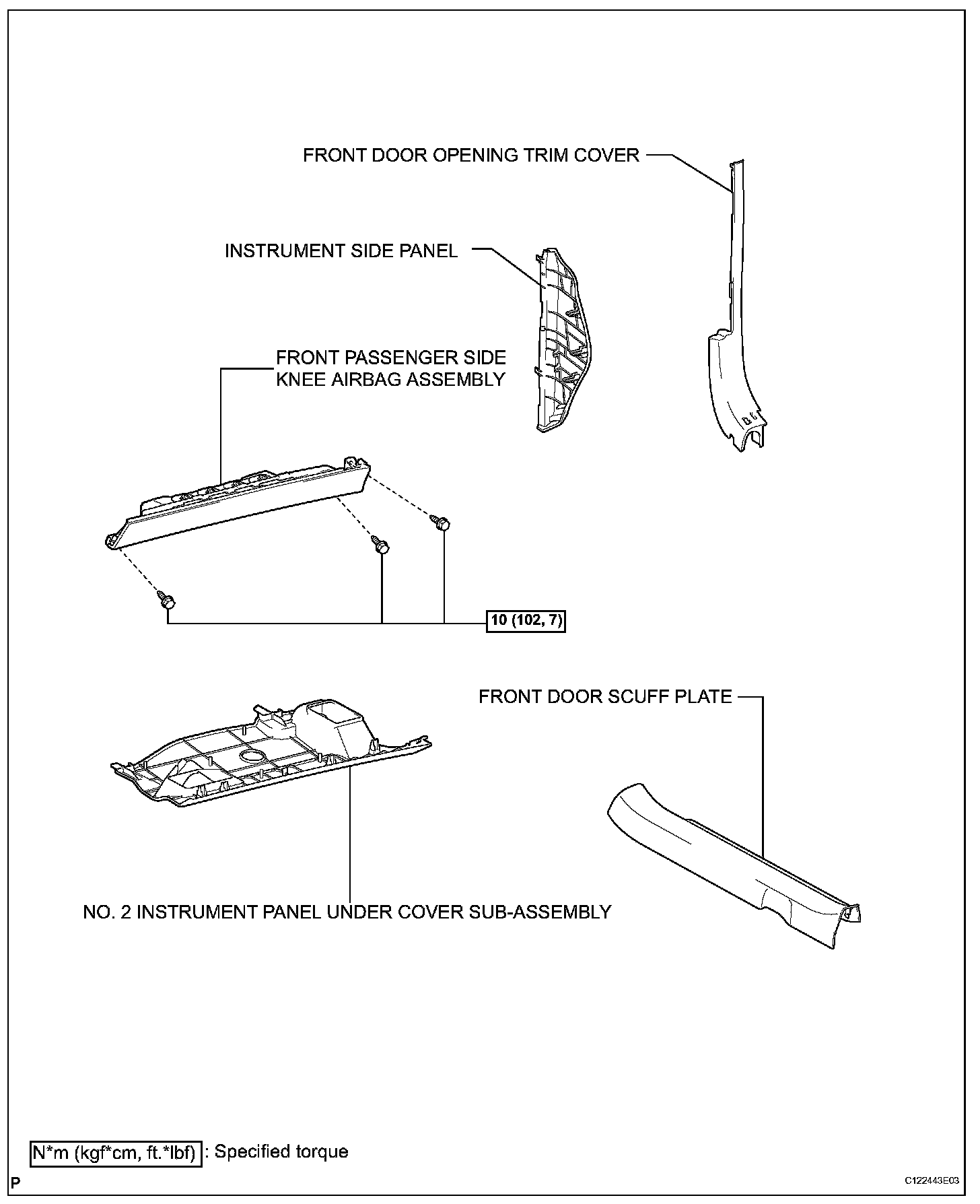

Front Passenger Side Knee Airbag Assembly:

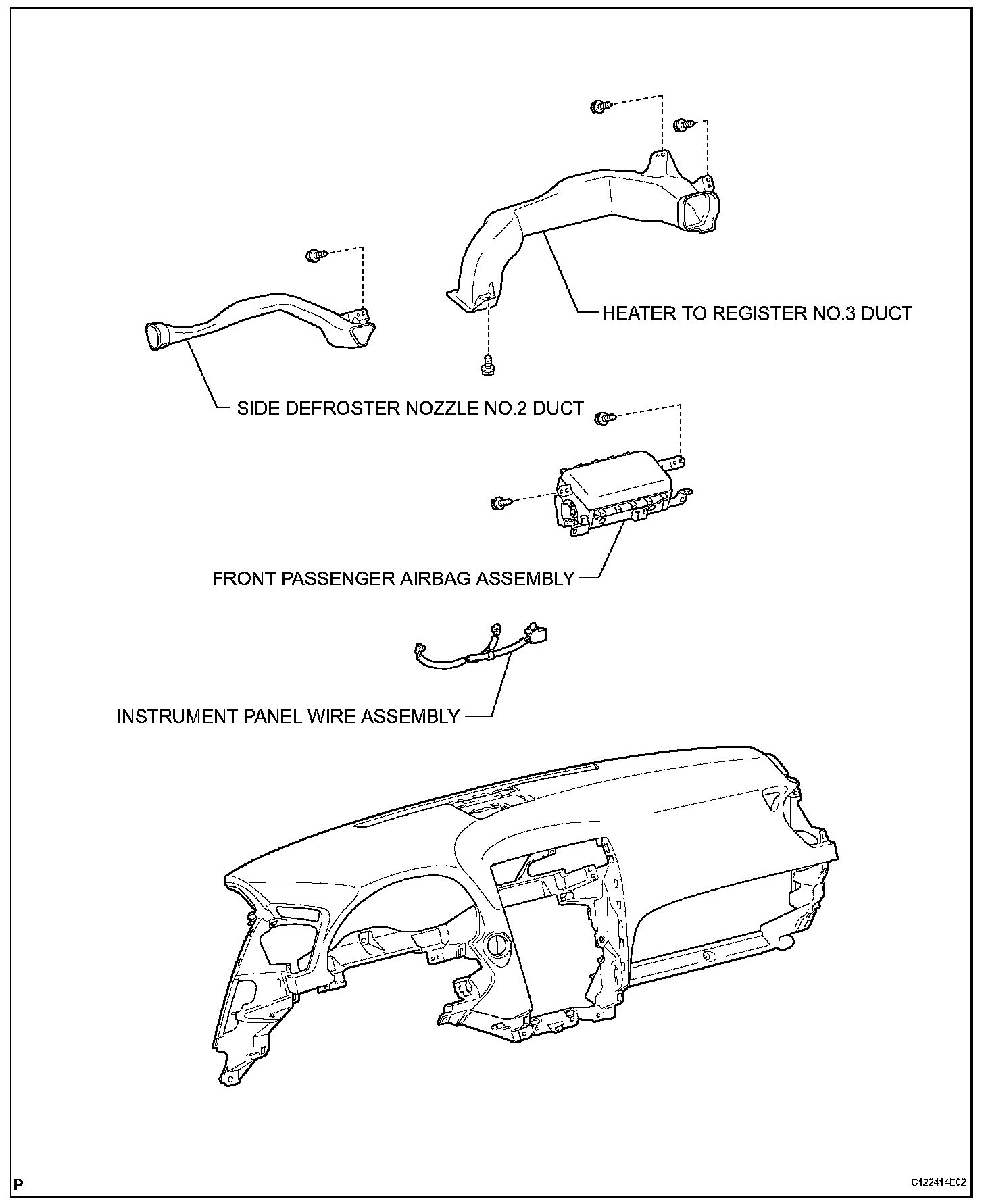

Front Passenger Airbag Assembly:

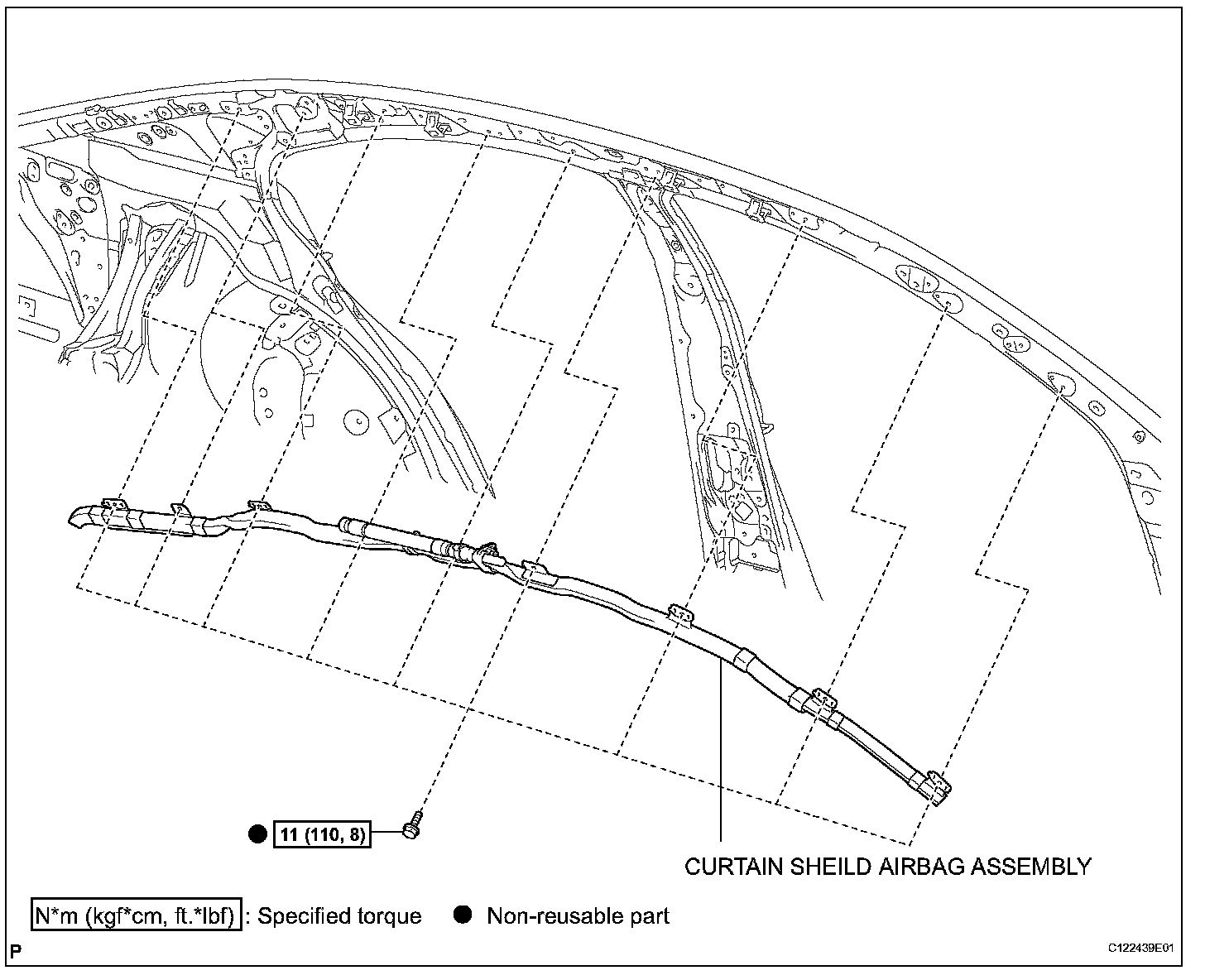

Curtain Shield Airbag Assembly:
