System Diagram

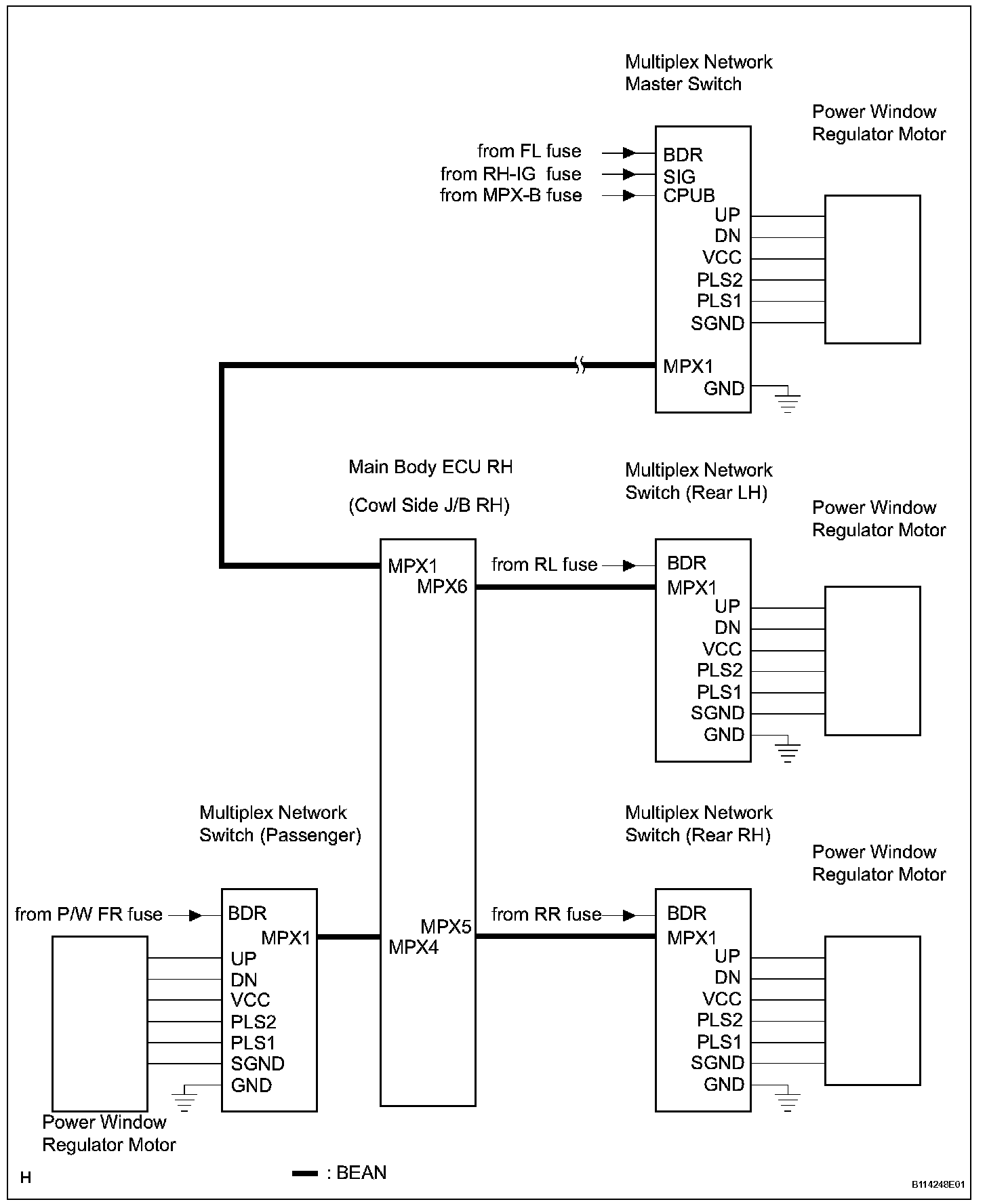

System Diagram:

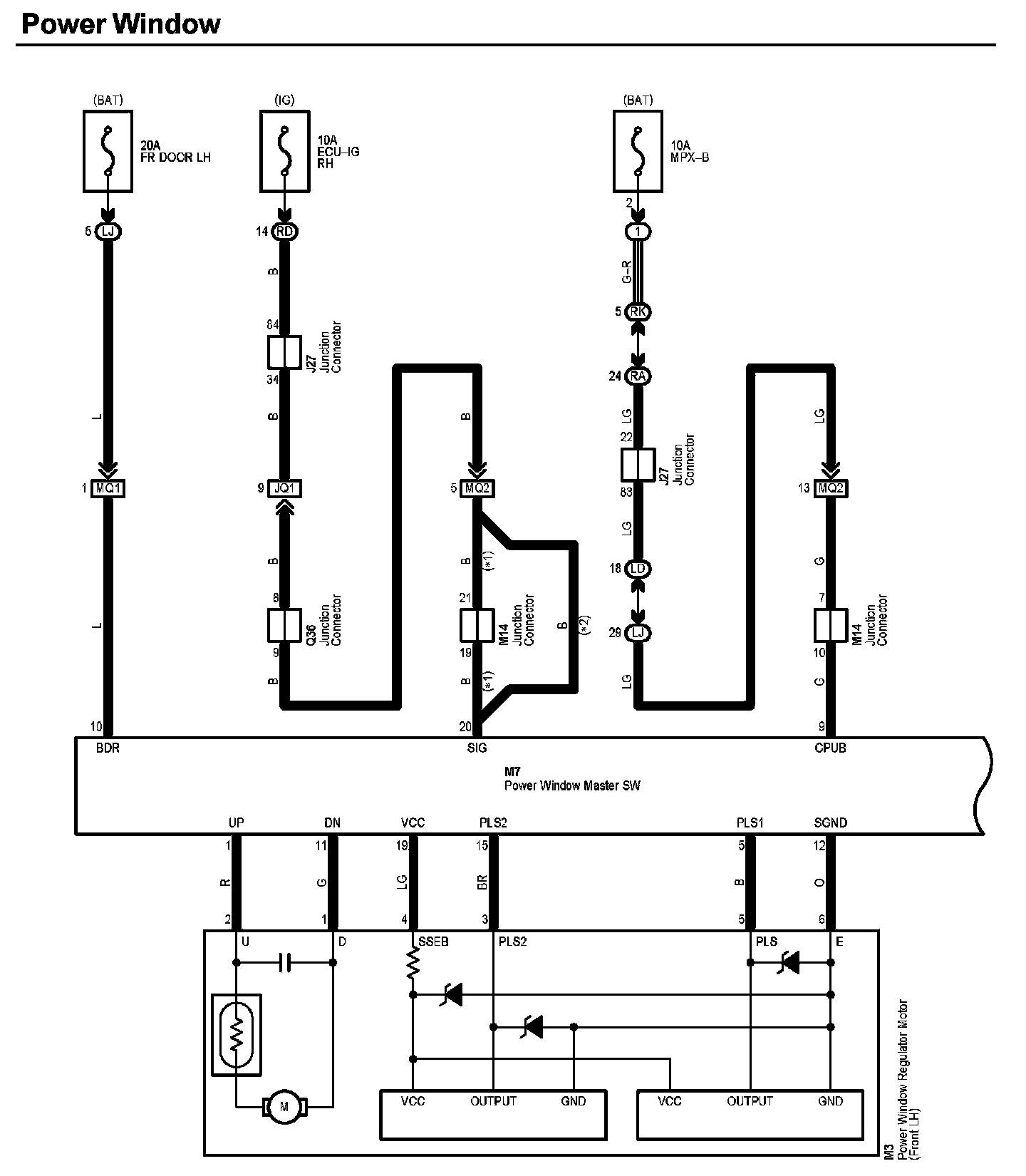

Power Window (Part 1):

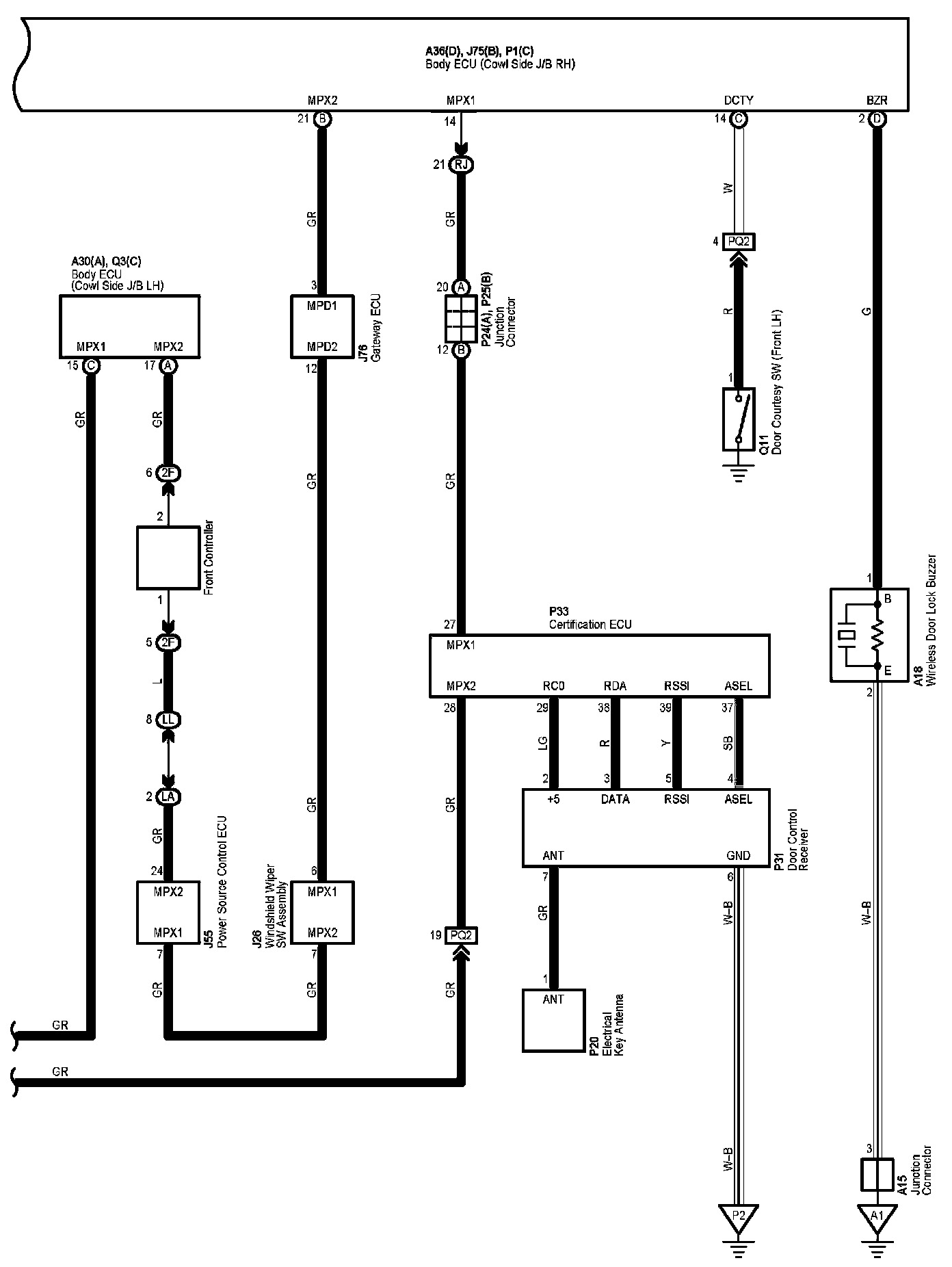

Power Window (Part 2):

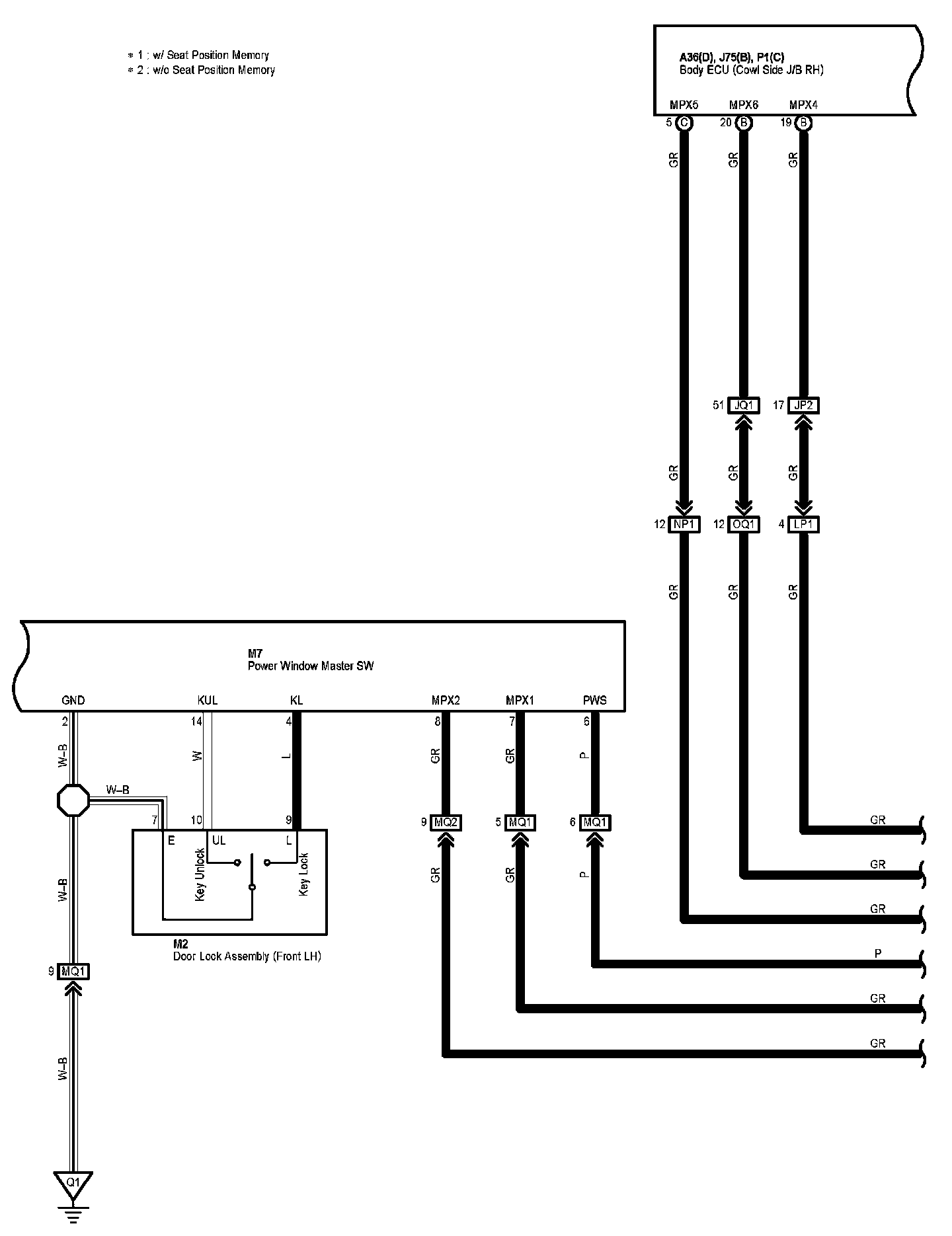

Power Window (Part 3):

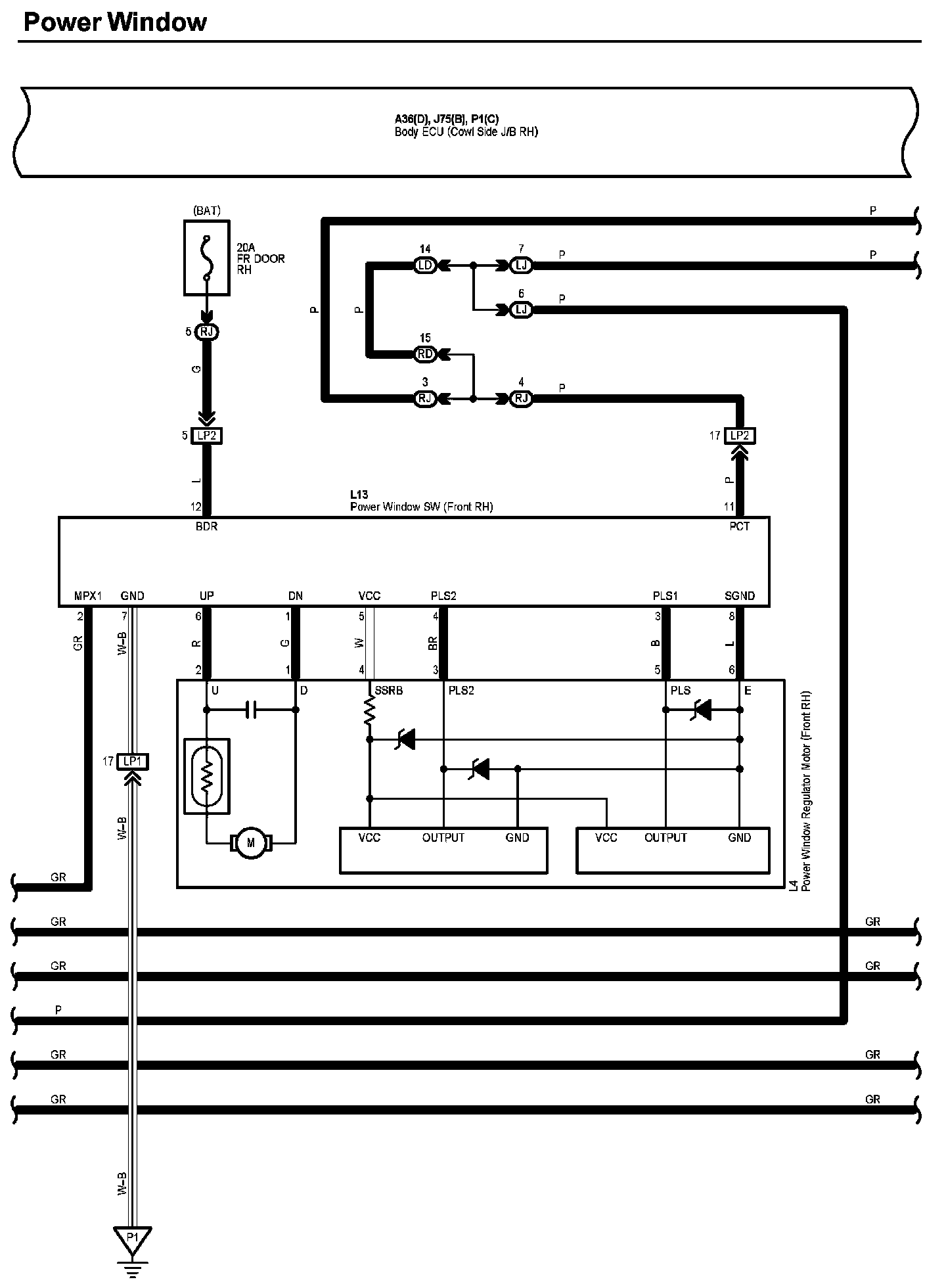

Power Window (Part 4):

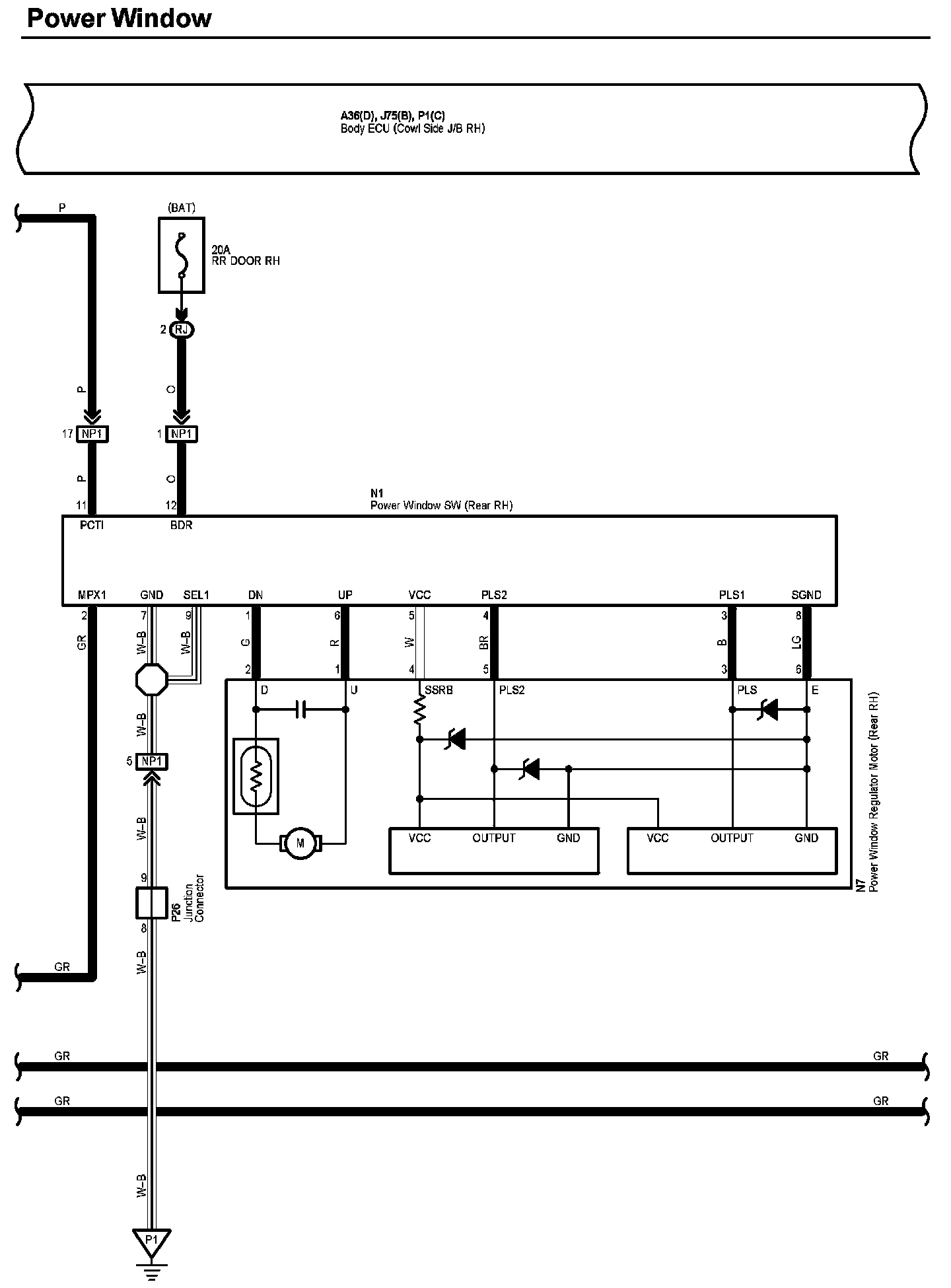

Power Window (Part 5):

Power Window (Part 6):

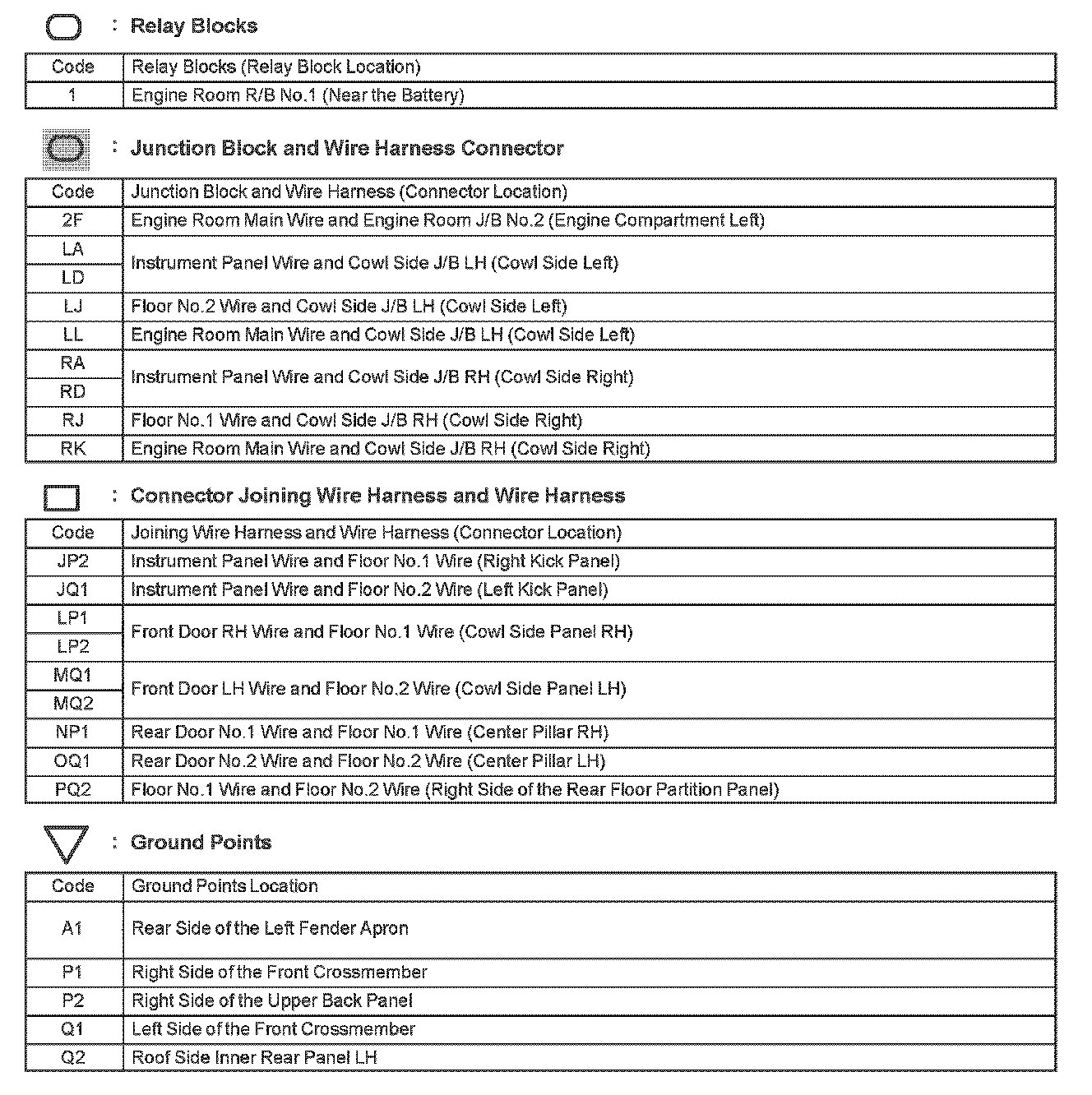

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
