System Diagram

System Diagram:

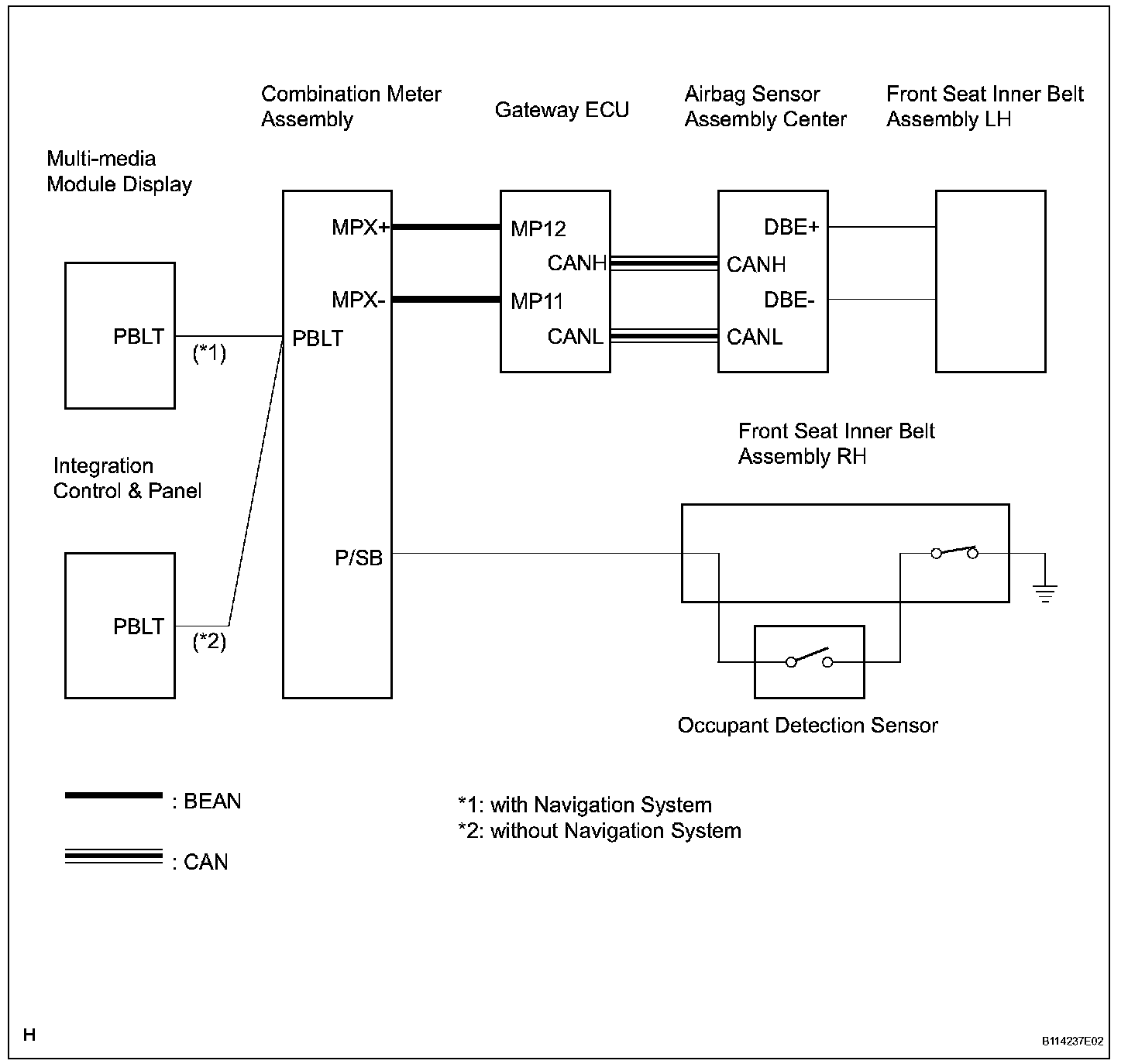

System Diagram (Part 1):

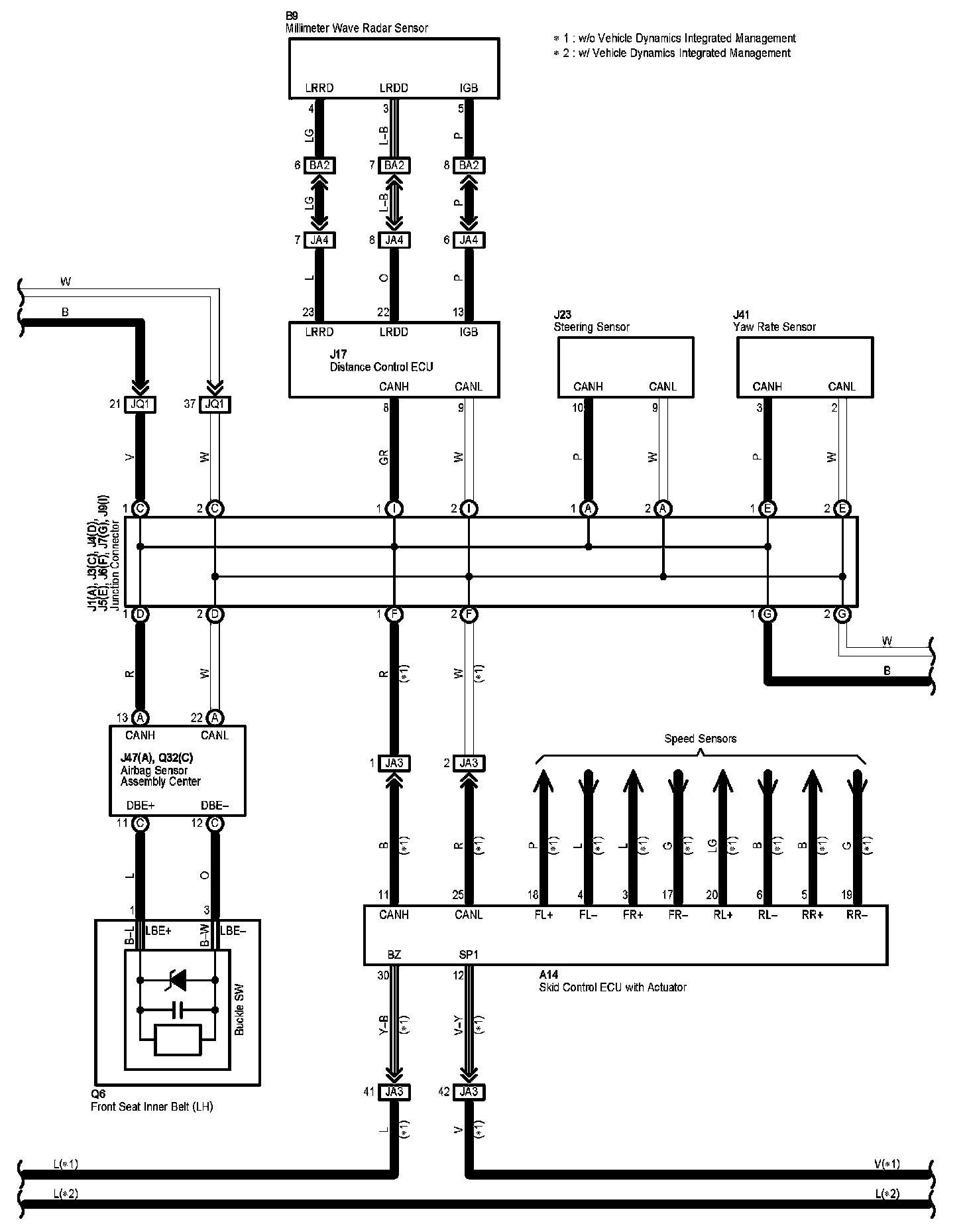

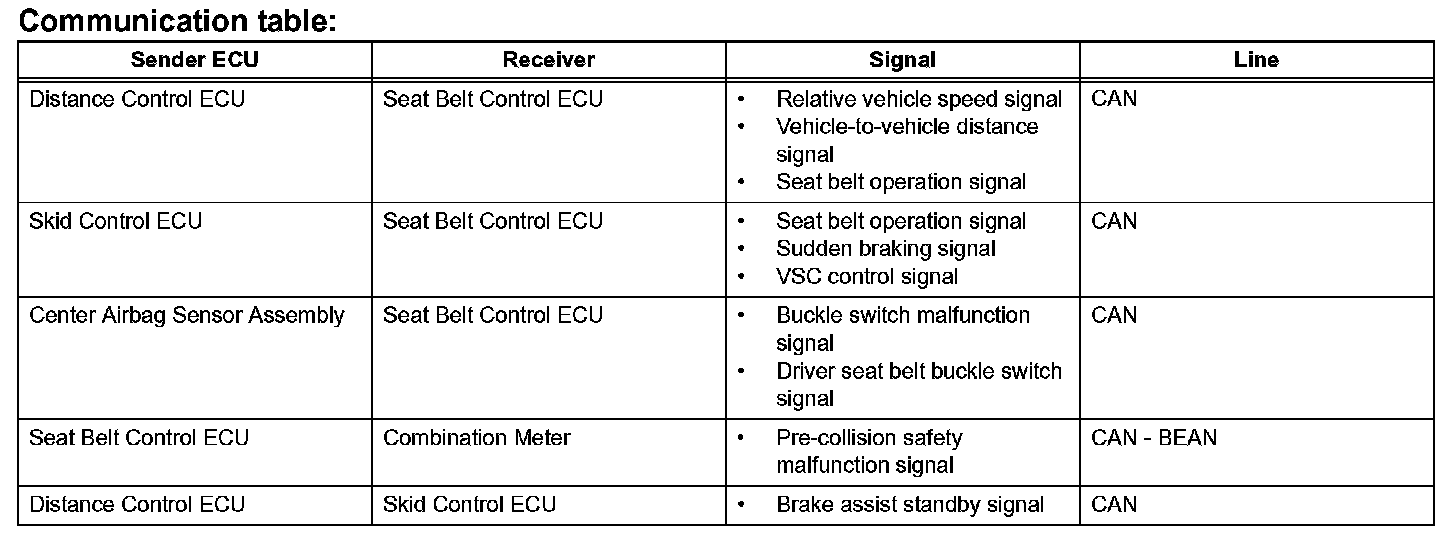

System Diagram (Part 2):

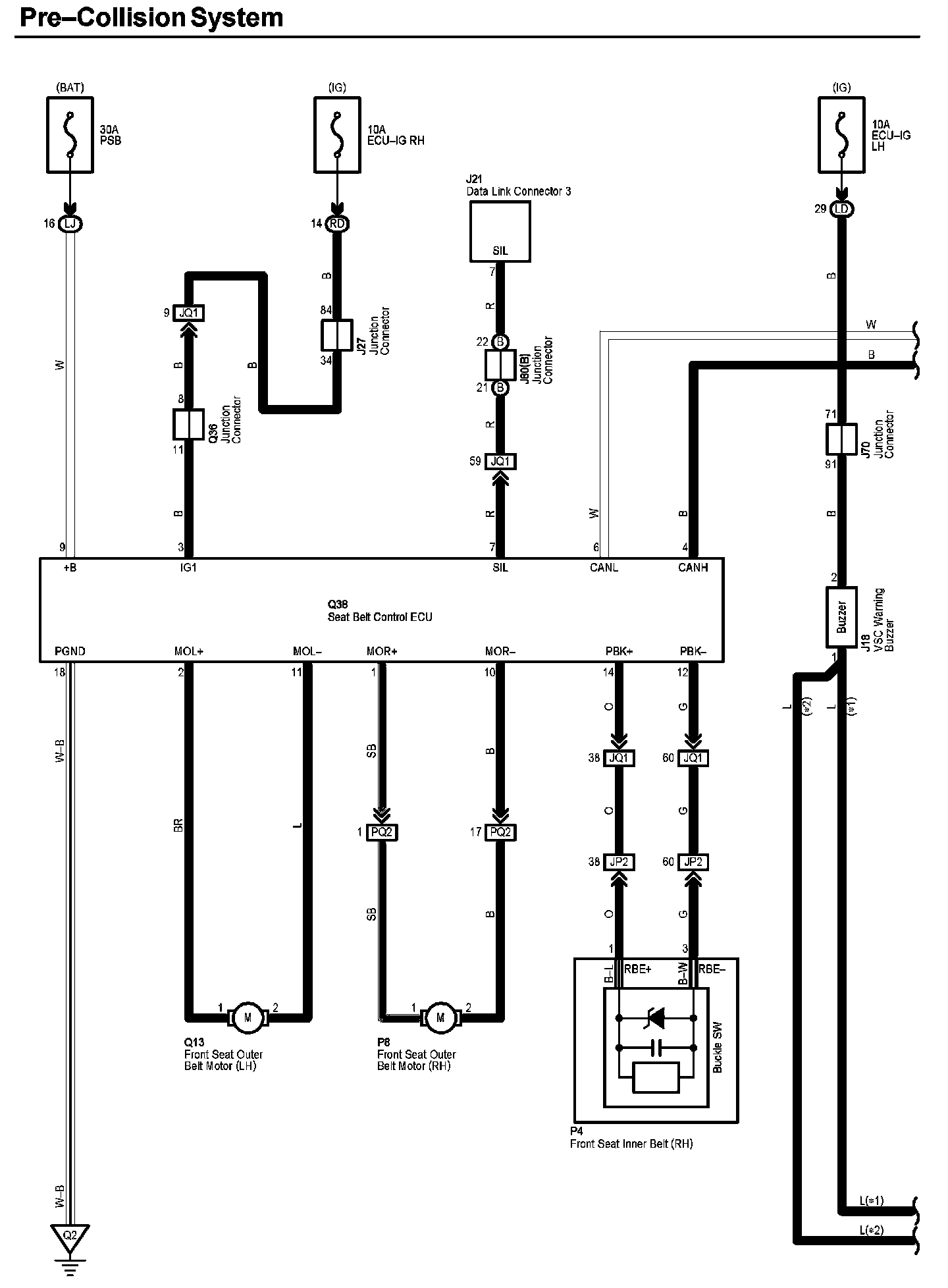

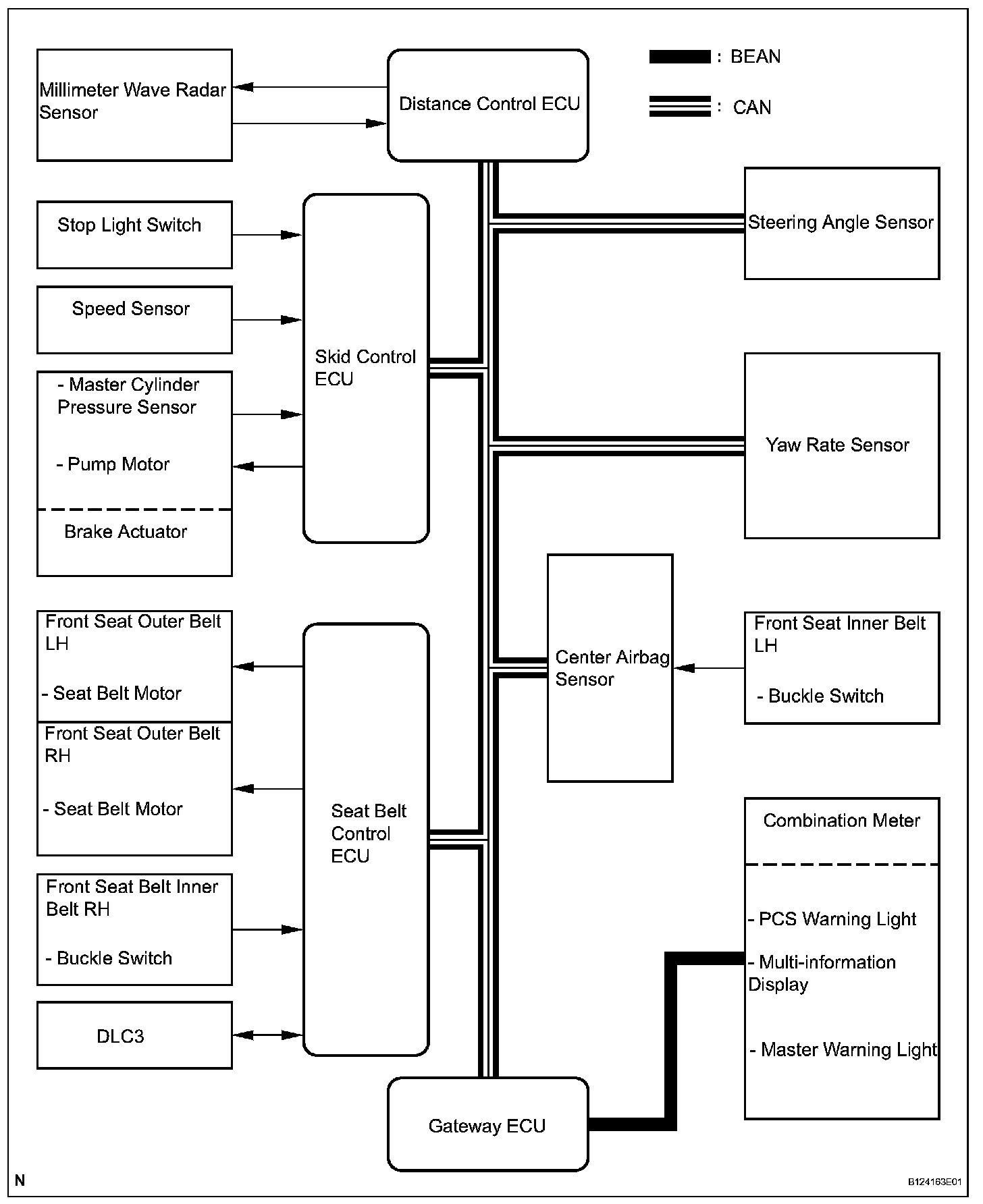

Pre-Collision System (Part 1):

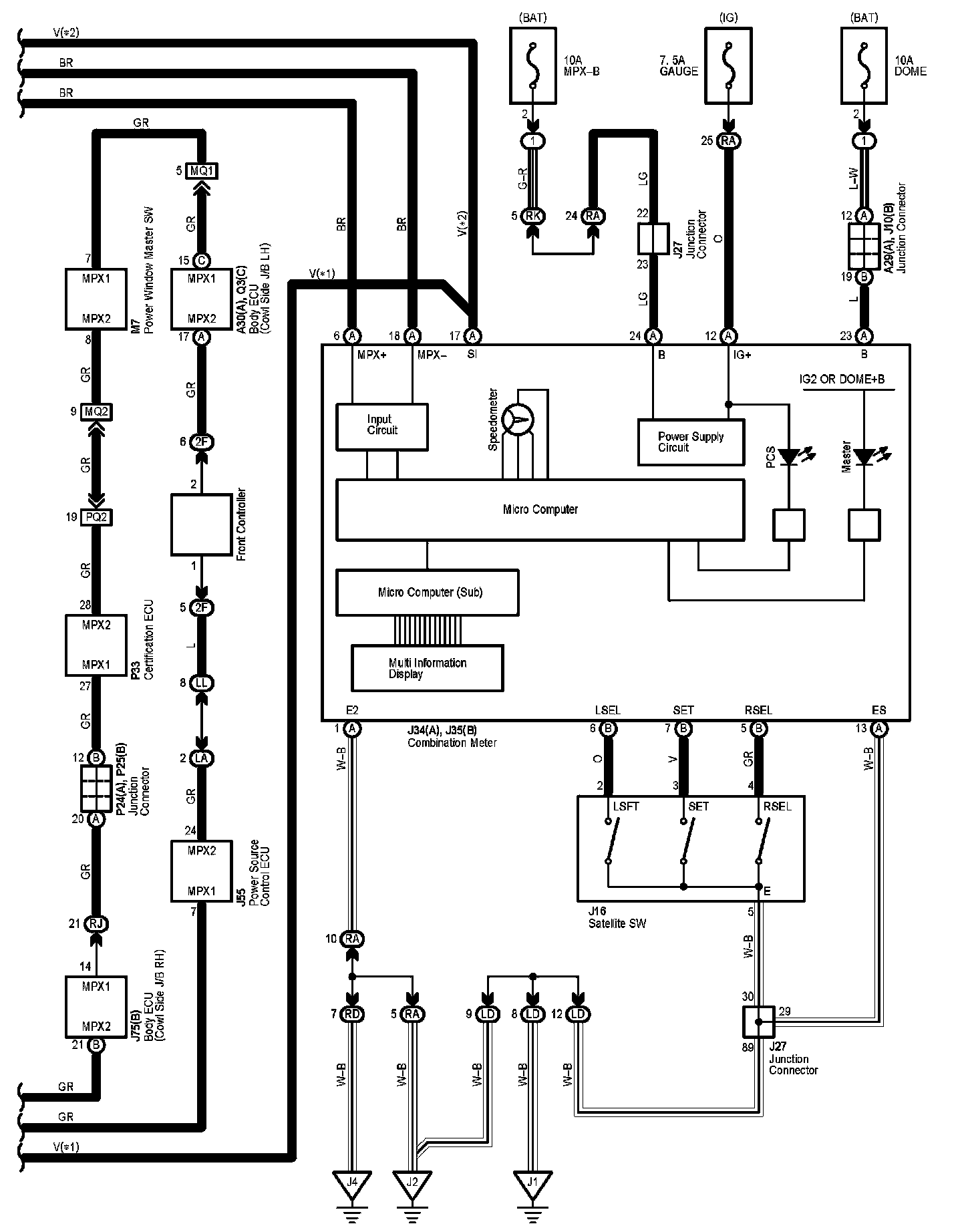

Pre-Collision System (Part 2):

Pre-Collision System (Part 3):

Pre-Collision System (Part 4):

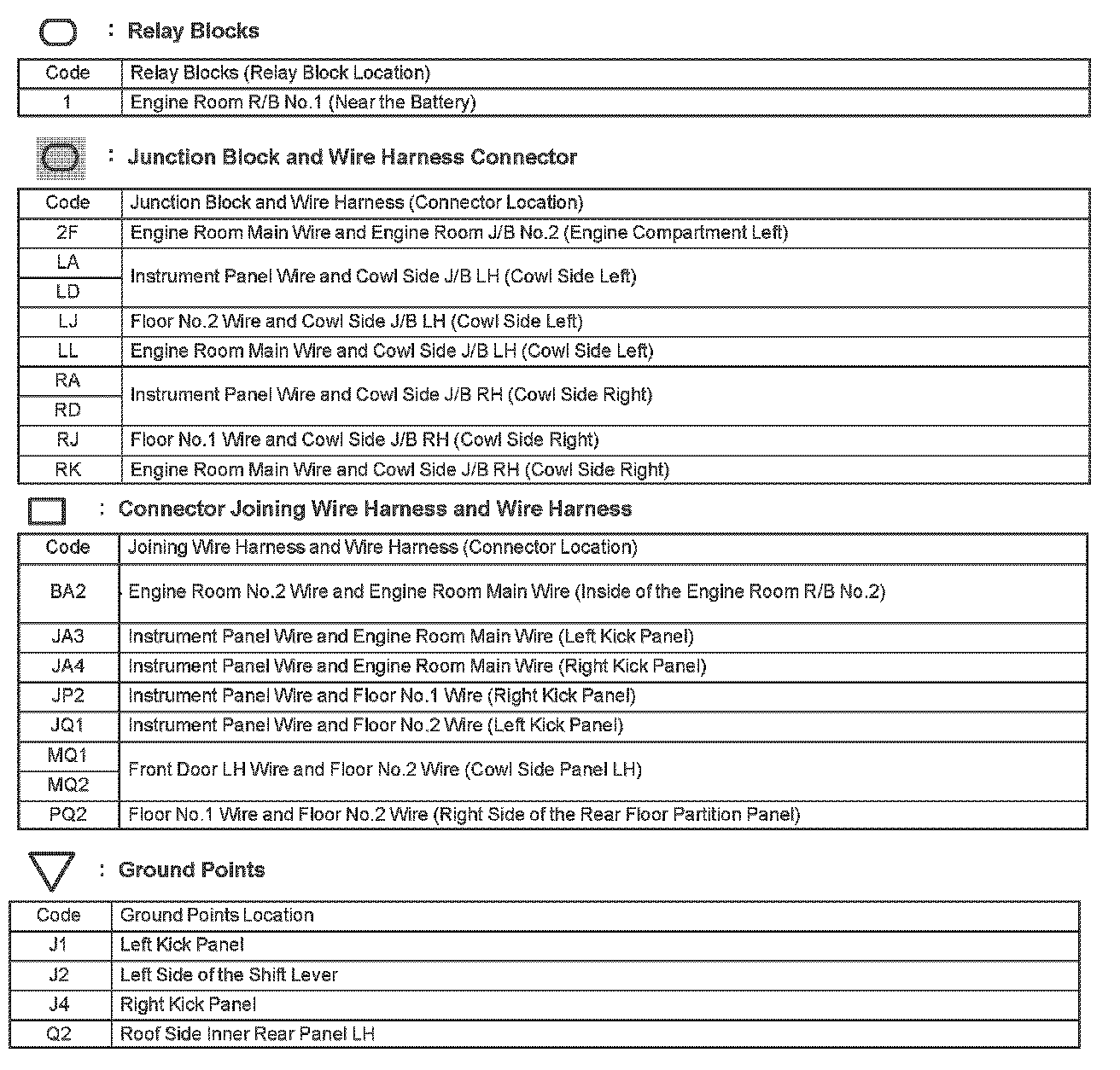

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
