Multiplex Communication System-BEAN

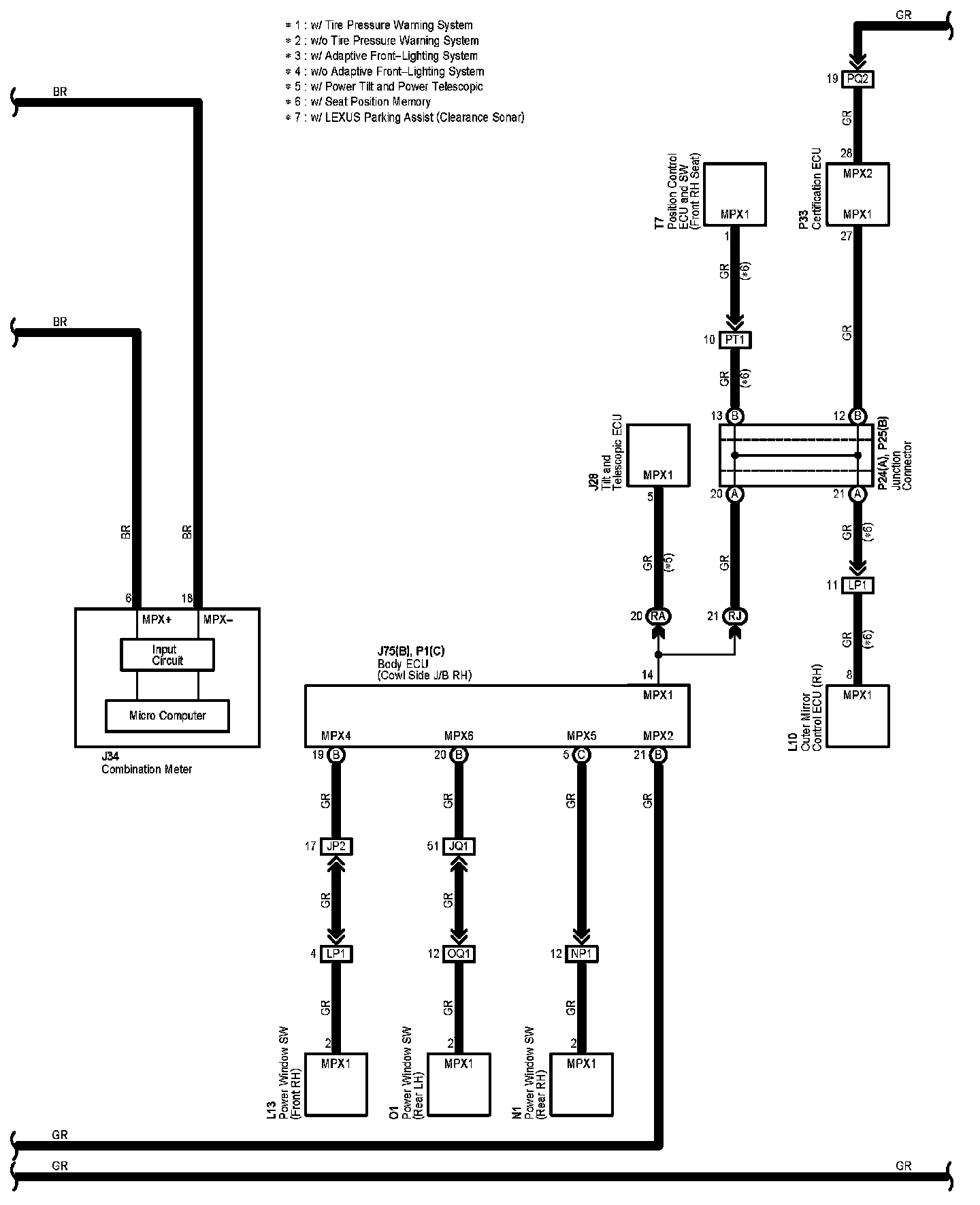

Multiplex Communication System-BEAN (Part 1):

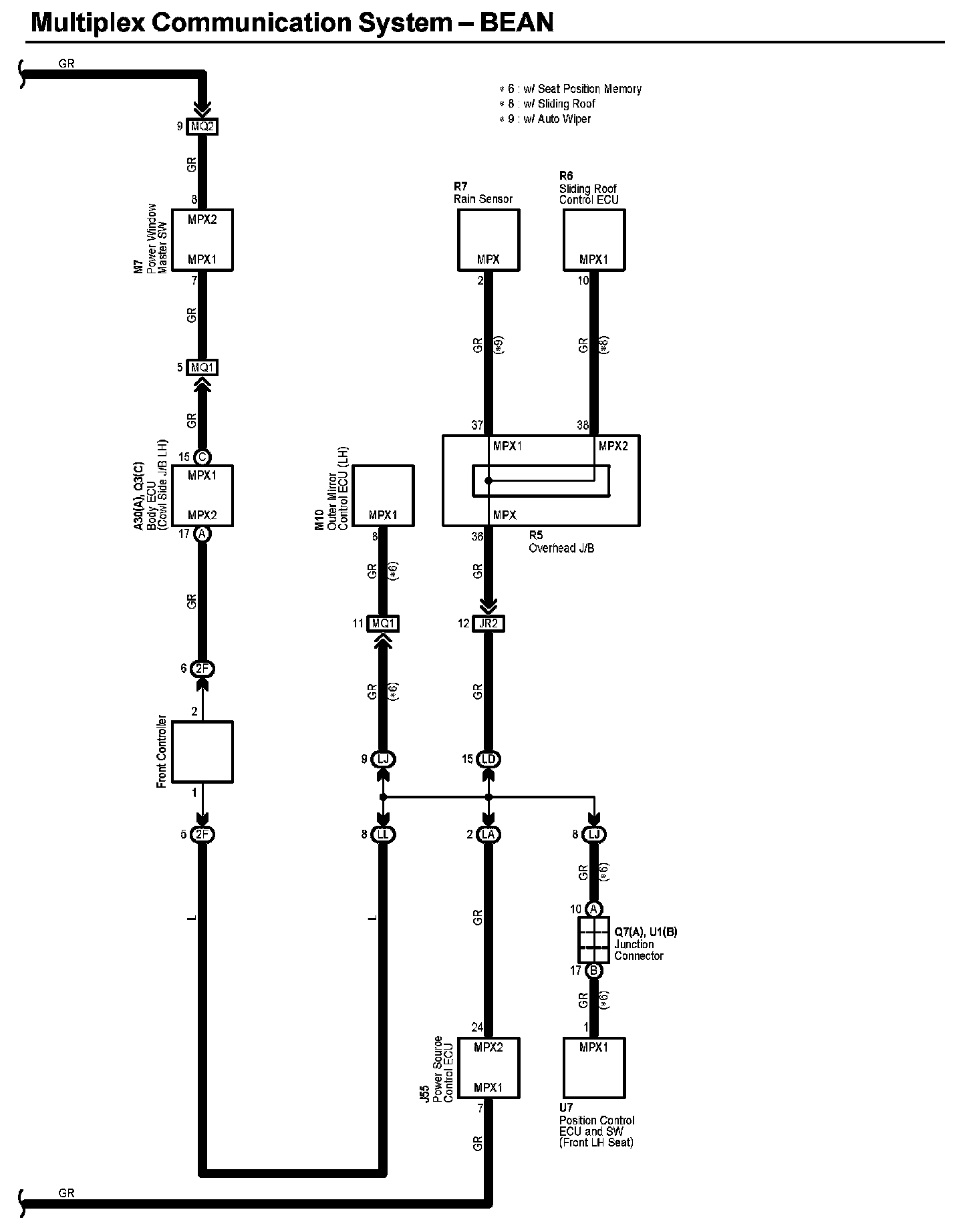

Multiplex Communication System-BEAN (Part 2):

Multiplex Communication System-BEAN (Part 3):

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
