Data Link Connector

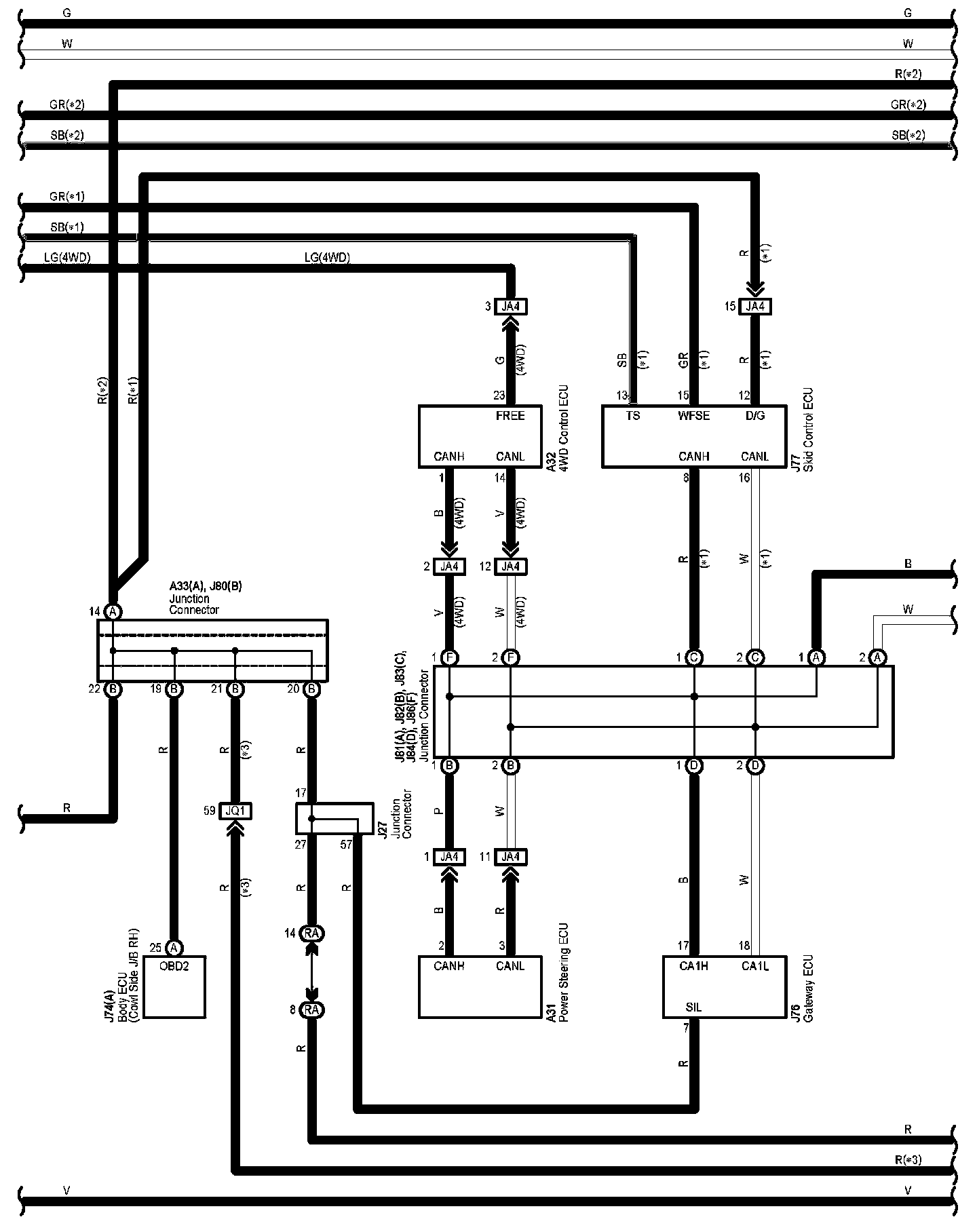

Data Link Connector 3 (Part 1):

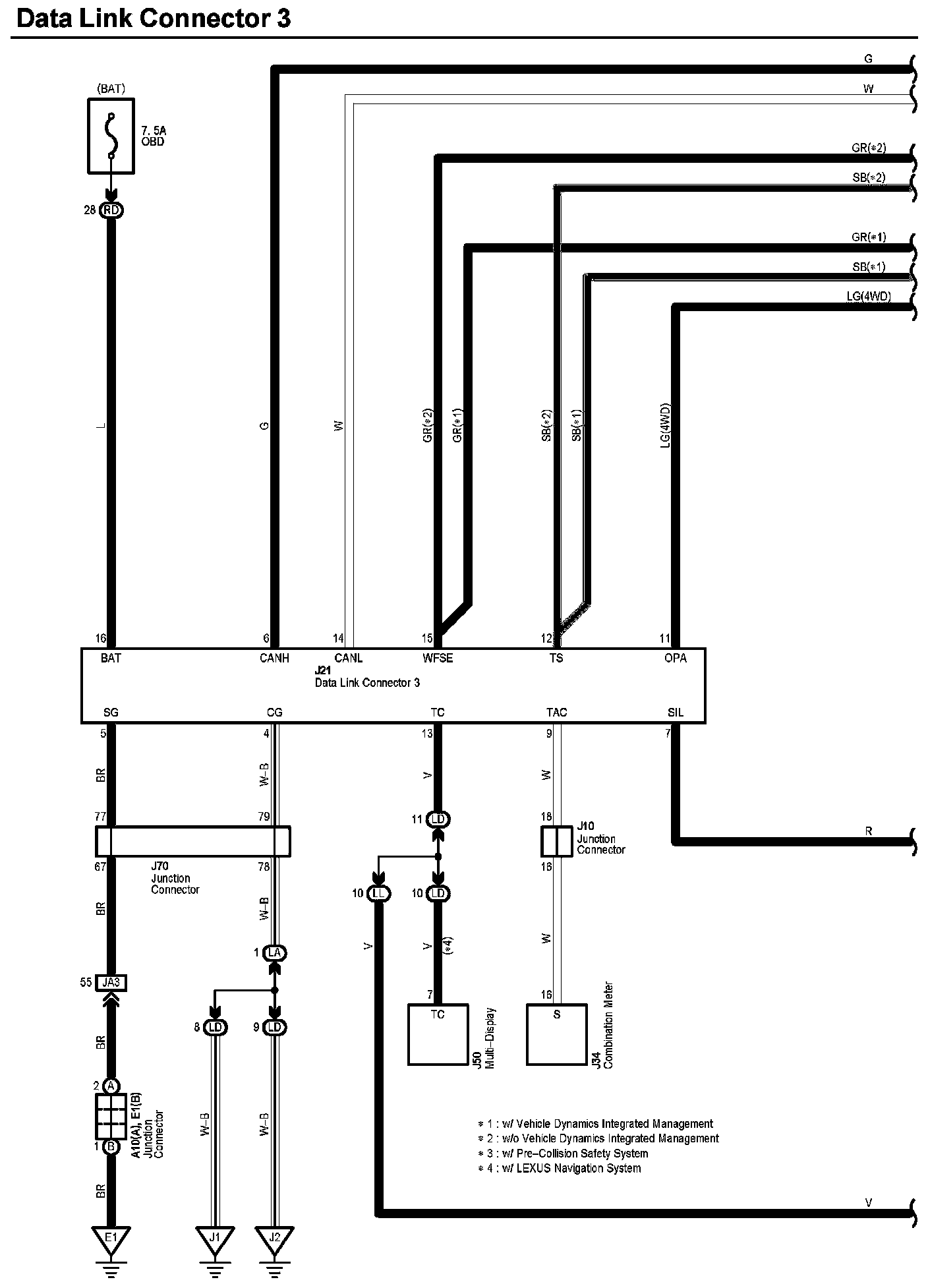

Data Link Connector 3 (Part 2):

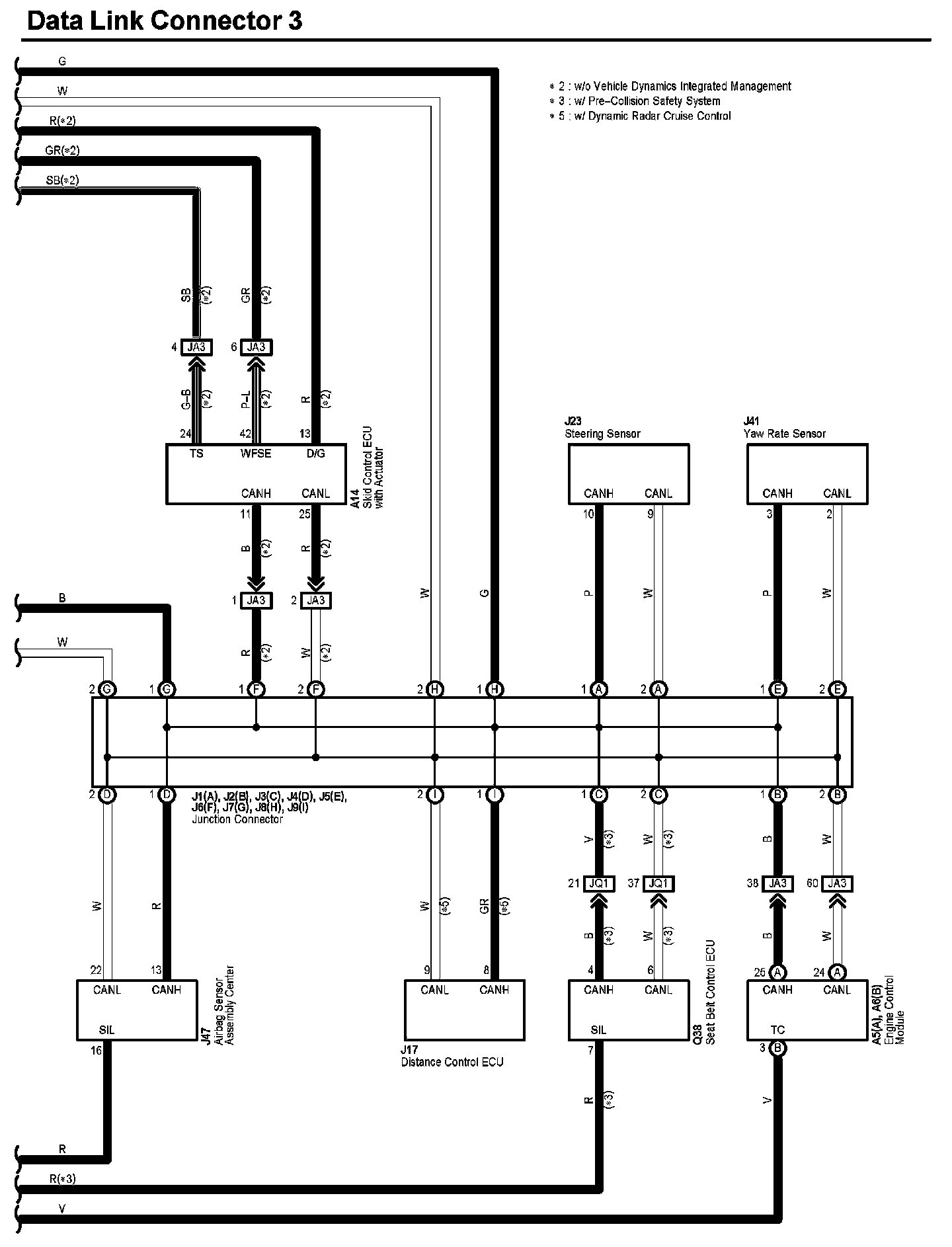

Data Link Connector 3 (Part 3):

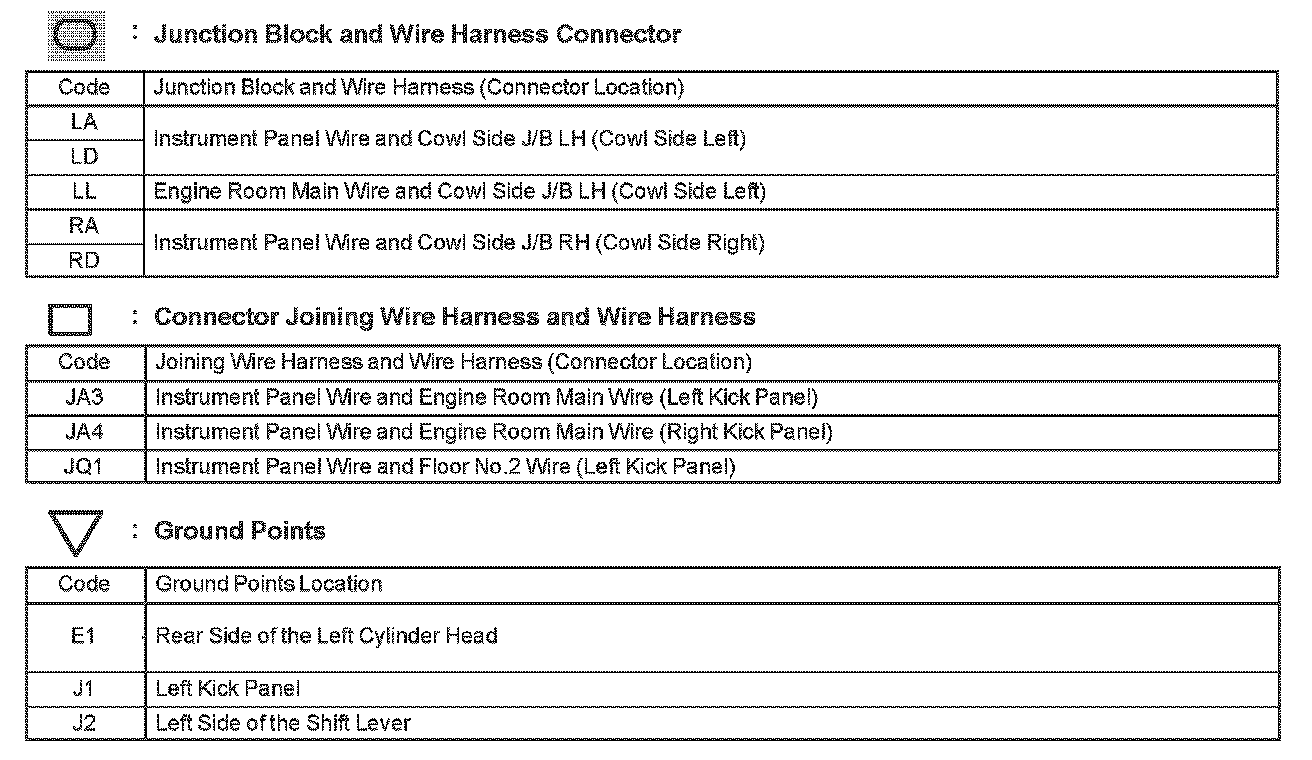

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
