Turn Signals

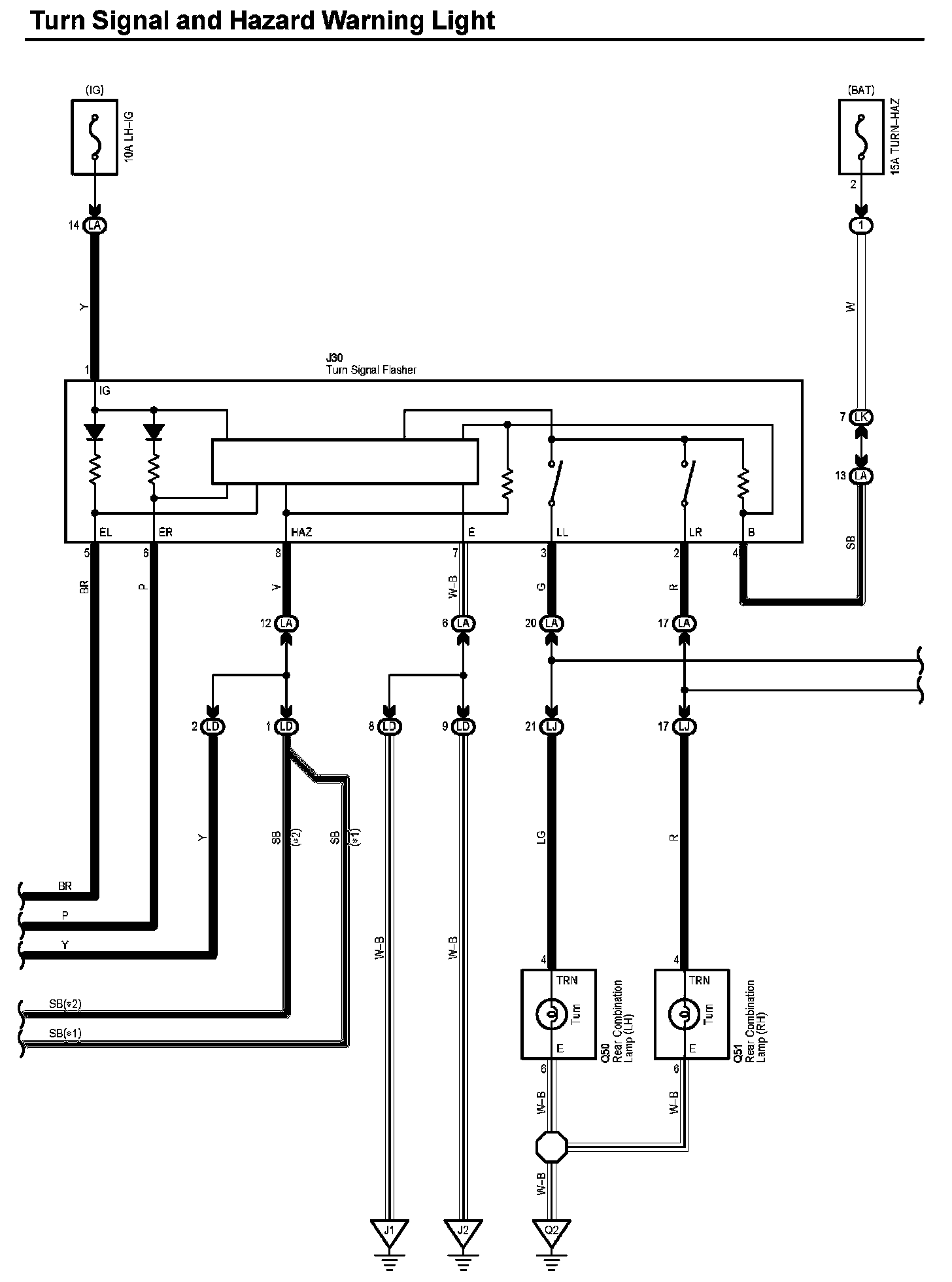

Turn Signal And Hazard Warning Light (Part 1):

Turn Signal And Hazard Warning Light (Part 2):

Turn Signal And Hazard Warning Light (Part 3):

Turn Signal And Hazard Warning Light (Part 4):

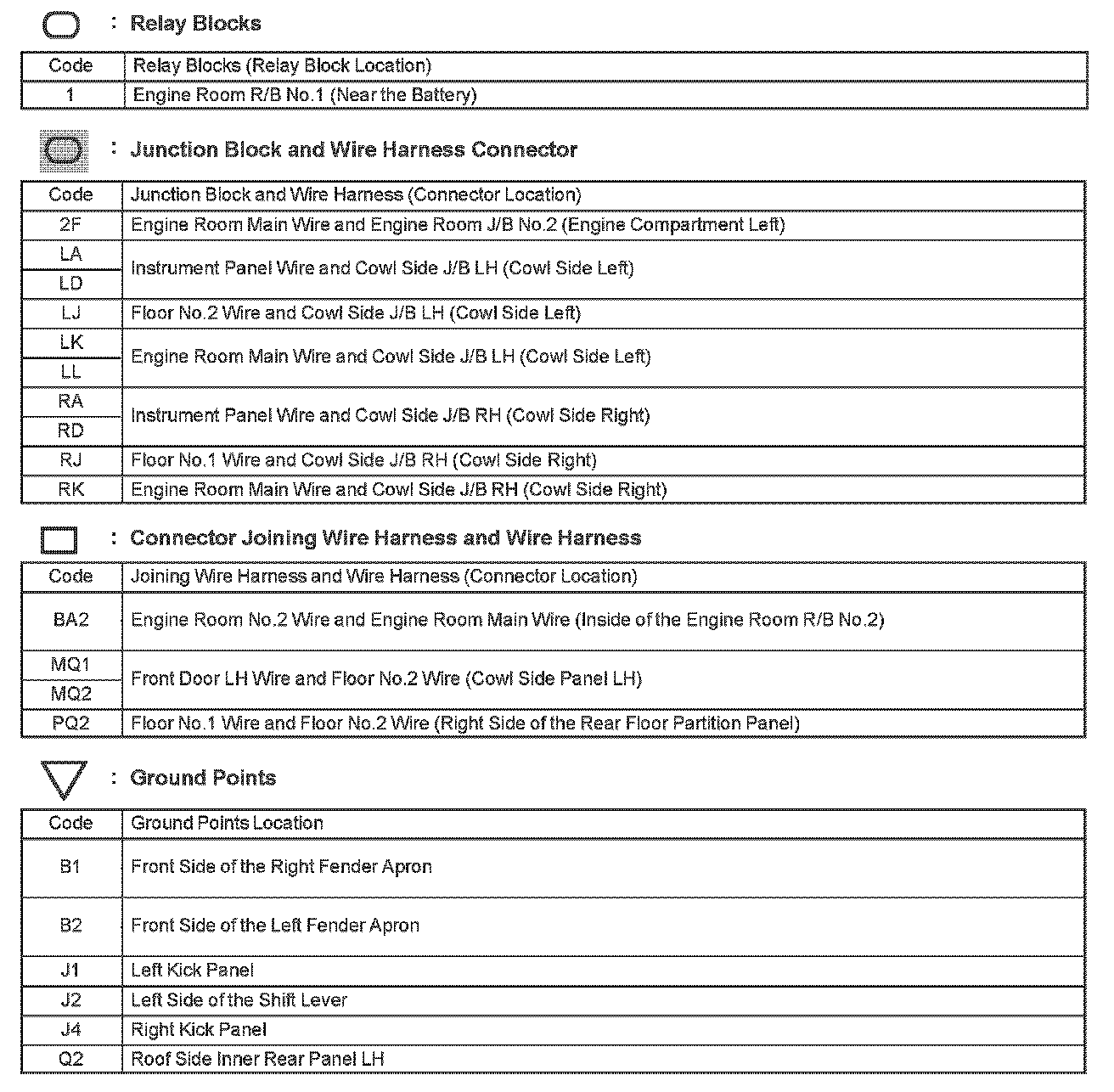

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
