Tail Lamp

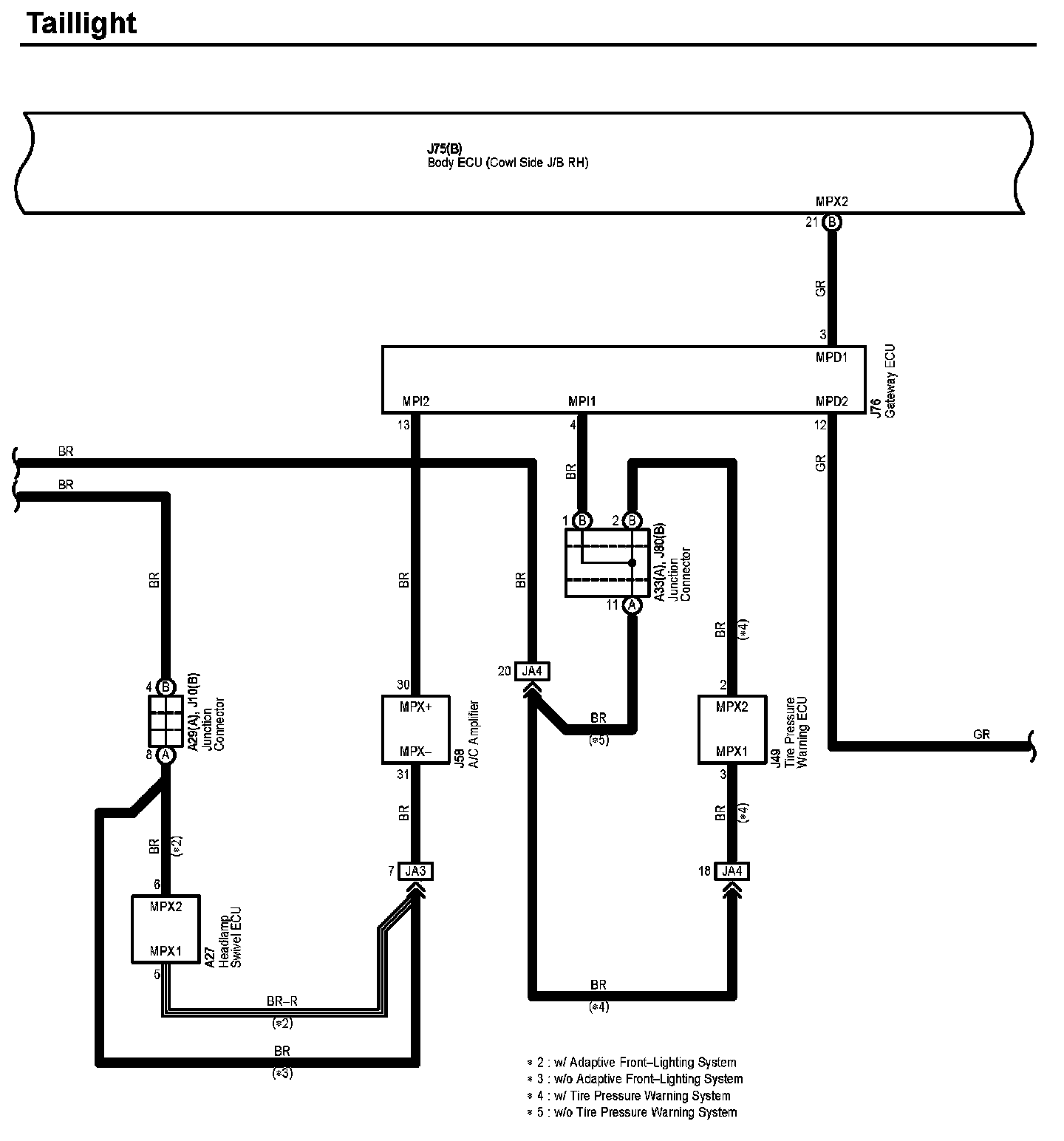

Taillight (Part 1):

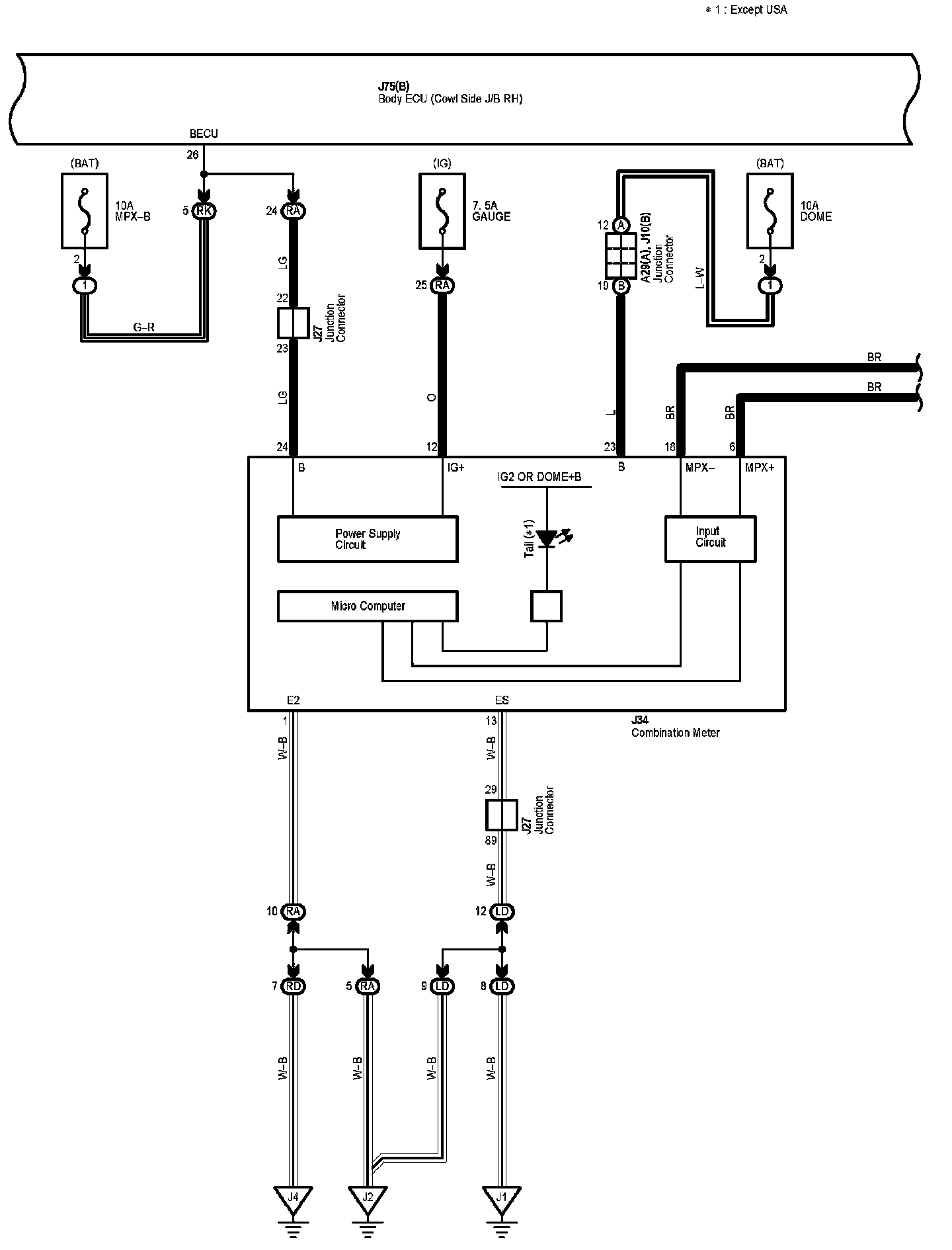

Taillight (Part 2):

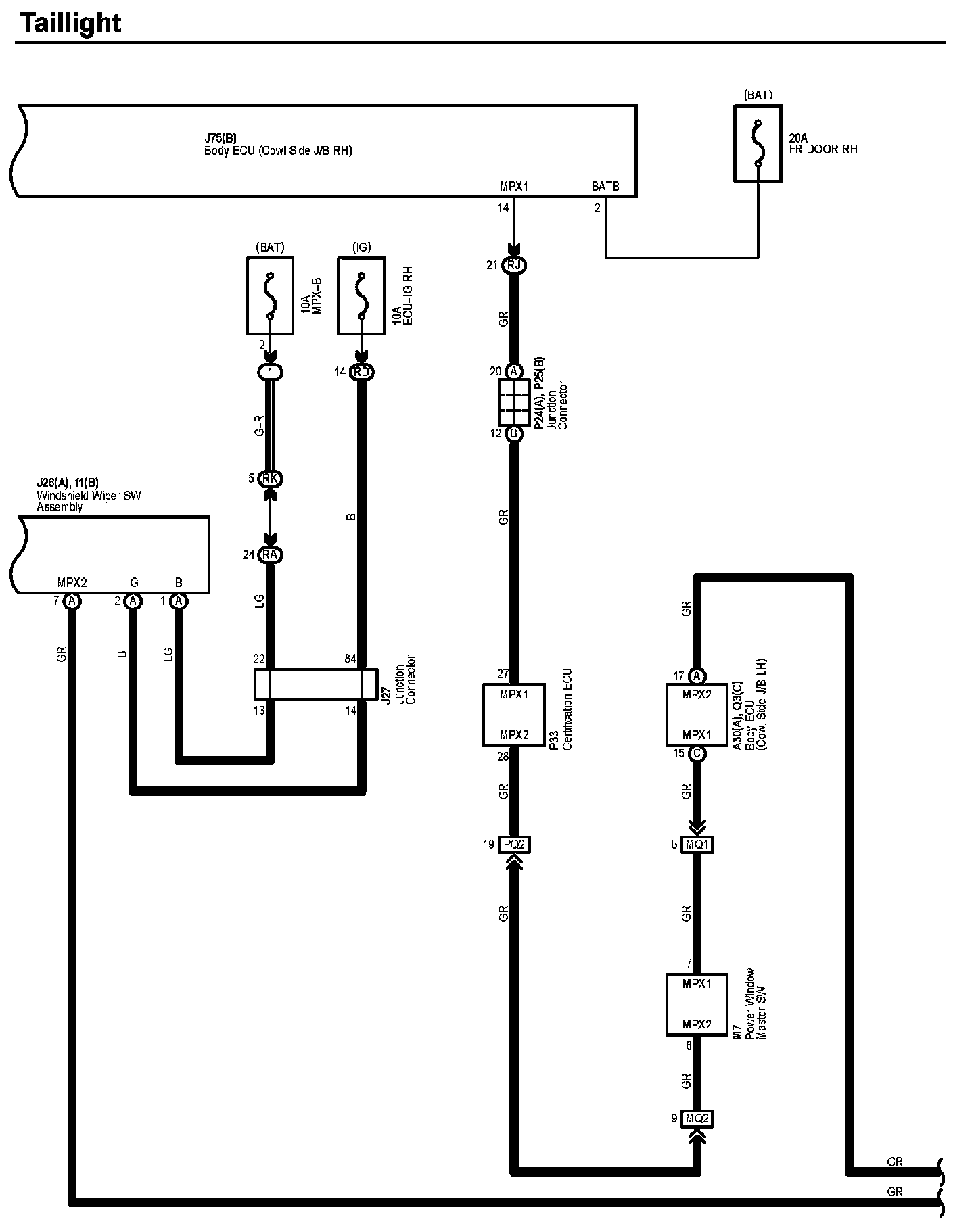

Taillight (Part 3):

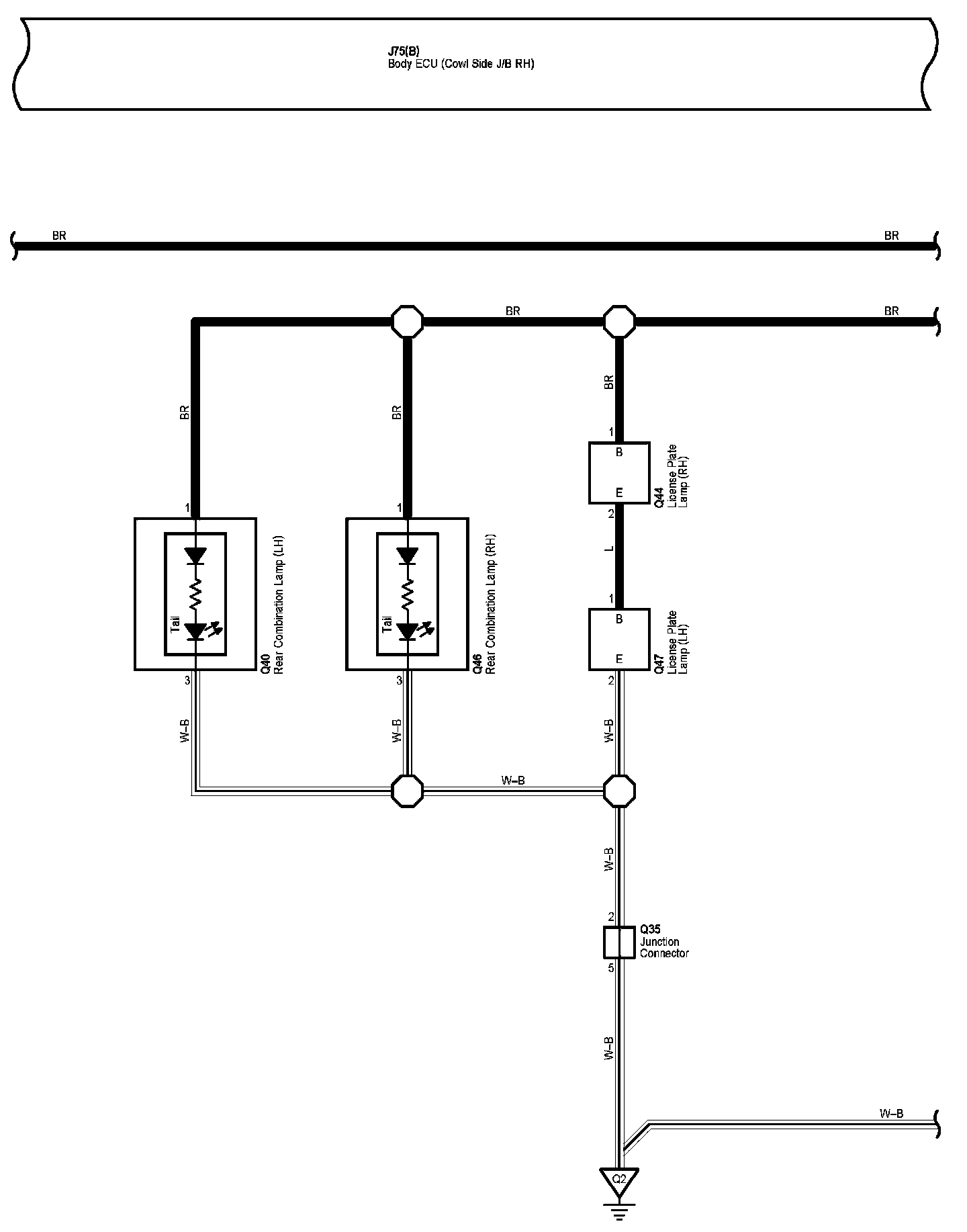

Taillight (Part 4):

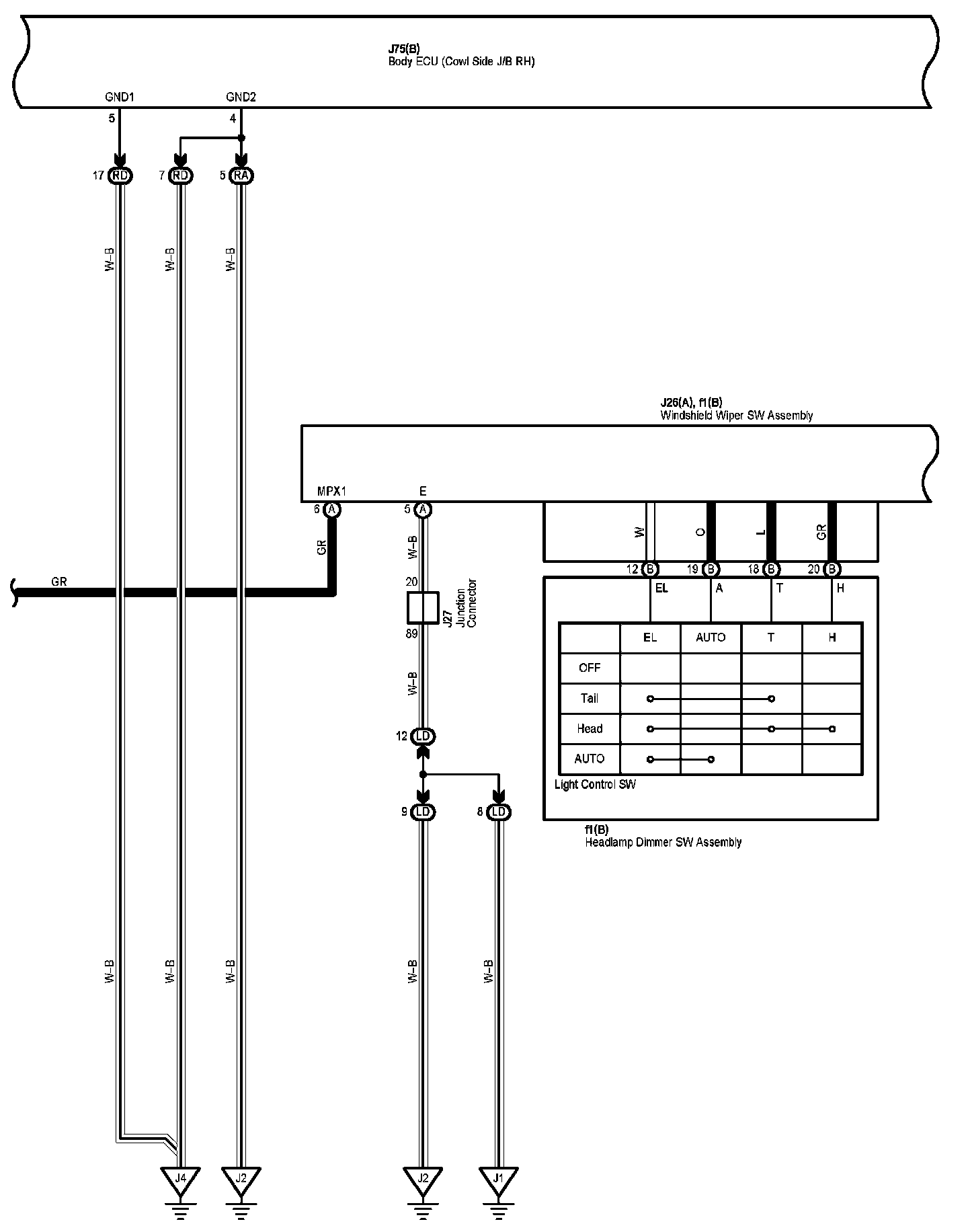

Taillight (Part 5):

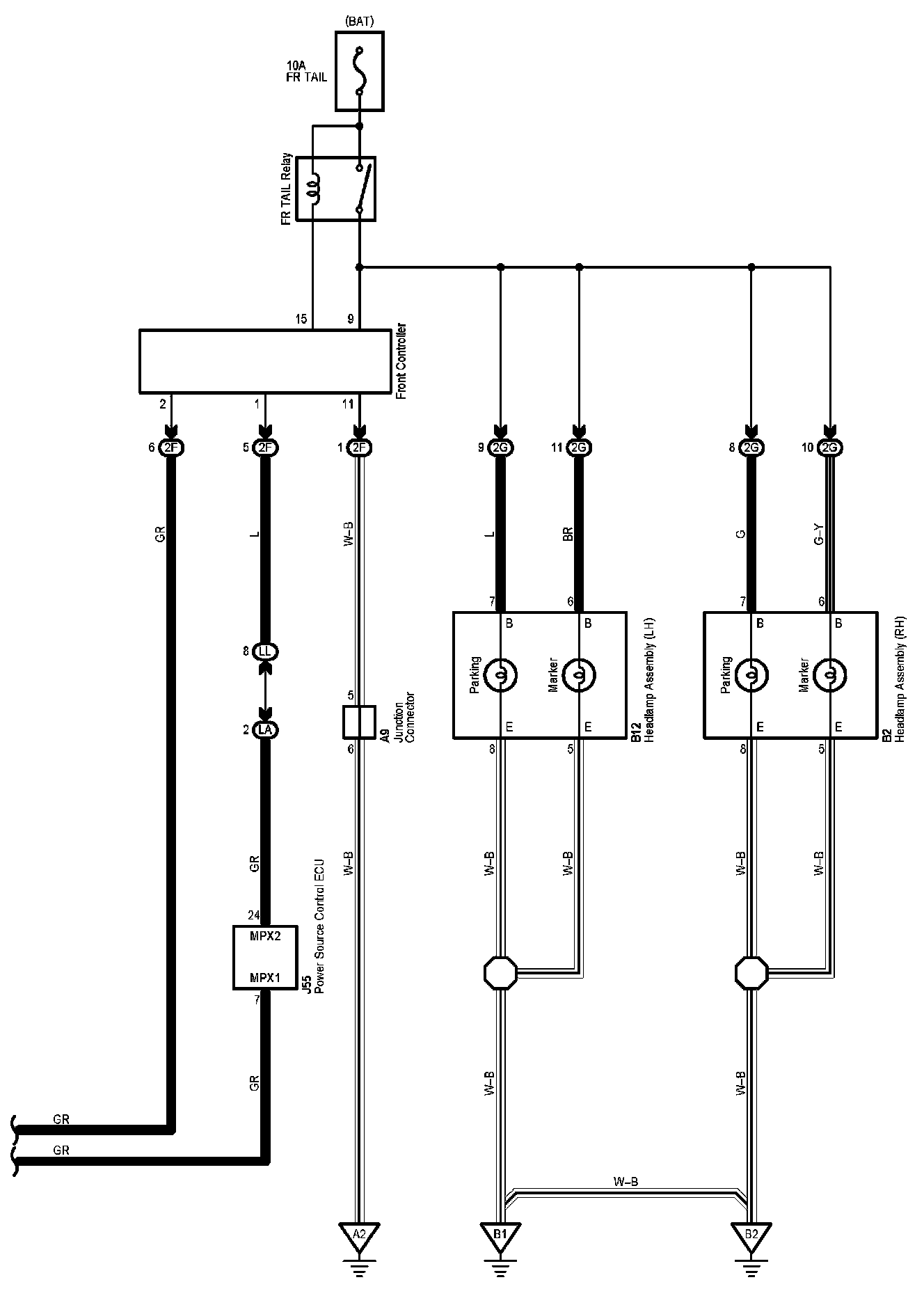

Taillight (Part 6):

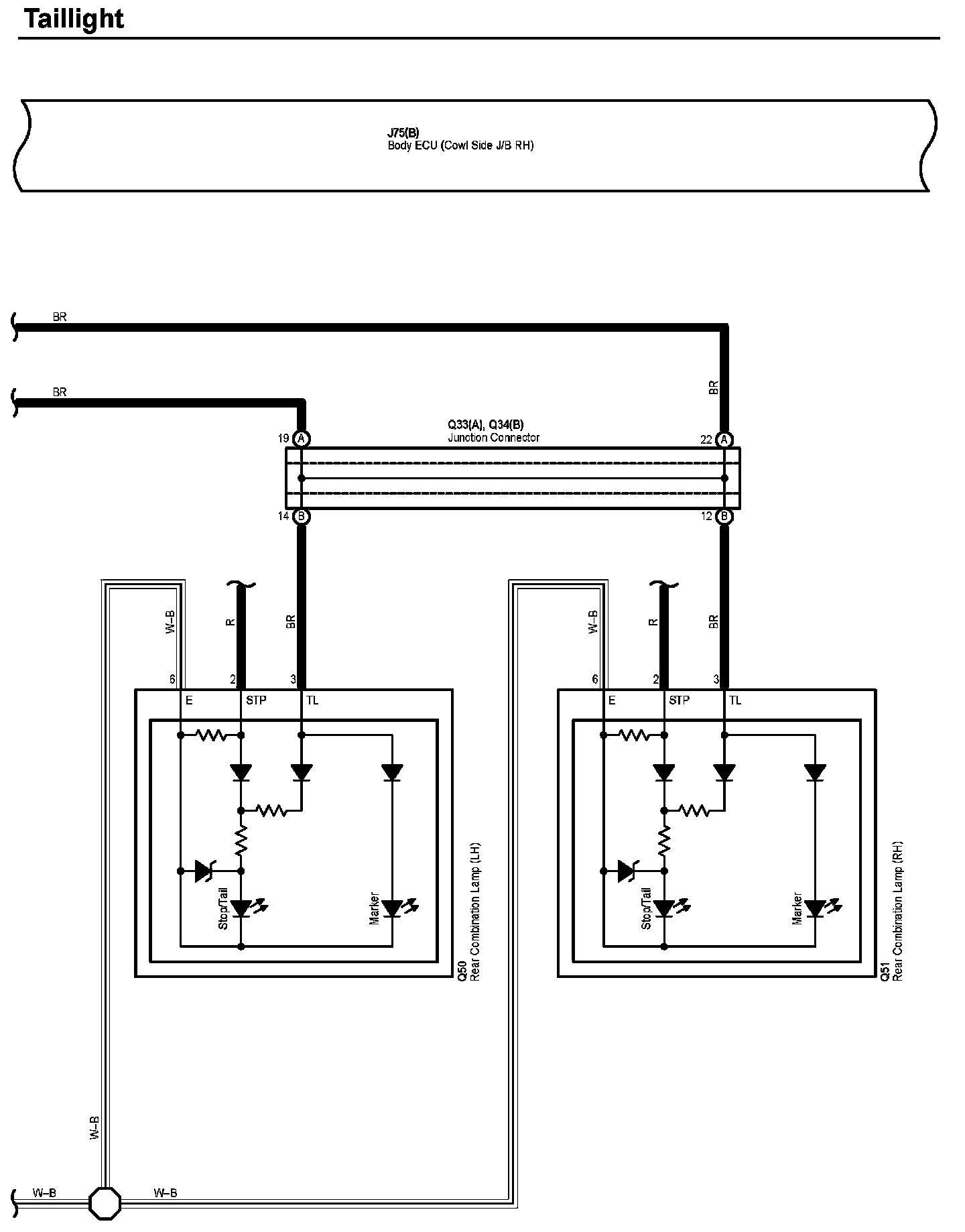

Taillight (Part 7):

Taillight (Part 8):

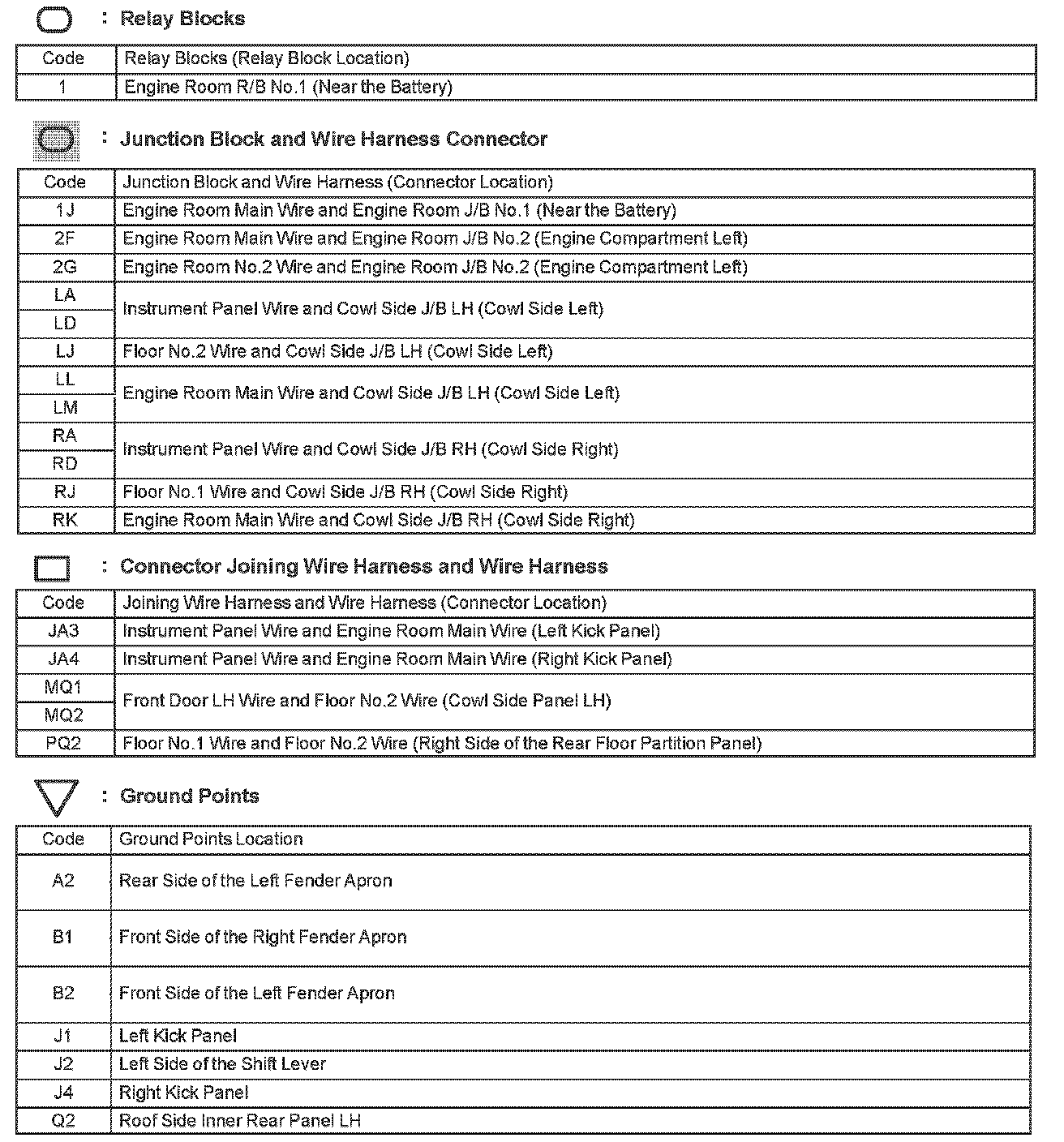

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
