Dynamic Radar Cruise Control

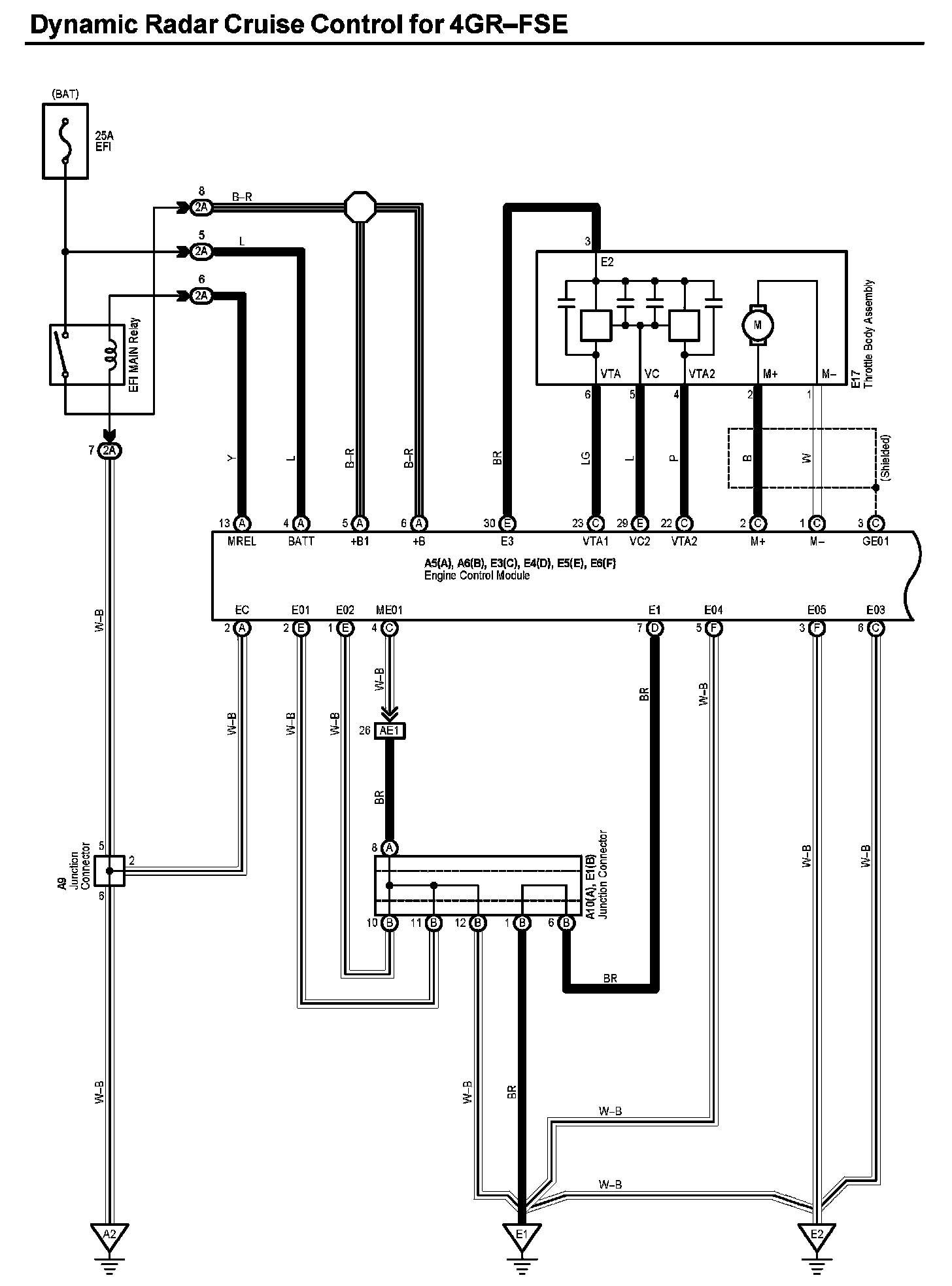

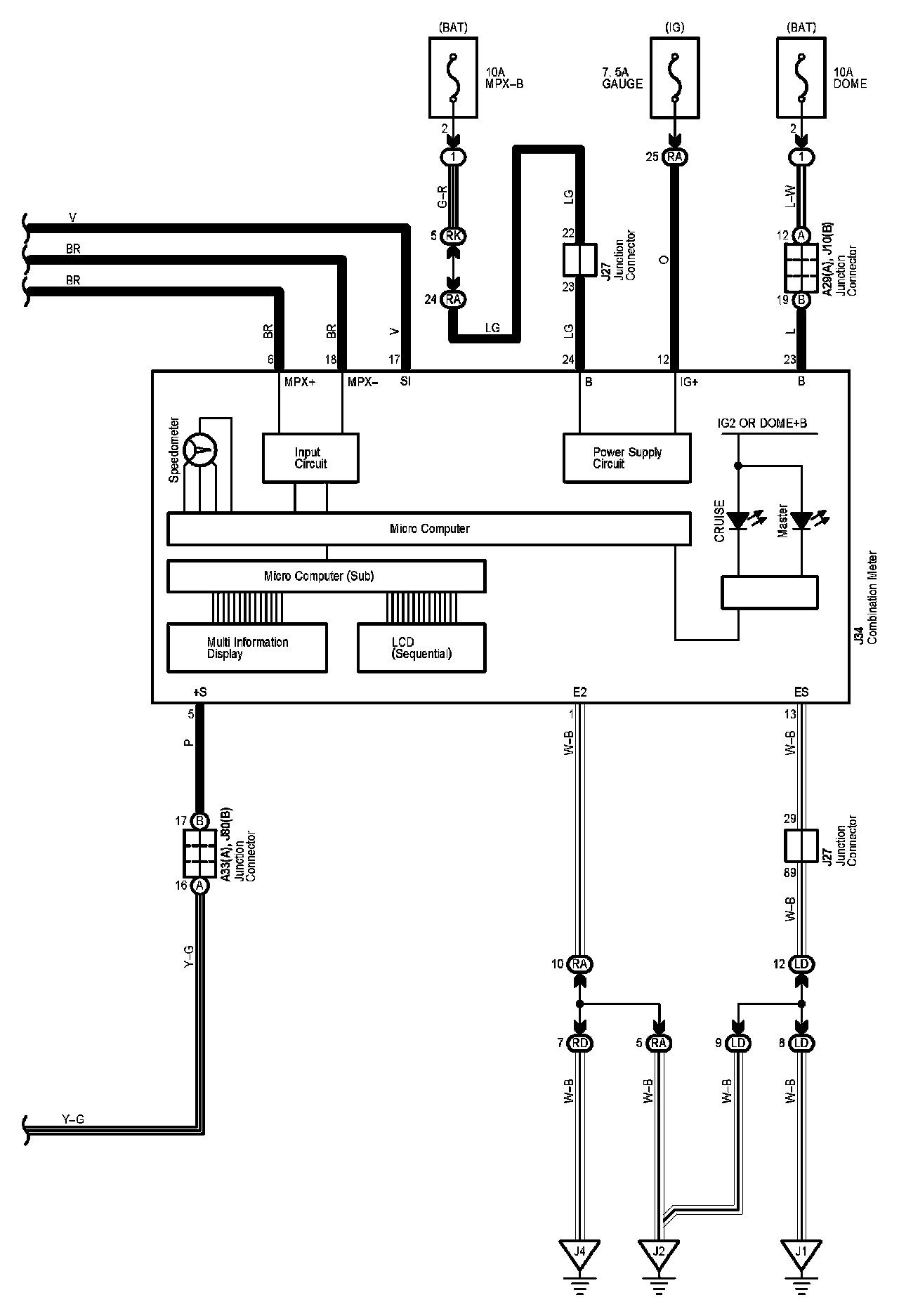

Dynamic Radar Cruise Control (Part 1):

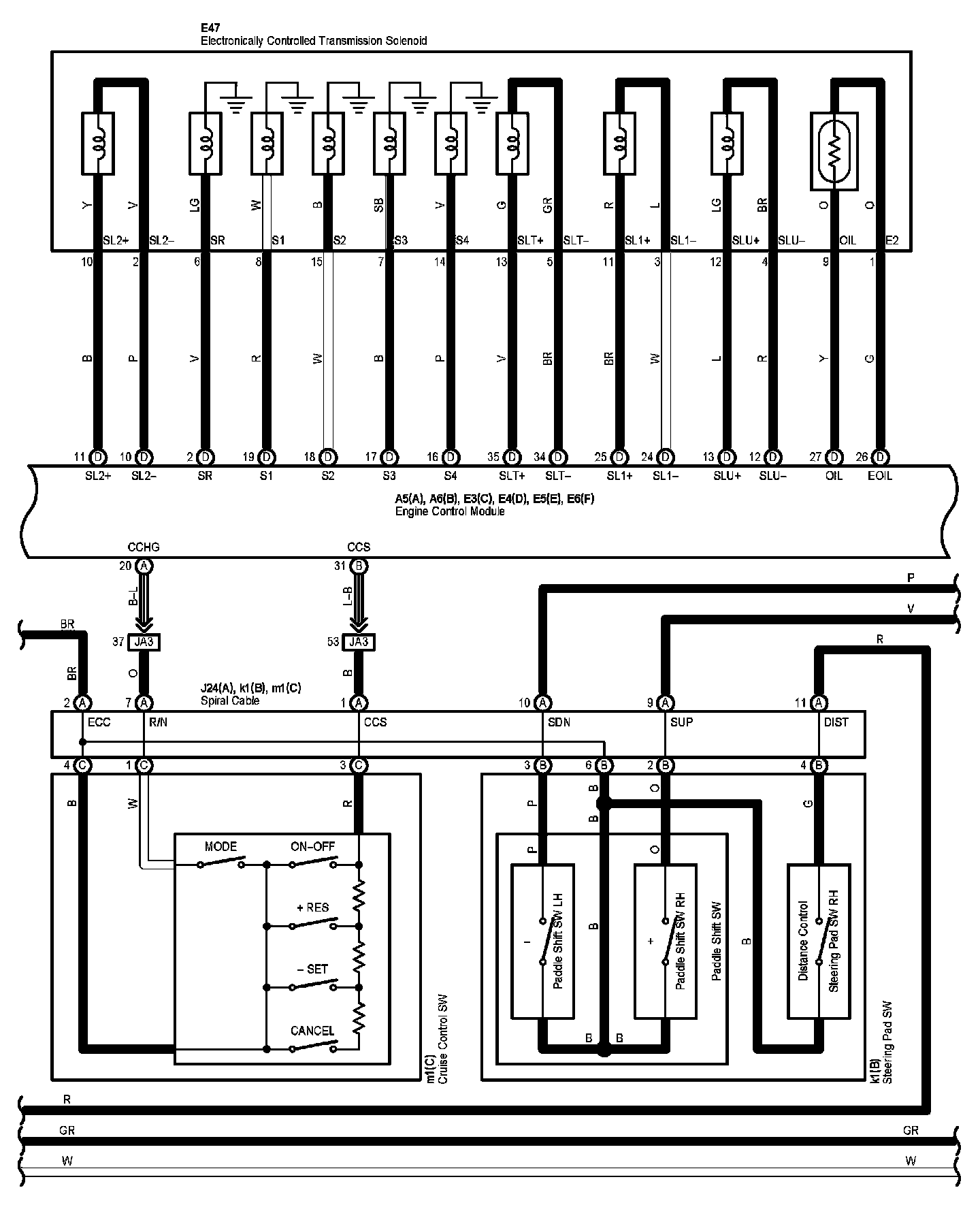

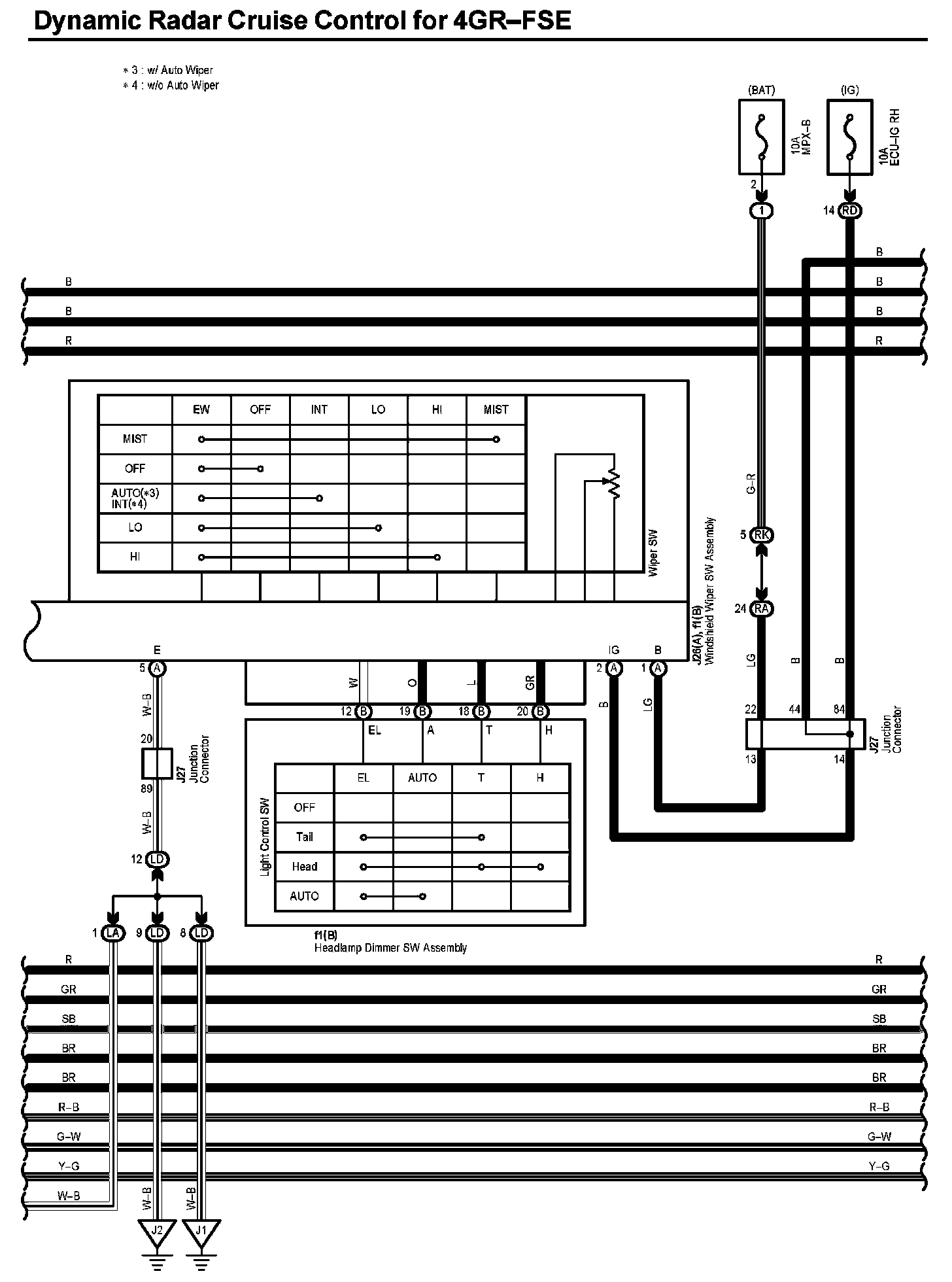

Dynamic Radar Cruise Control (Part 2):

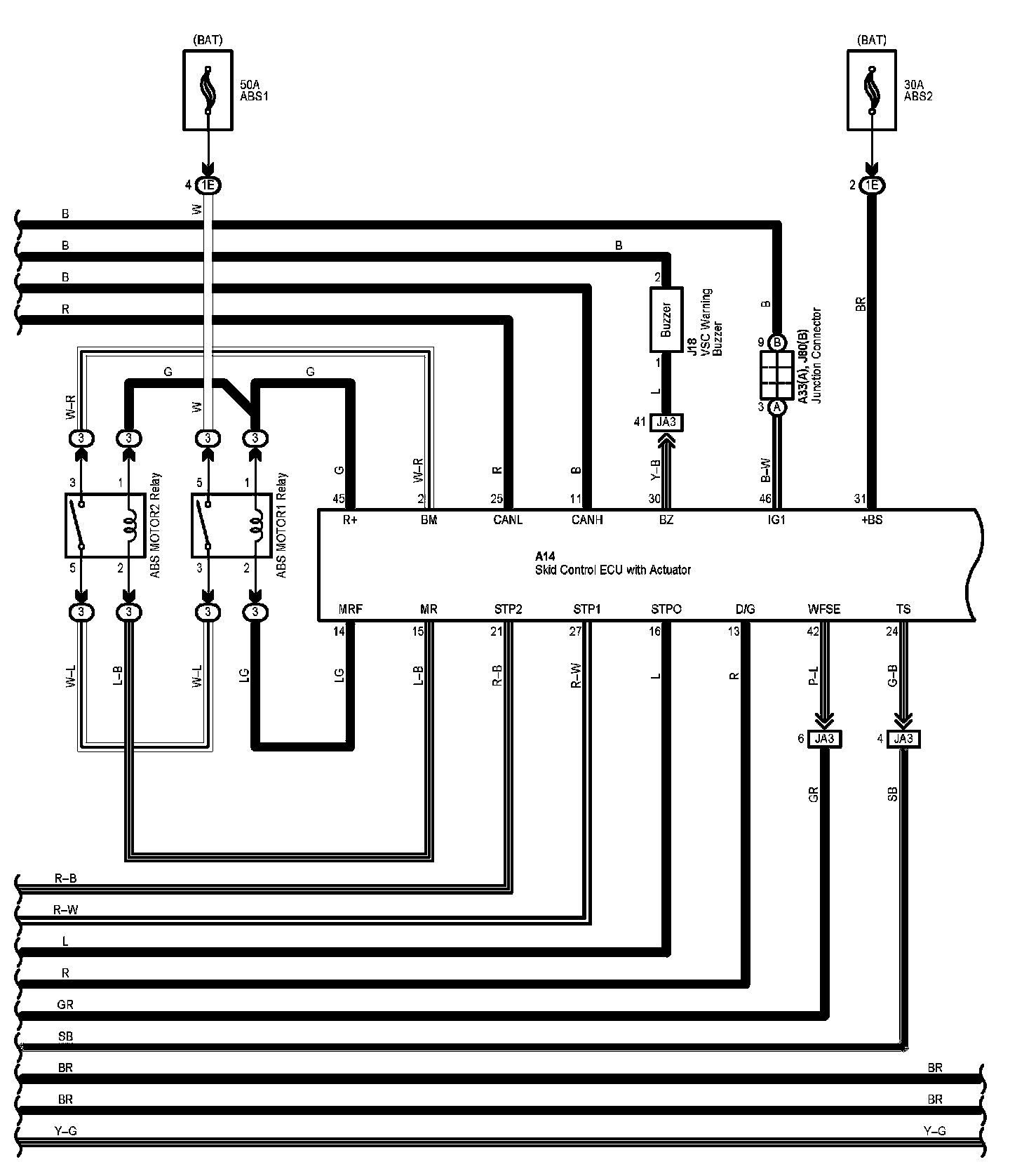

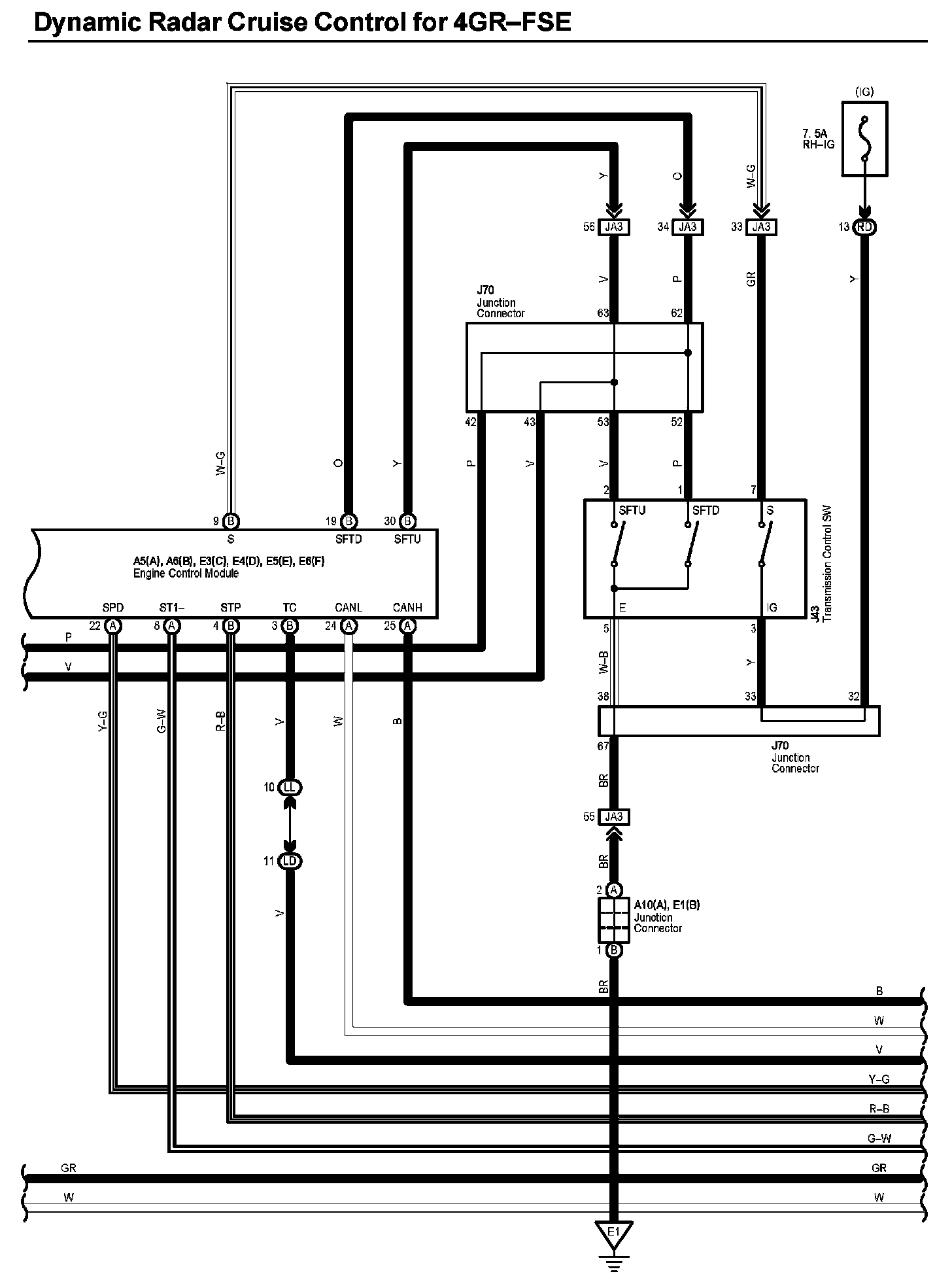

Dynamic Radar Cruise Control (Part 3):

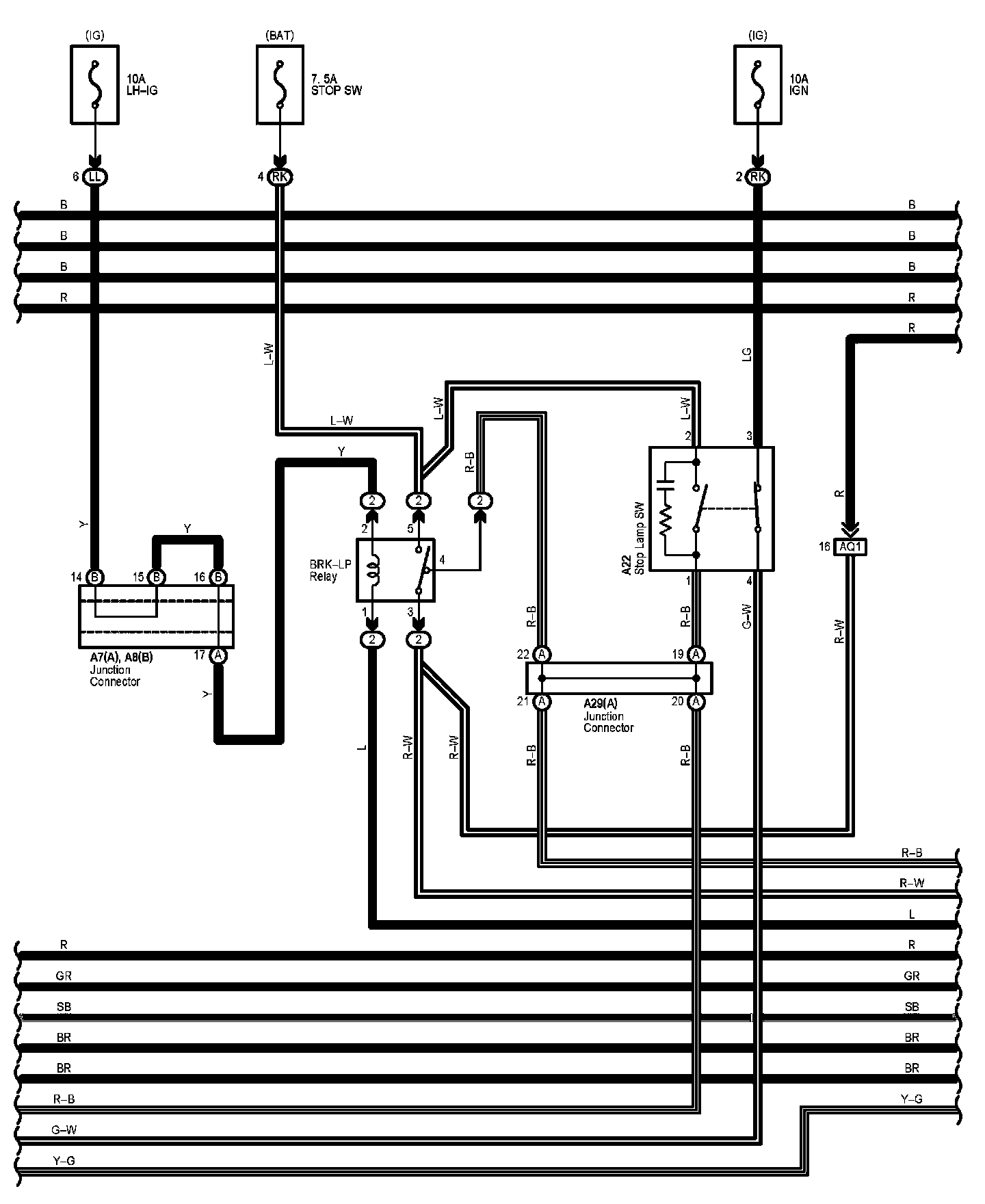

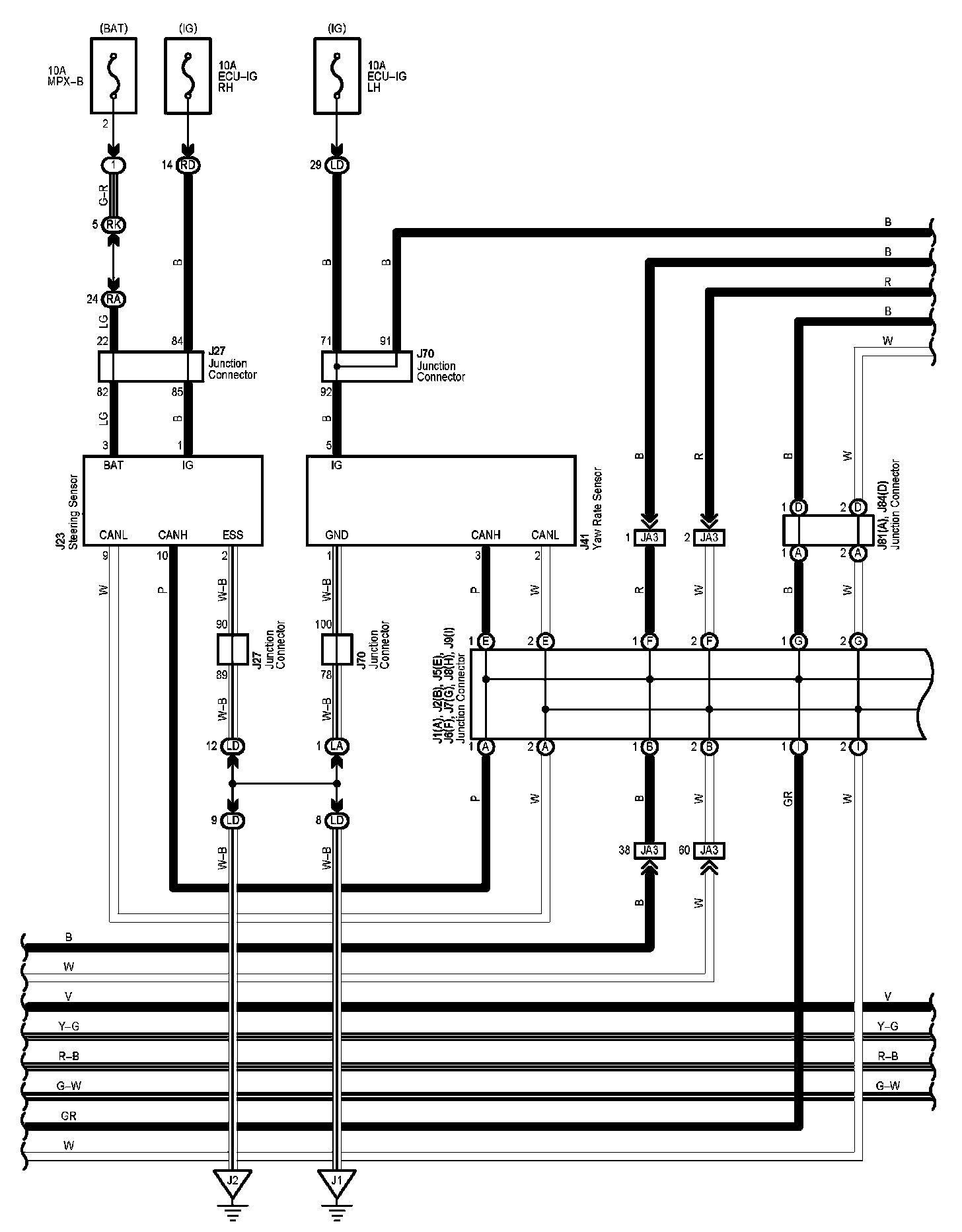

Dynamic Radar Cruise Control (Part 4):

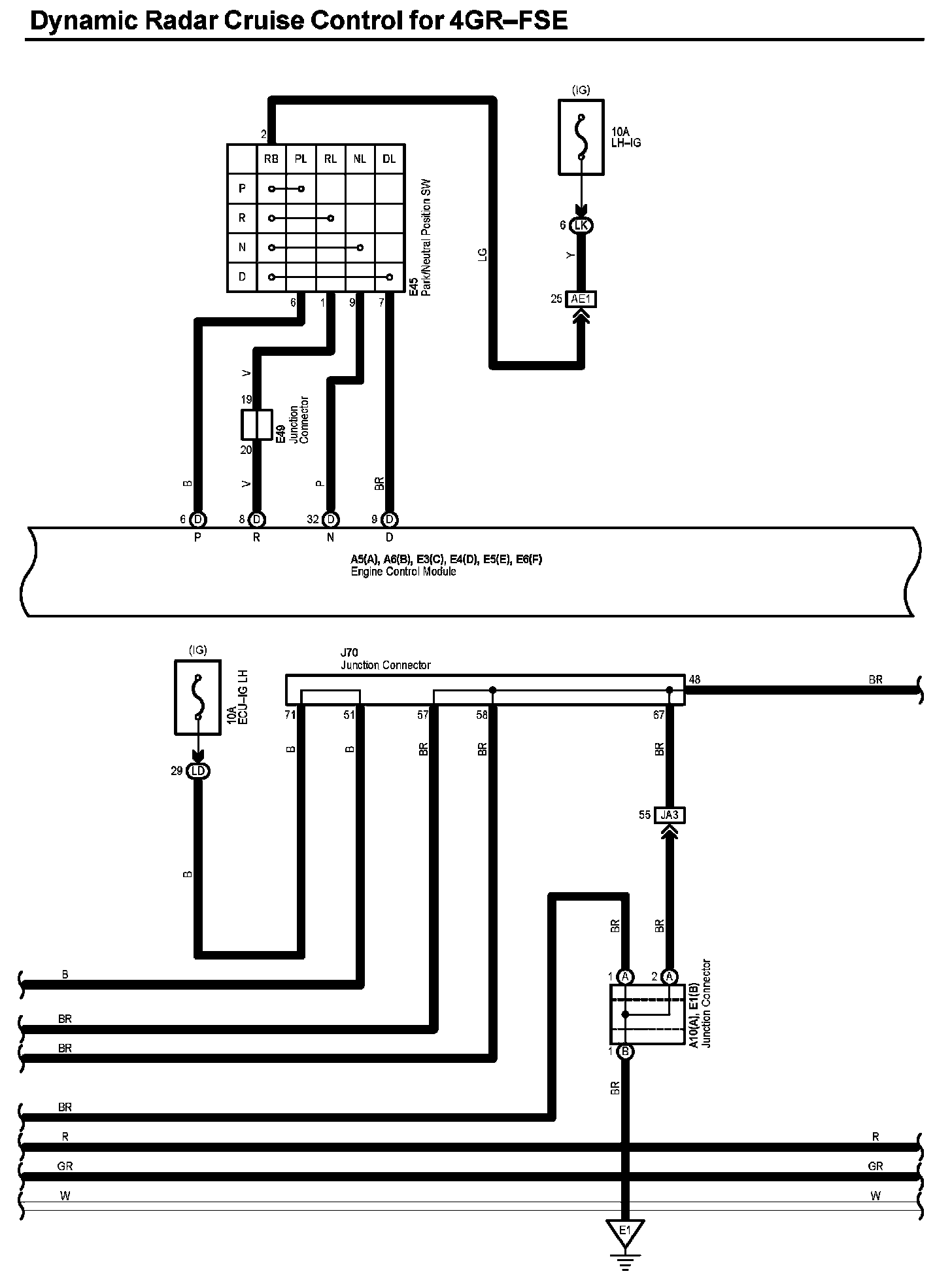

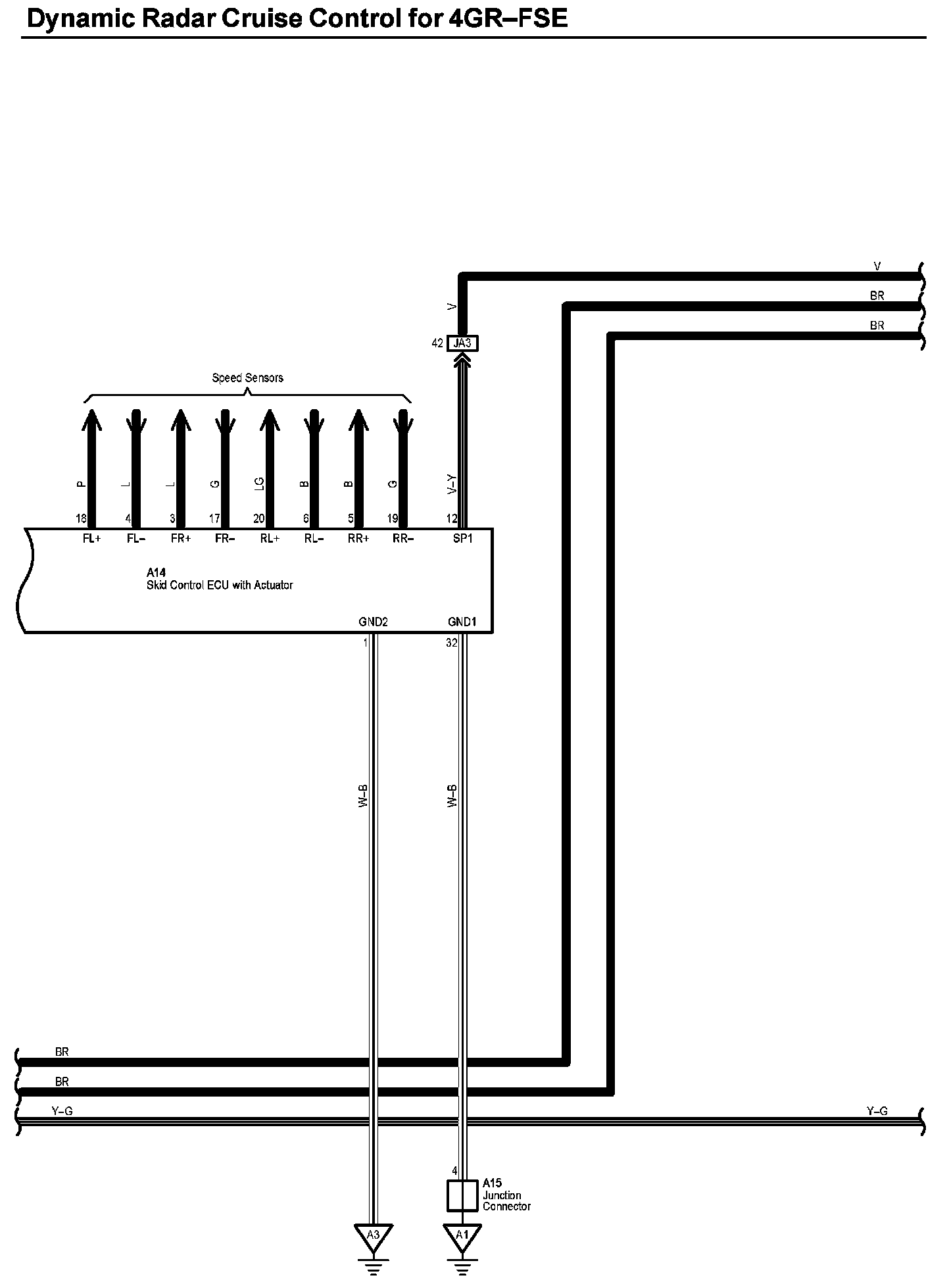

Dynamic Radar Cruise Control (Part 5):

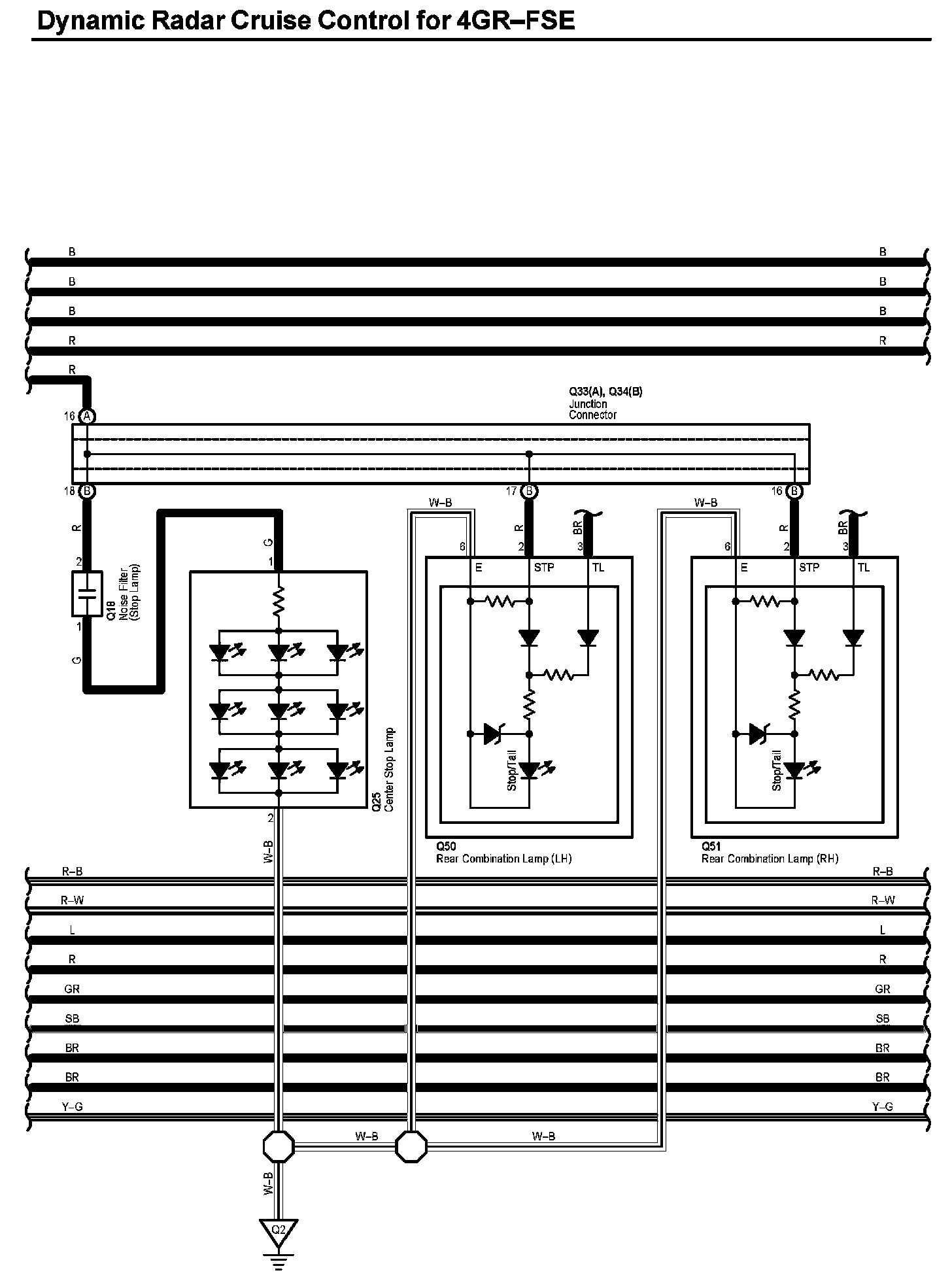

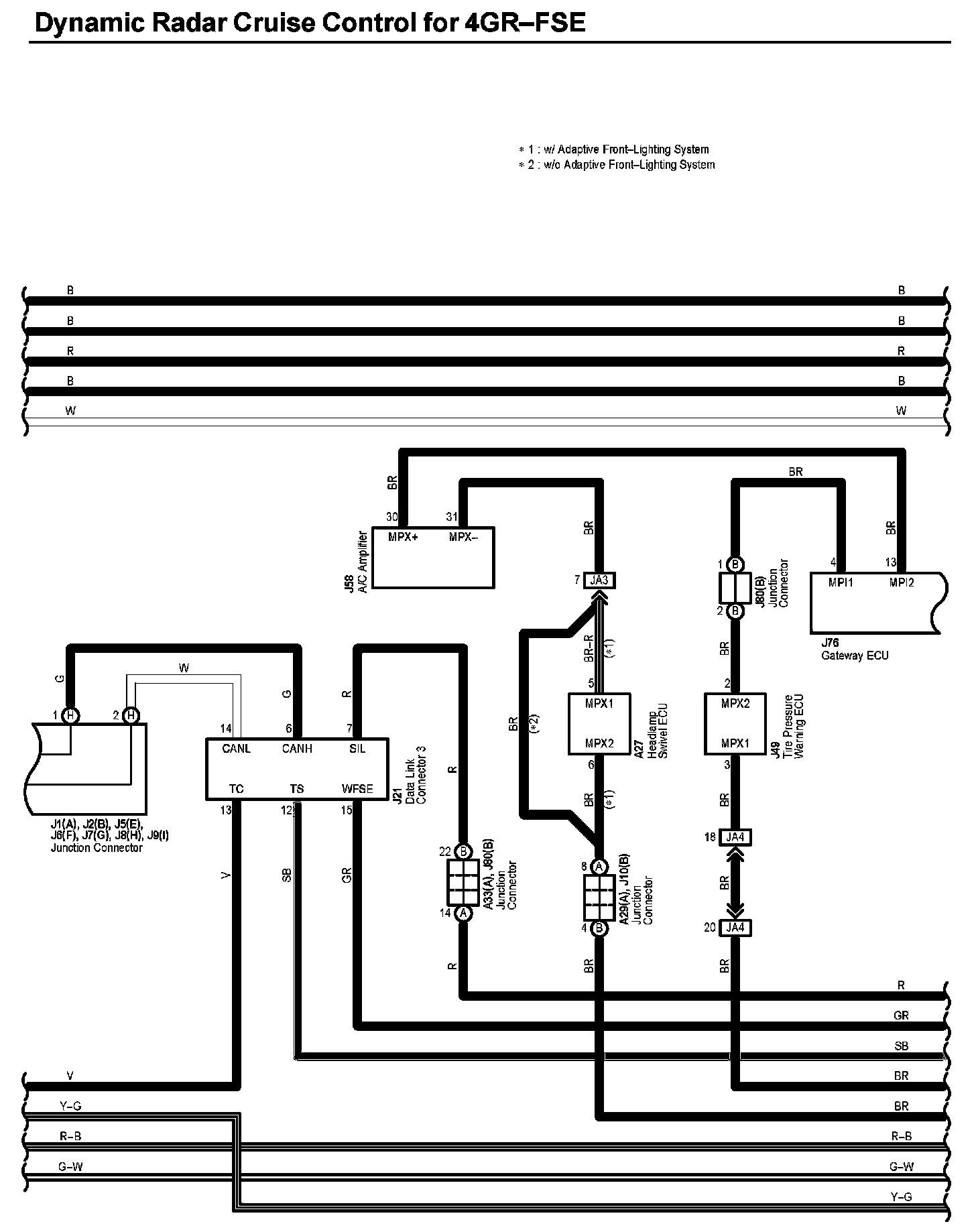

Dynamic Radar Cruise Control (Part 6):

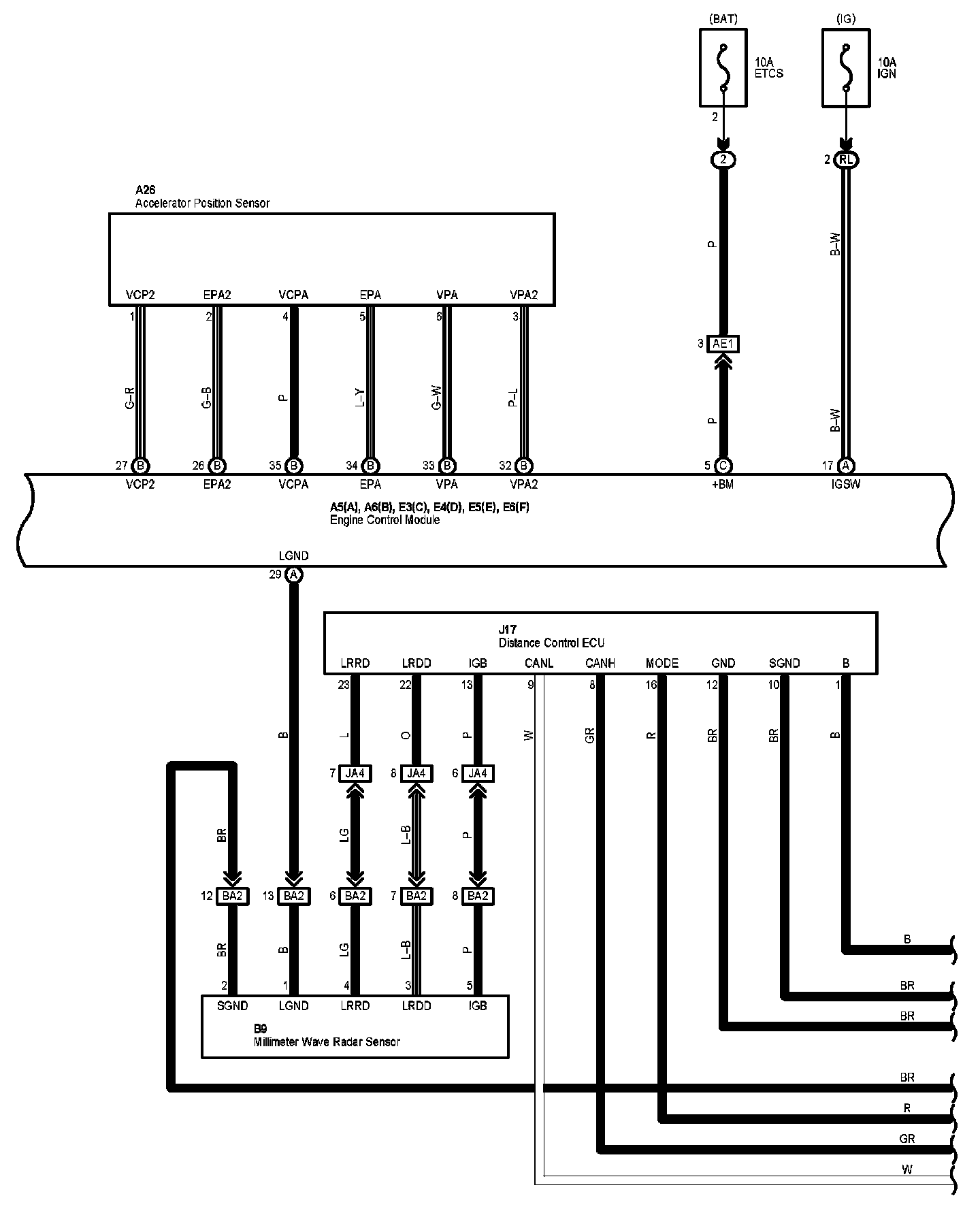

Dynamic Radar Cruise Control (Part 7):

Dynamic Radar Cruise Control (Part 8):

Dynamic Radar Cruise Control (Part 9):

Dynamic Radar Cruise Control (Part 10):

Dynamic Radar Cruise Control (Part 11):

Dynamic Radar Cruise Control (Part 12):

Dynamic Radar Cruise Control (Part 13):

Dynamic Radar Cruise Control (Part 14):

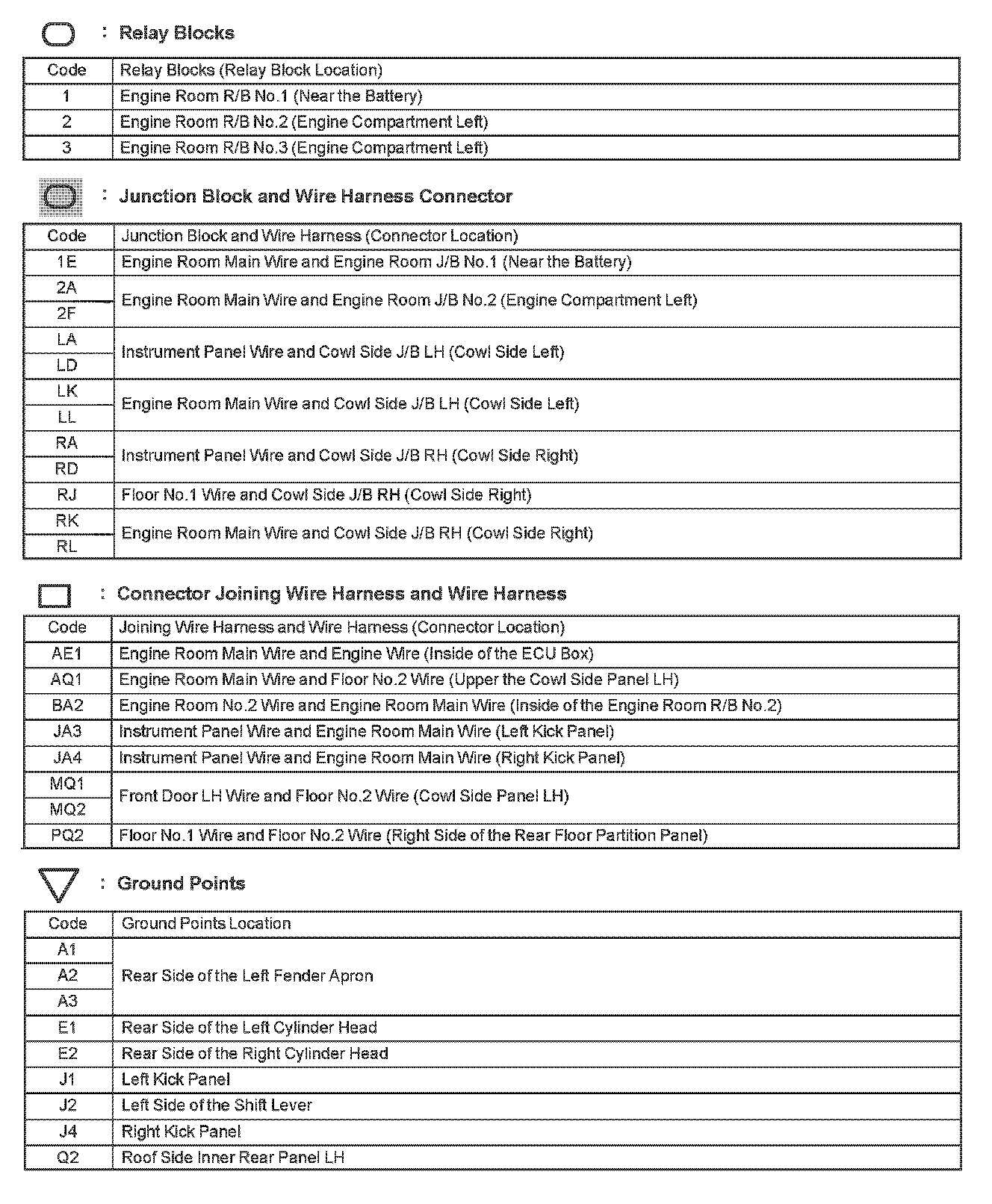

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
