Cruise Control System

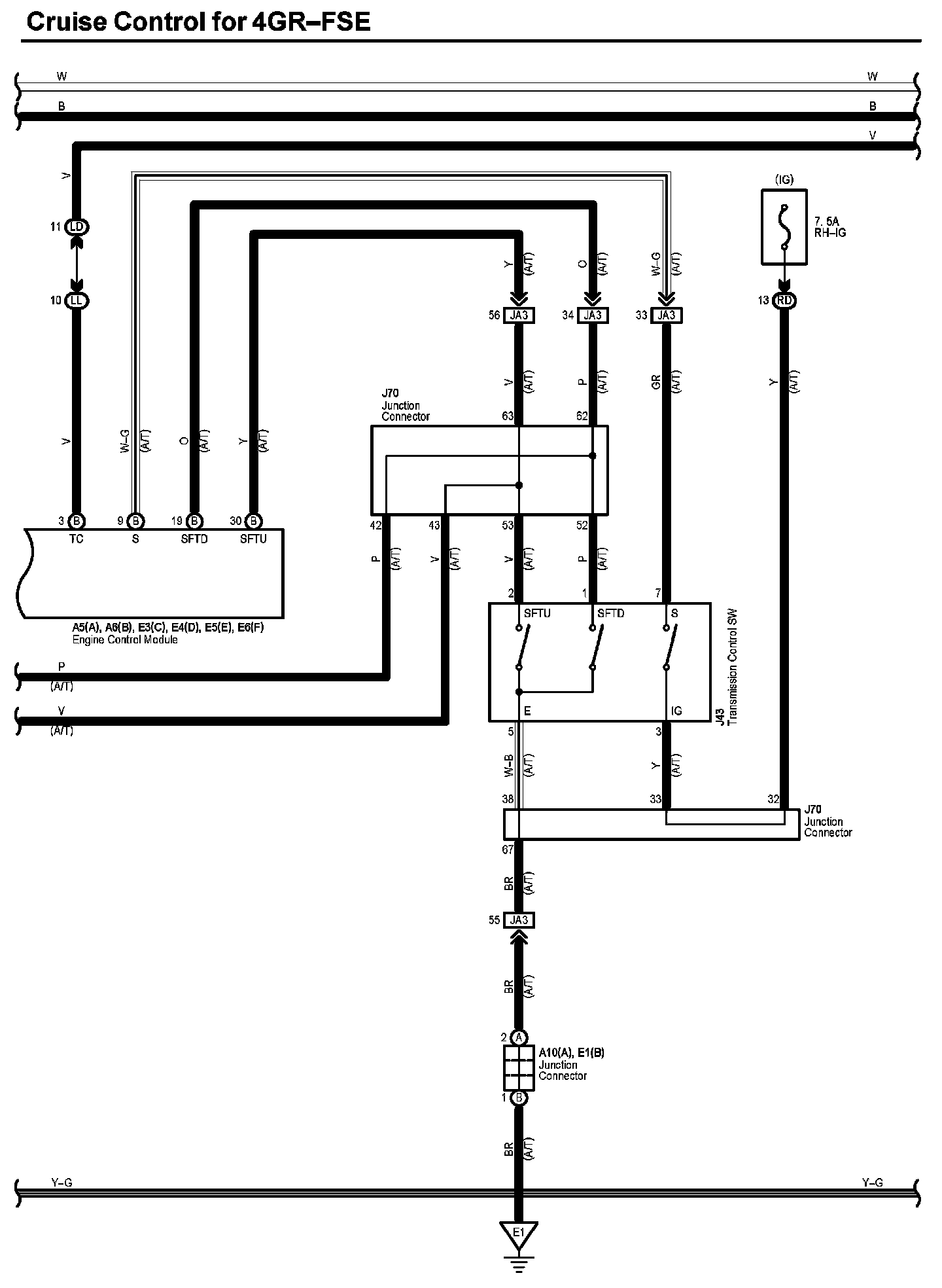

Cruise Control (Part 1):

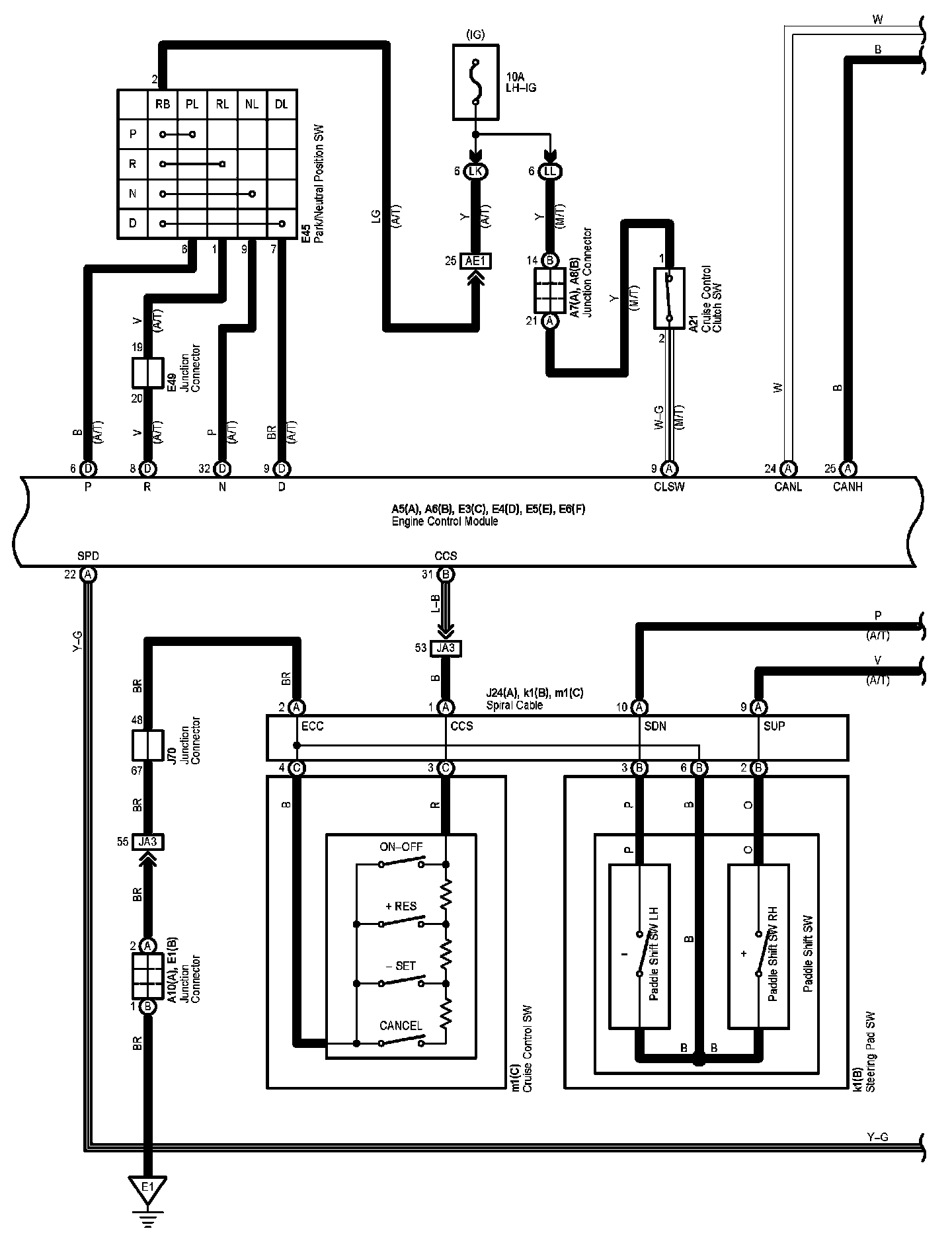

Cruise Control (Part 2):

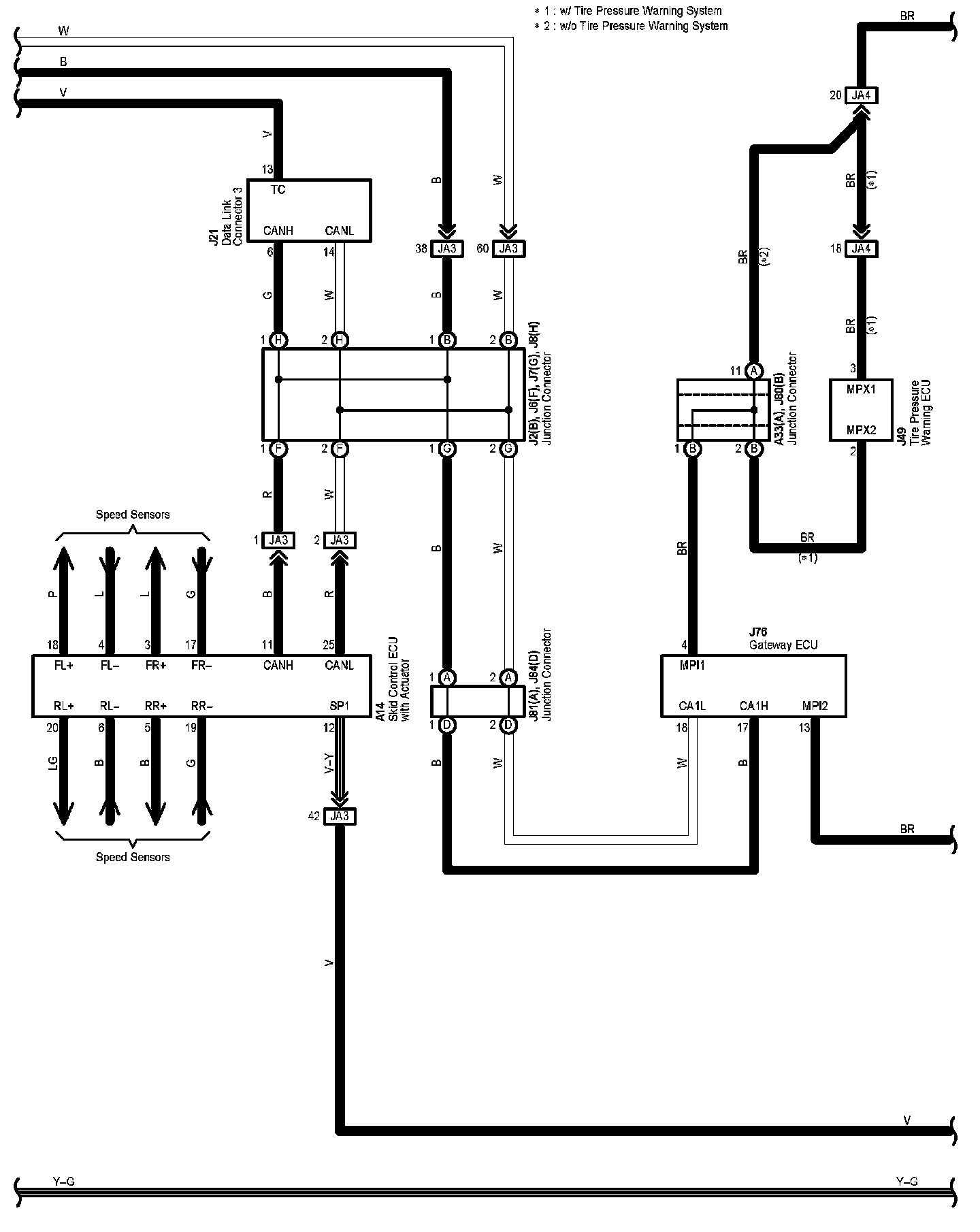

Cruise Control (Part 3):

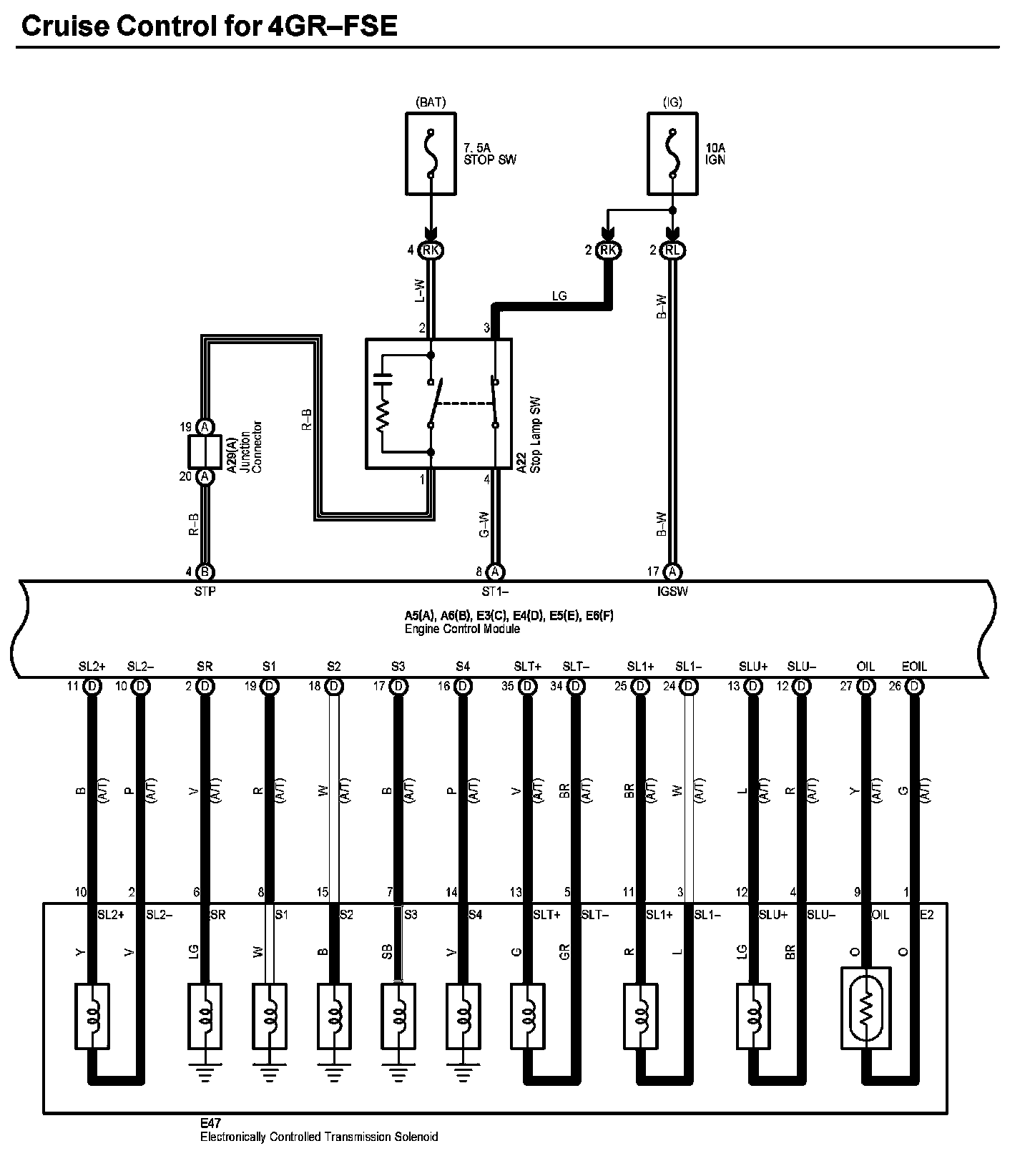

Cruise Control (Part 4):

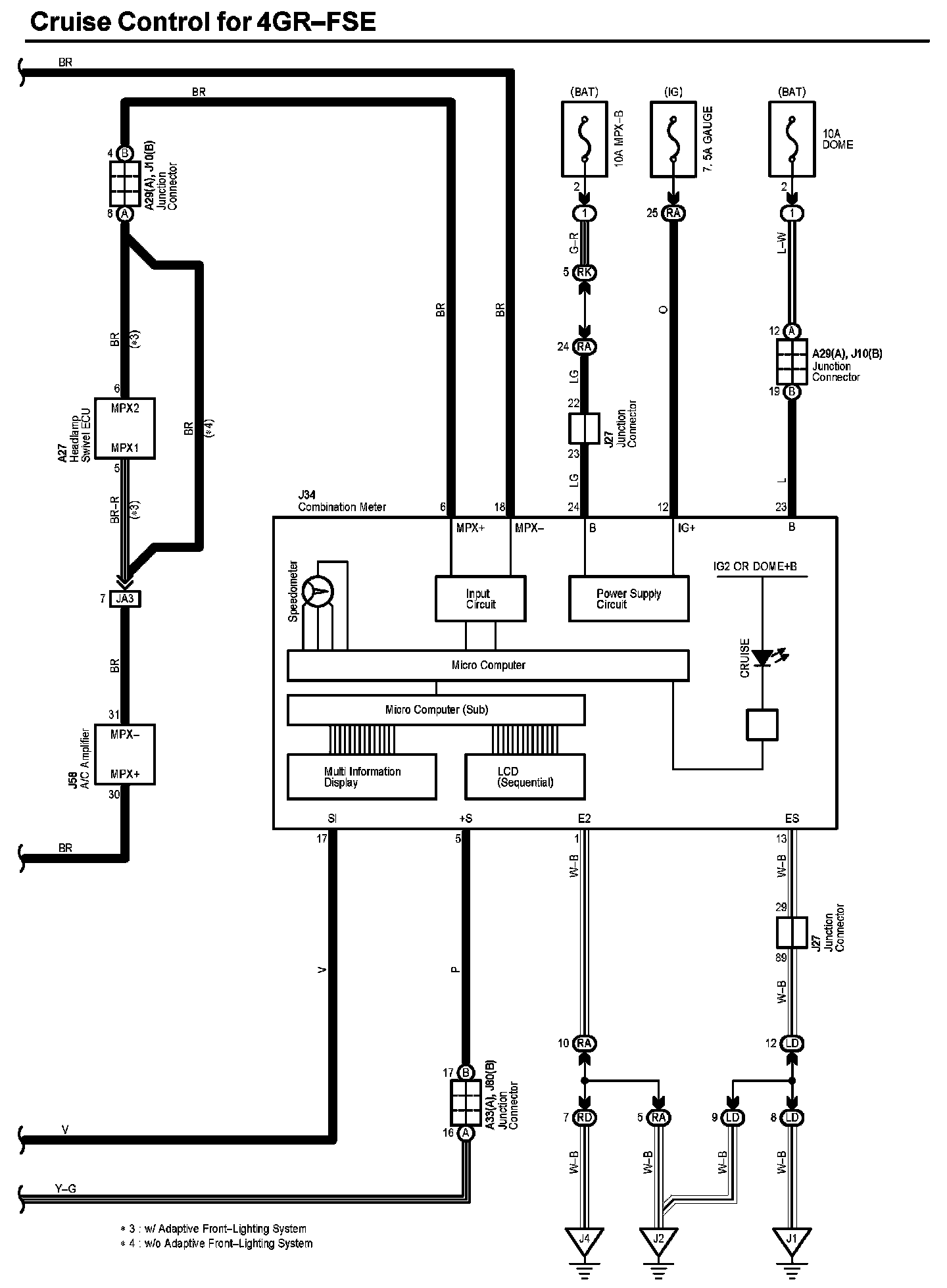

Cruise Control (Part 5):

Cruise Control (Part 6):

Cruise Control (Part 7):

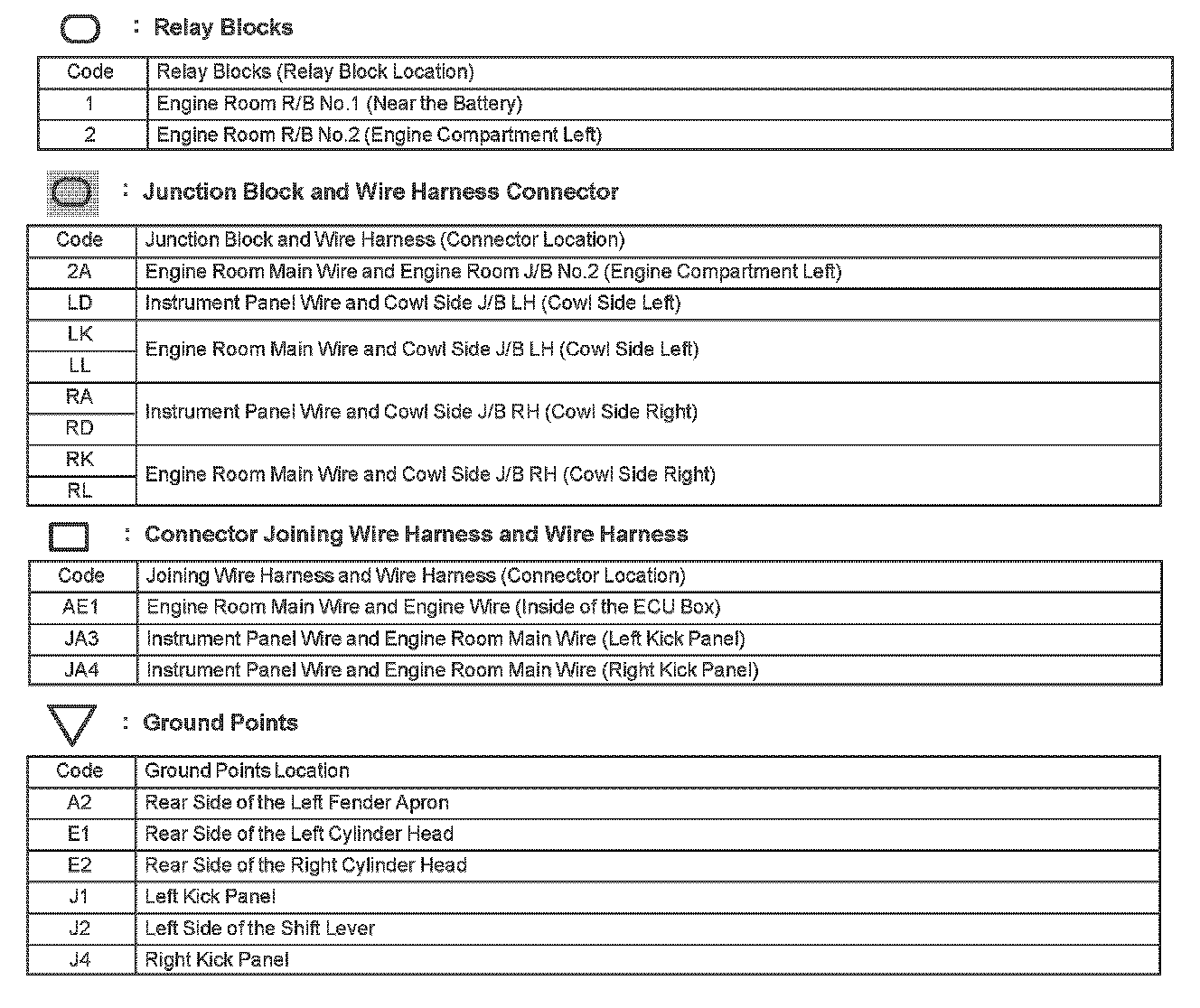

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
