Smart Access System With Push-Button Start

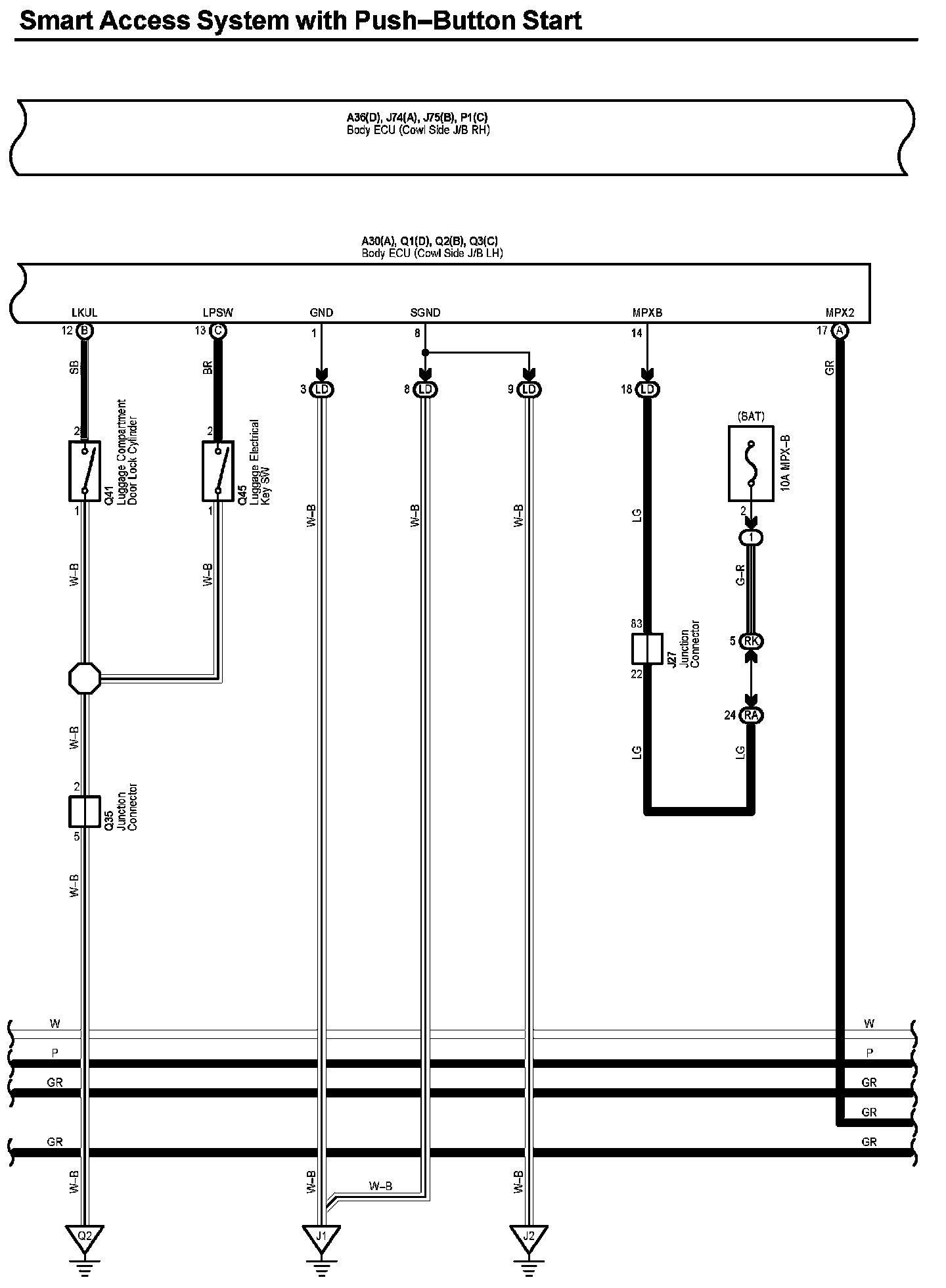

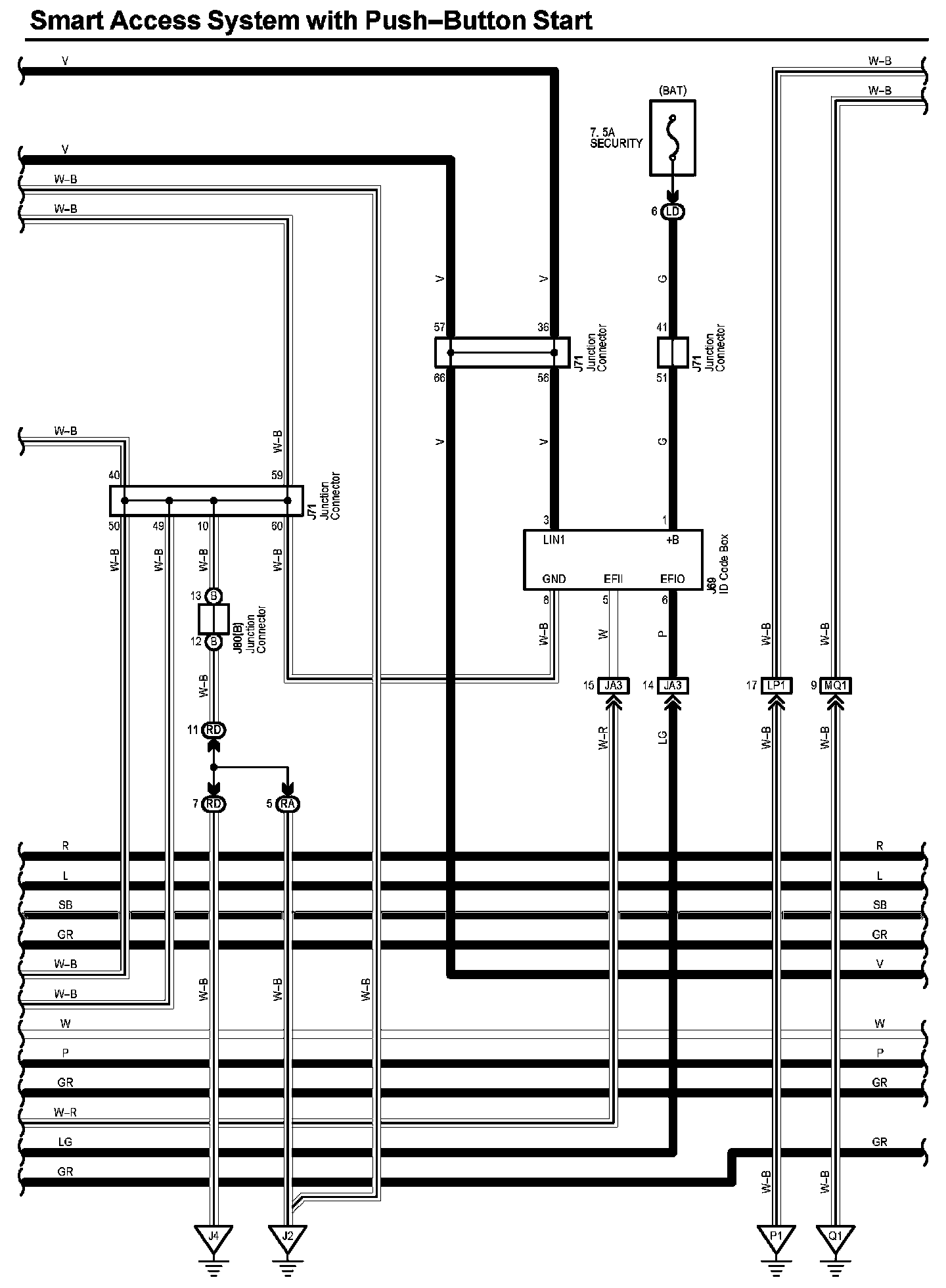

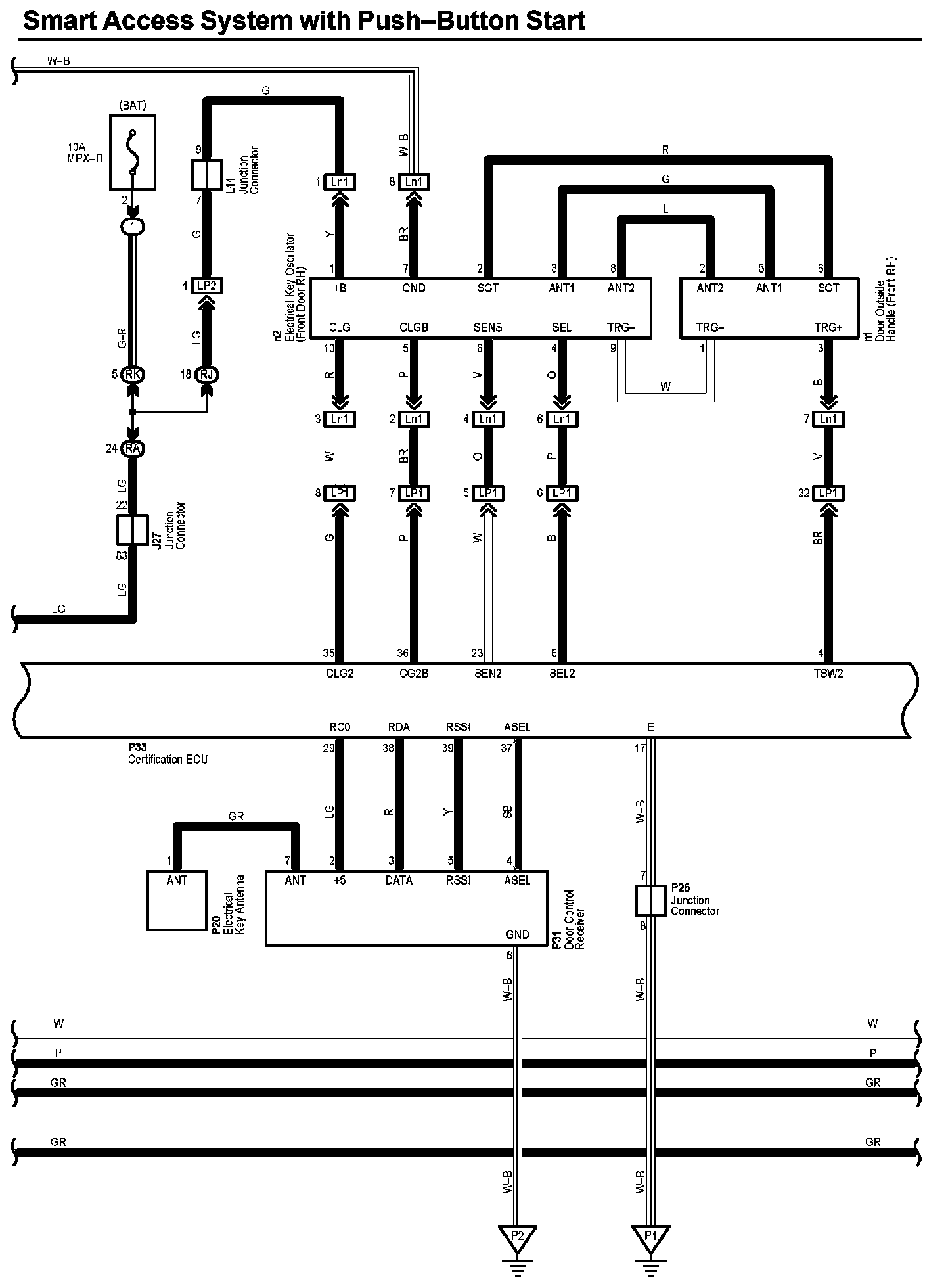

Smart Access System With Push-Button Start (Part 1):

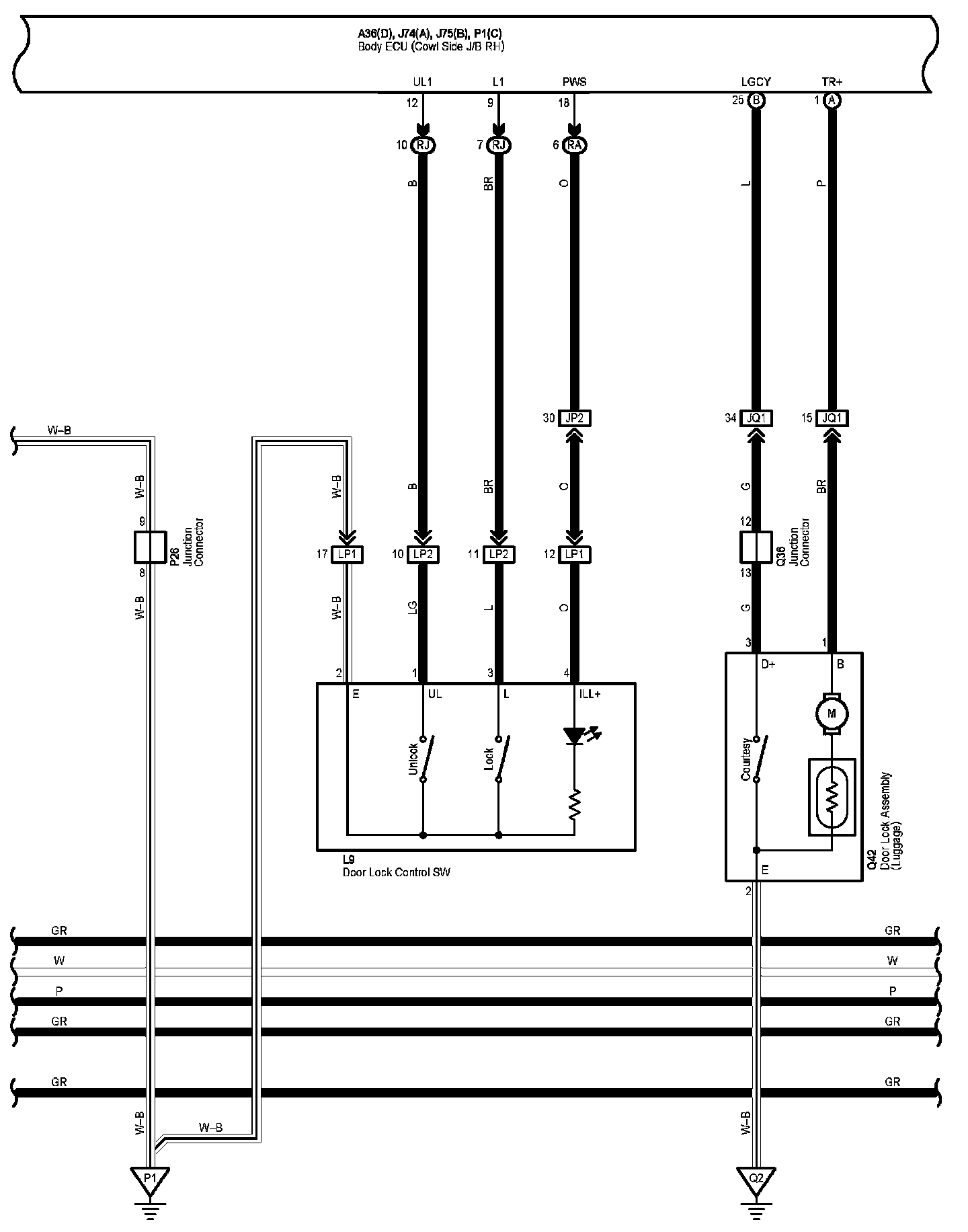

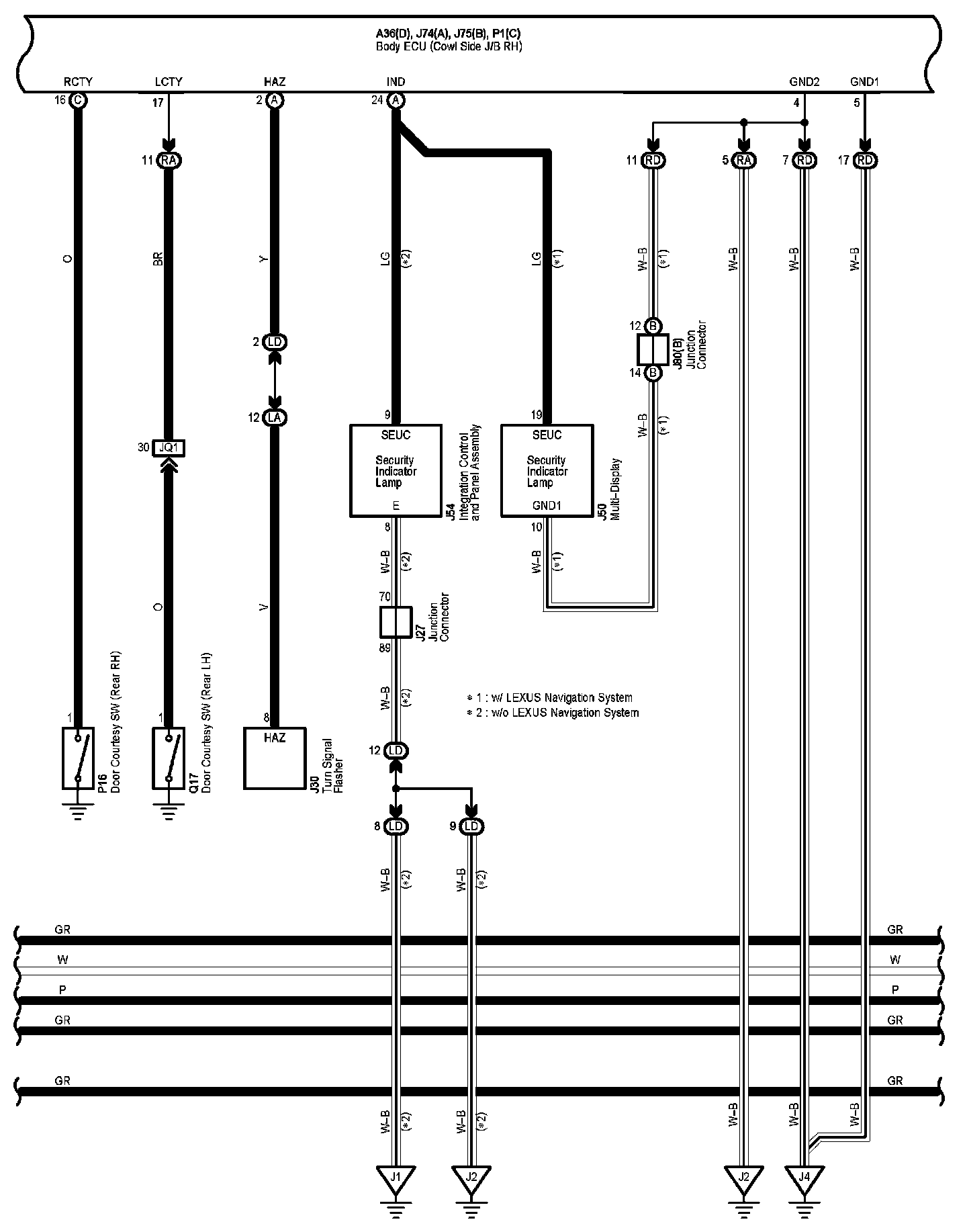

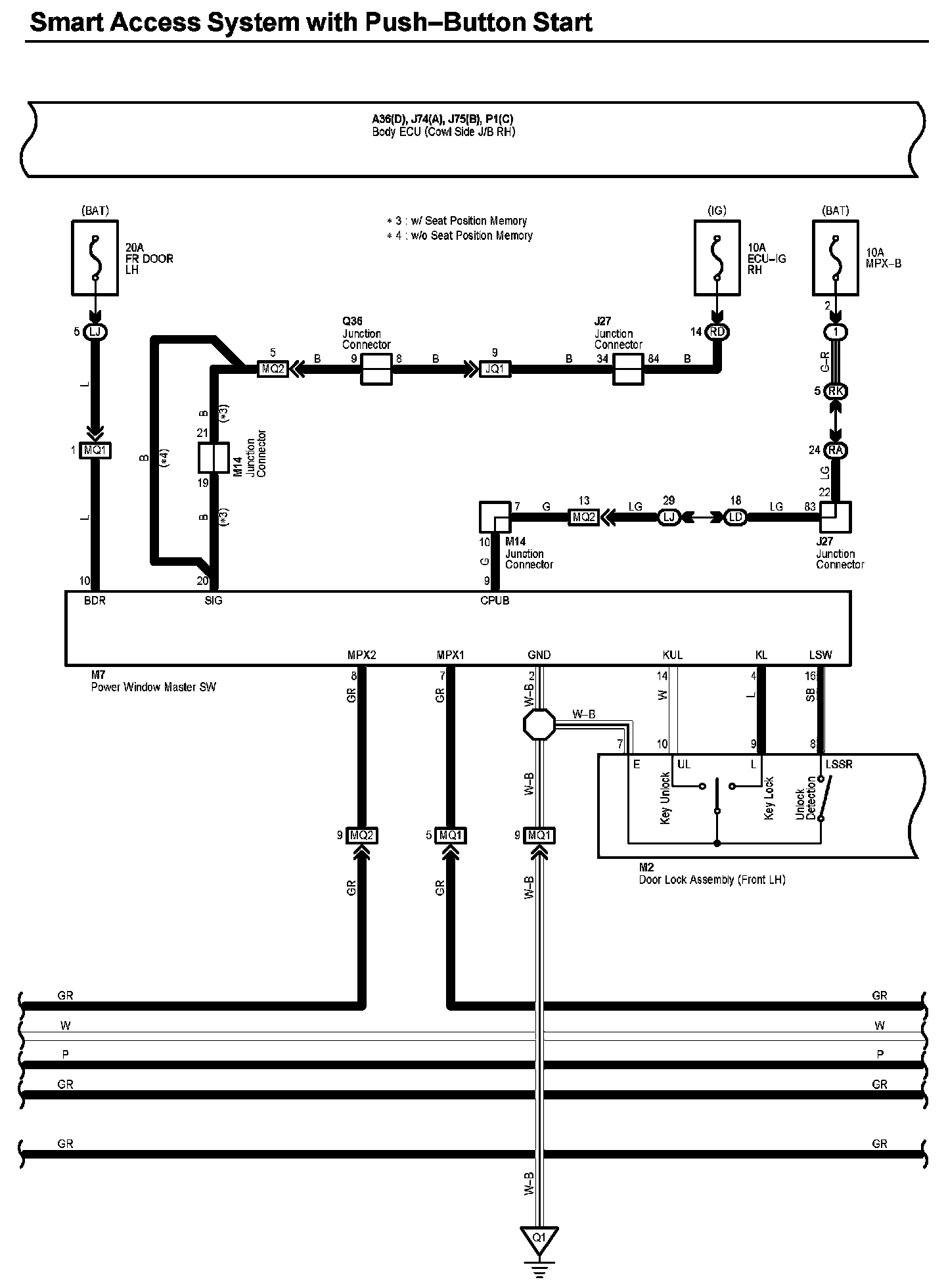

Smart Access System With Push-Button Start (Part 2):

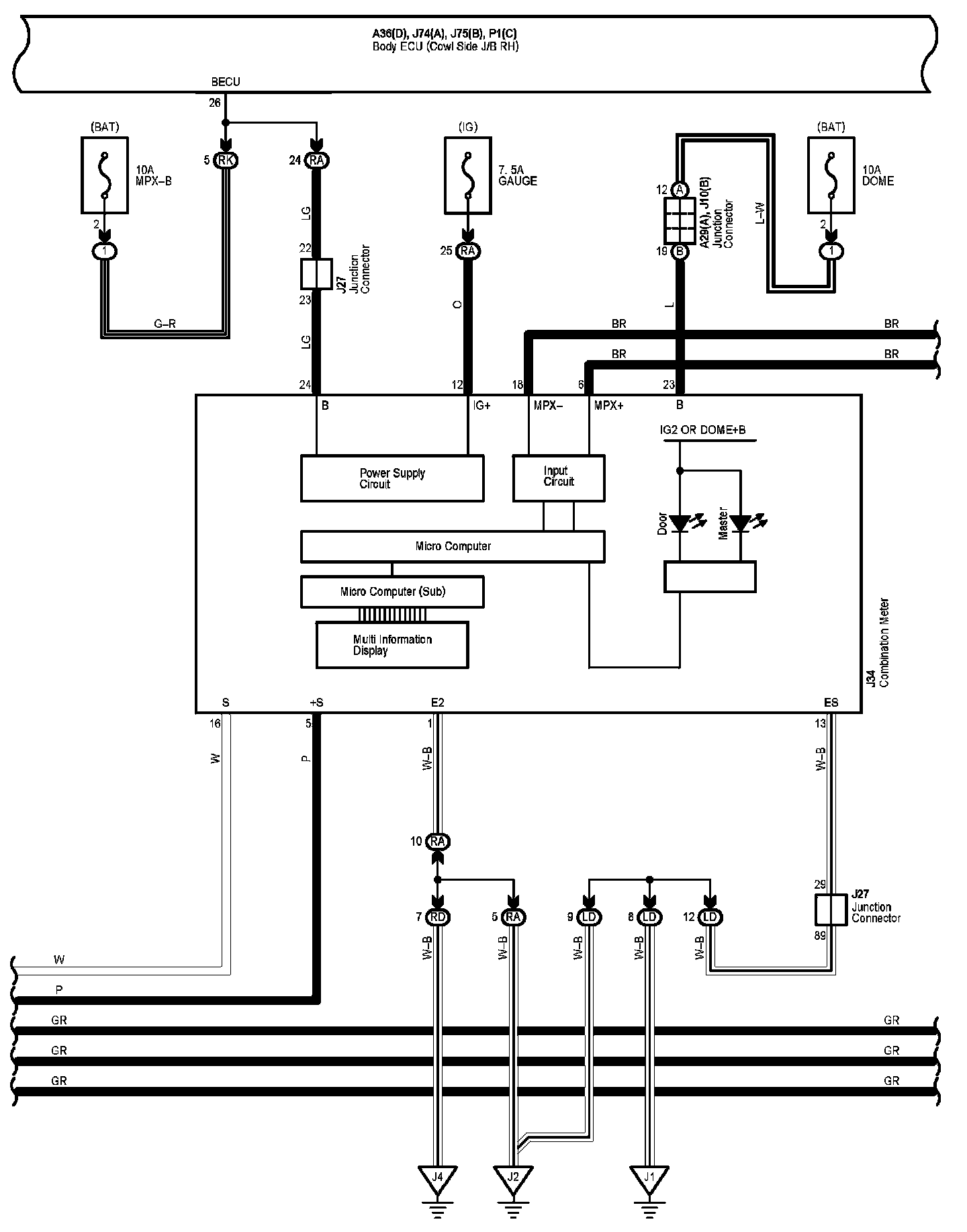

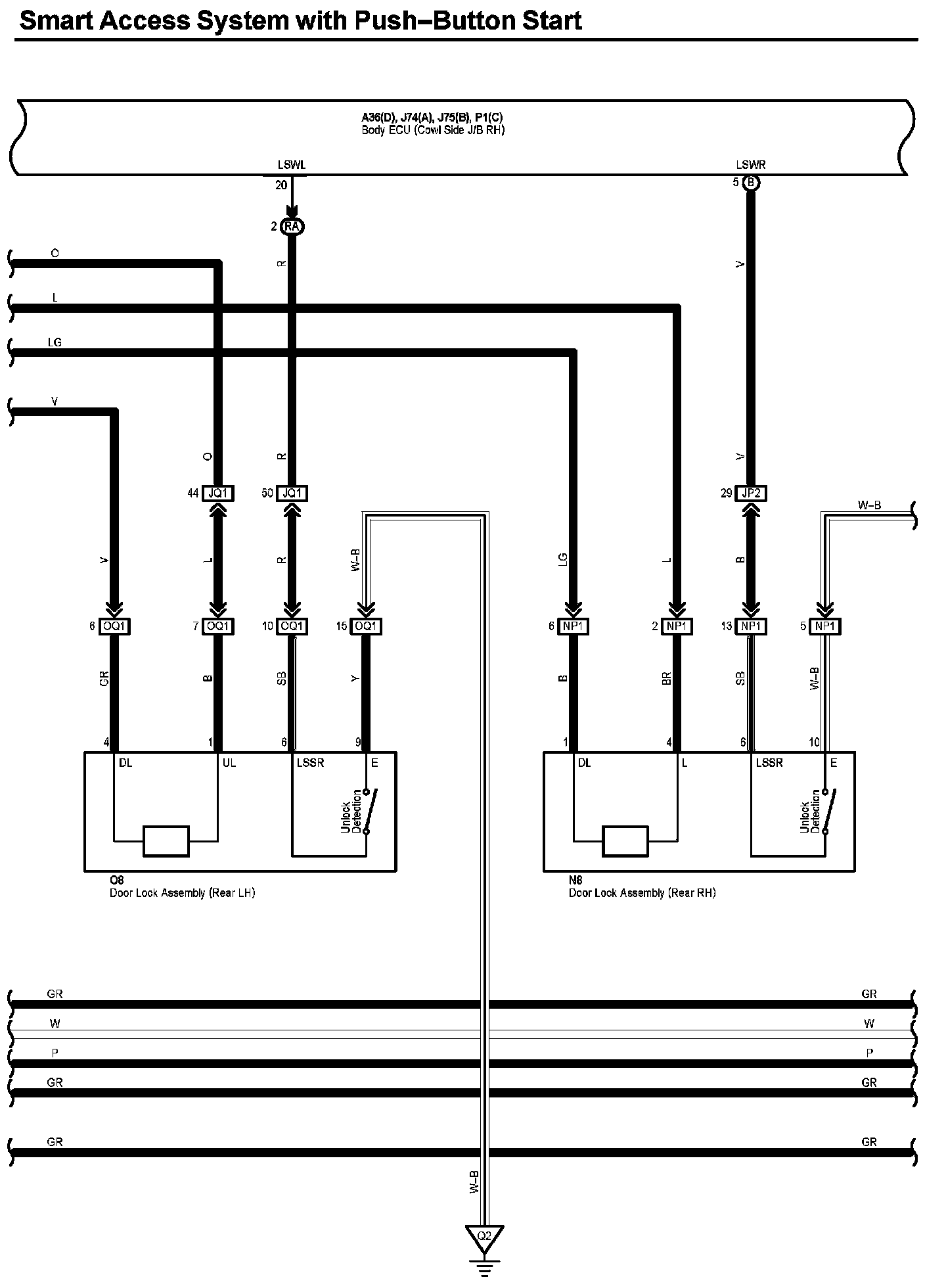

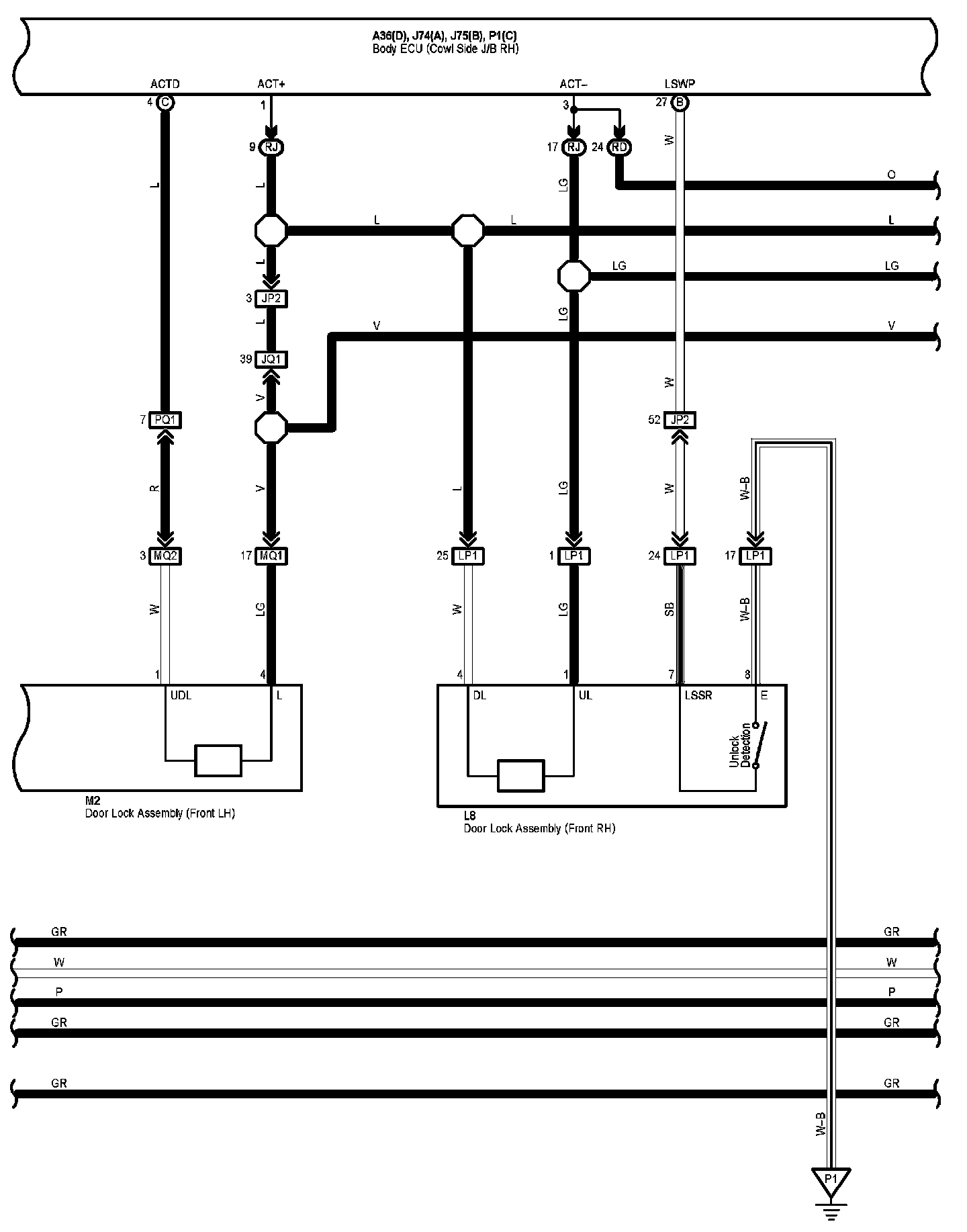

Smart Access System With Push-Button Start (Part 3):

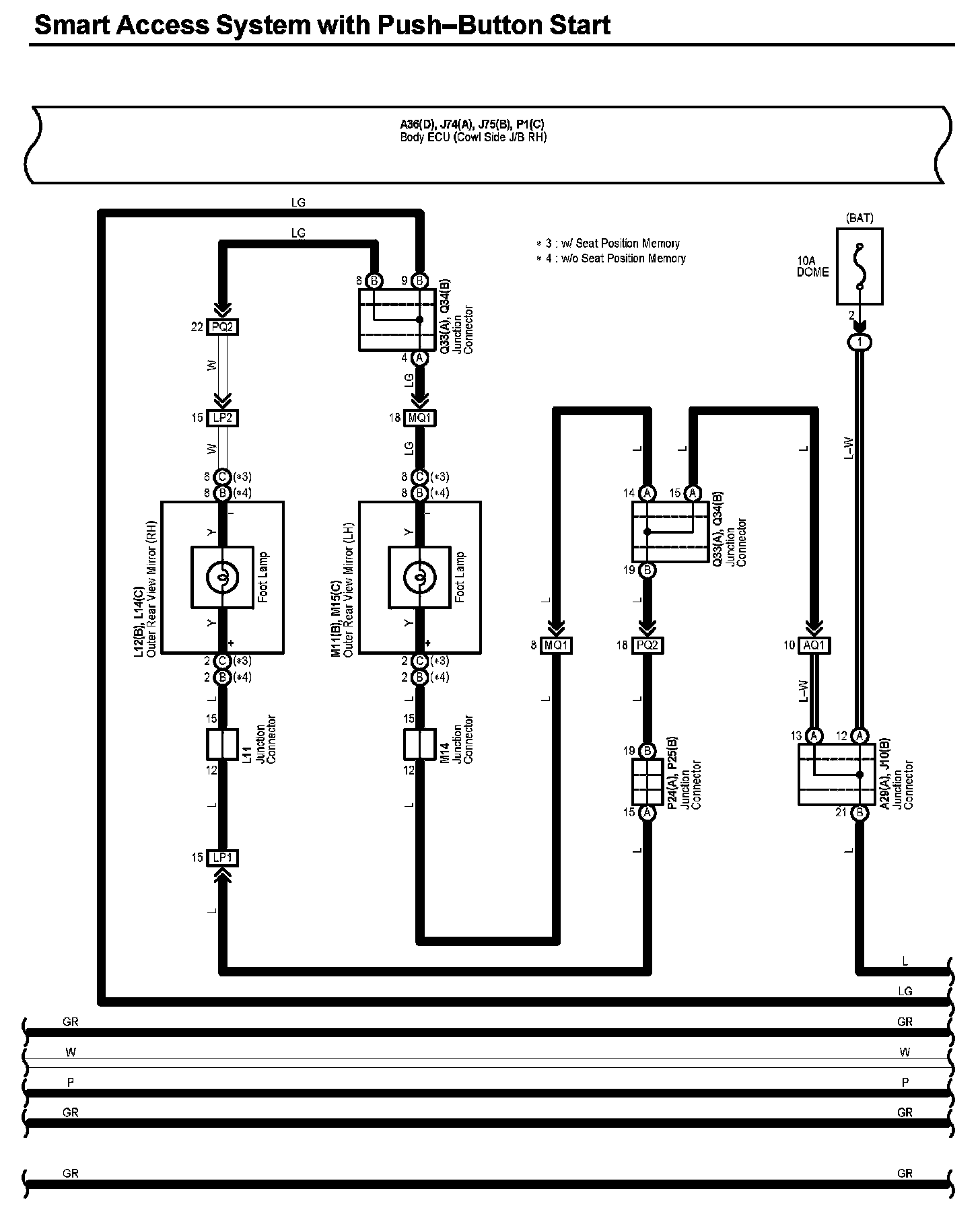

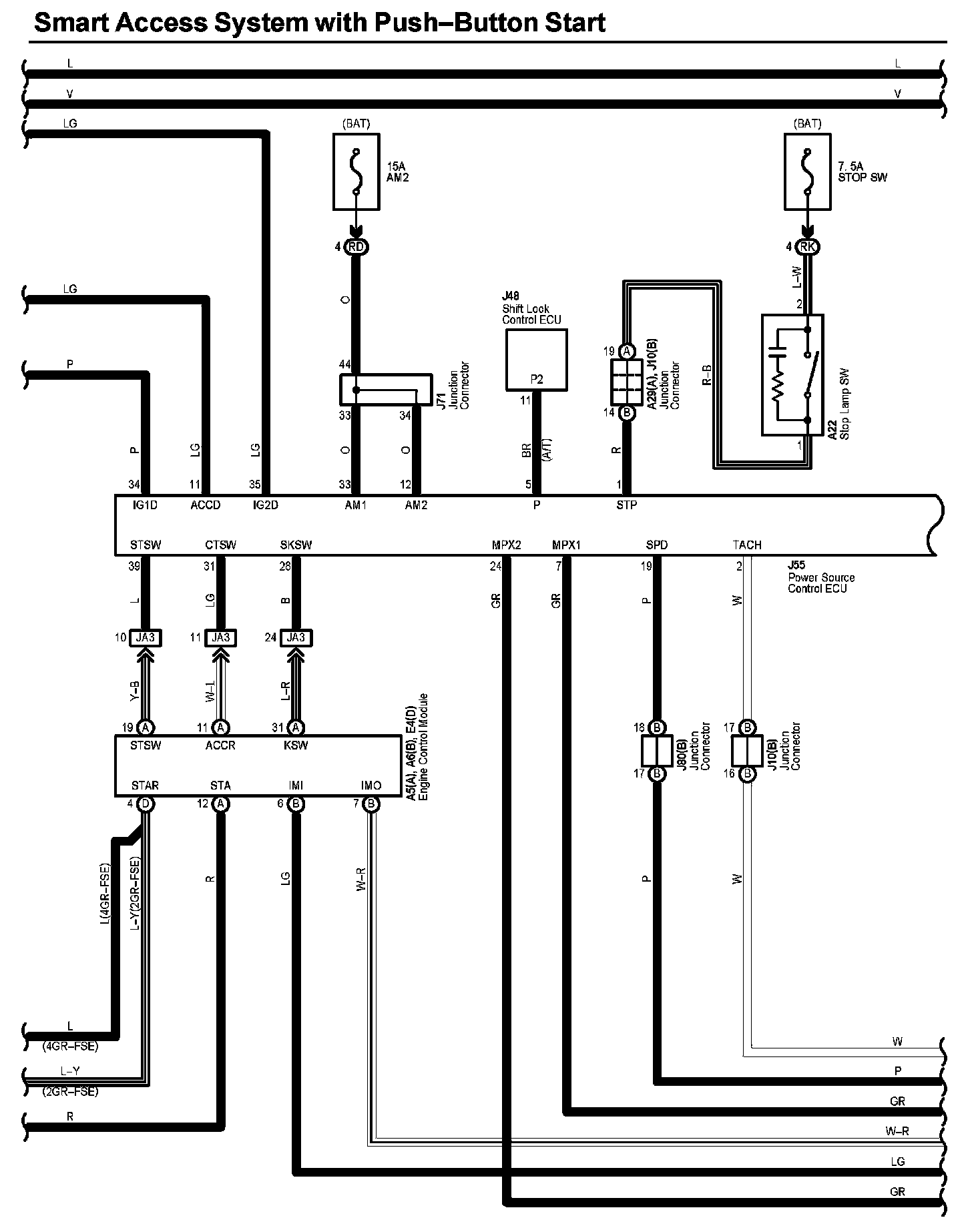

Smart Access System With Push-Button Start (Part 4):

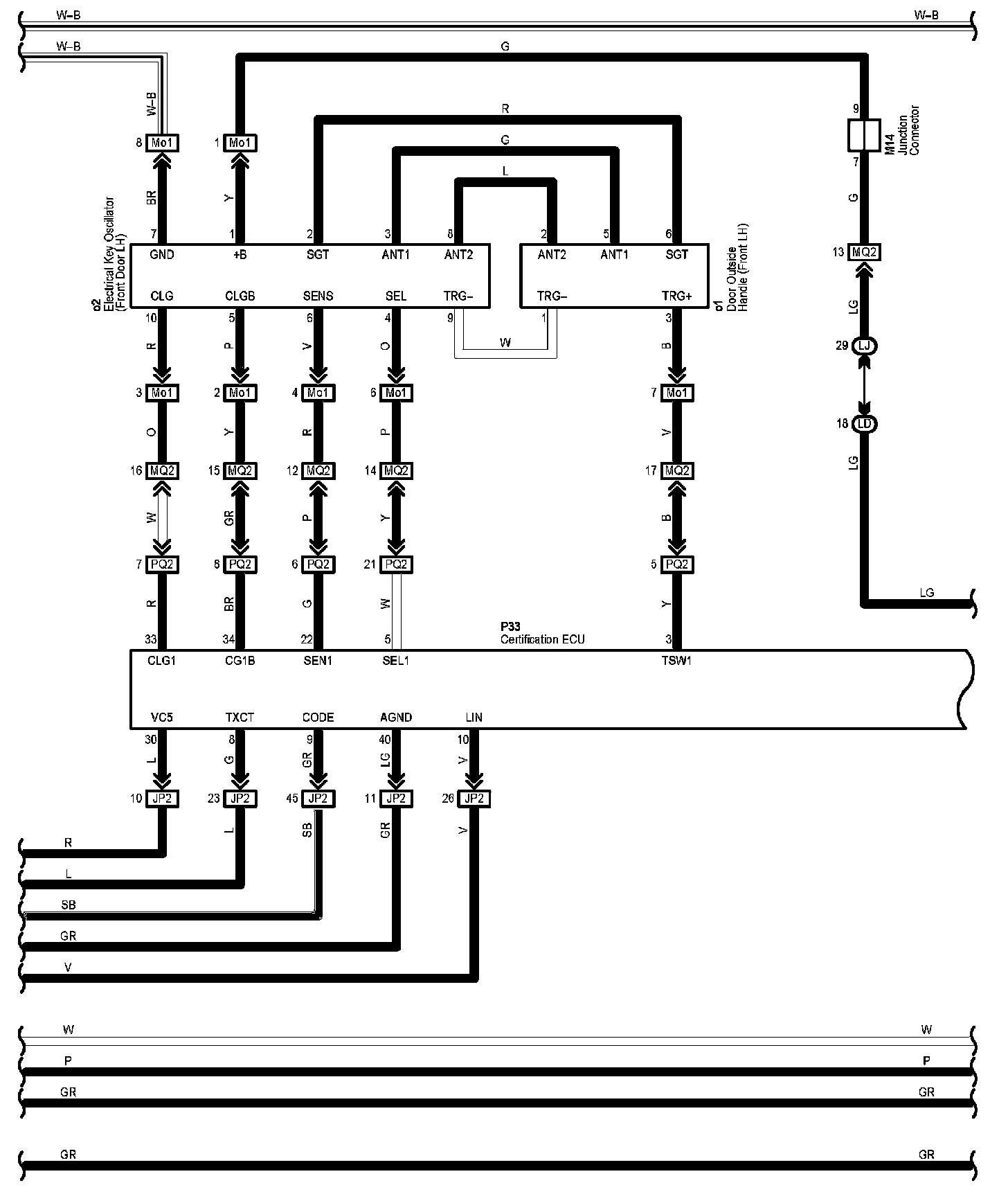

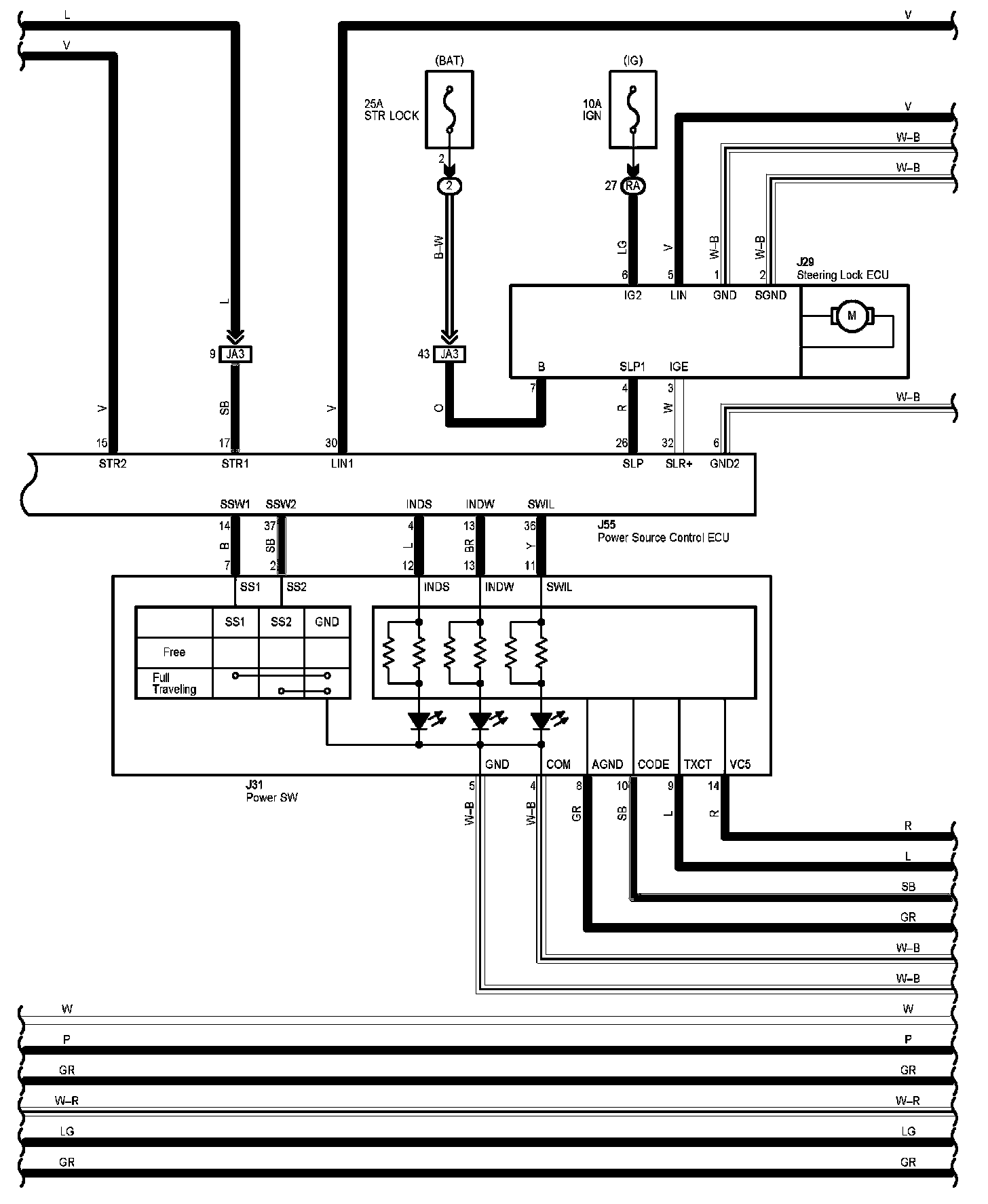

Smart Access System With Push-Button Start (Part 5):

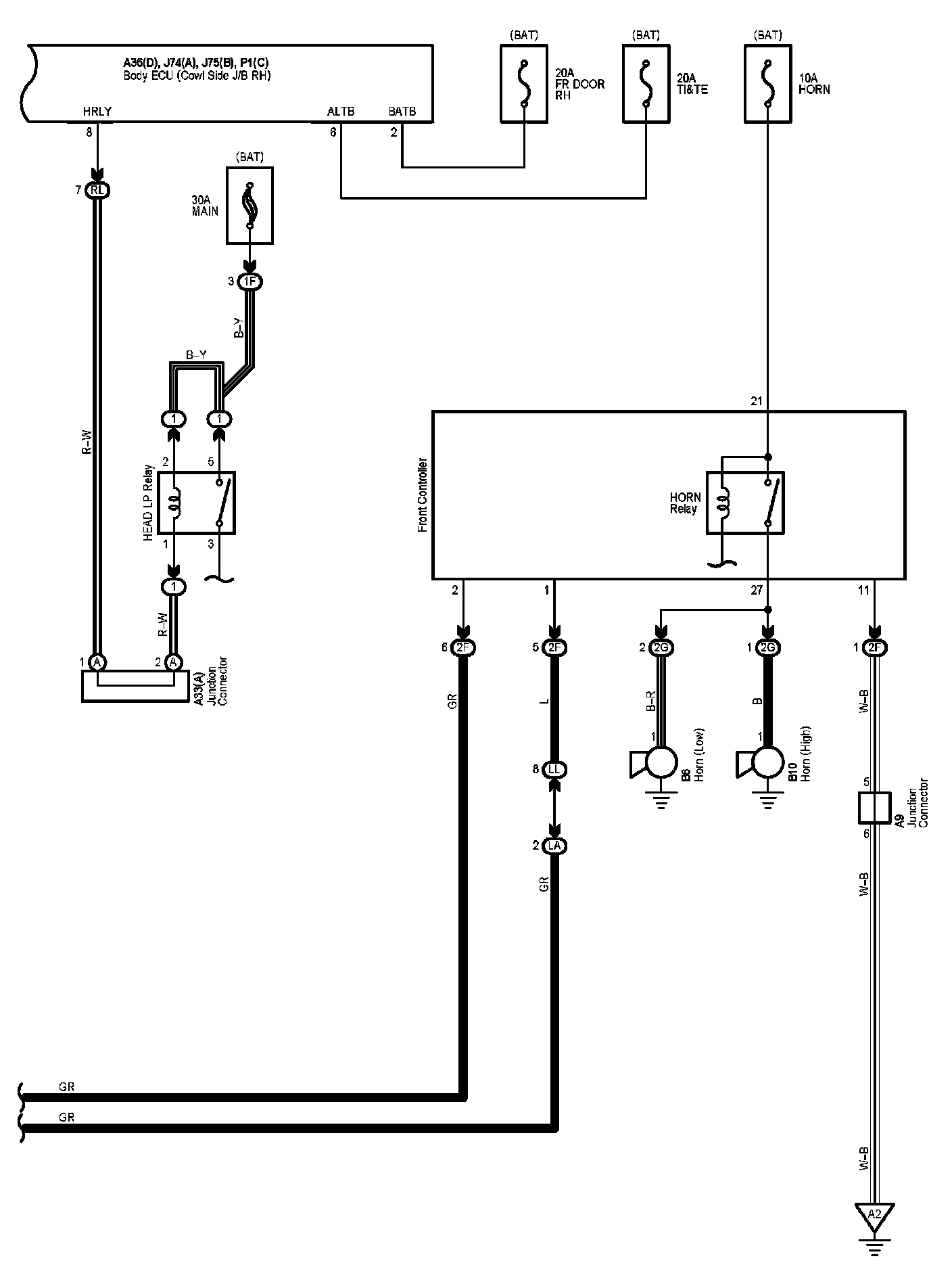

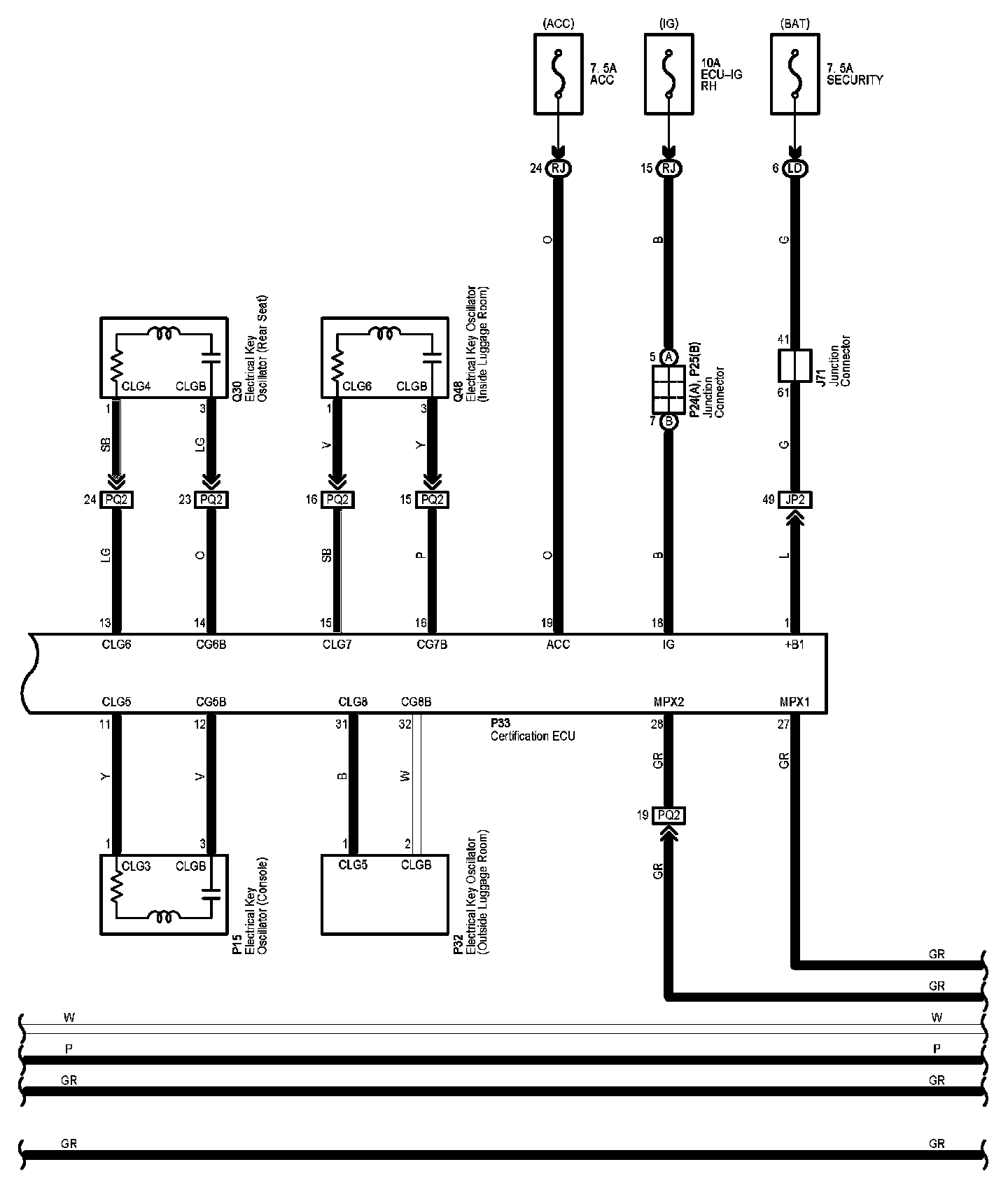

Smart Access System With Push-Button Start (Part 6):

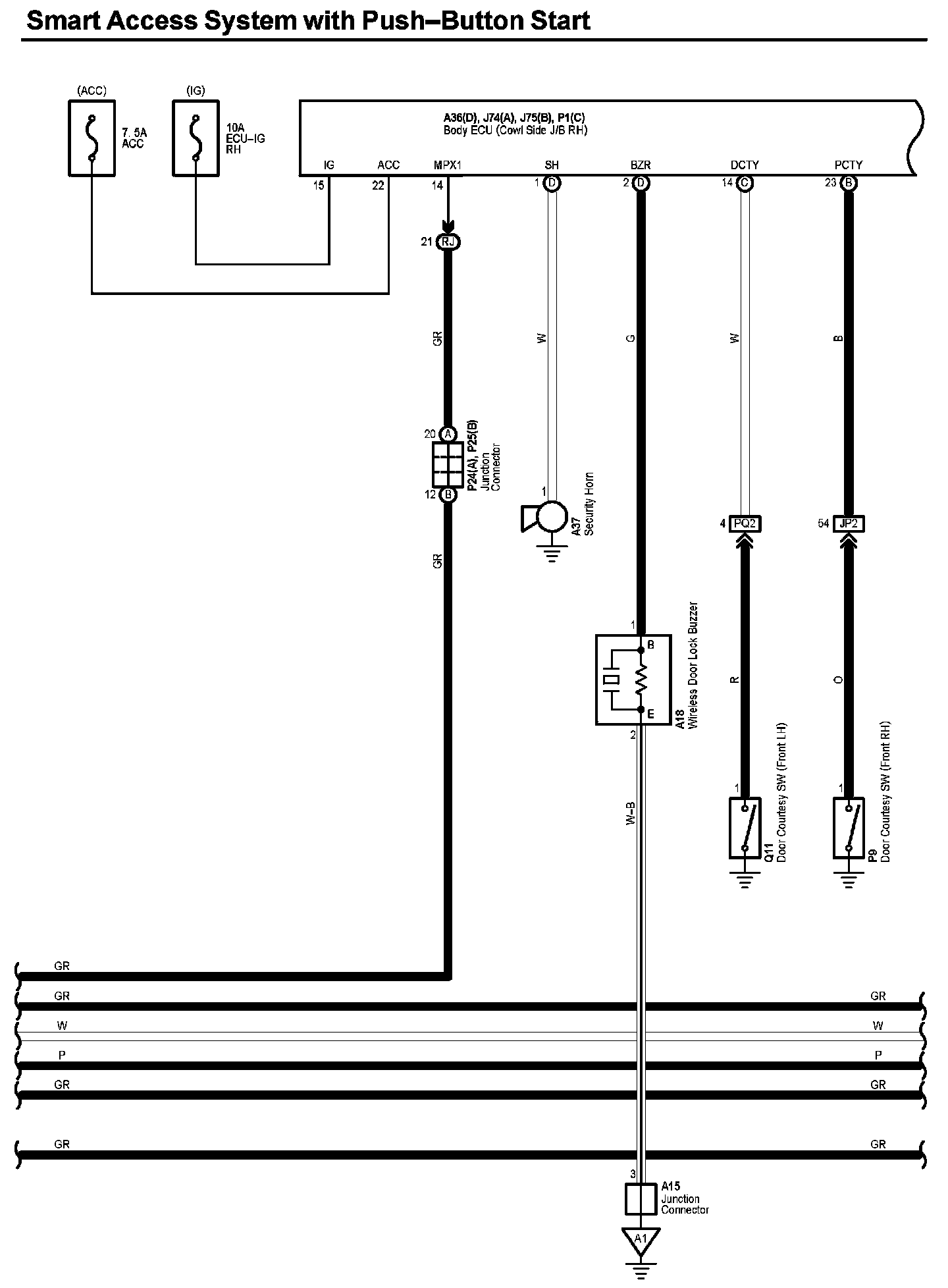

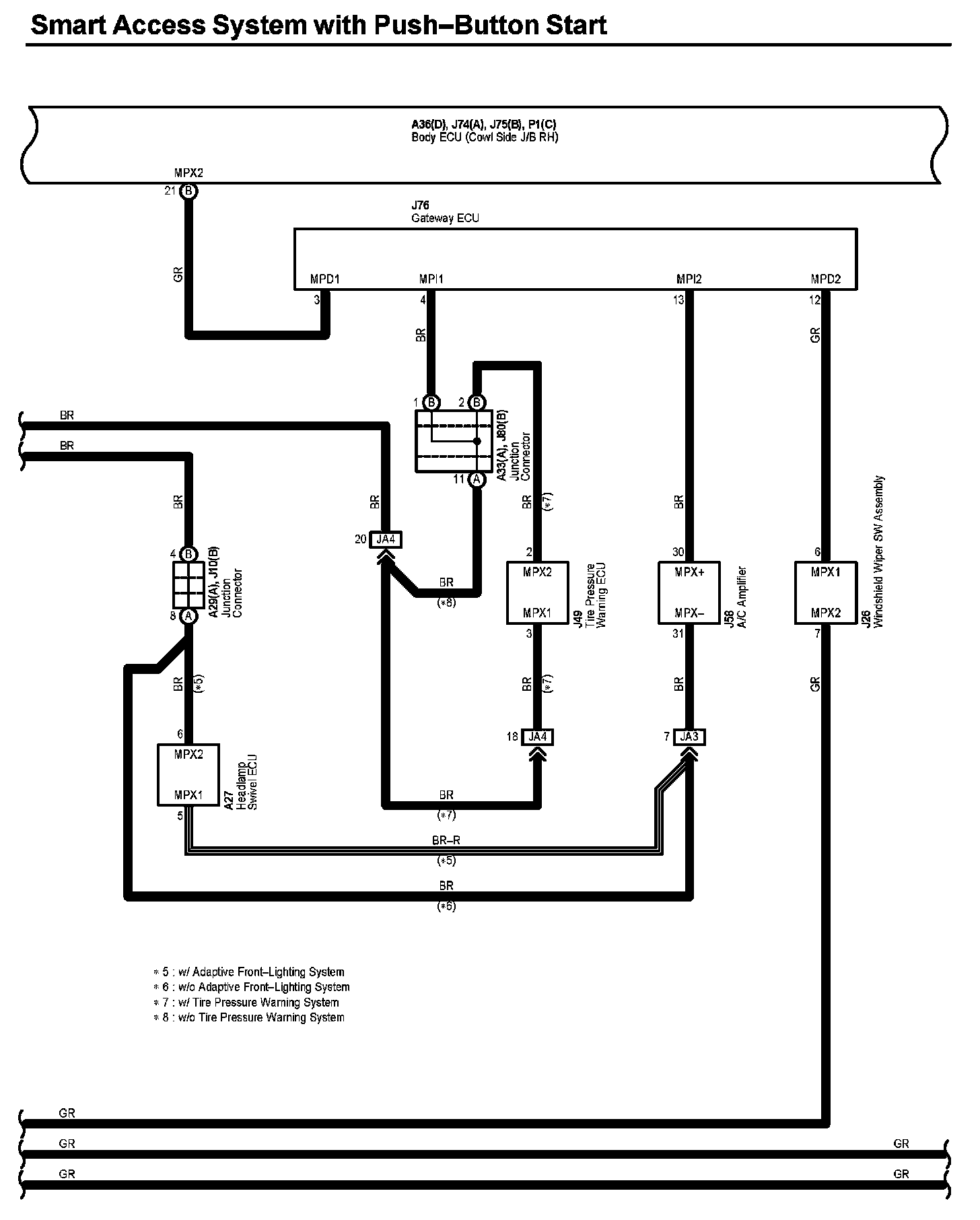

Smart Access System With Push-Button Start (Part 7):

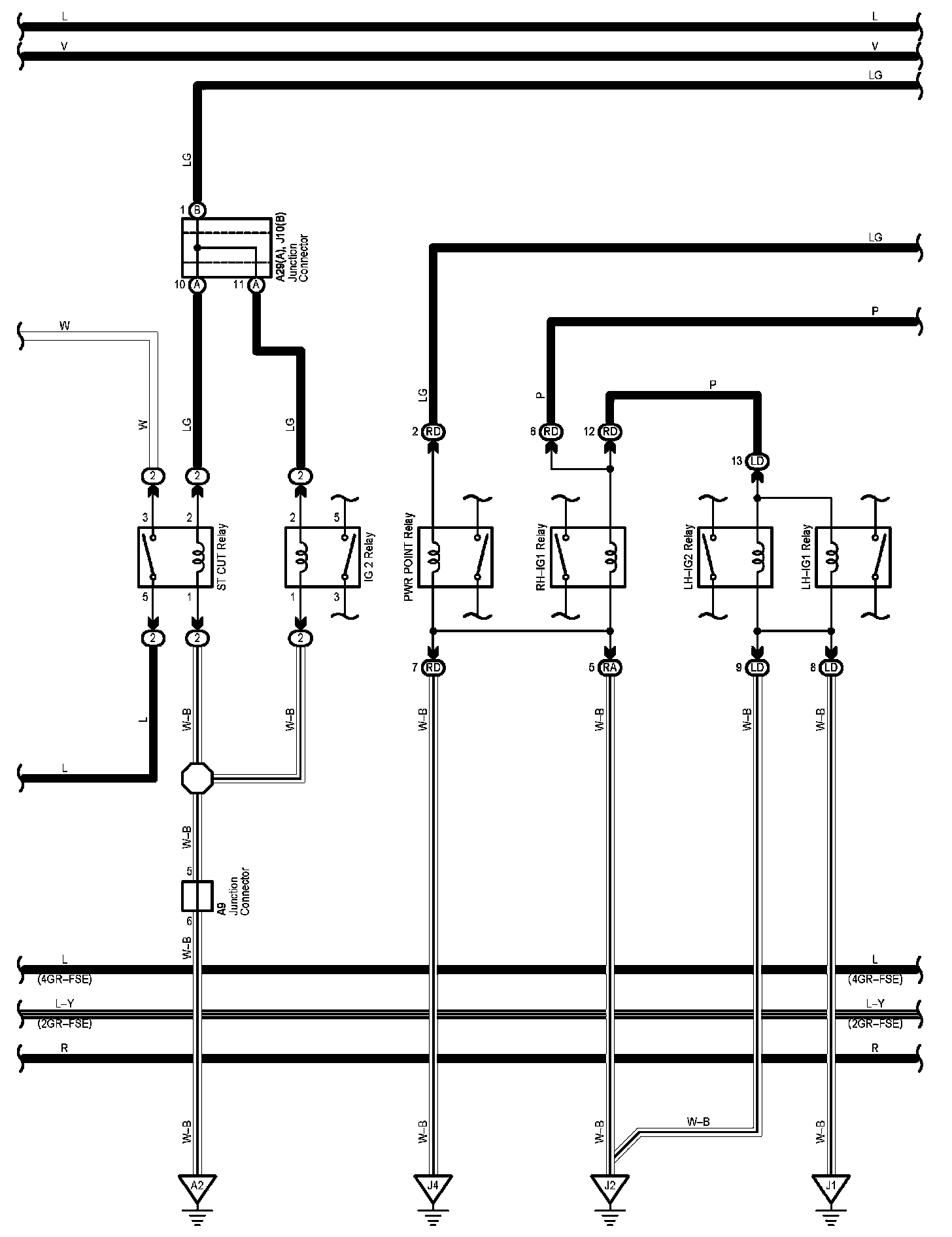

Smart Access System With Push-Button Start (Part 8):

Smart Access System With Push-Button Start (Part 9):

Smart Access System With Push-Button Start (Part 10):

Smart Access System With Push-Button Start (Part 11):

Smart Access System With Push-Button Start (Part 12):

Smart Access System With Push-Button Start (Part 13):

Smart Access System With Push-Button Start (Part 14):

Smart Access System With Push-Button Start (Part 15):

Smart Access System With Push-Button Start (Part 16):

Smart Access System With Push-Button Start (Part 17):

Smart Access System With Push-Button Start (Part 18):

Smart Access System With Push-Button Start (Part 19):

Smart Access System With Push-Button Start (Part 20):

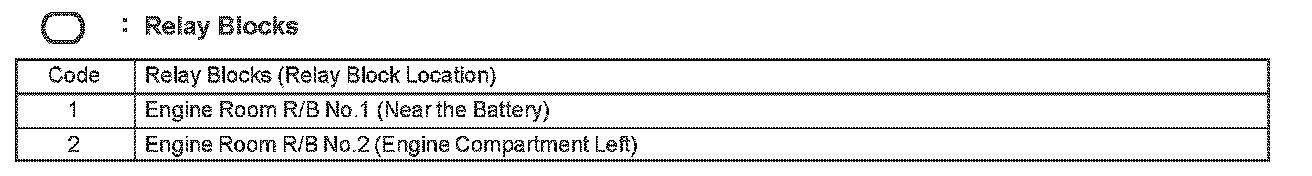

Diagram Legend (Part 1):

Diagram Legend (Part 2):

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
