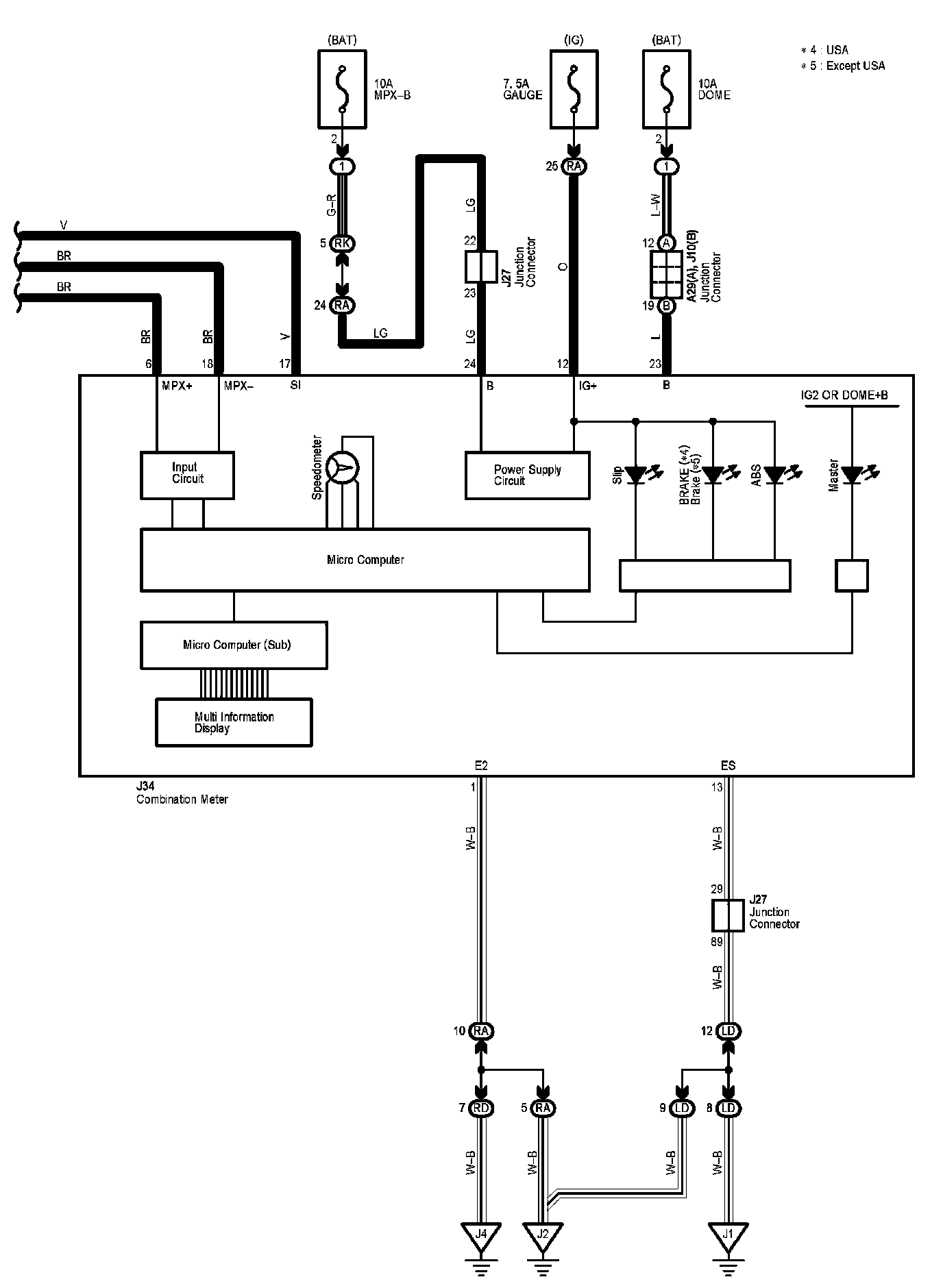

Vehicle Dynamics Integrated Management

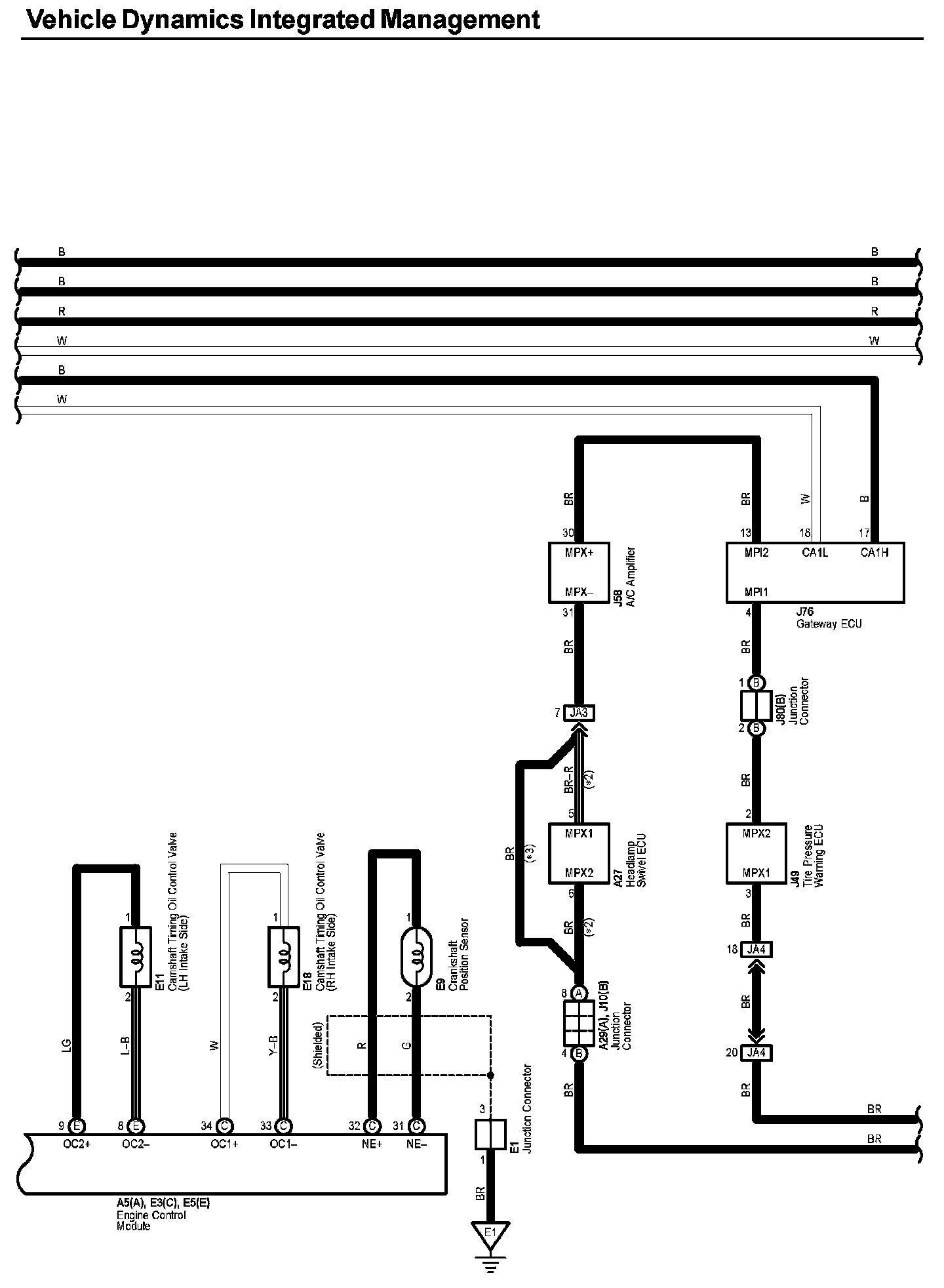

Vehicle Dynamics Integrated Management (Part 1):

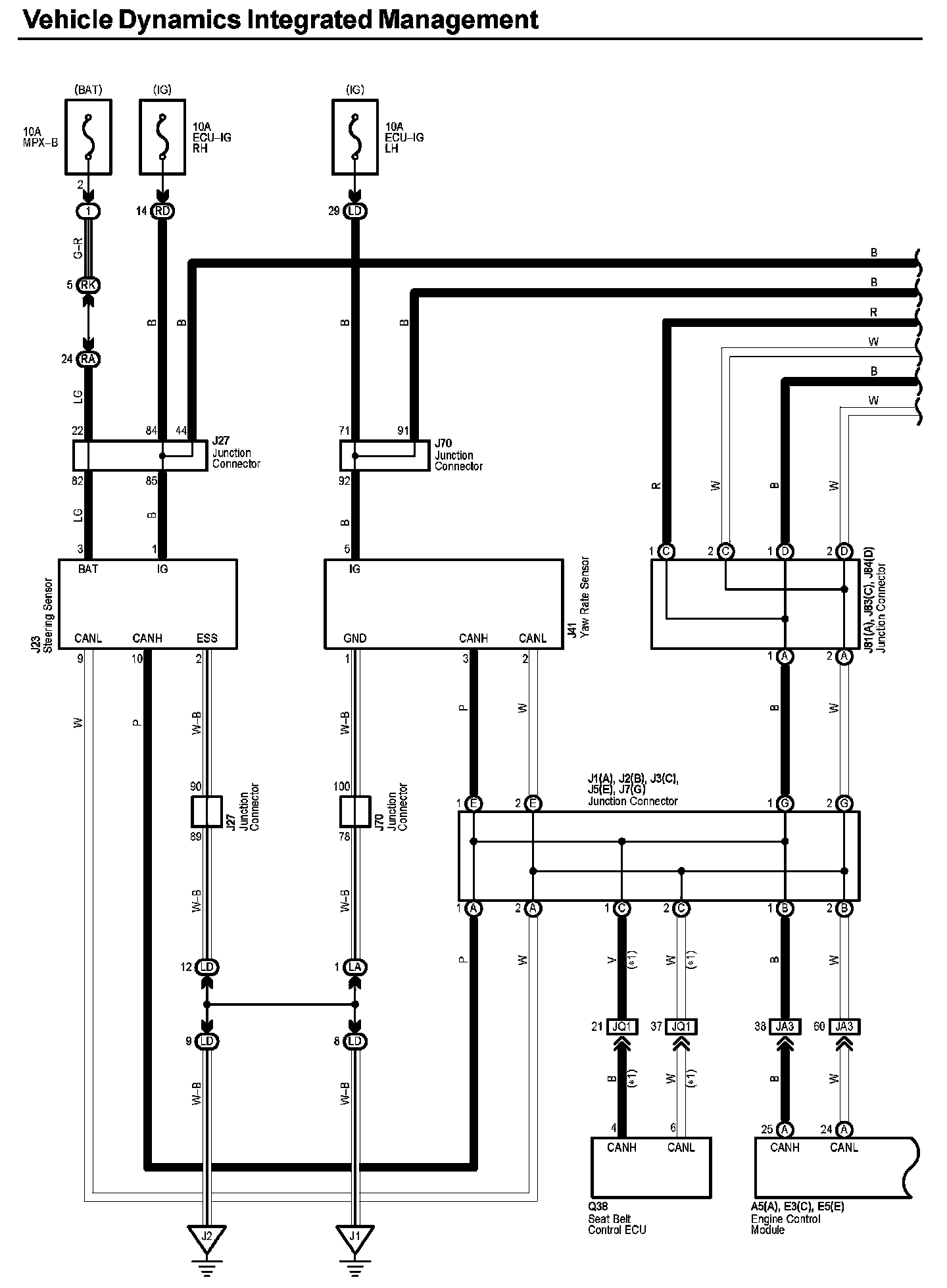

Vehicle Dynamics Integrated Management (Part 2):

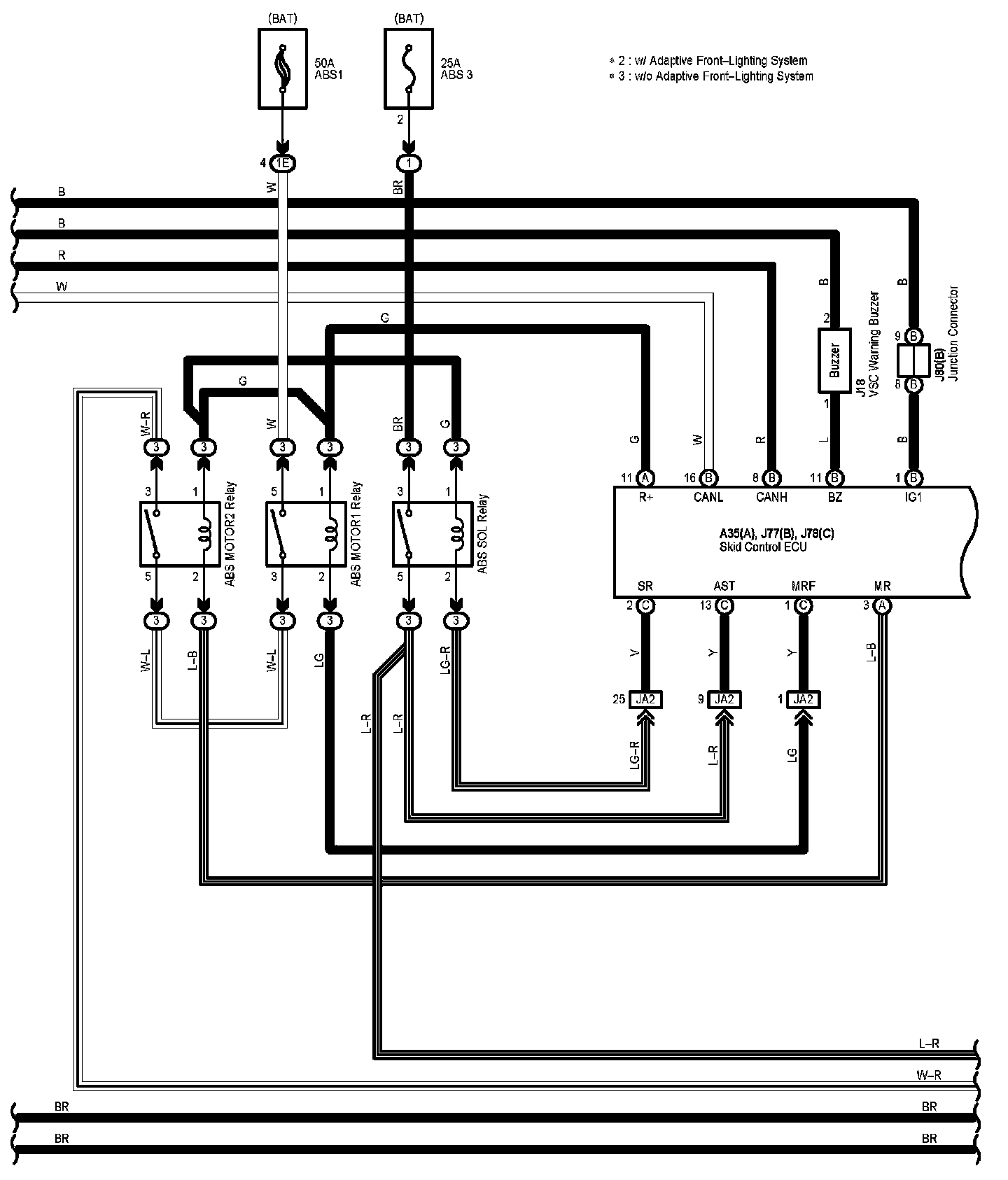

Vehicle Dynamics Integrated Management (Part 3):

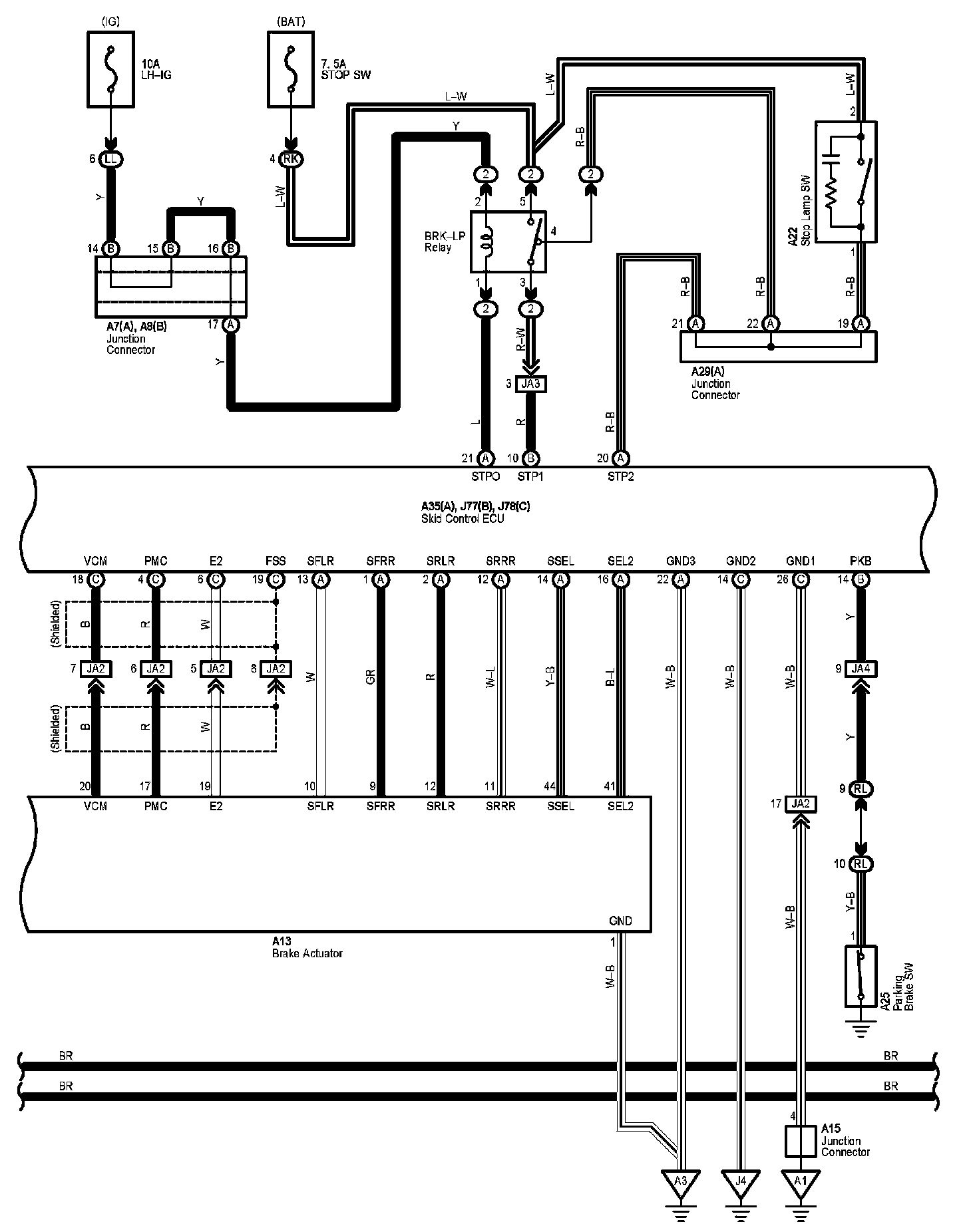

Vehicle Dynamics Integrated Management (Part 4):

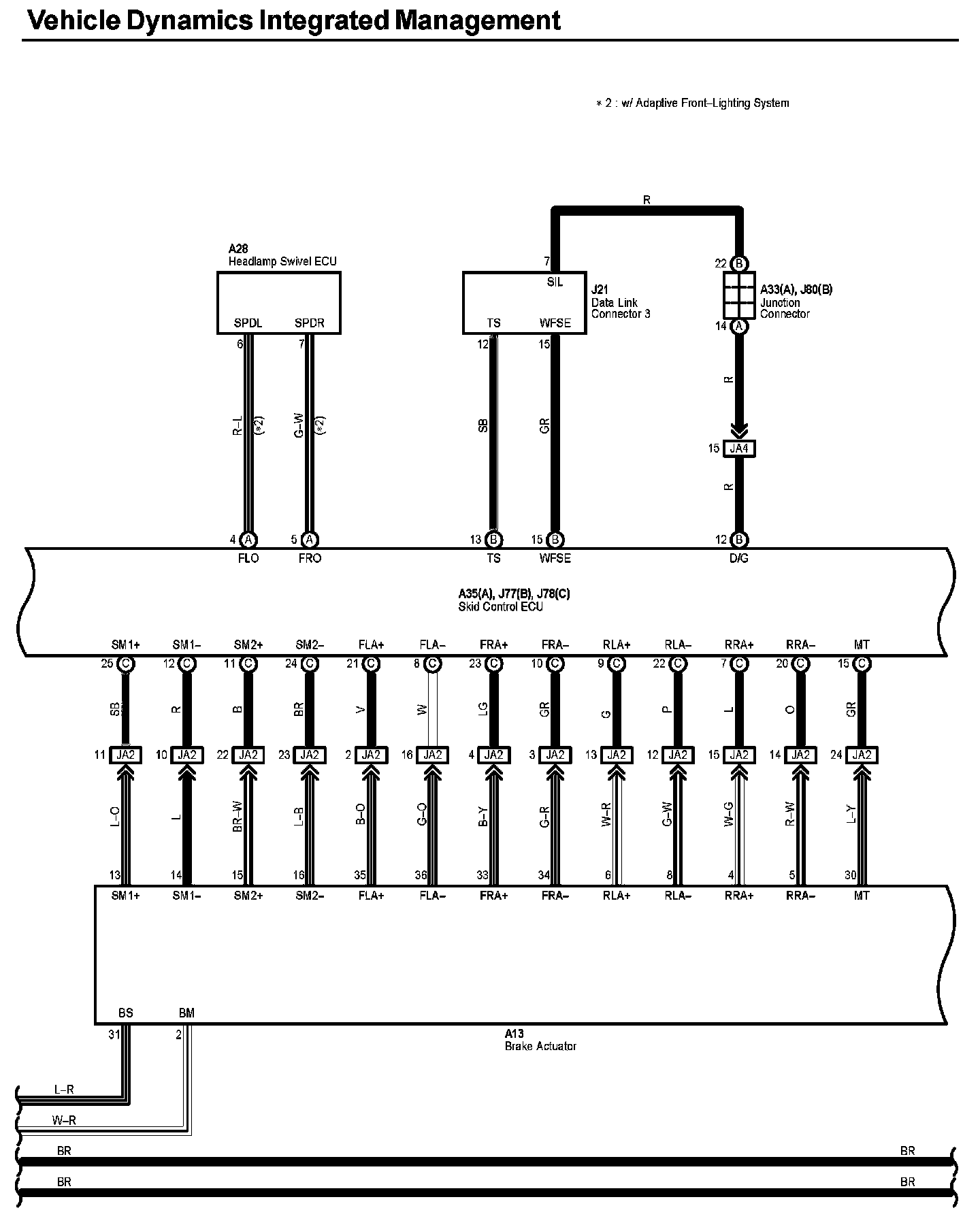

Vehicle Dynamics Integrated Management (Part 5):

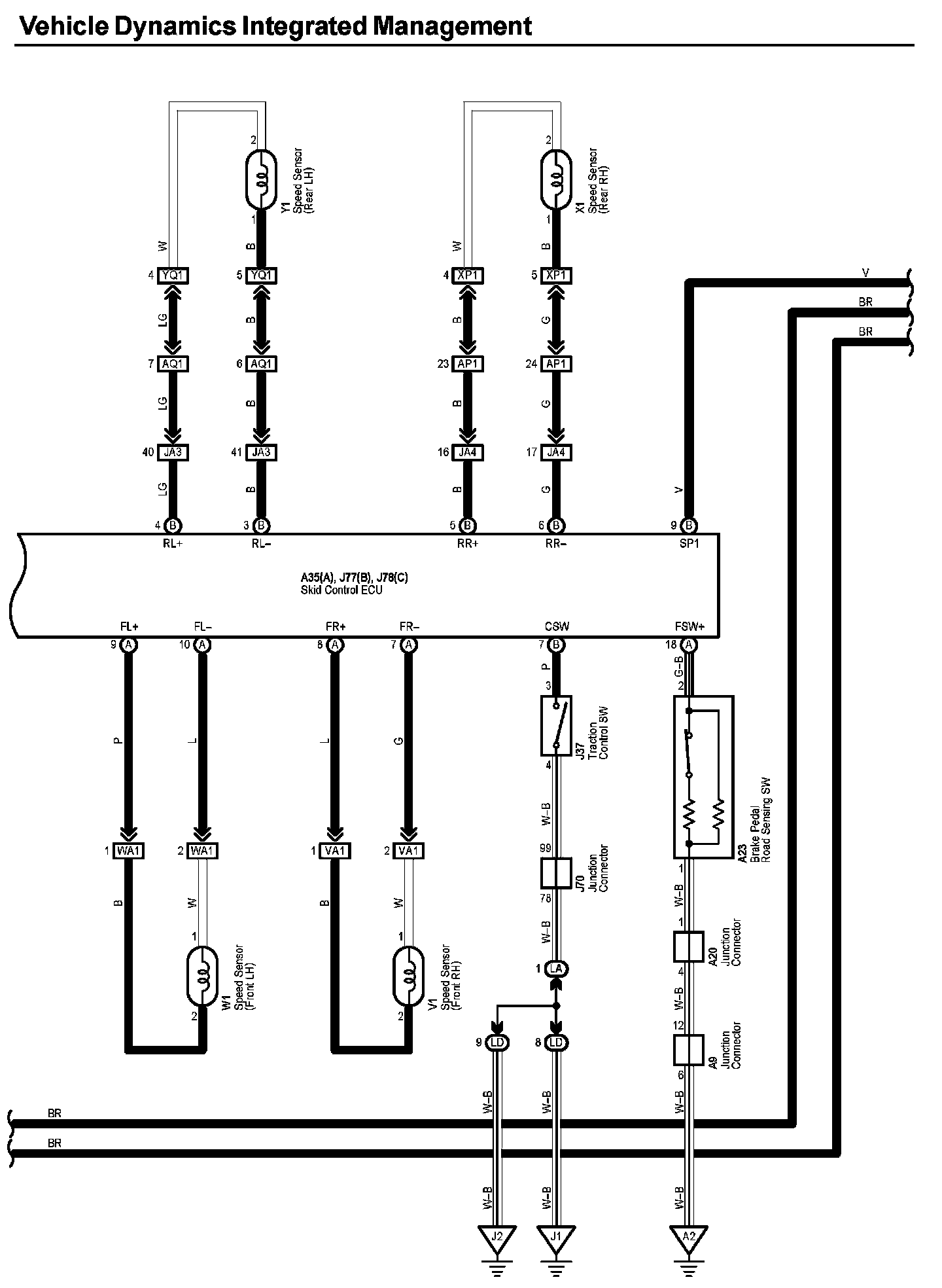

Vehicle Dynamics Integrated Management (Part 6):

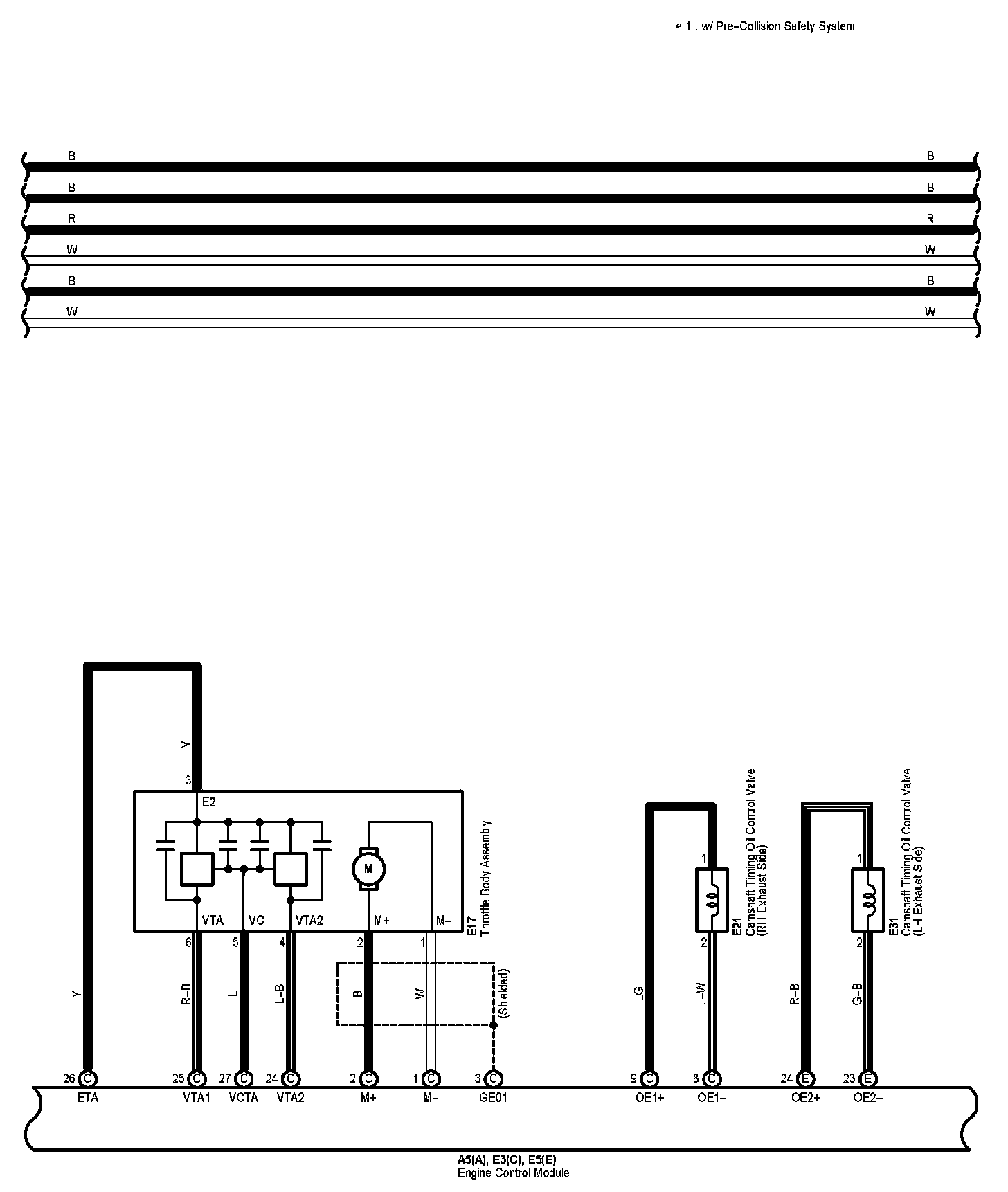

Vehicle Dynamics Integrated Management (Part 7):

Vehicle Dynamics Integrated Management (Part 8):

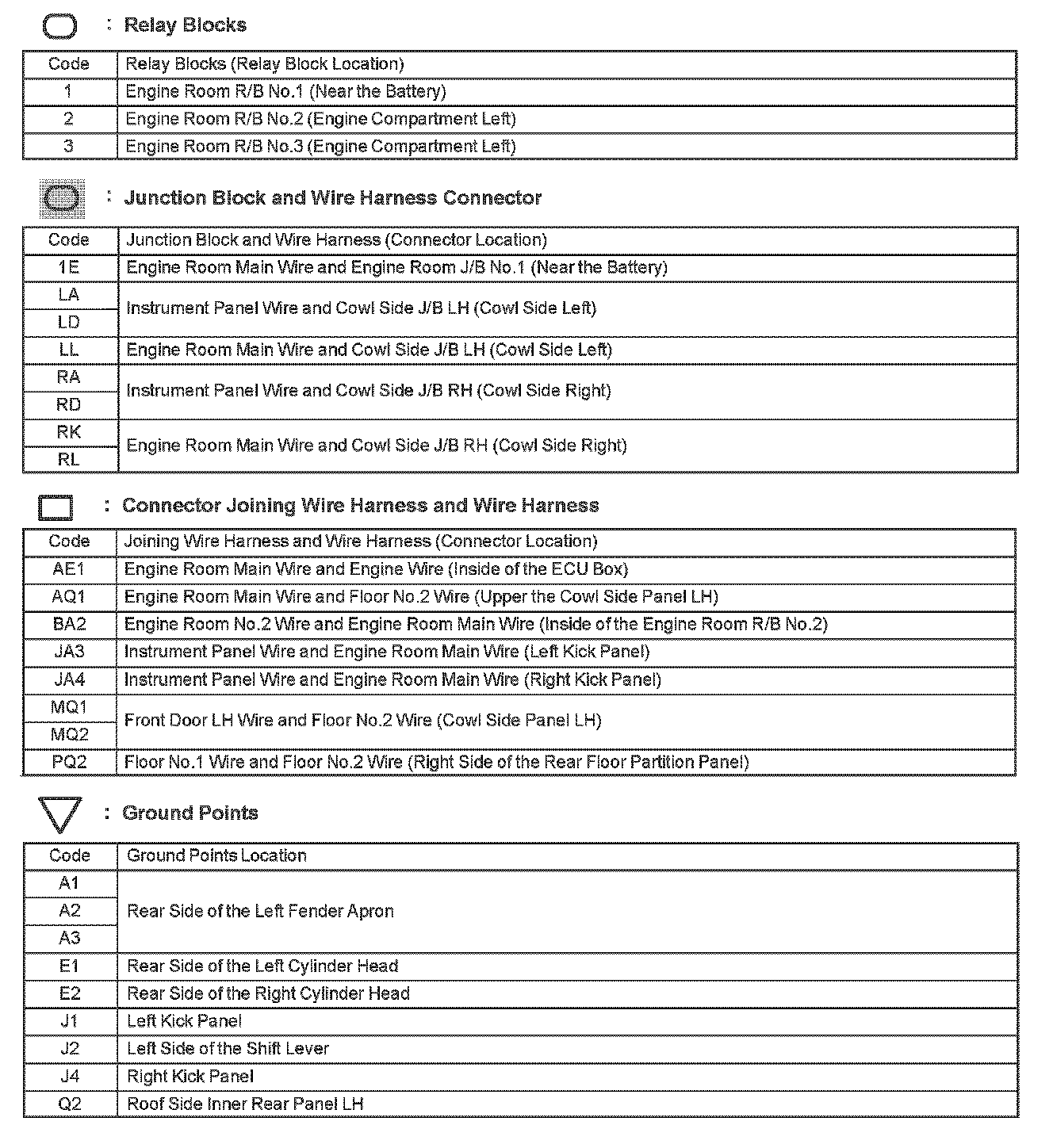

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
