IS 250 AWD V6-2.5L (4GR-FSE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>

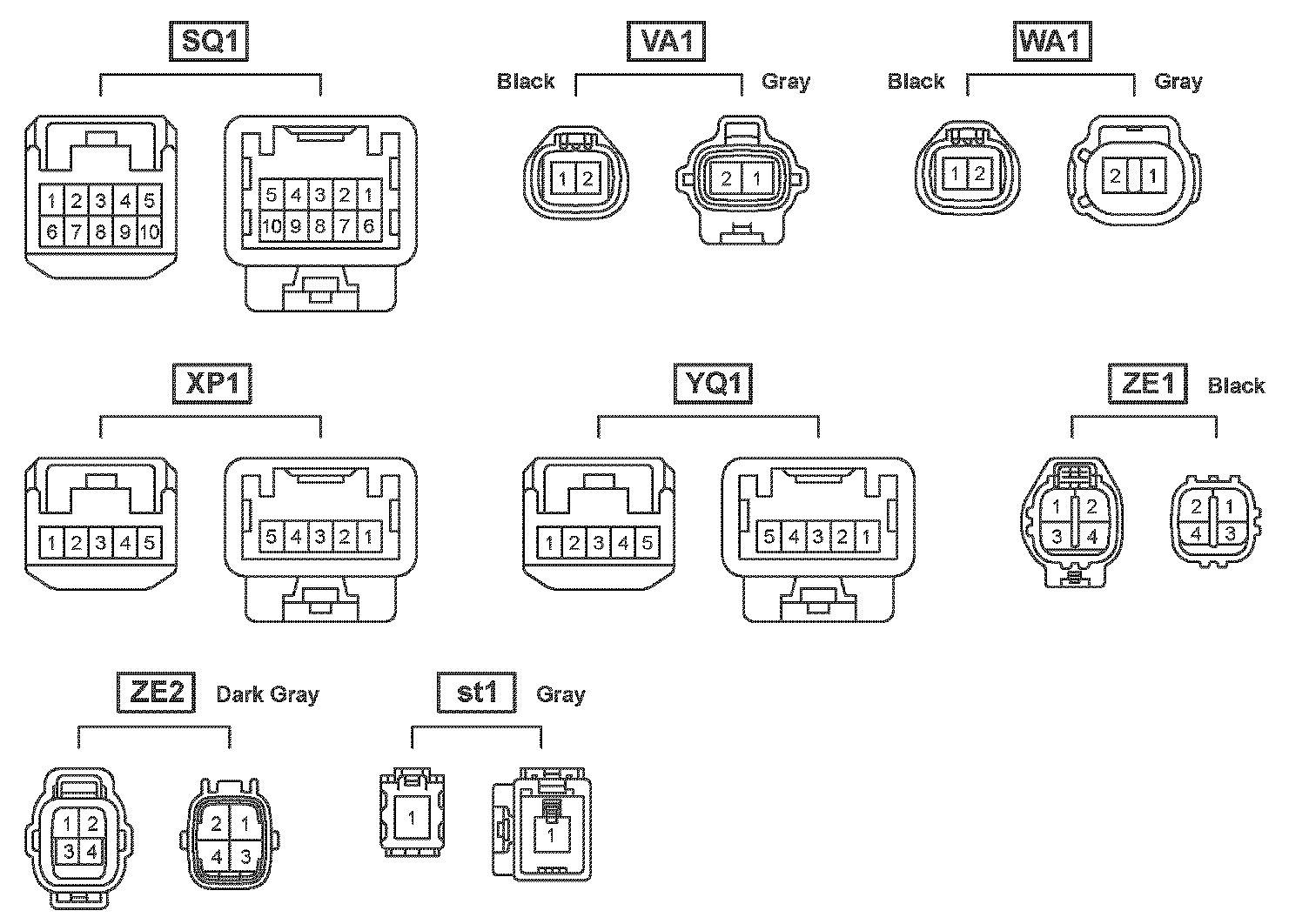

SQ1 - st1
SQ1 - st1
SQ1 - st1:
