Lexus
>>
2006
>>
IS 250 AWD V6-2.5L (4GR-FSE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>
AD1 - Ab1
AD1 - Ab1

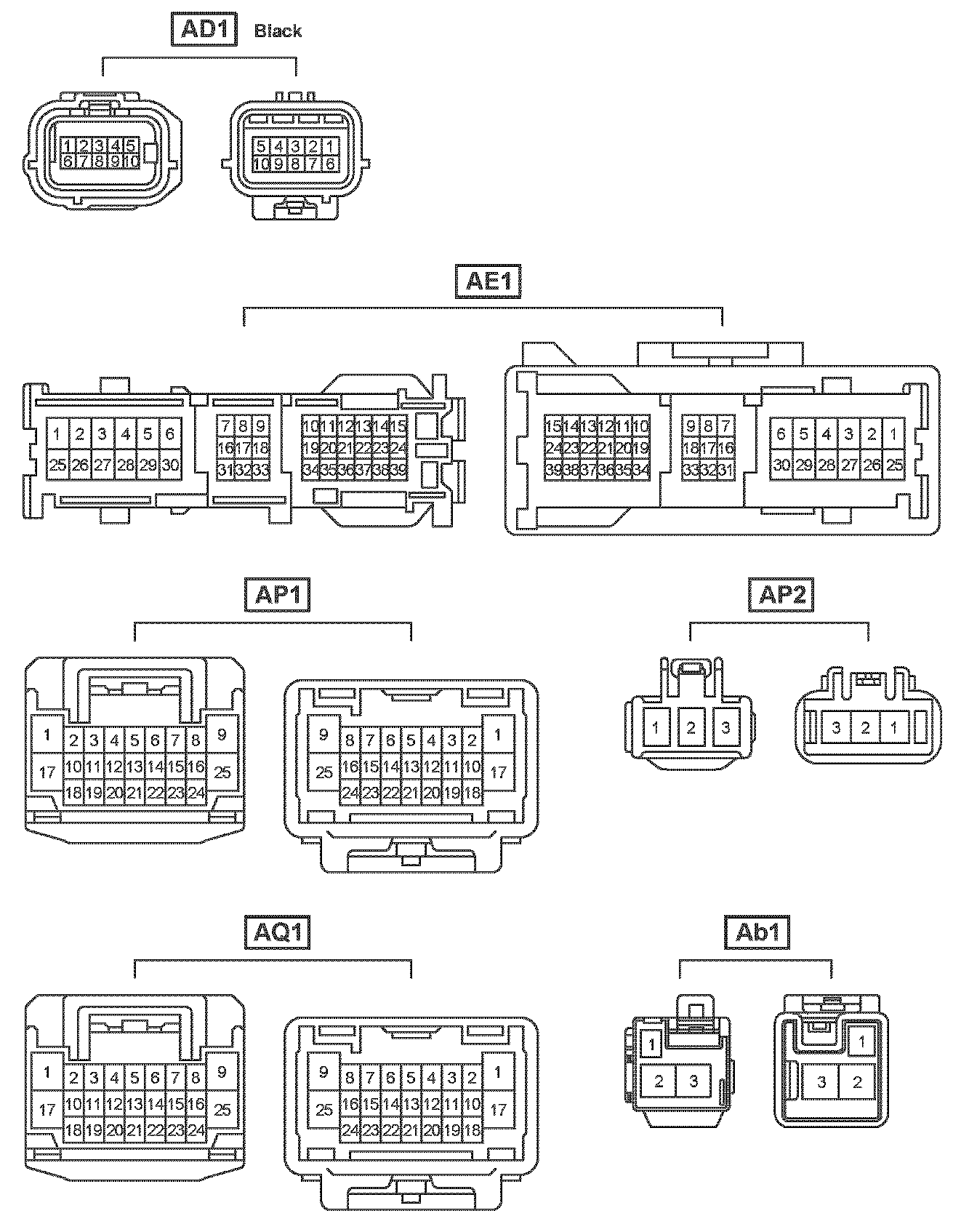

AD1 - Ab1:
