Brake Fluid Pump Relay: Testing and Inspection

ABS MOTOR RELAY

ON-VEHICLE INSPECTION

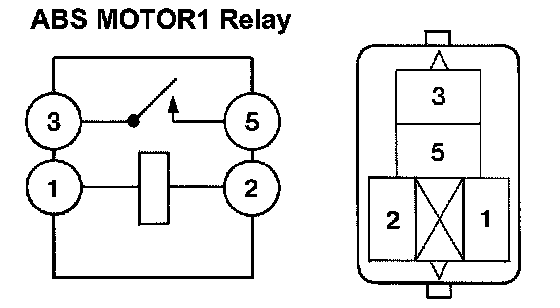

1. INSPECT ABS MOTOR1 RELAY
a. Remove the ABS MOTOR1 relay.
b. Measure the resistance according to the value(s) in the table.

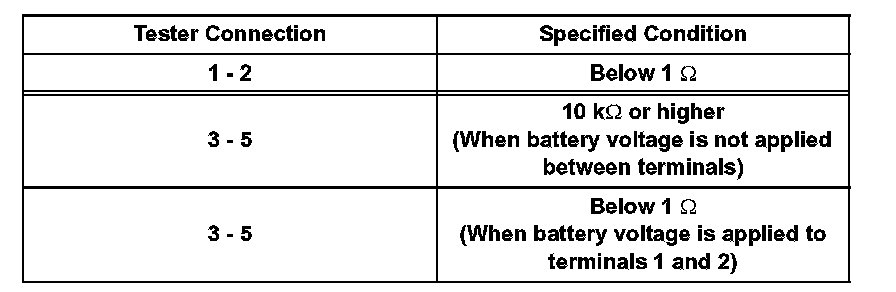

Standard Resistance:

If the value is not as specified, replace the ABS MOTOR1 relay.

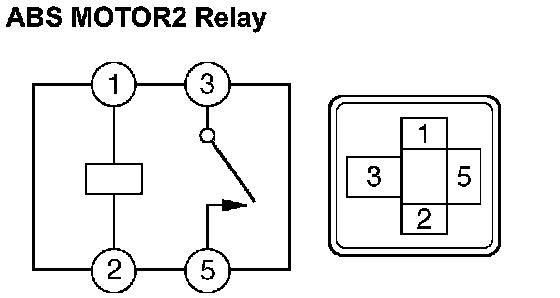

2. INSPECT ABS MOTOR2 RELAY
a. Remove the ABS MOTOR2 relay.
b. Measure the resistance according to the value(s) in the table.

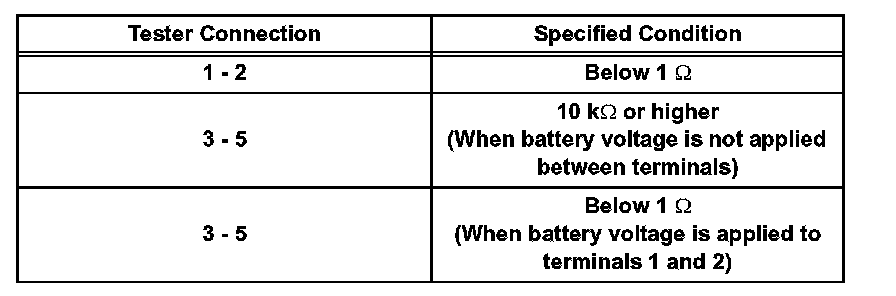

Standard Resistance:

If the value is not as specified, replace the ABS MOTOR2 relay.
