ABS Warning Light Does Not Come ON
ABS Warning Light Does Not Come ONDESCRIPTION
The skid control ECU is connected to the combination meter via CAN and multiplex communications.

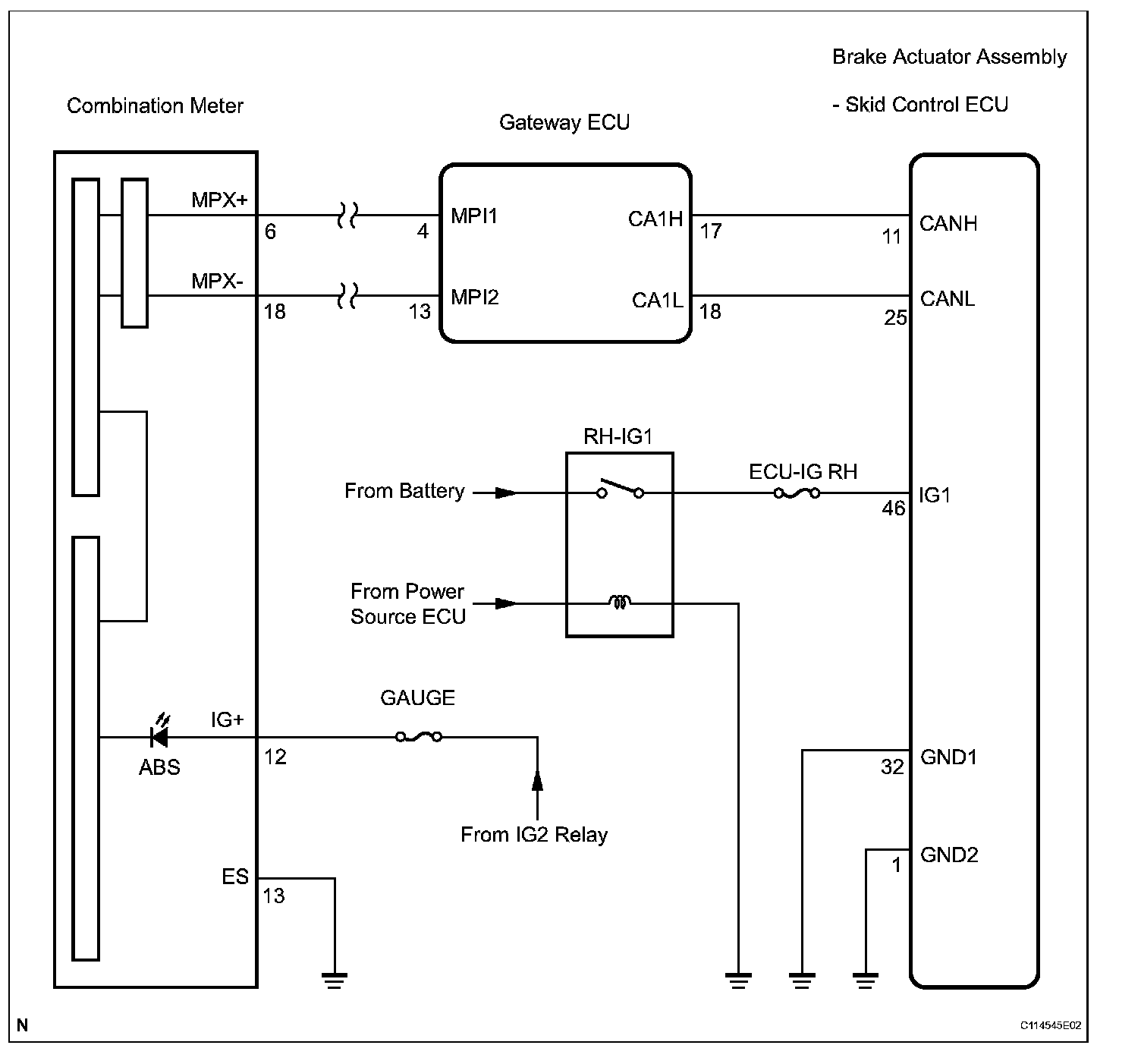

WIRING DIAGRAM:
NOTICE: When replacing the brake actuator assembly, perform zero point calibration.
INSPECTION PROCEDURE

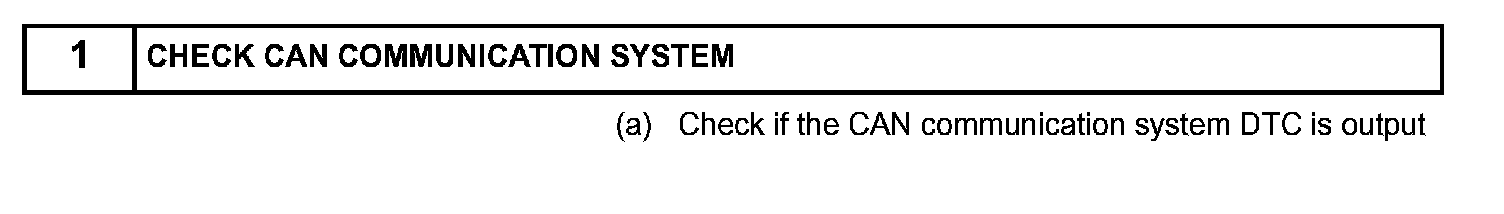

Step 1:

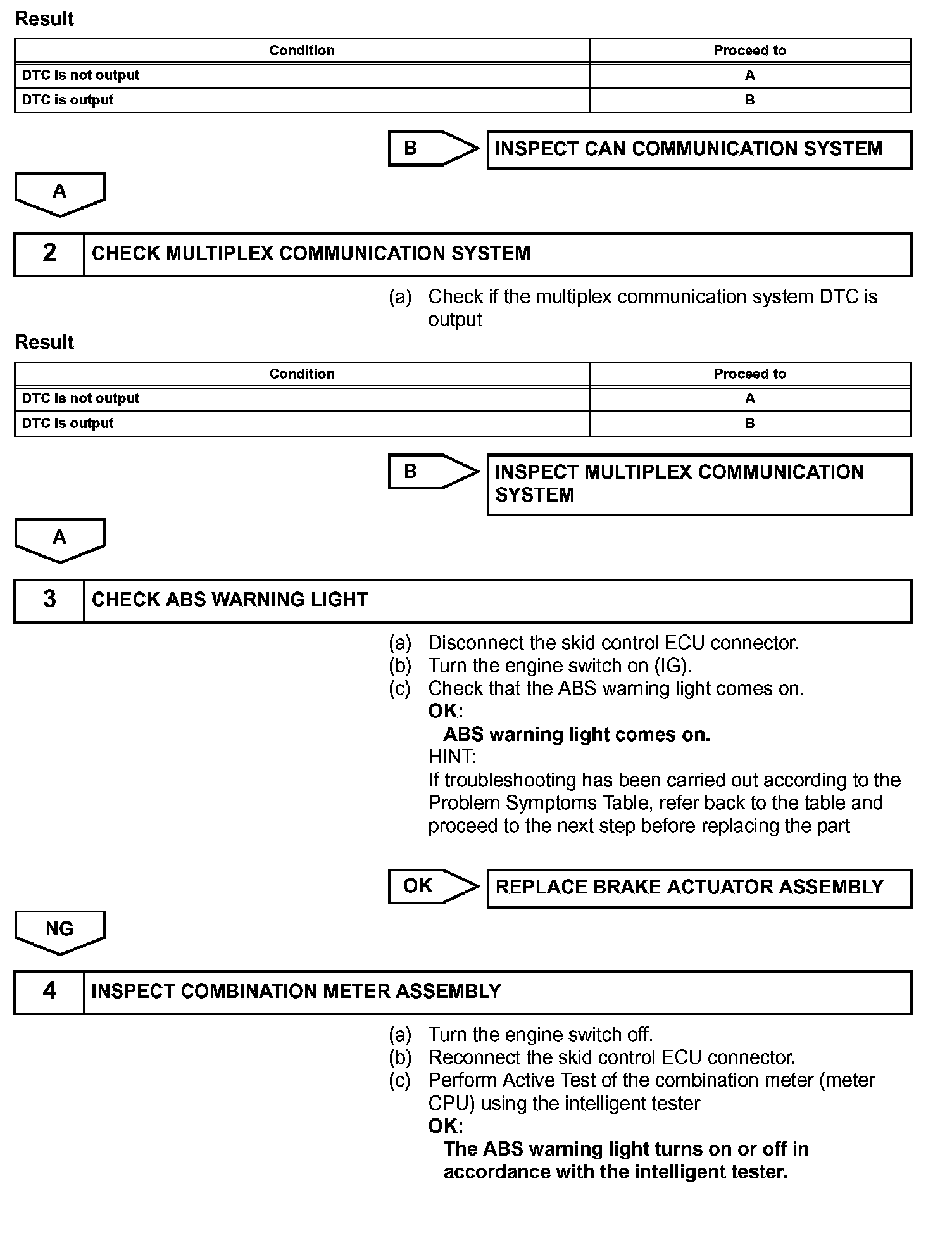

Steps 1 (Continued)-4:

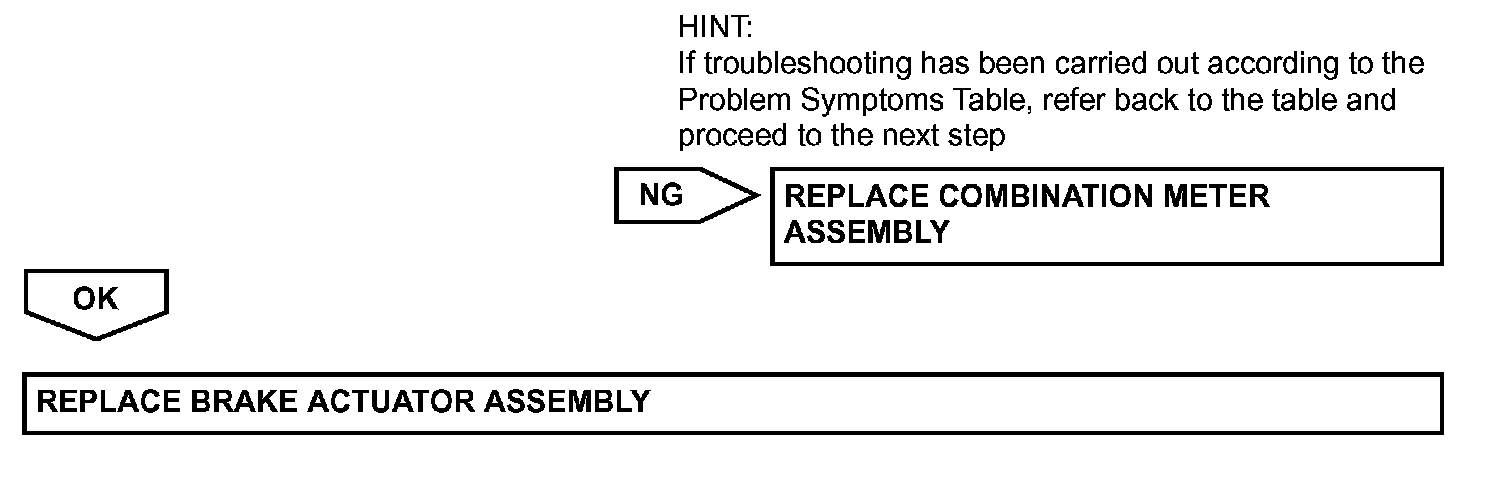

Step 4 (Continued):
