VSC Warning Light Remains ON

VSC Warning Light Remains ON

DESCRIPTION
The skid control ECU is connected to the combination meter via CAN and multiplex communications. If the ECU stores DTC, the master caution indicator light will comes on and the DTC will be displayed on the multi information display in the combination meter.

WIRING DIAGRAM:

NOTICE: When replacing the skid control ECU, perform zero point calibration.

INSPECTION PROCEDURE

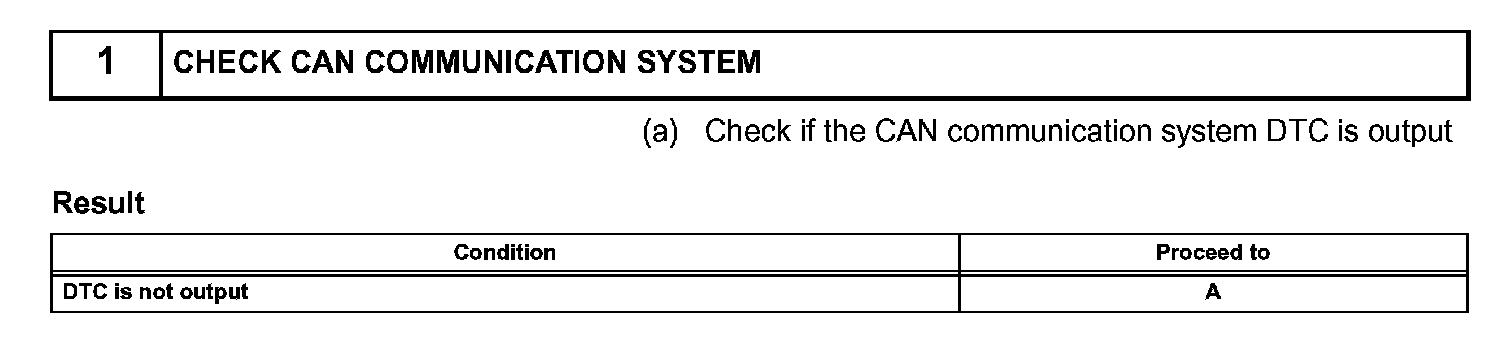

Step 1:

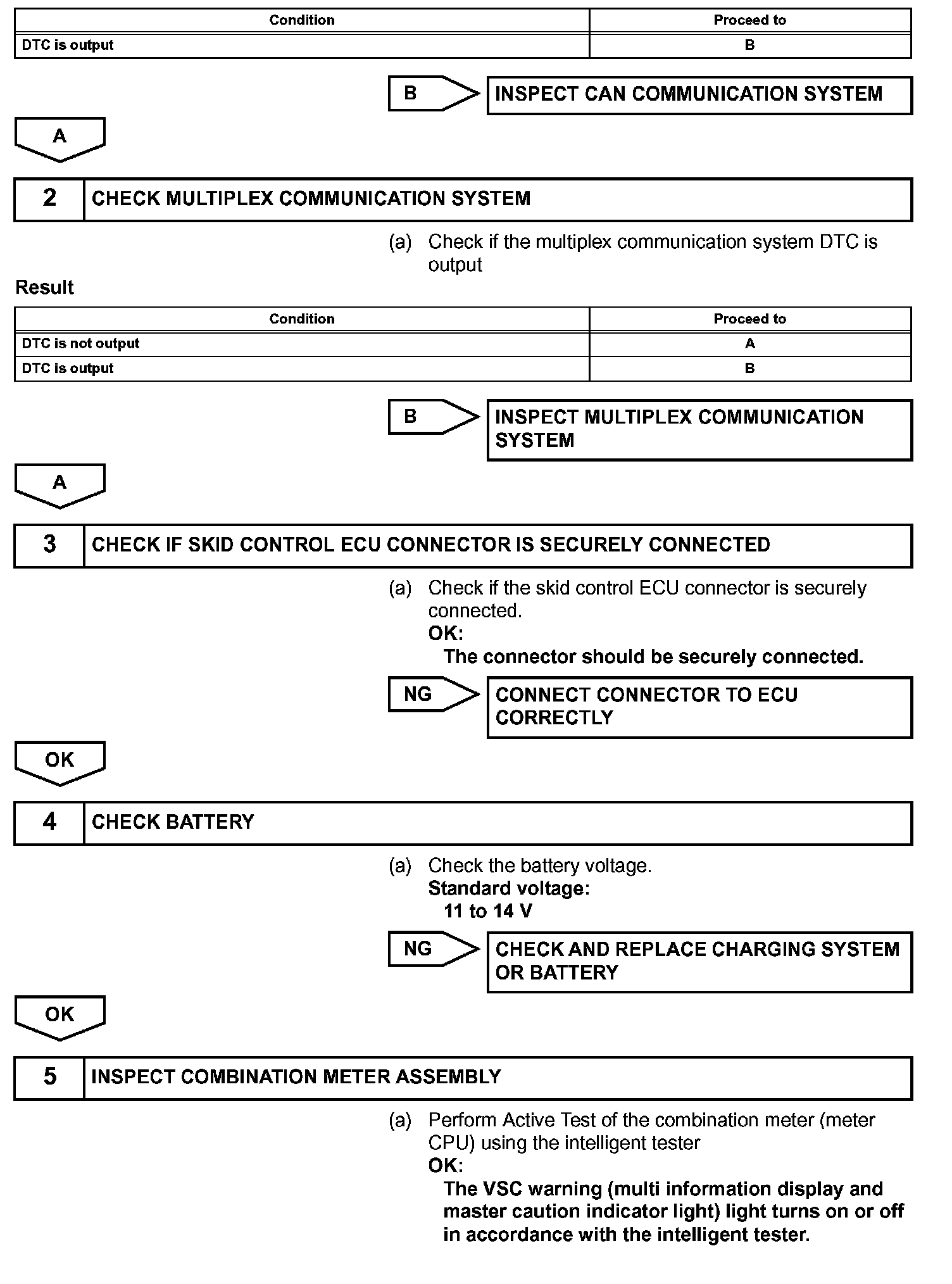

Steps 1 (Continued)-5:

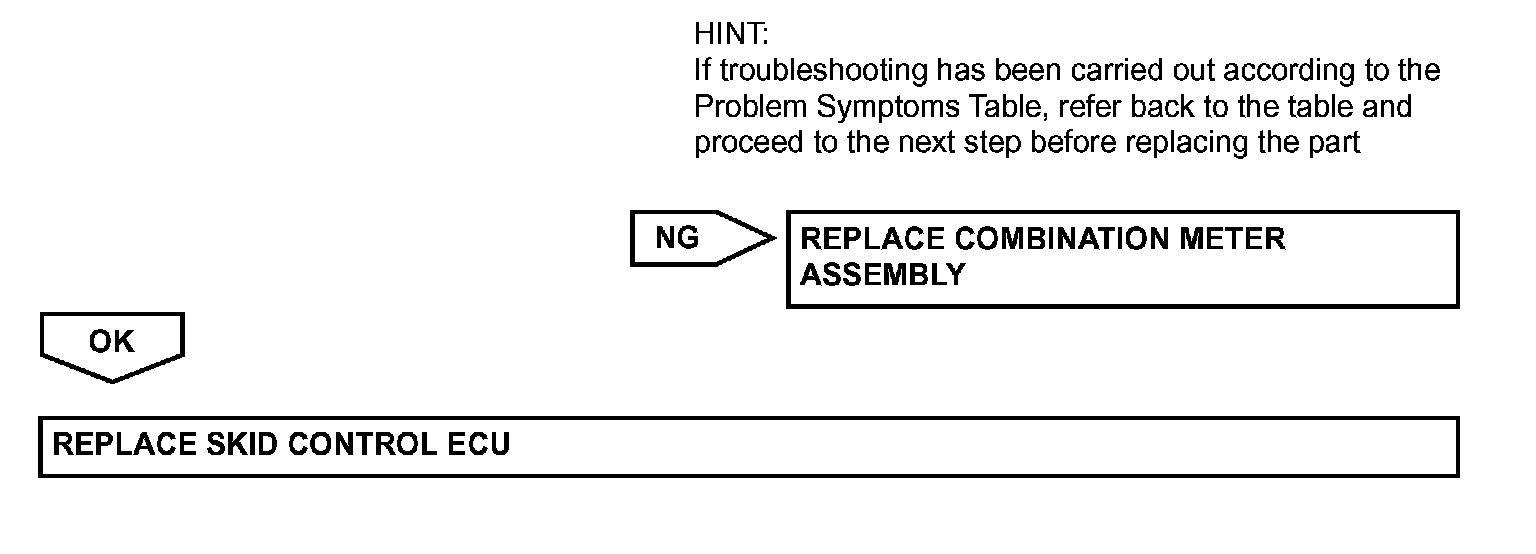

Step 5 (Continued):
