Slip Indicator Light Does Not Come ON

Slip Indicator Light Does Not Come ON

DESCRIPTION
The skid control ECU is connected to the combination meter via CAN and multiplex communications.

The SLIP indicator blinks during VSC and/or TRAC operation.

When the system fails, the SLIP indicator comes on to warn the driver.

The SLIP indicator comes on when traction control is terminated by pressing the traction OFF switch.

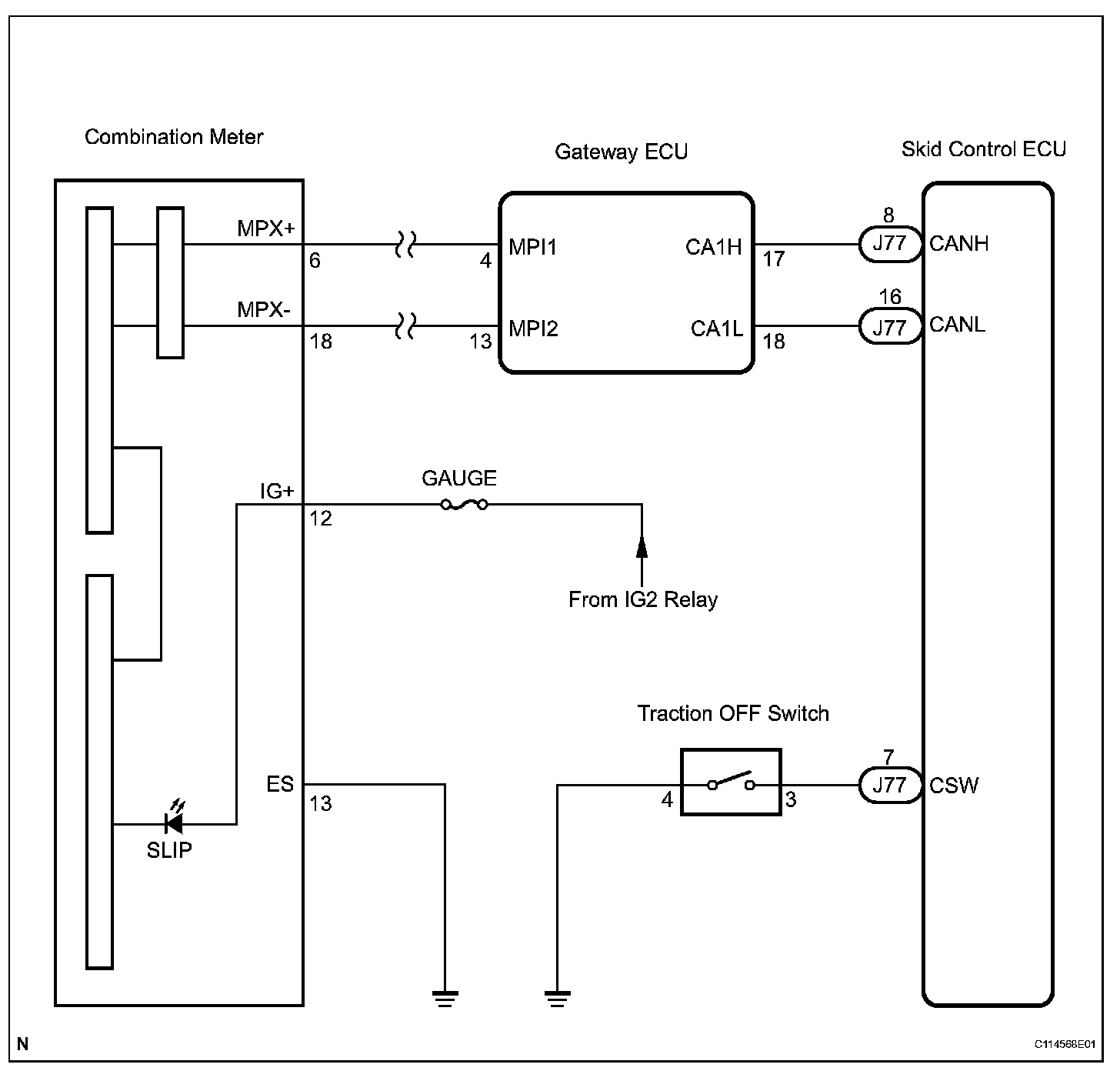

WIRING DIAGRAM:

NOTICE: When replacing the skid control ECU, perform zero point calibration.

INSPECTION PROCEDURE

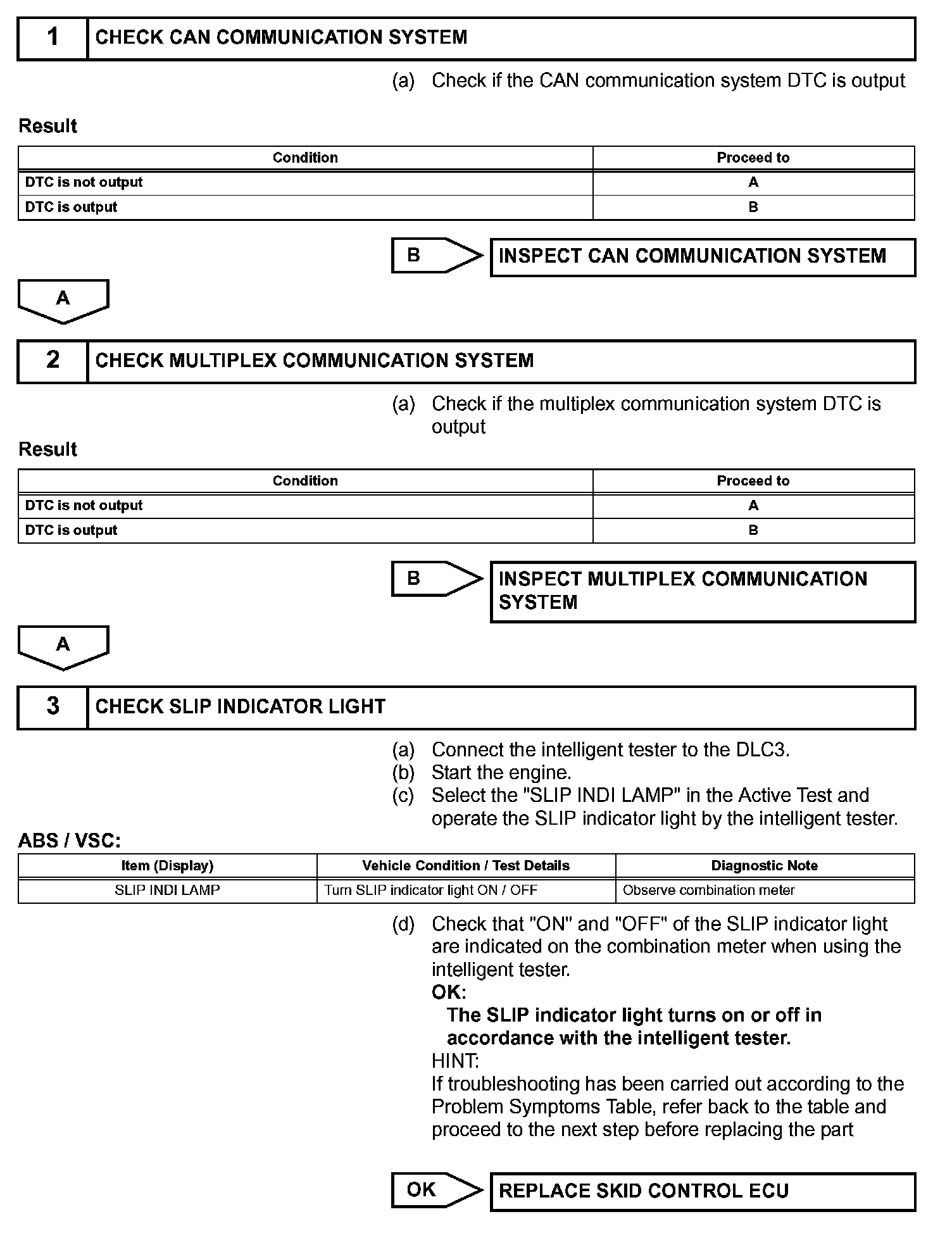

Steps 1-3:

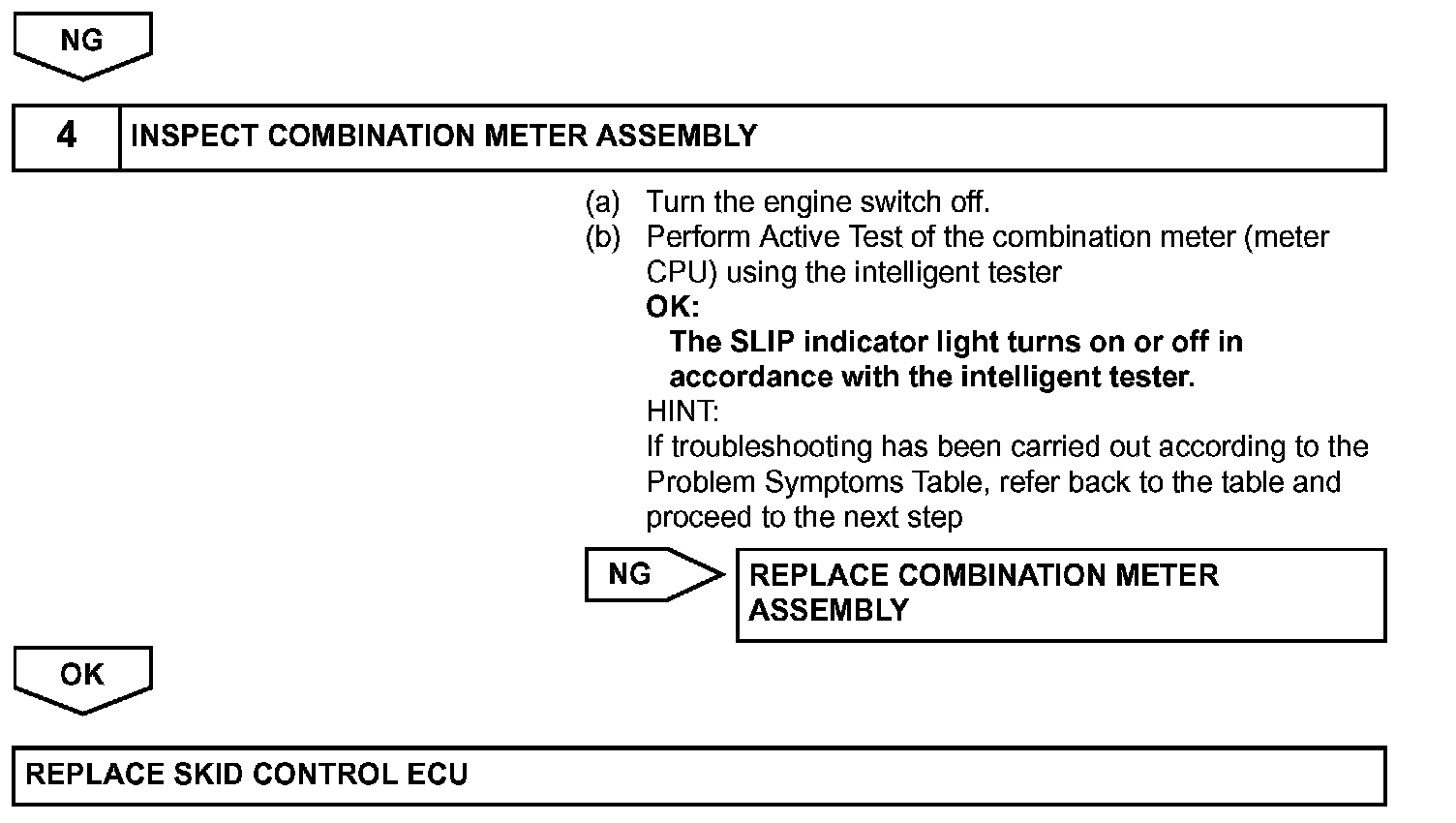

Step 4:
