Problem Symptoms Table-Vehicle Stability Control System
PROBLEM SYMPTOMS TABLEIf there are no DTCs output and the problem still occurs, check the circuits for each problem symptom in the order given in the table and proceed to the relevant troubleshooting.
HINT:
^ Inspect the fuse and relay before investigating the suspected areas as shown in the table.
^ Inspect each malfunction circuit in numerical order for the corresponding symptom.

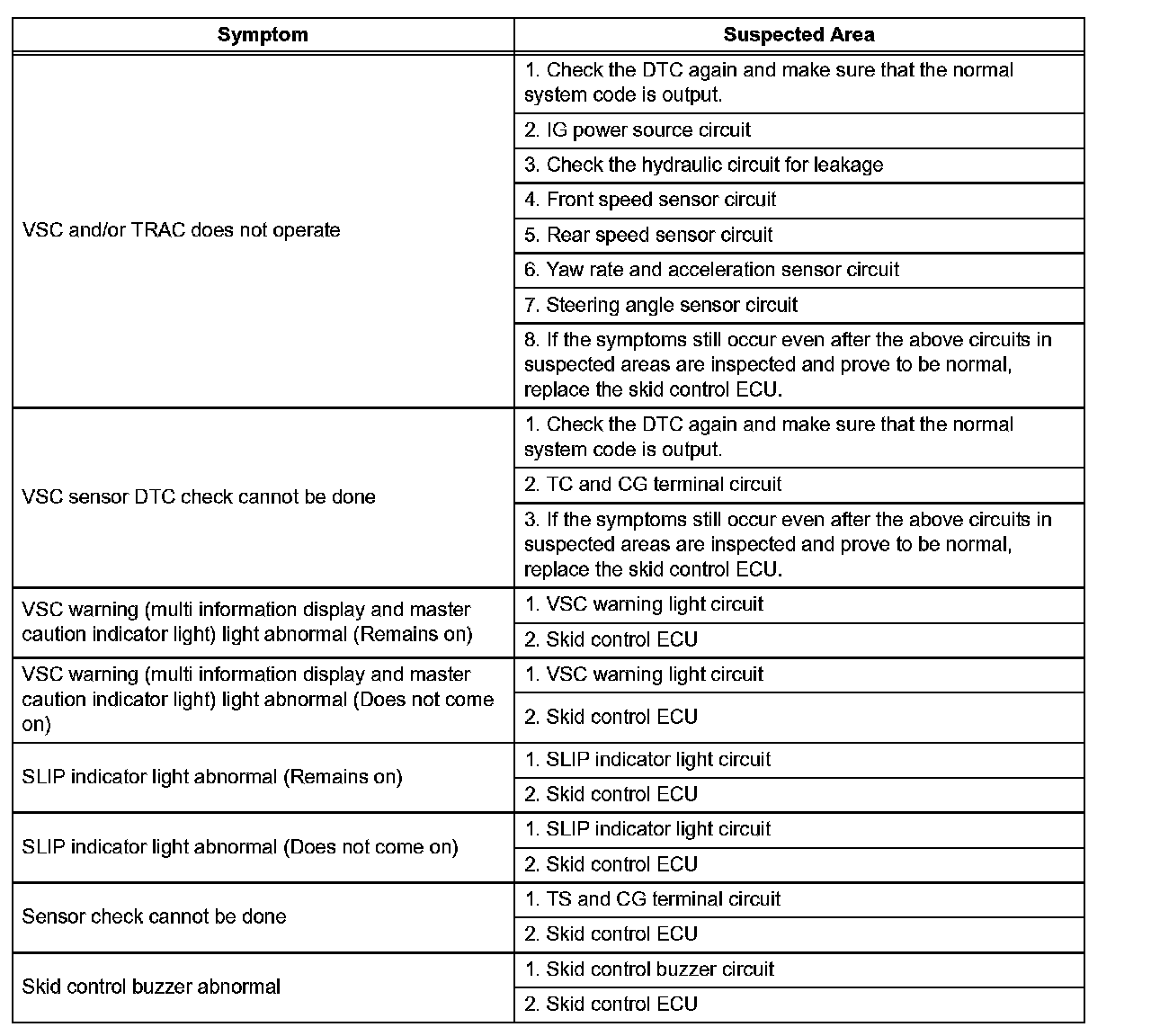

Problem Symptoms Table-Vehicle Stability Control System:
Problem Symptoms Table-Vehicle Stability Control System:
