ABS Warning Light Does Not Come ON
ABS Warning Light Does Not Come ONDESCRIPTION
The skid control ECU is connected to the combination meter via CAN and multiplex communications.

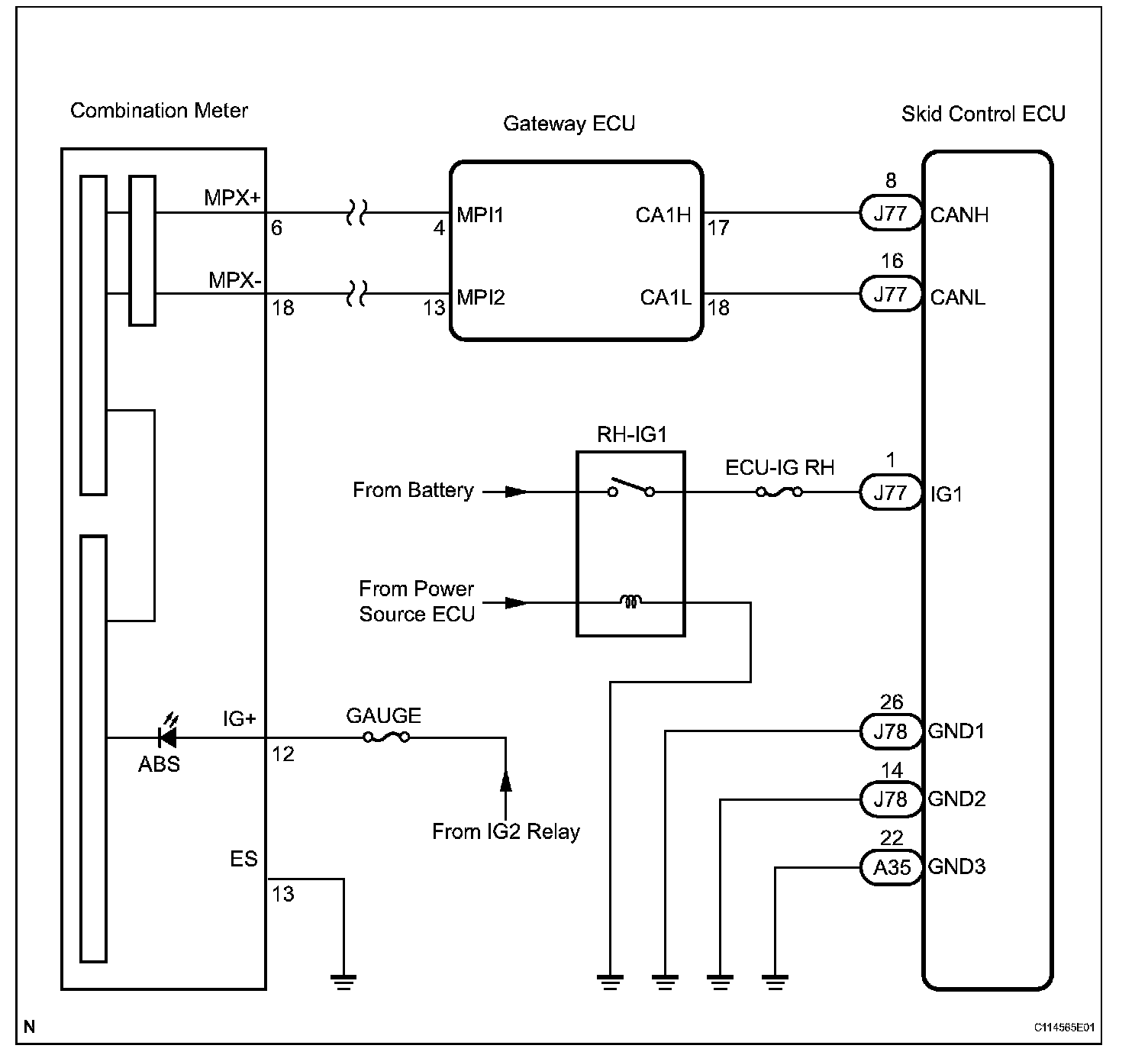

WIRING DIAGRAM:
NOTICE: When replacing the skid control ECU, perform zero point calibration.
INSPECTION PROCEDURE

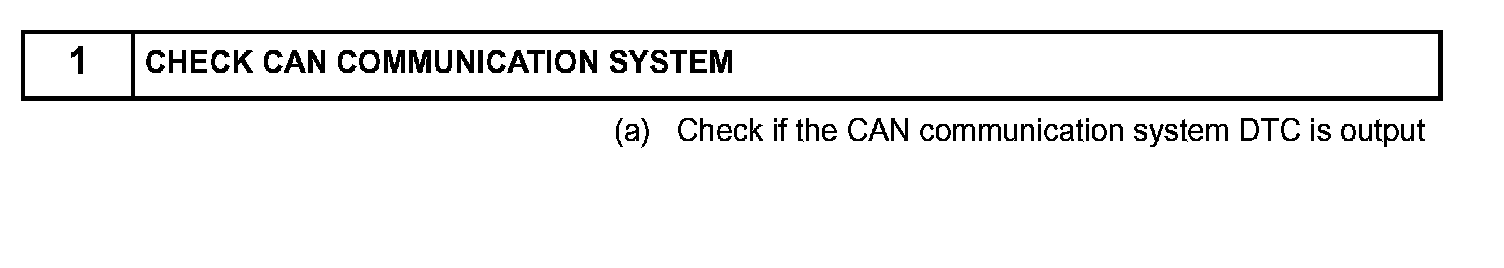

Step 1:

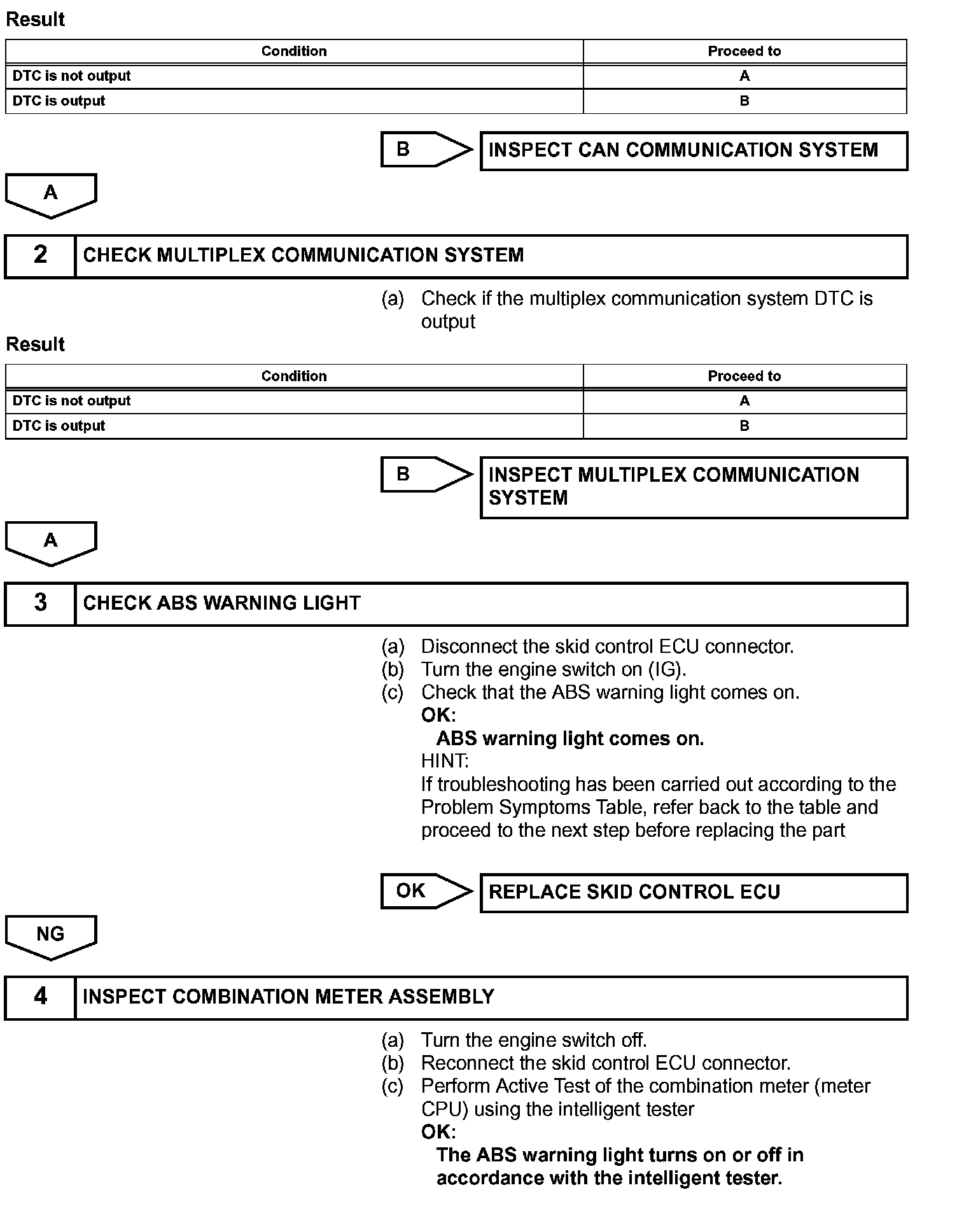

Steps 1 (Continued)-4:

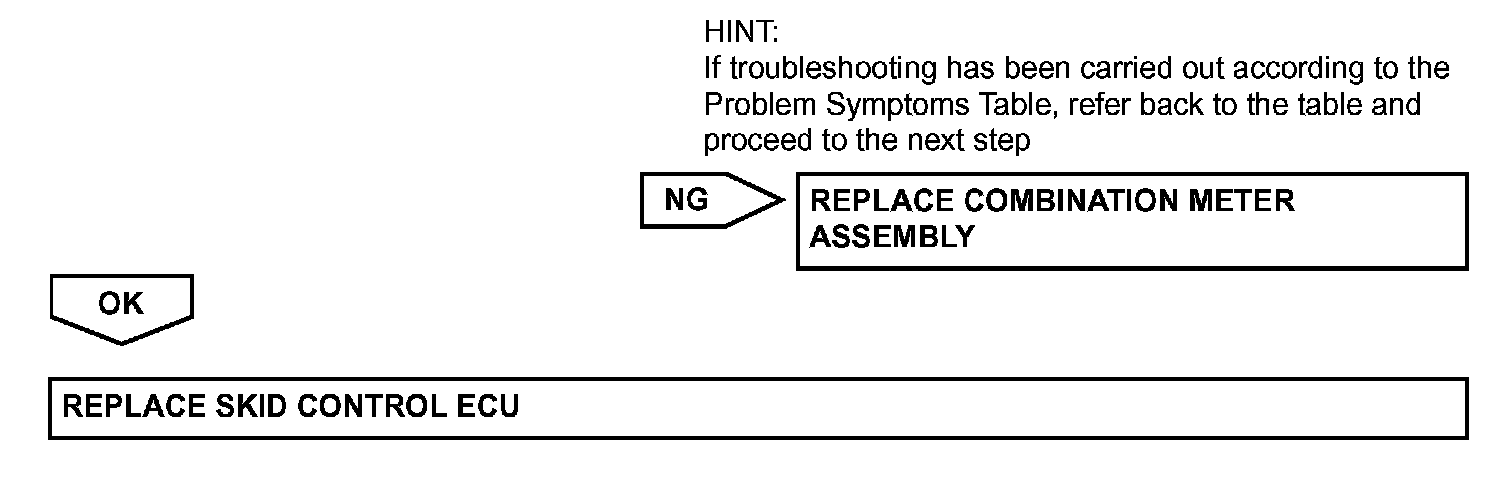

Step 4 (Continued):
