Vehicle Stability Control System (W/O VDIM)

TERMINALS OF ECU

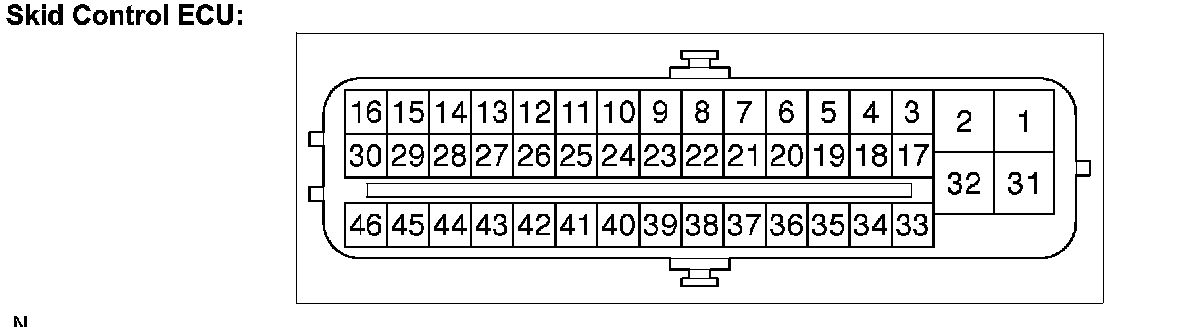

1. Terminal of ECU





2. Terminal Inspection

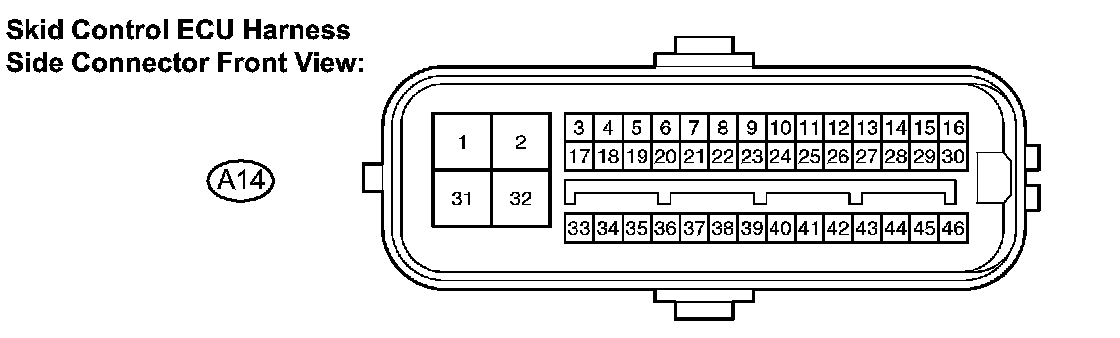

a. Disconnect the connector and measure the voltage or resistance on the wire harness side.

HINT: Voltage cannot be measured with the connector connected to the skid control ECU because the connector is watertight.

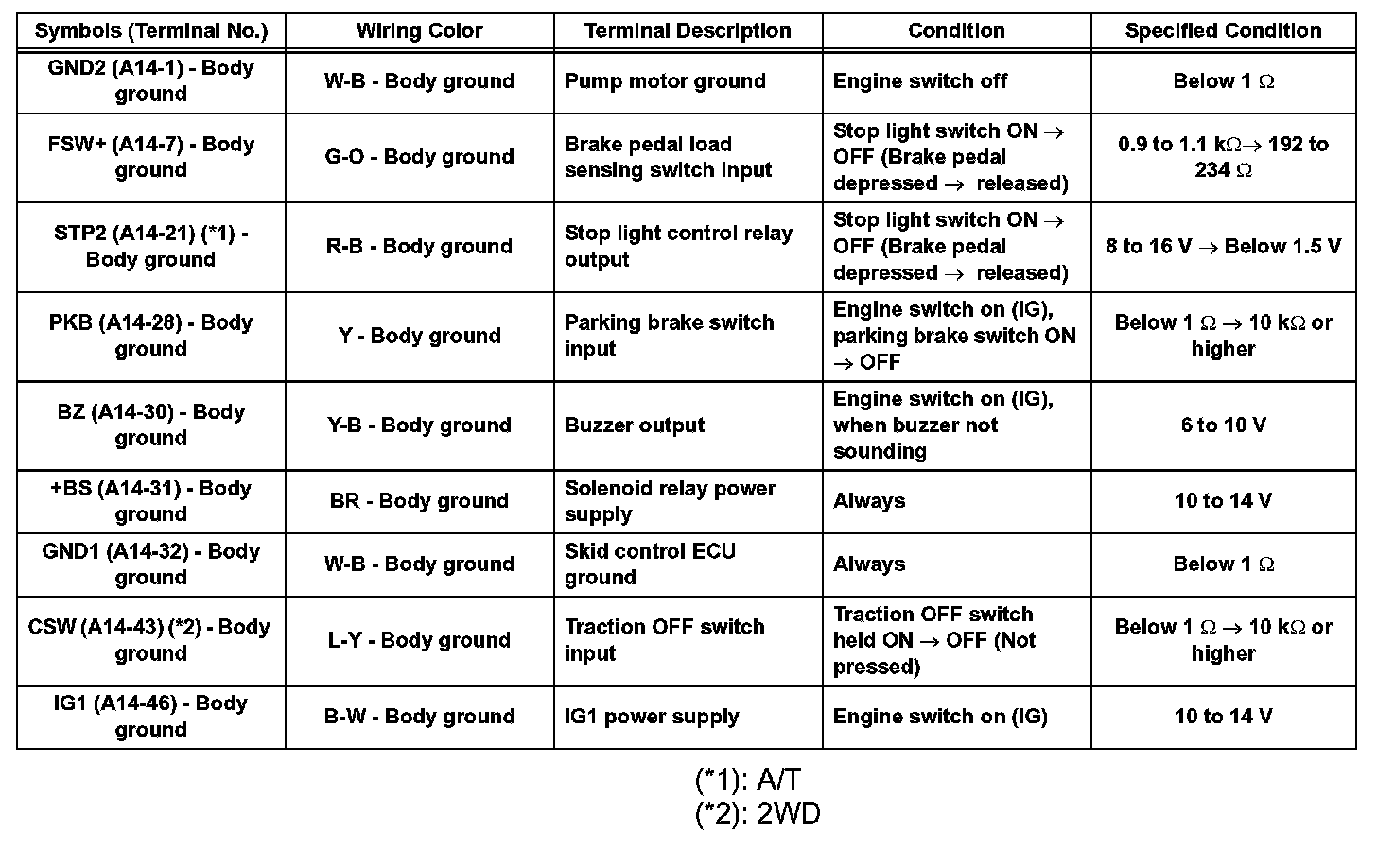

Standard:
