TS and CG Terminal Circuit
TS and CG Terminal CircuitDESCRIPTION
In the Test Mode (signal check), a malfunction of the speed sensor that cannot be detected when the vehicle is stopped is detected while driving.
Transition to the sensor check mode can be performed by connecting terminals TS and CG of the DLC3 and turning the engine switch from off to on (IG).

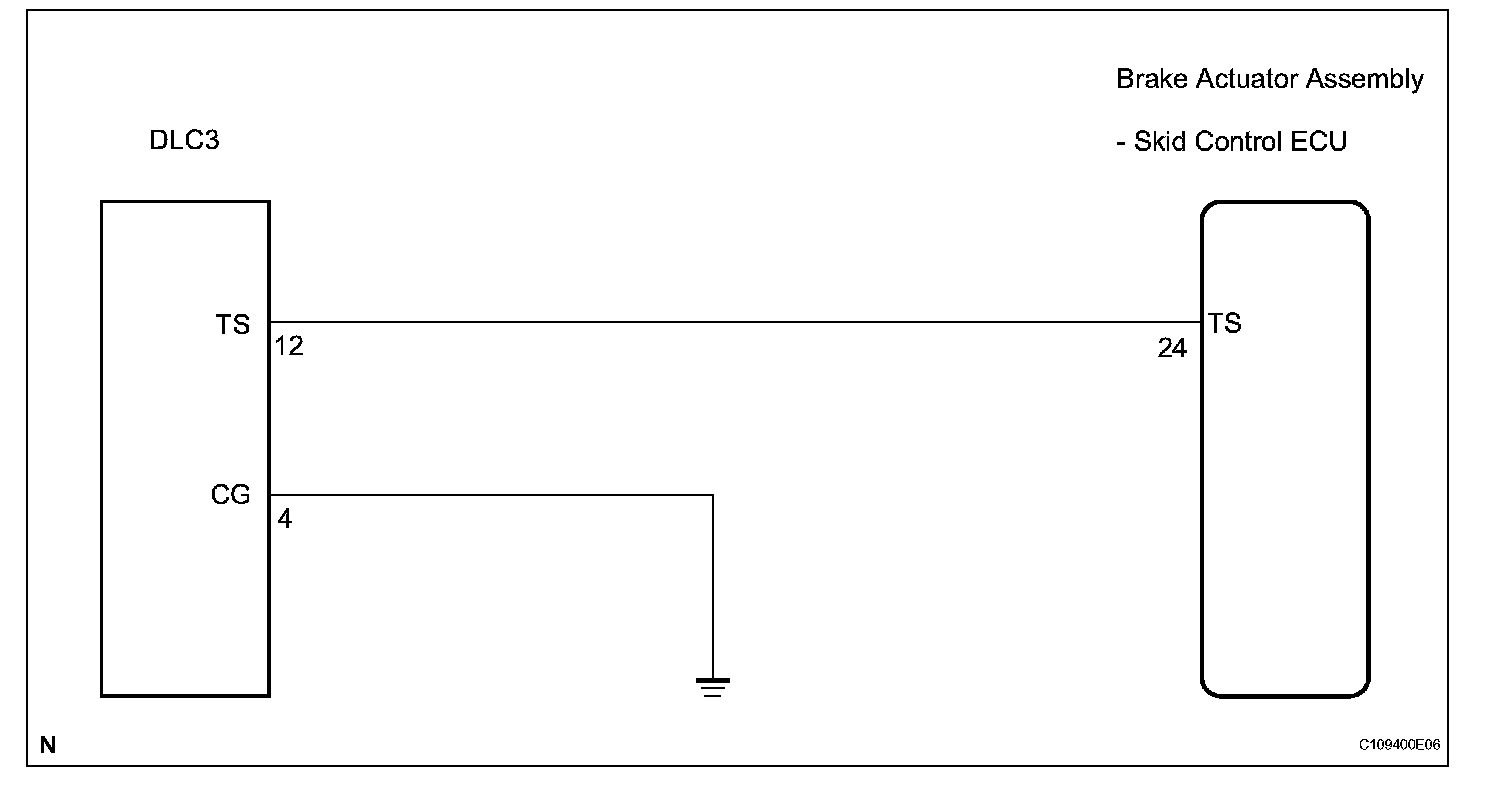

WIRING DIAGRAM:
INSPECTION PROCEDURE

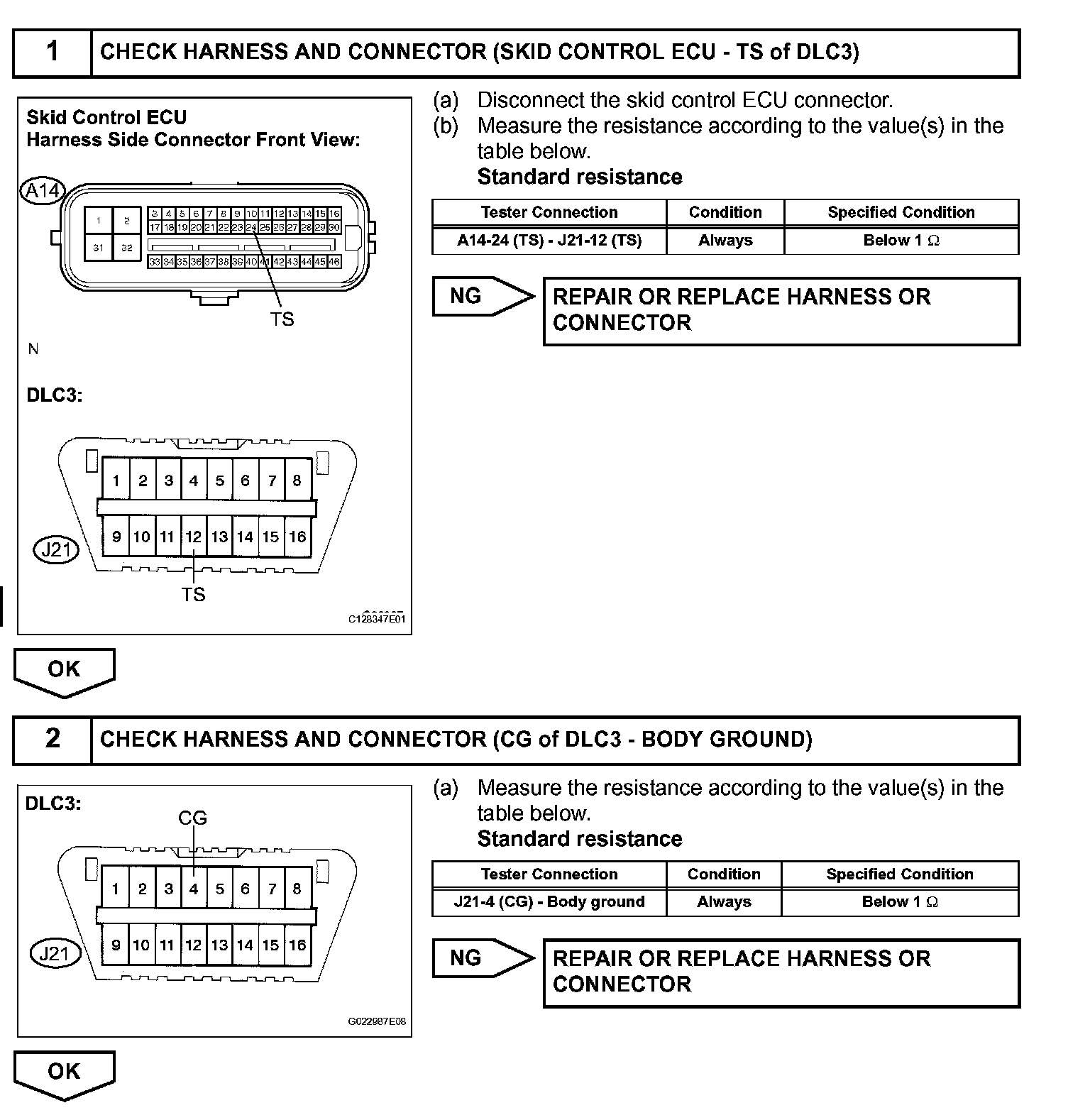

Steps 1-2:

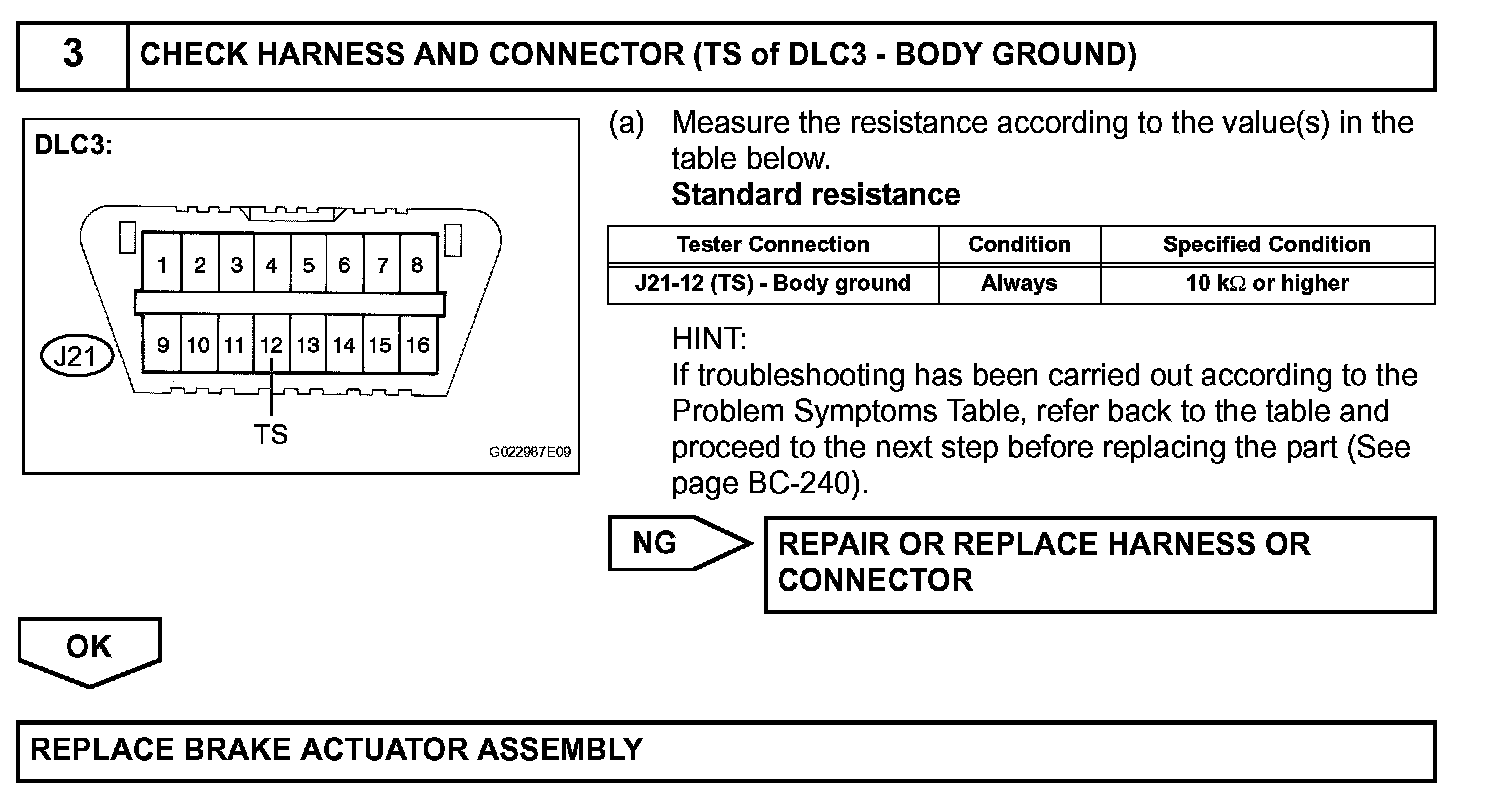

Step 3:
