DESCRIPTION
The skid control buzzer sounds while the accumulator pressure is abnormally low or when an abnormality causing low fluid pressure occurs, and then the VSC is activated.

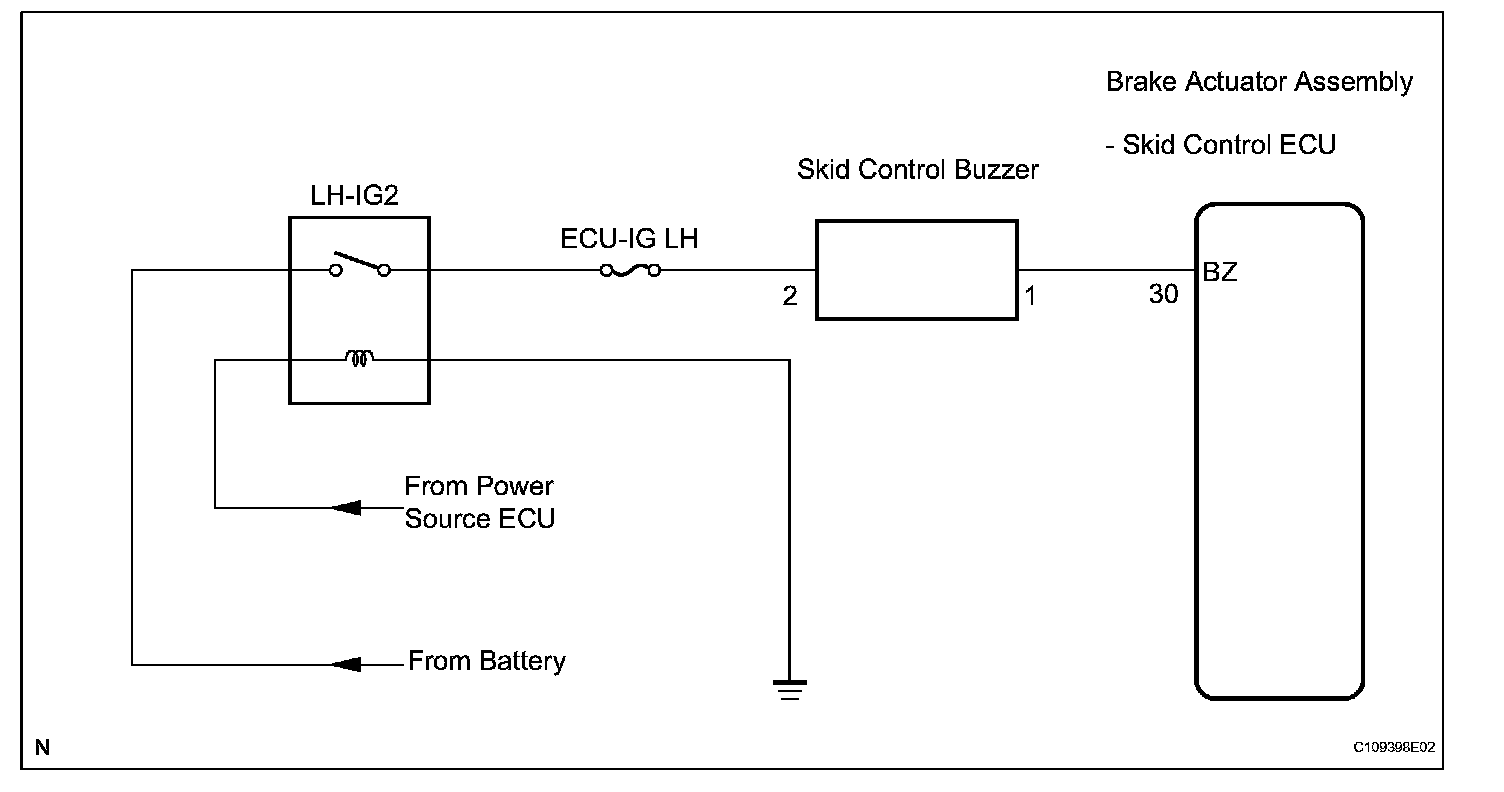

WIRING DIAGRAM:

NOTICE: When replacing the brake actuator assembly, perform zero point calibration.

INSPECTION PROCEDURE

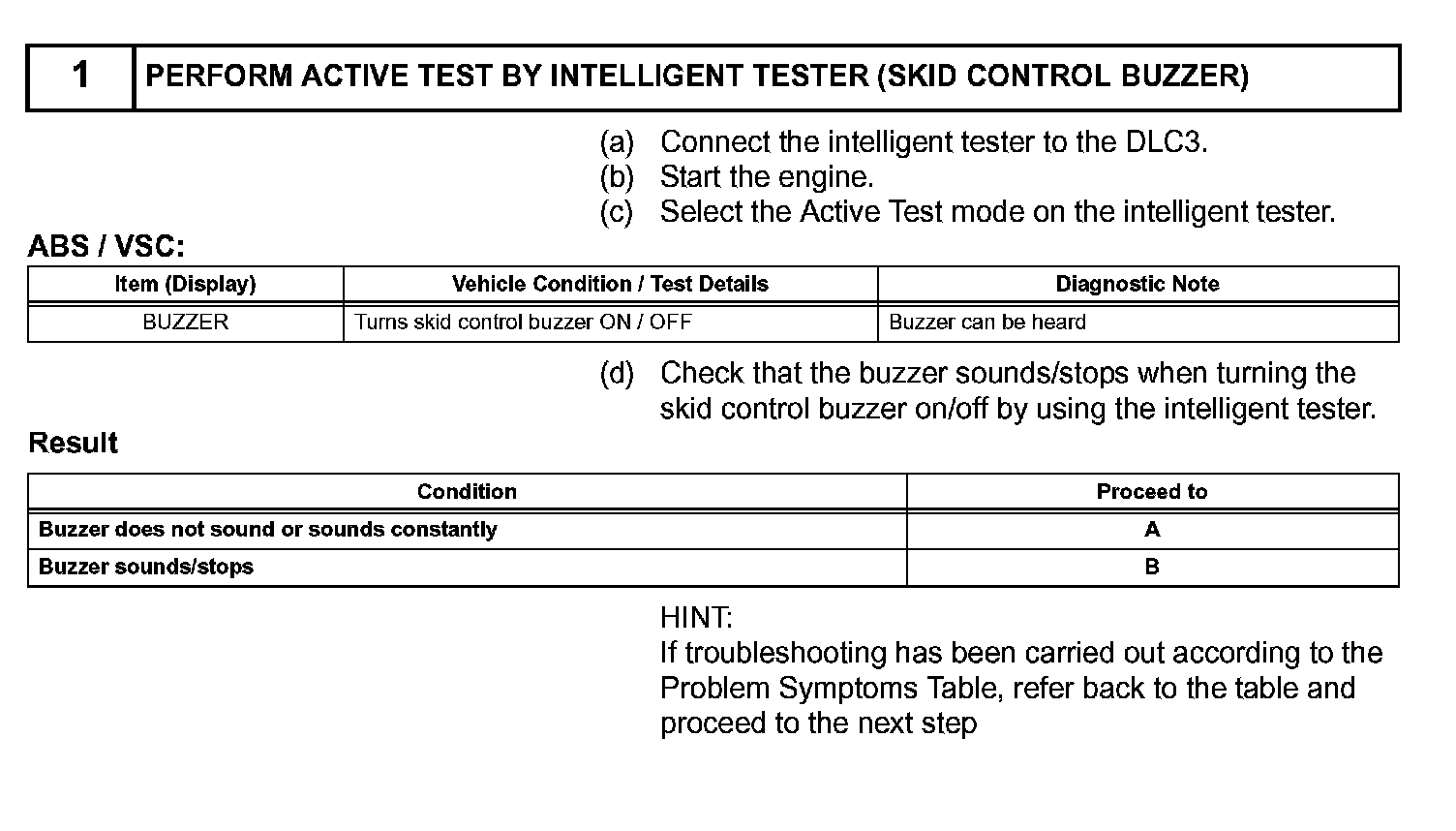

Step 1:

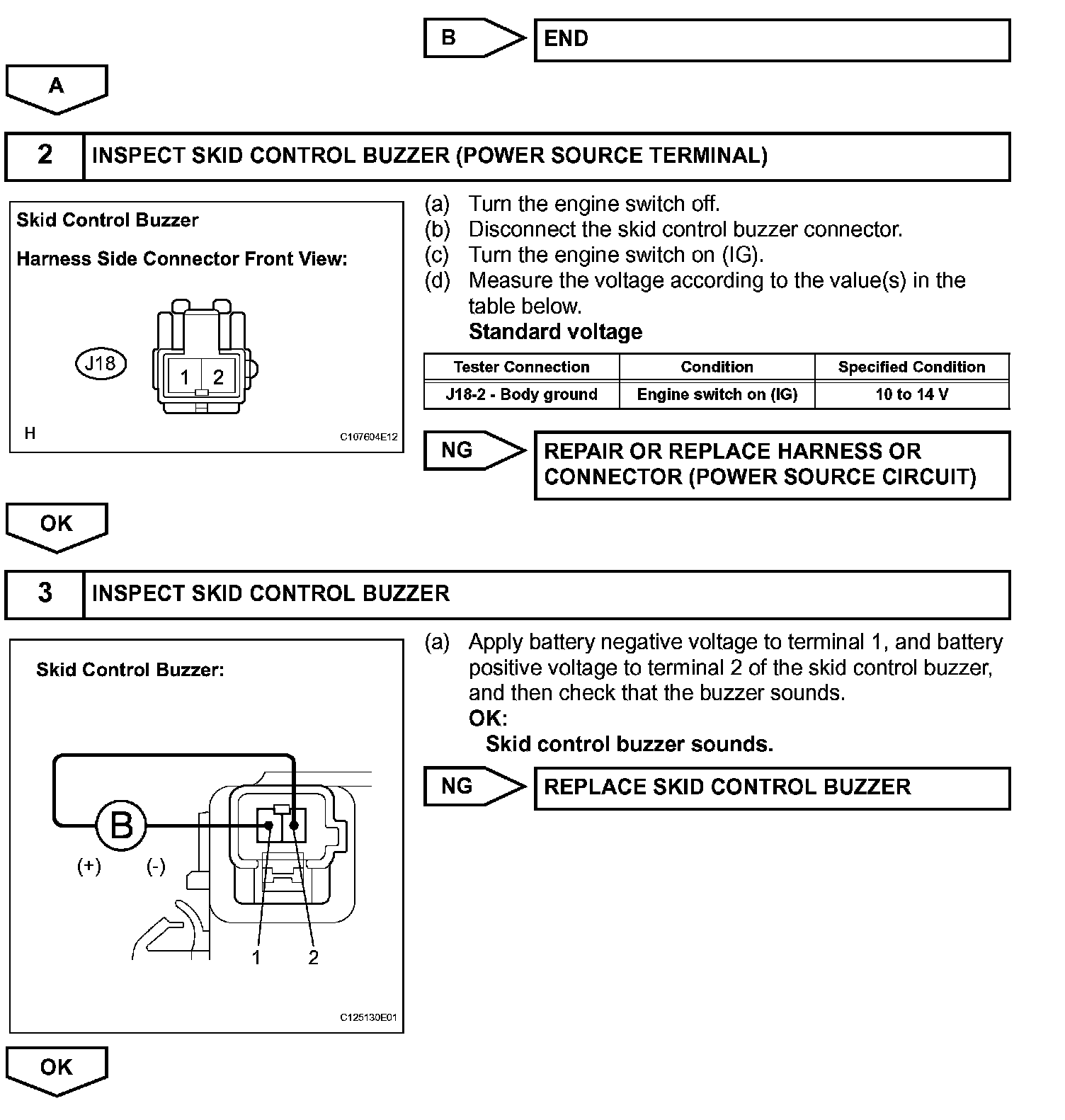

Steps 1 (Continued)-3:

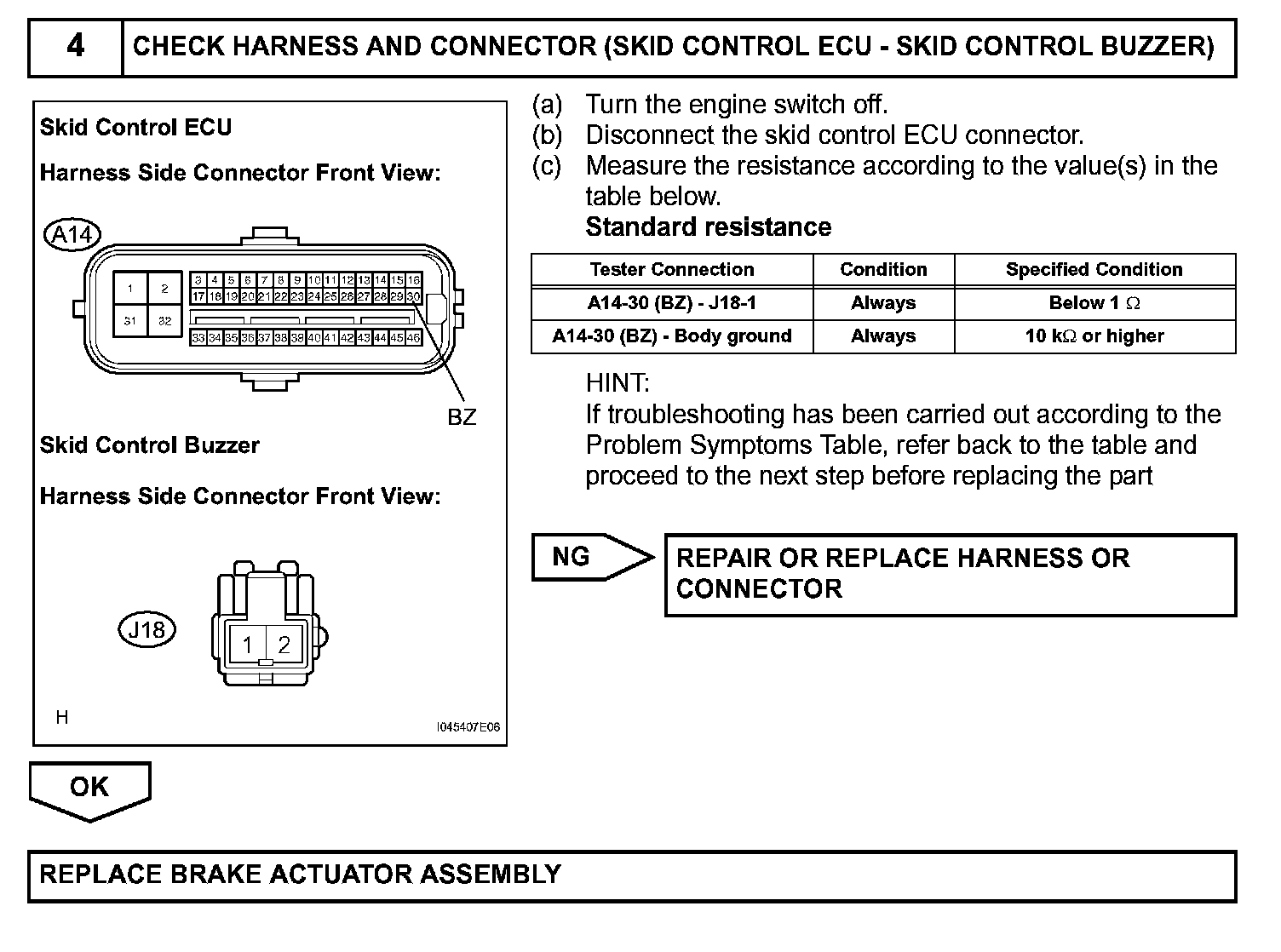

Step 4:
