Initial Inspection and Diagnostic Overview

INSPECTION

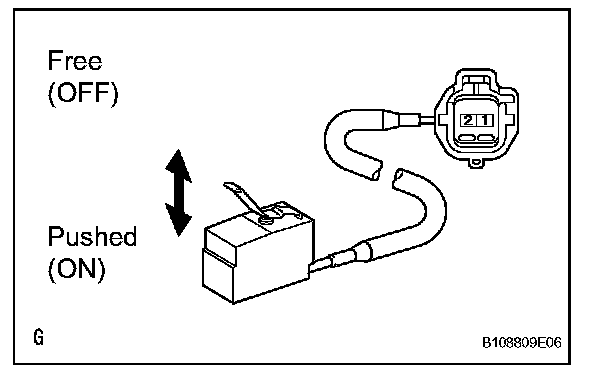

1. INSPECT ENGINE HOOD COURTESY SWITCH

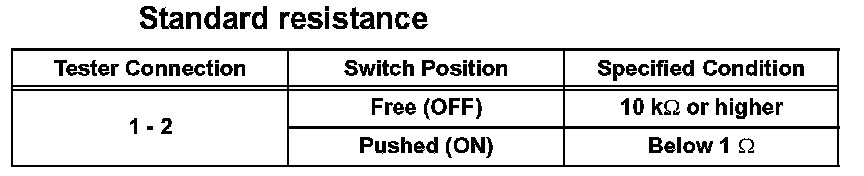

a. Measure the resistance according to the value(s) in the table.
