Climate Control Seat System Does Not Operate

Climate Control Seat System does not Operate

DESCRIPTION
The A/C amplifier assembly receives seat position signals when the engine switch is on (IG), and then transmits airflow amount signals to each seat climate blower.

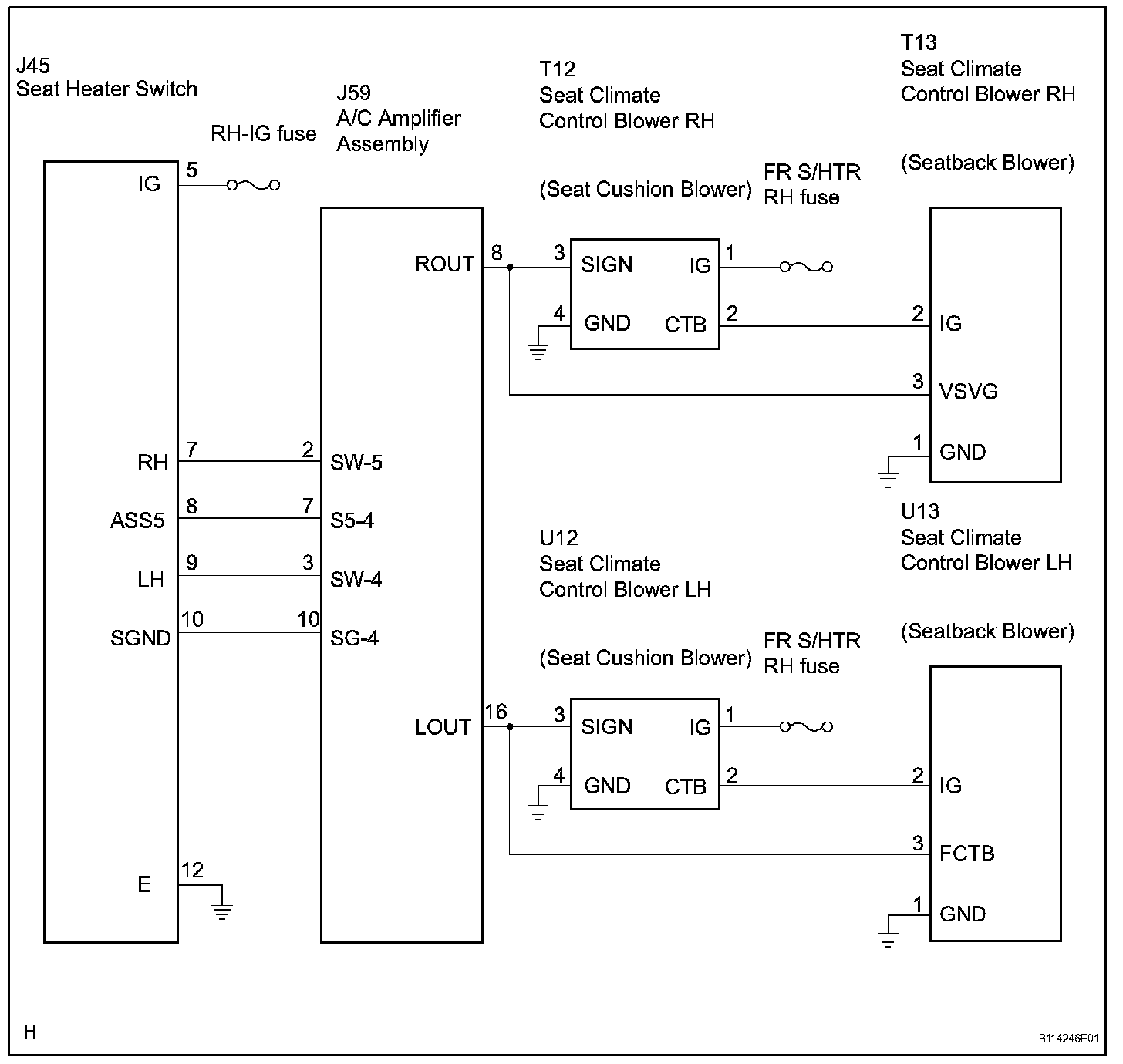

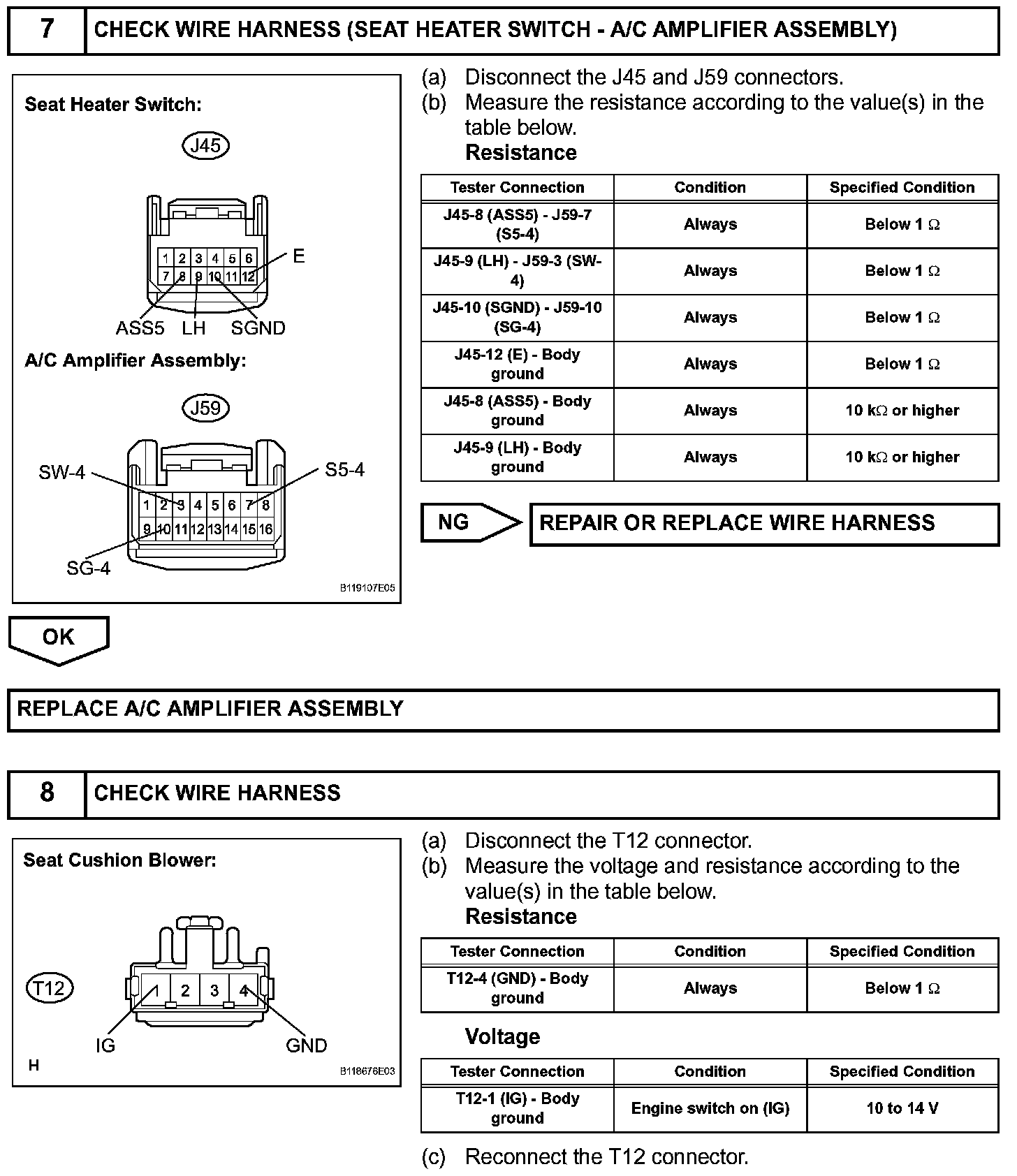

Wiring Diagram:

Step 1:

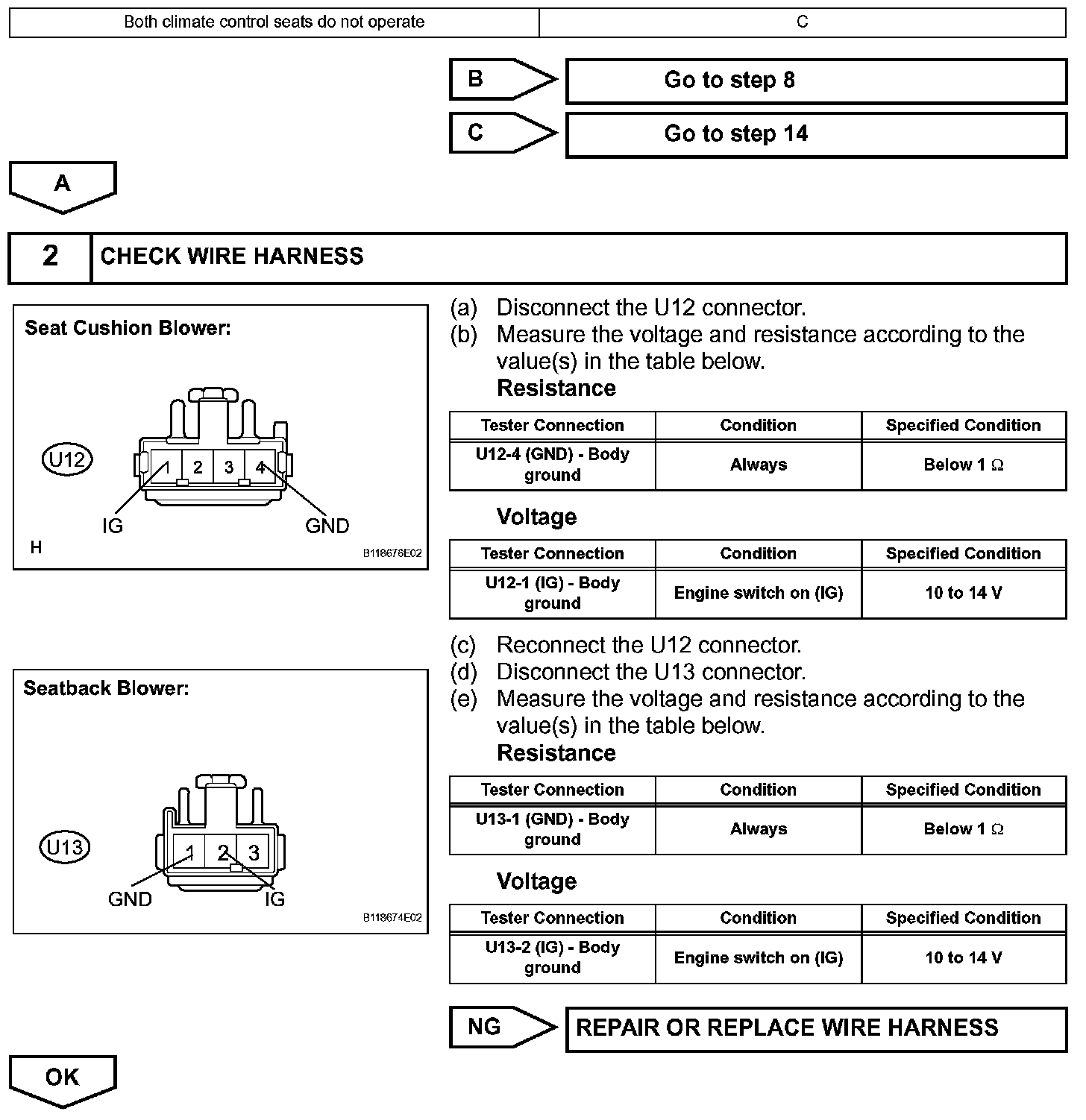

Step 1(continued)-2:

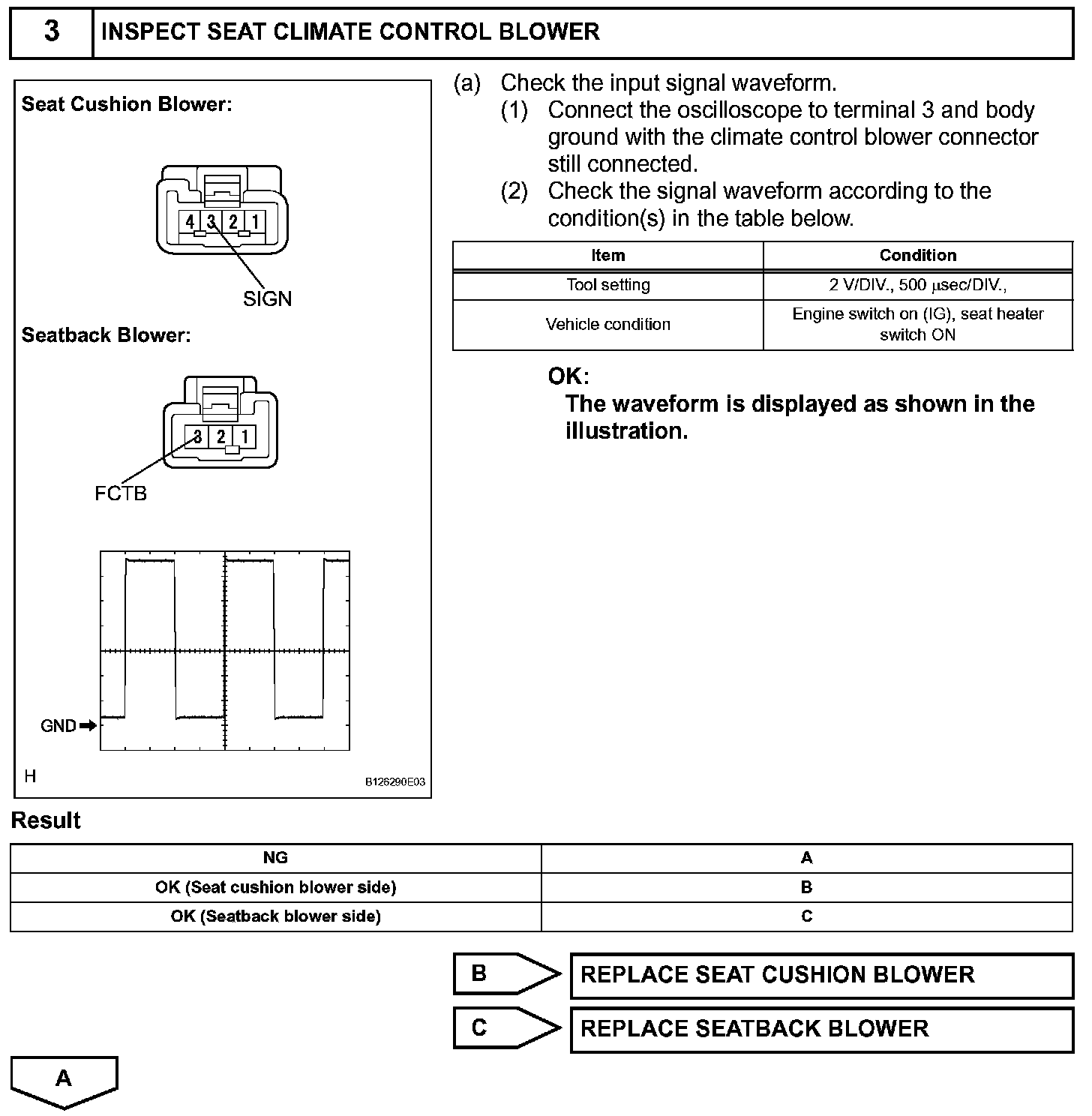

Step 3:

Step 4-5:

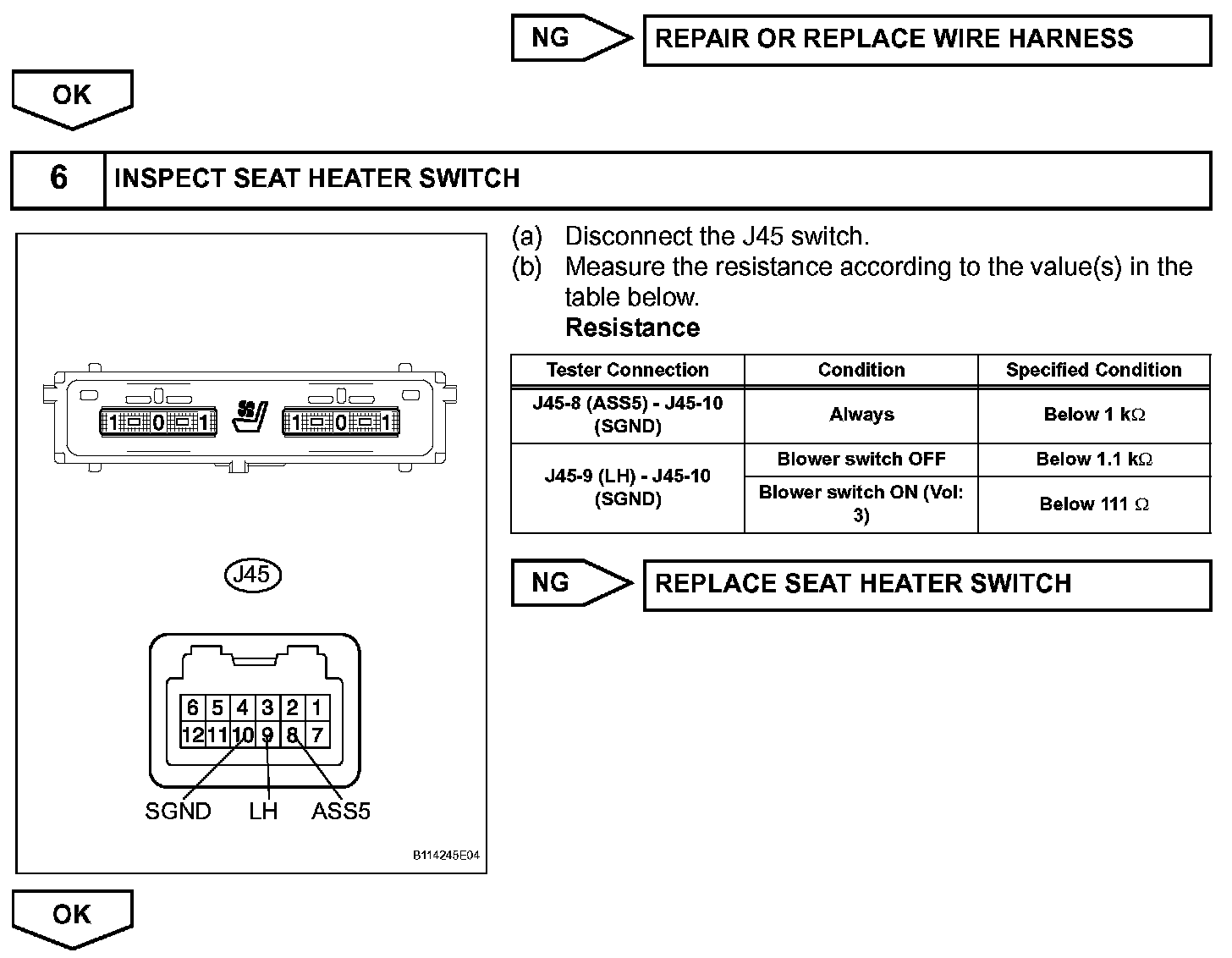

Step 5(continued)-6:

Step 7-8:

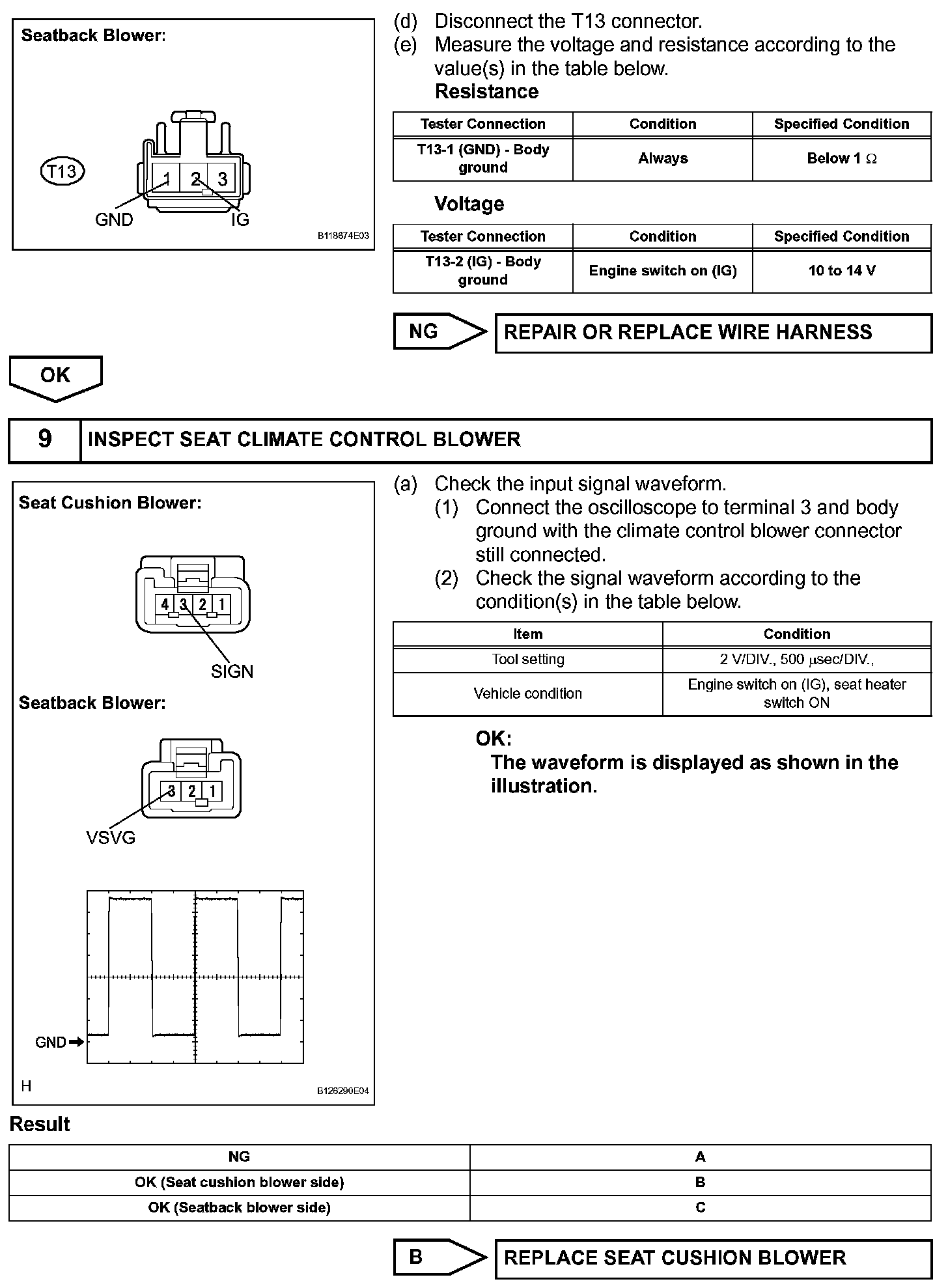

Step 8(continued)-9:

Step 9(continued)-10:

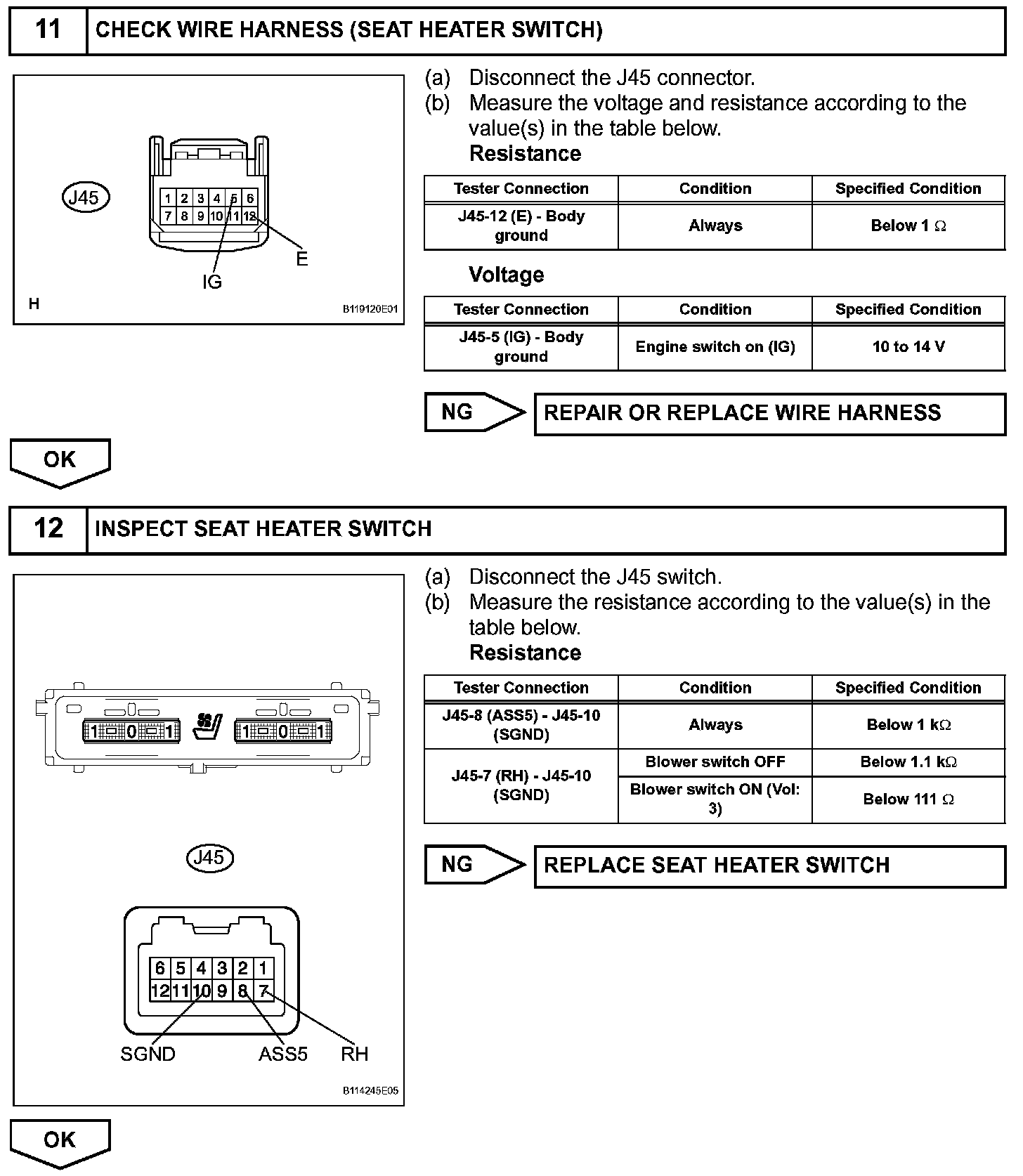

Step 11-12:

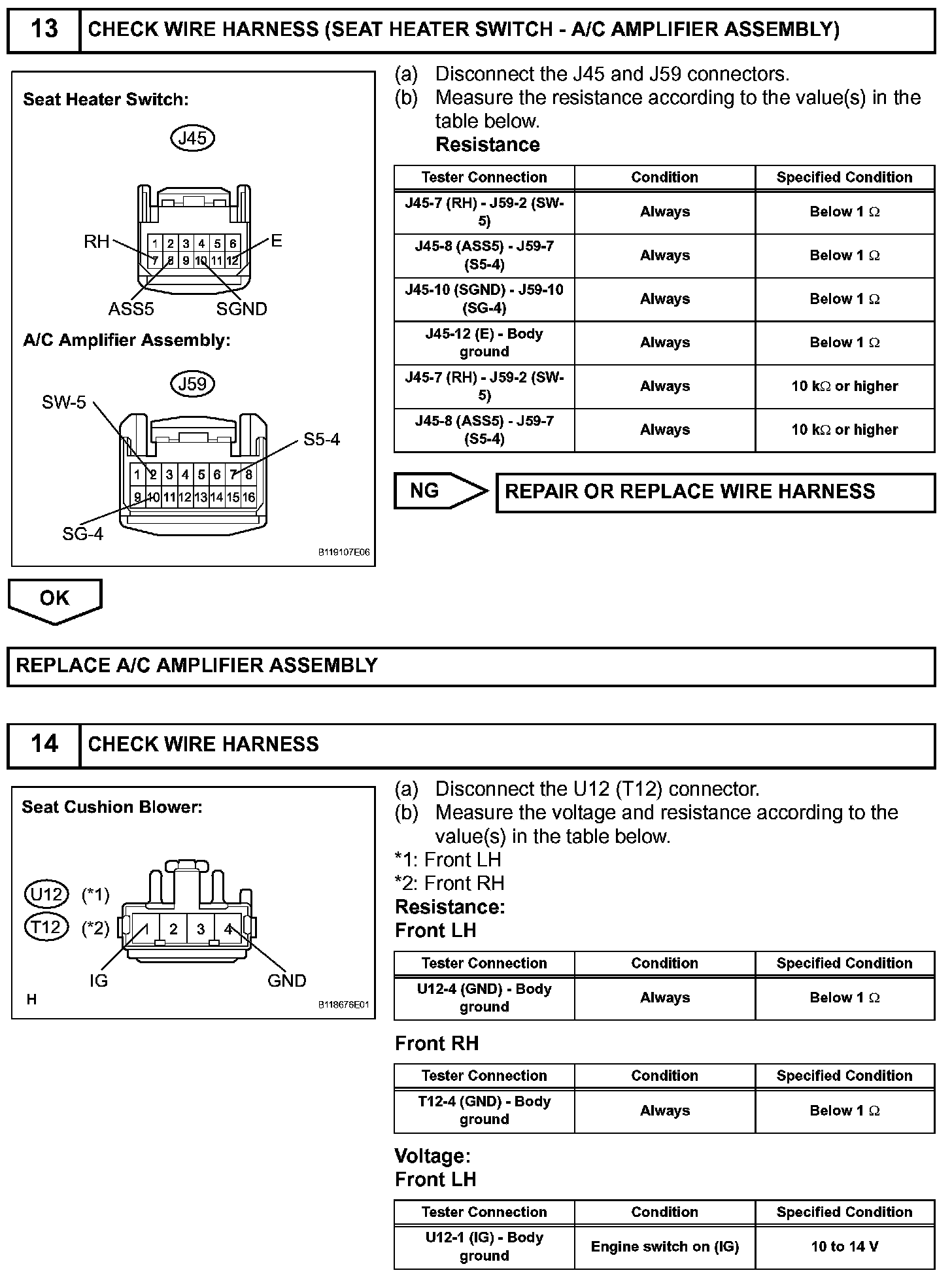

Step 13-14:

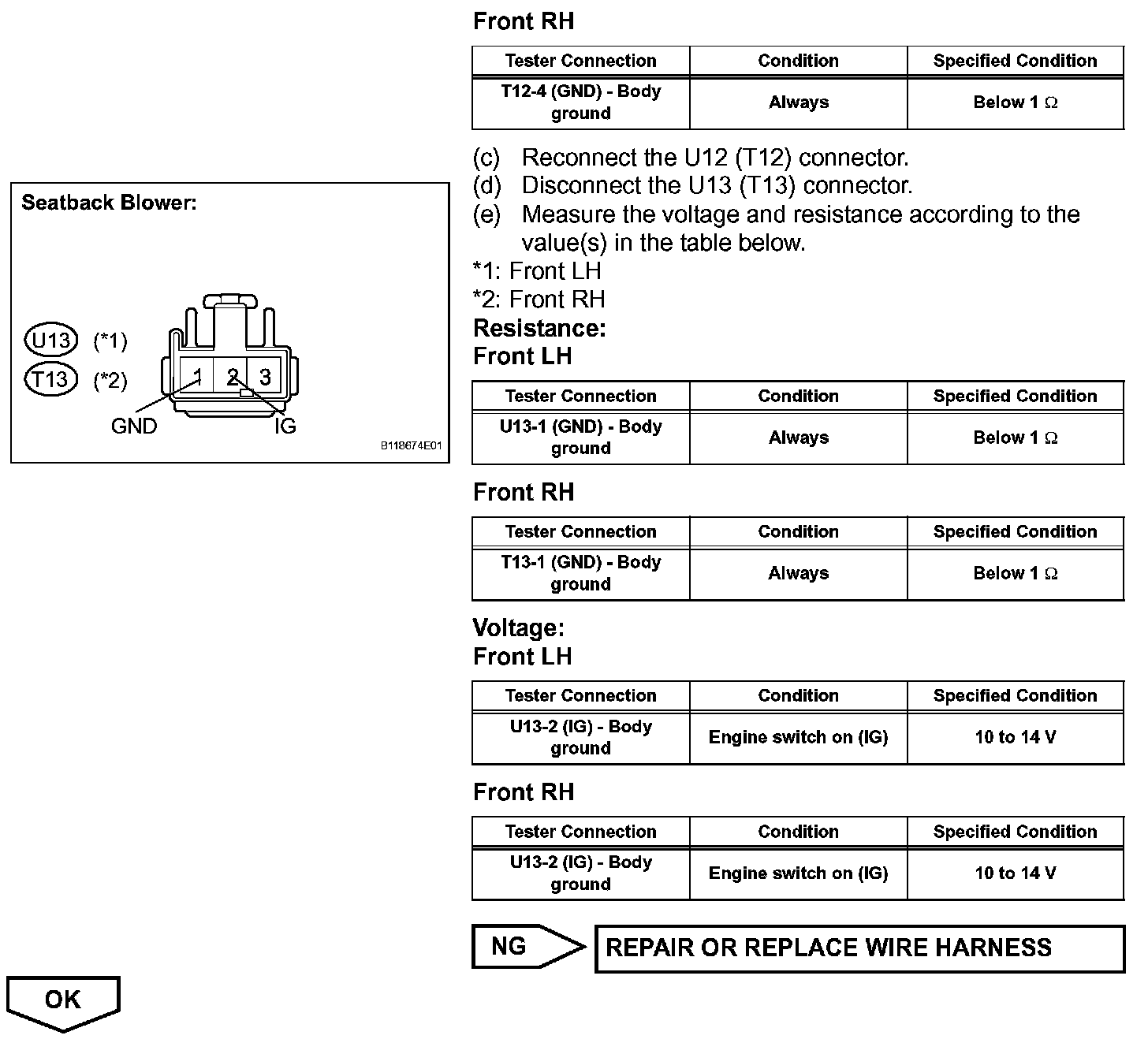

Step 14(continued):

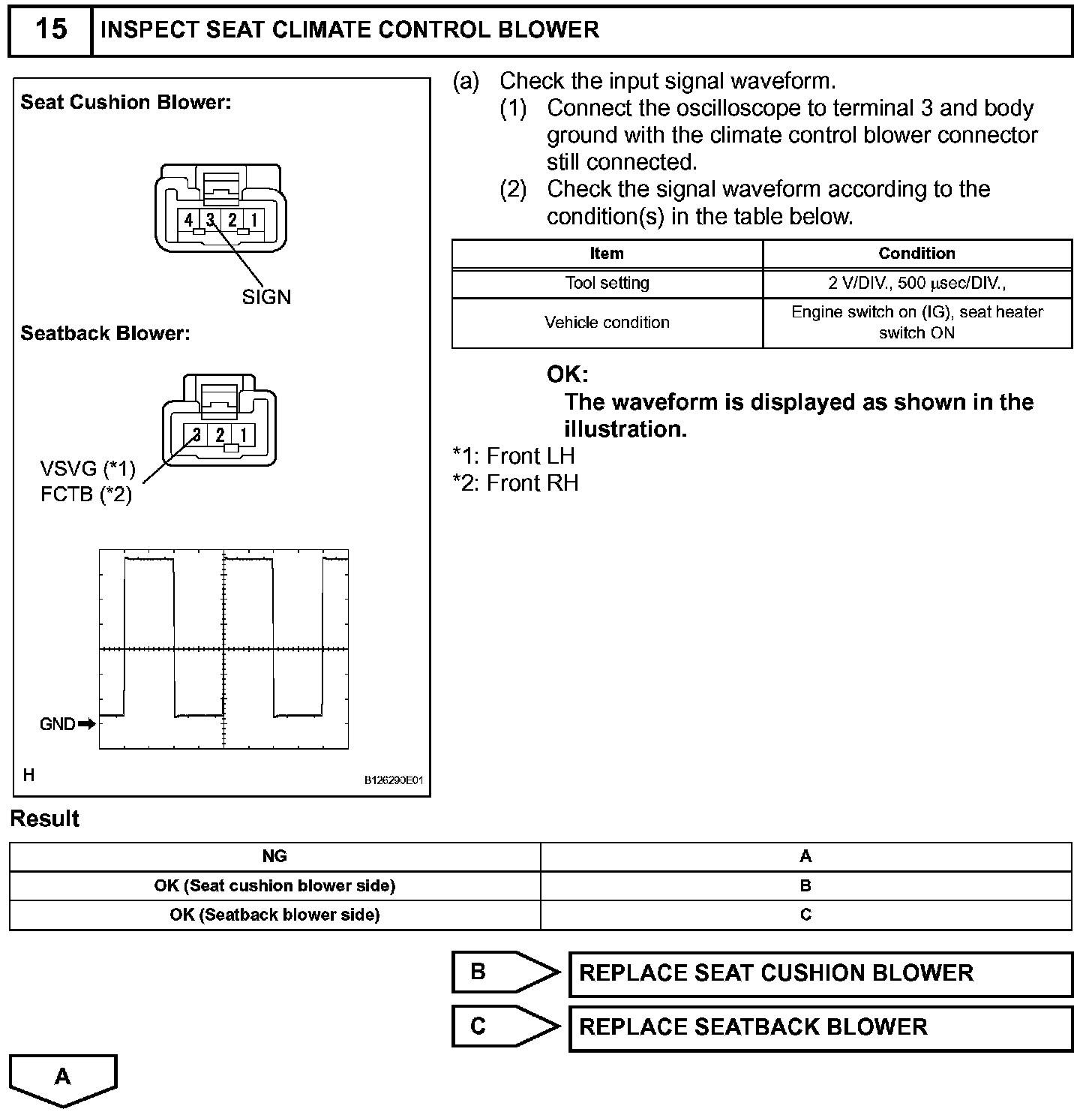

Step 15:

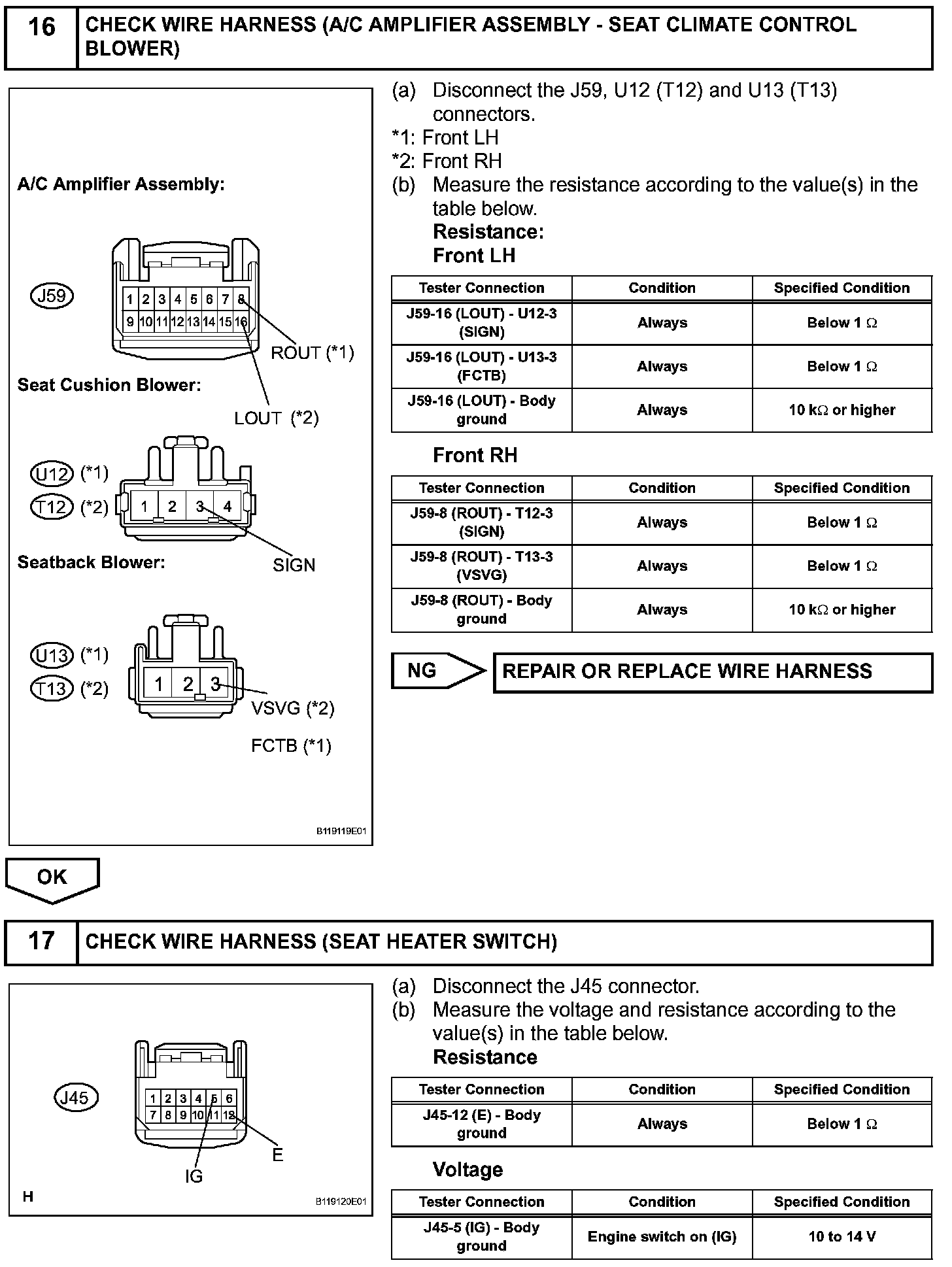

Step 16-17:

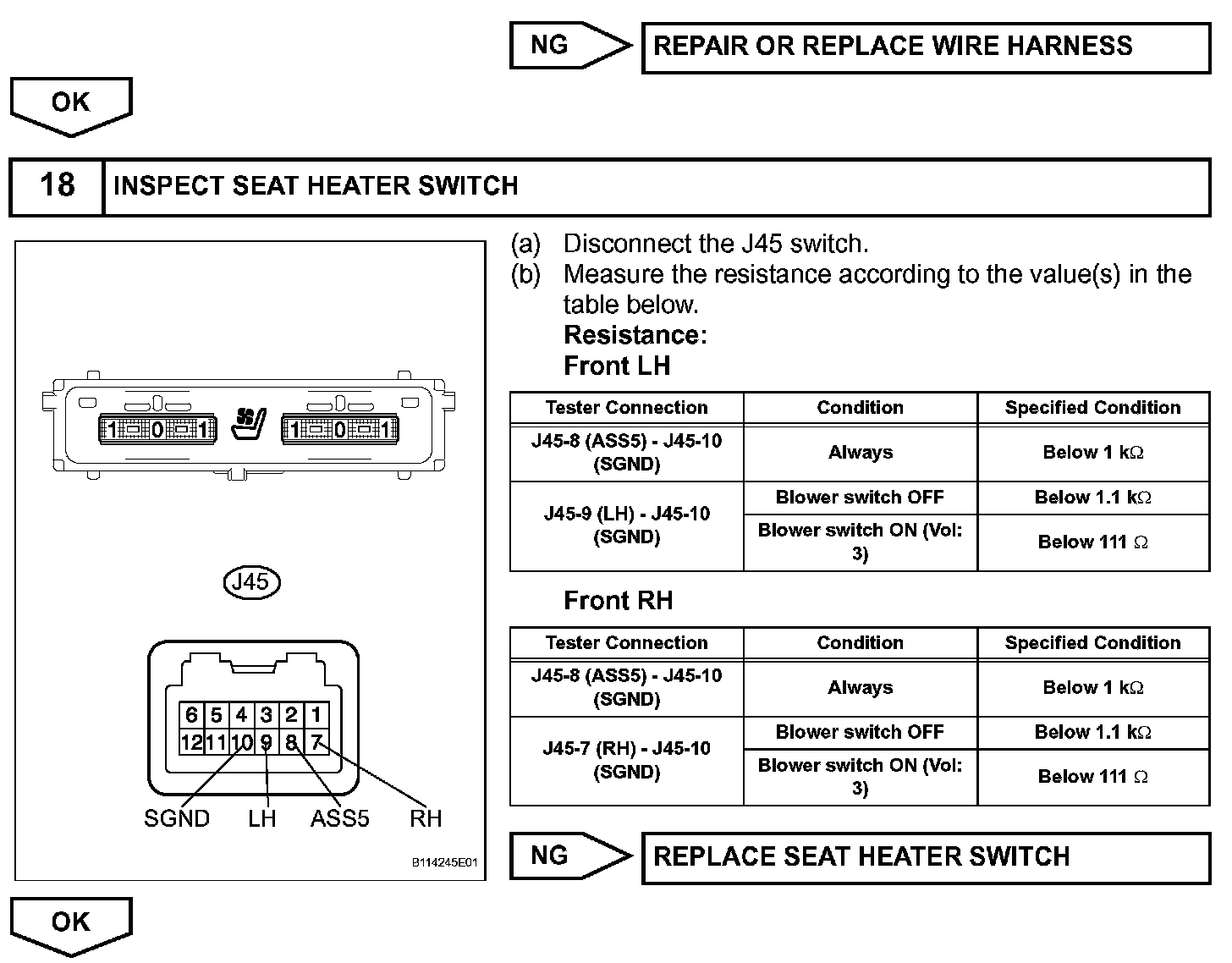

Step 17(continued)-18:

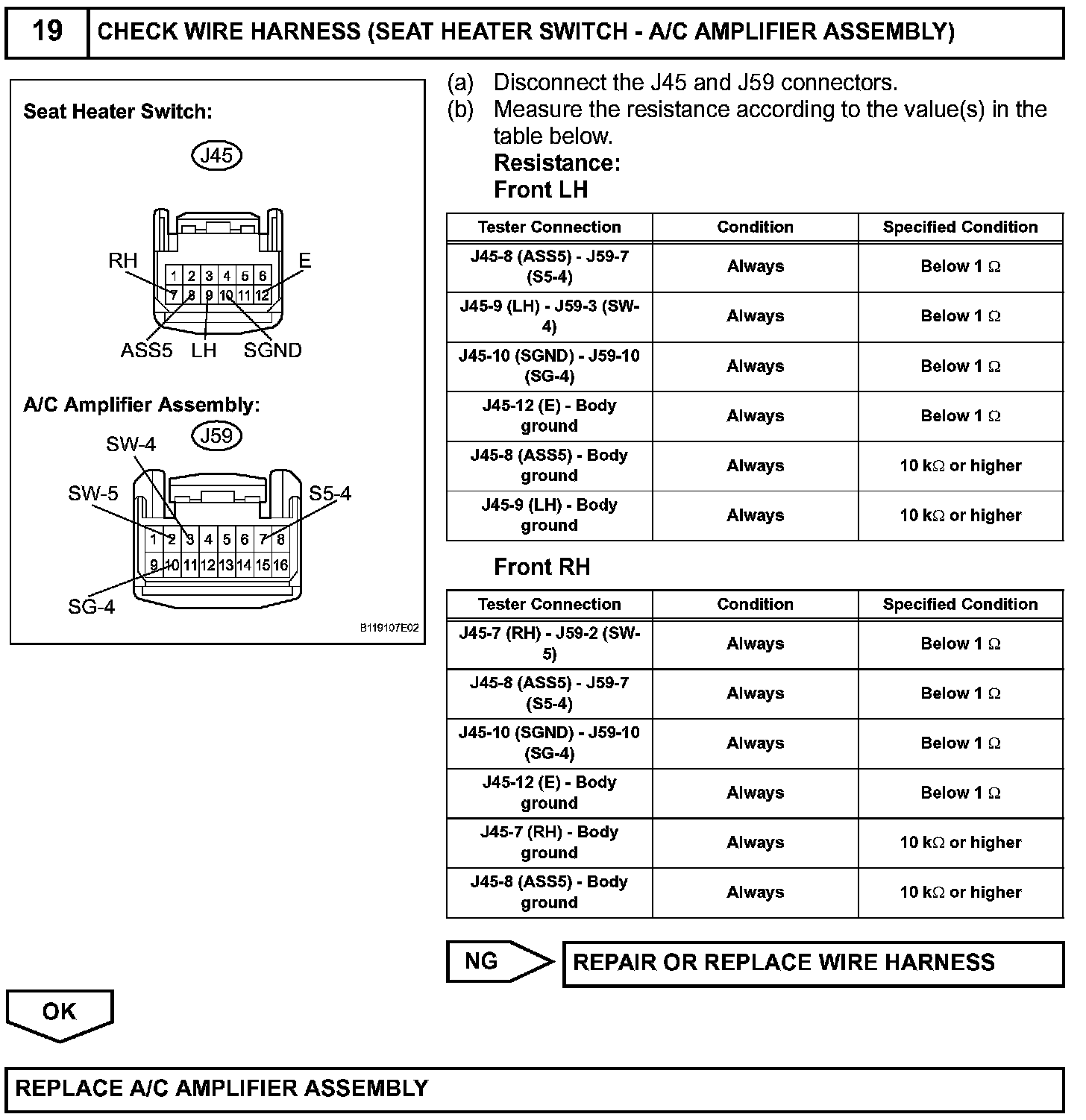

Step 19:

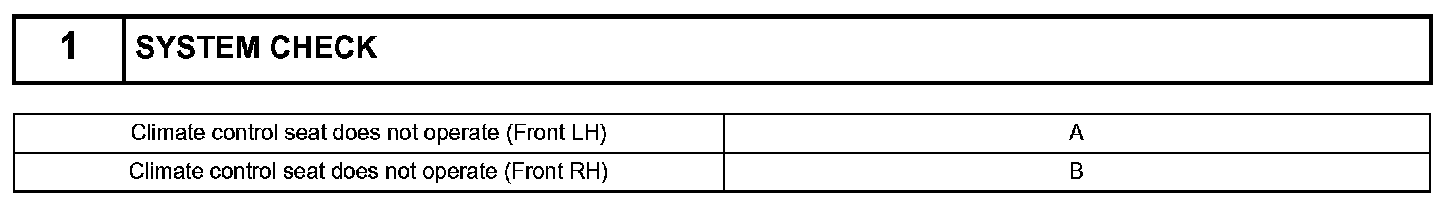

INSPECTION PROCEDURE
