Climate Control Seat System

TERMINALS OF ECU

Terminals Of Control Module/Pinouts-A/C Amplifier Assembly:

1. A/C AMPLIFIER ASSEMBLY

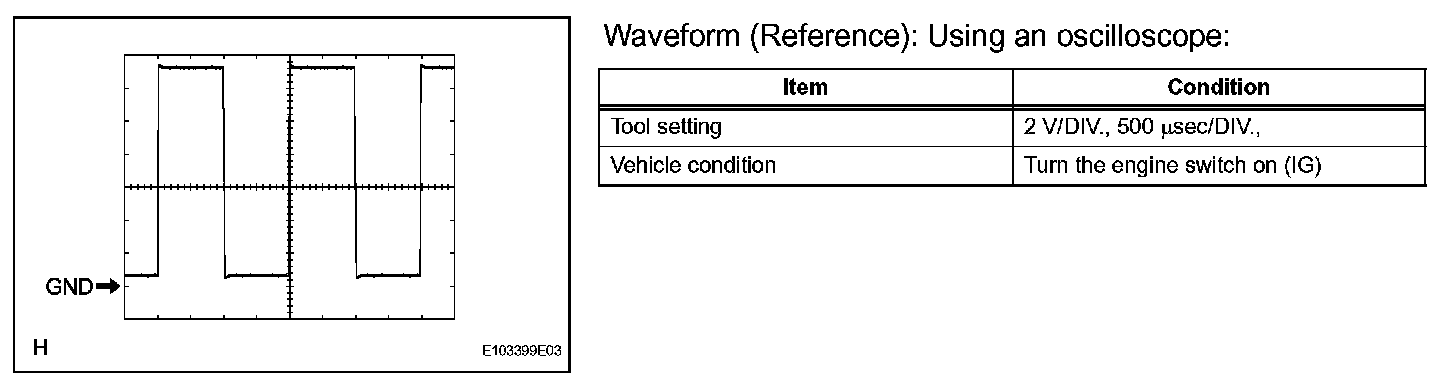

Oscilloscope Waveform:

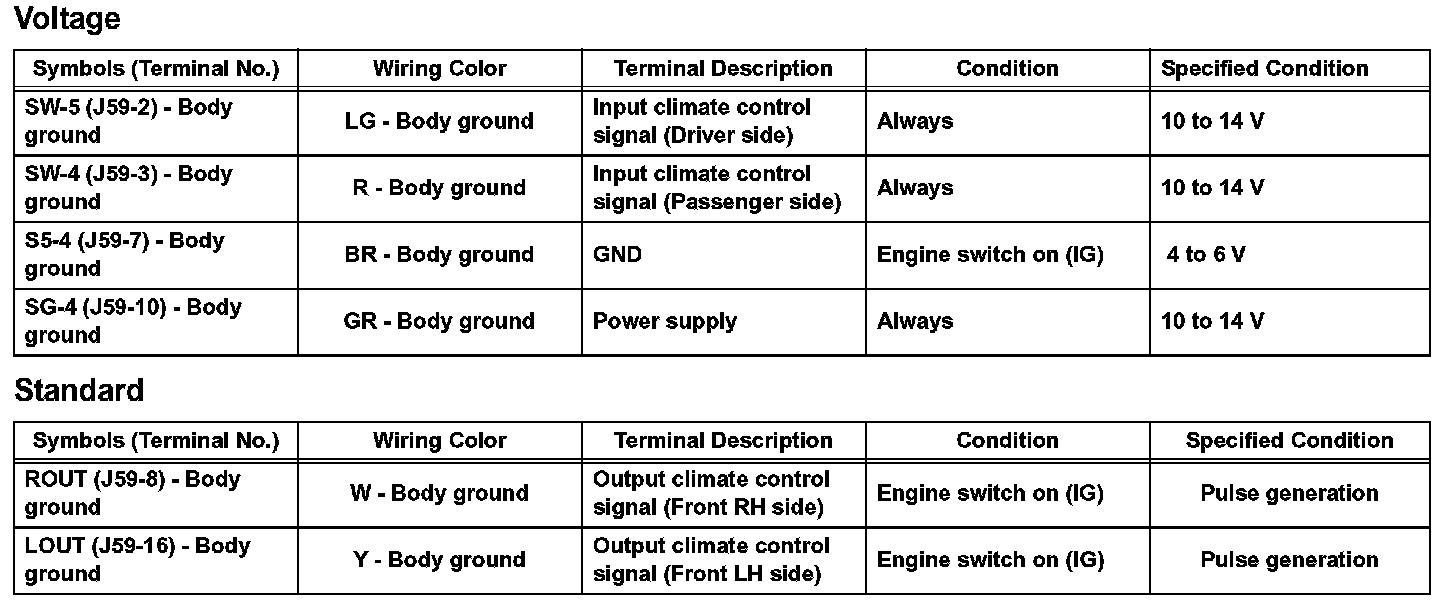

a. Measure the voltage and resistance according to the value(s) in the table given.
