Power Seat Switch

INSPECTION

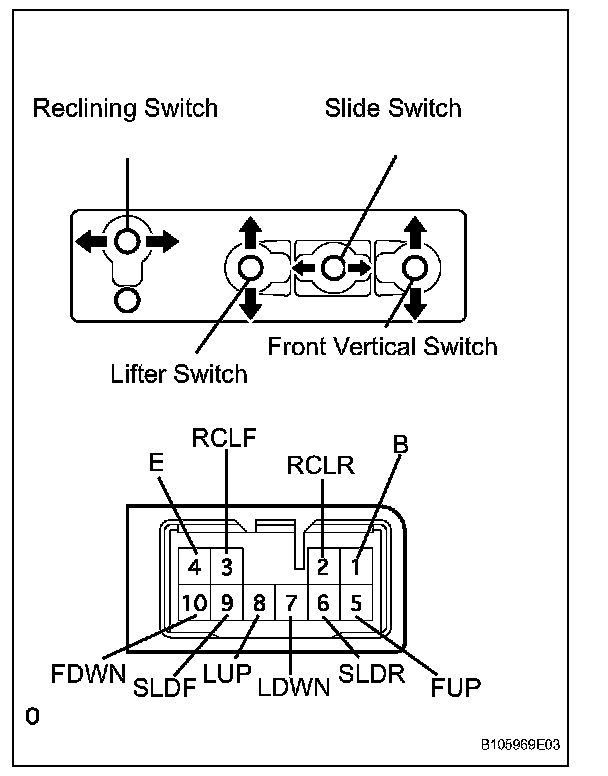

1. INSPECT FRONT POWER SEAT SWITCH LH







a. Measure the resistance between the specified terminals when each switch is operated.

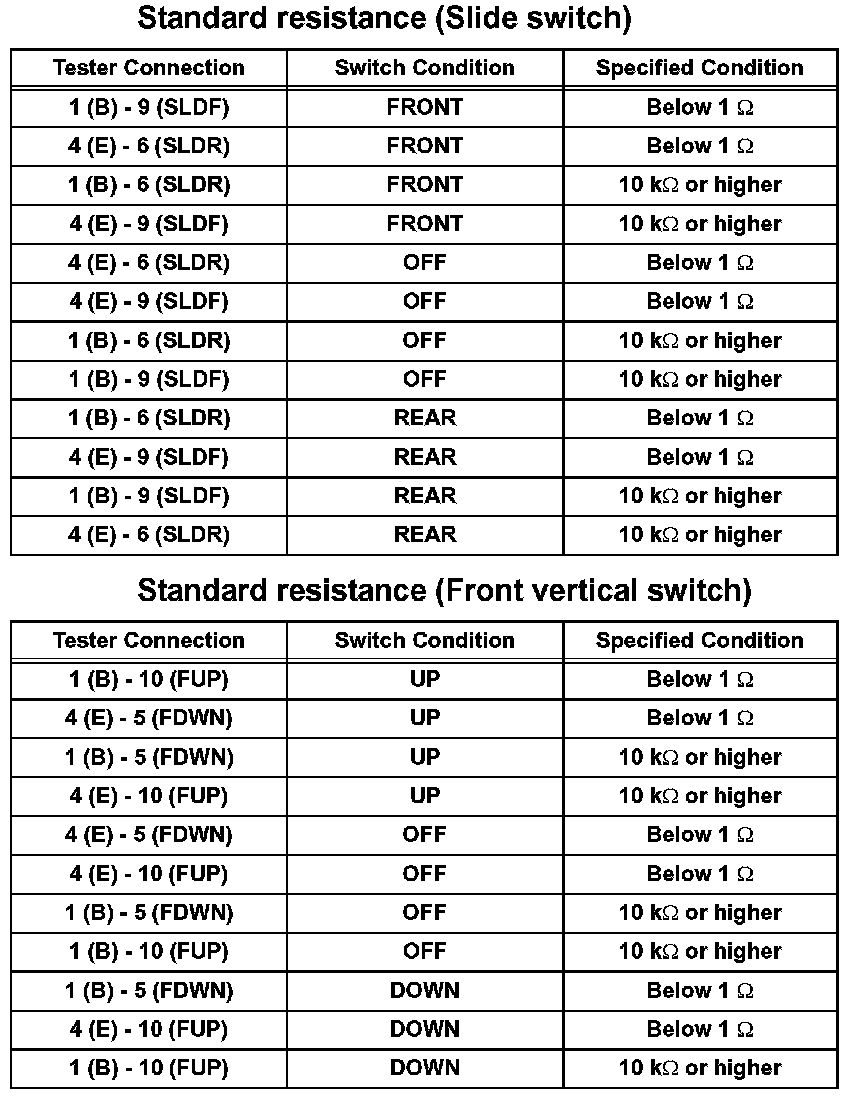

Standard resistance (Slide switch)
If the result is not as specified, replace switch.




2. INSPECT FRONT POWER SEAT SWITCH RH







a. Measure the resistance between the specified terminals when each switch is operated.

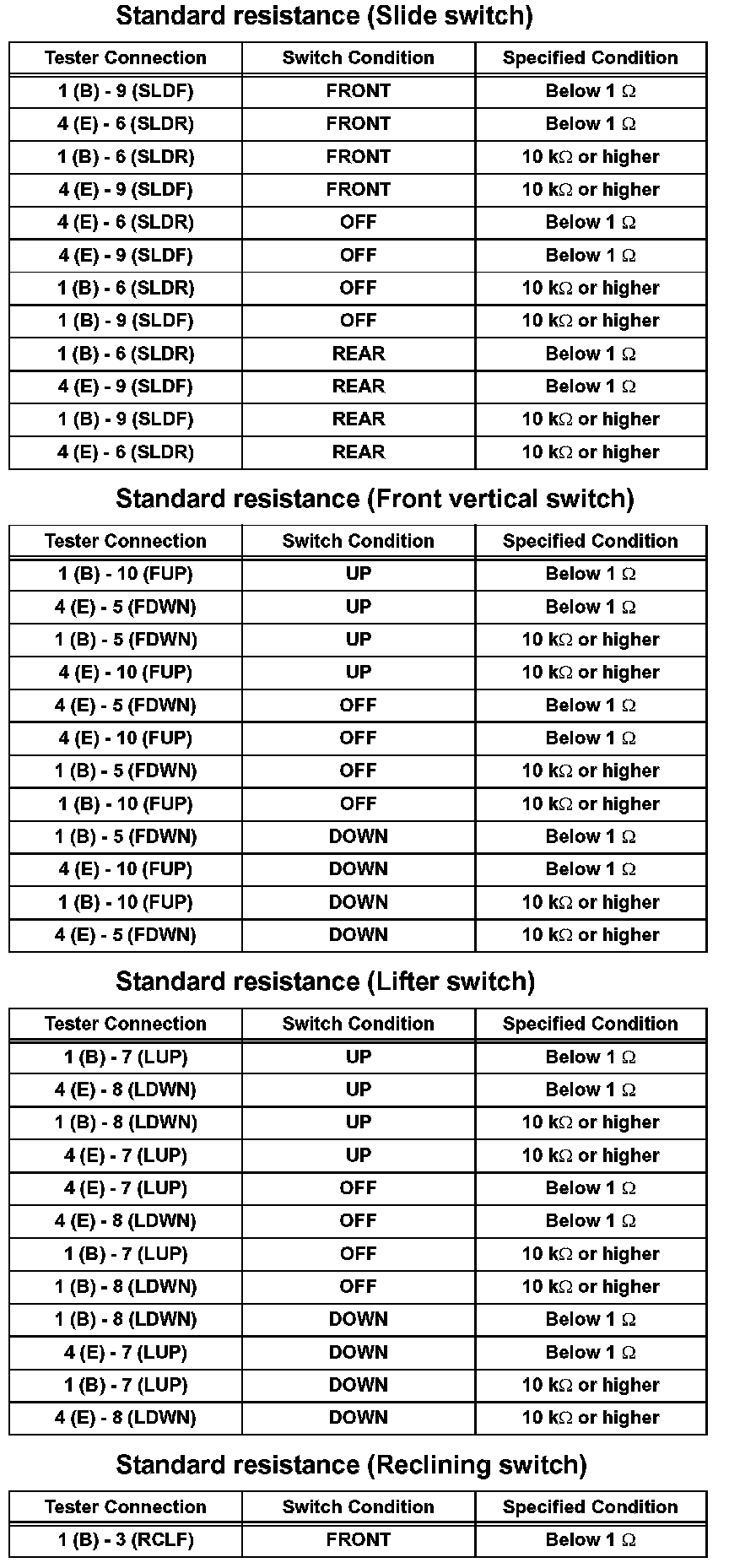

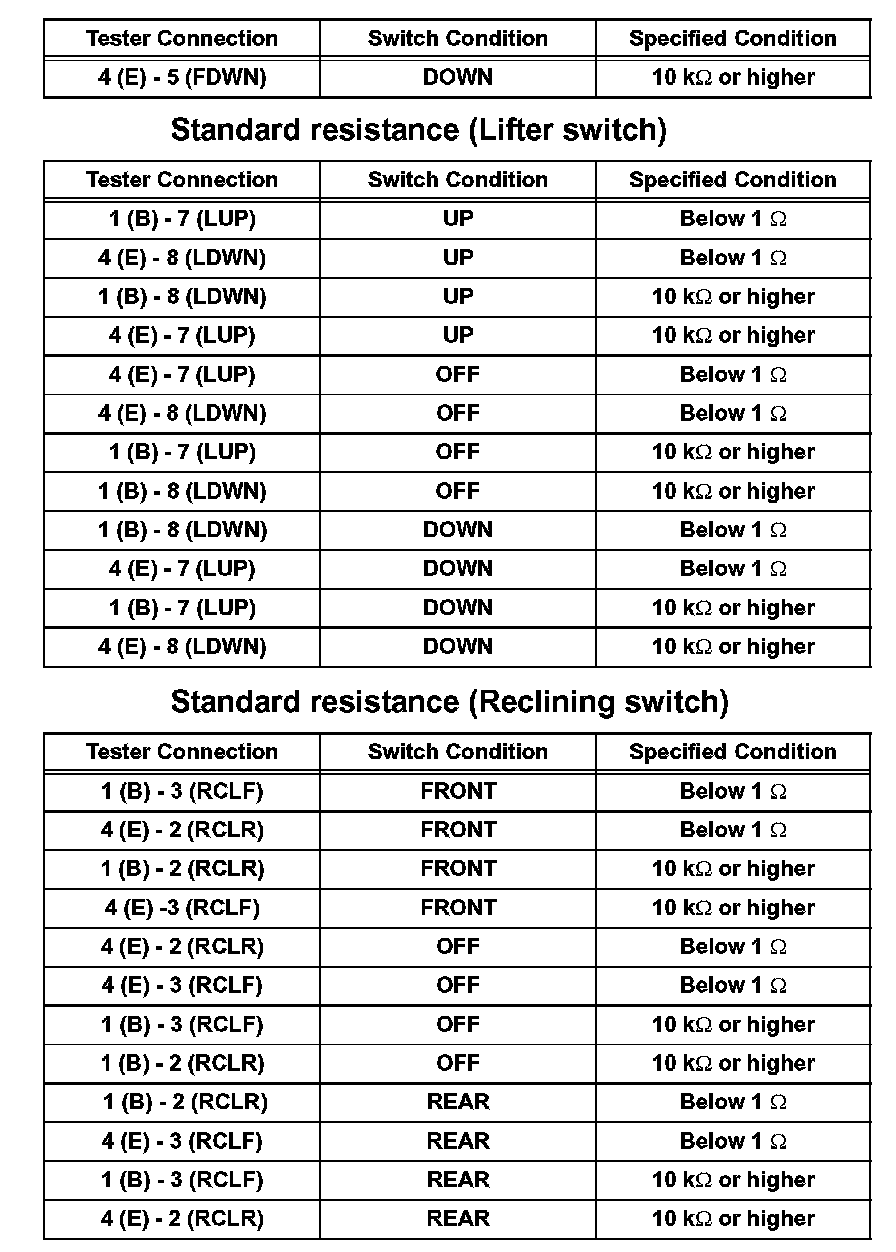

Standard resistance (Slide switch)
If the result is not as specified, replace switch.
