Power Seat Switch

REMOVAL

1. REMOVE RECLINING POWER SEAT SWITCH KNOB
2. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
3. REMOVE FRONT SEAT CUSHION SHIELD WITH INNER NO.1 CUSHION SHIELD

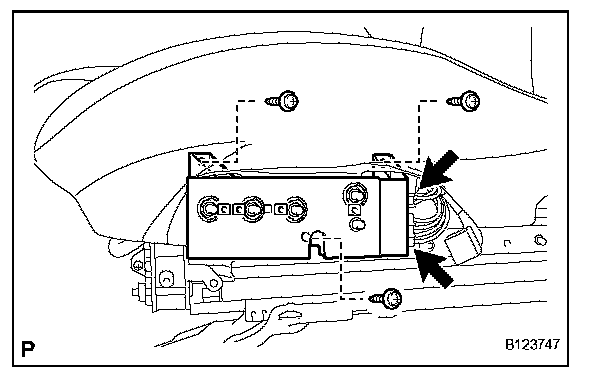

4. REMOVE FRONT POWER SEAT SWITCH (W/ Seat Position Memory System)

a. Remove the 3 screws.
b. Disconnect the 2 connectors and remove the switch.

5. REMOVE FRONT POWER SEAT SWITCH (W/o Seat Position Memory System)

a. Remove the 3 screws.
b. Disconnect the connector and remove the switch.

INSTALLATION

1. INSTALL FRONT POWER SEAT SWITCH (W/o Seat Position Memory System)
2. INSTALL FRONT POWER SEAT SWITCH (W/ Seat Position Memory System)
3. INSTALL FRONT SEAT CUSHION SHIELD WITH NO.1 CUSHION SHIELD INNER
4. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
5. INSTALL RECLINING POWER SEAT SWITCH KNOB
