Removal

REMOVAL

1. REMOVE FRONT SEAT HEADREST ASSEMBLY
2. REMOVE FRONT OUTER SEAT TRACK BRACKET COVER
3. REMOVE FRONT INNER SEAT TRACK BRACKET COVER
4. REMOVE REAR OUTER SEAT TRACK COVER
5. REMOVE REAR INNER SEAT TRACK COVER
6. REMOVE FRONT SEAT ASSEMBLY
7. REMOVE FRONT INNER SEAT BELT ASSEMBLY
8. REMOVE RECLINING POWER SEAT SWITCH KNOB
9. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
10. REMOVE FRONT SEAT CUSHION SHIELD WITH INNER NO.1 CUSHION SHIELD
11. REMOVE FRONT INNER SEAT CUSHION SHIELD
12. REMOVE FRONT SEATBACK BOARD SUB-ASSEMBLY
13. REMOVE FRONT SEAT HEADREST SUPPORT
14. REMOVE FRONT SEAT HEADREST SUPPORT
15. REMOVE FRONT SEPARATE TYPE SEATBACK ASSEMBLY (W/o Seatback Board)
16. REMOVE FRONT SEPARATE TYPE SEATBACK ASSEMBLY (W/ Seatback Board)

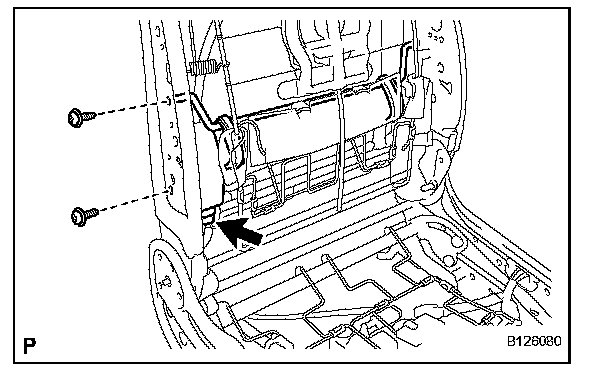

17. REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY
a. Disconnect the connector and clamps.
b. Remove the 2 screws and lumbar support adjuster.
