Front Power Seat Lumbar Switch

REMOVAL

1. REMOVE RECLINING POWER SEAT SWITCH KNOB
2. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
3. REMOVE FRONT SEAT CUSHION SHIELD WITH INNER NO.1 CUSHION SHIELD




4. REMOVE FRONT POWER SEAT LUMBAR SWITCH

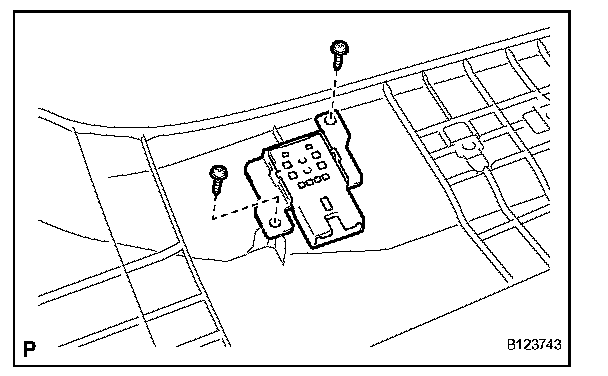

a. Remove the 2 screws and front power seat lumbar switch.

INSTALLATION

1. INSTALL LUMBAR FRONT POWER SEAT SWITCH
2. INSTALL FRONT SEAT CUSHION SHIELD WITH INNER NO.1 CUSHION SHIELD
3. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
4. INSTALL RECLINING POWER SEAT SWITCH KNOB
