Front Seatback Heater

INSPECTION




1. INSPECT FRONT SEATBACK HEATER

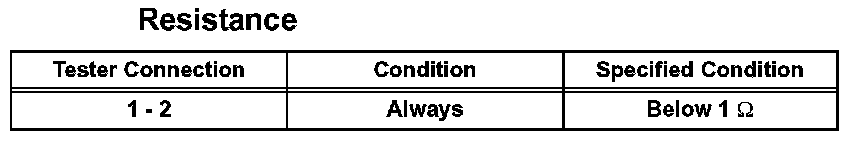

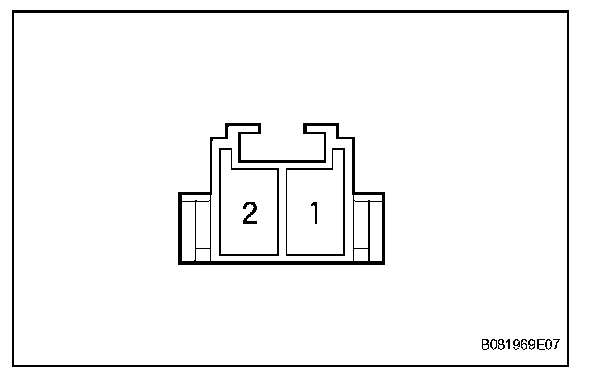

a. Measure the resistance according to the value(s) in the table.
