Seat Heater Without Climate Control Seat

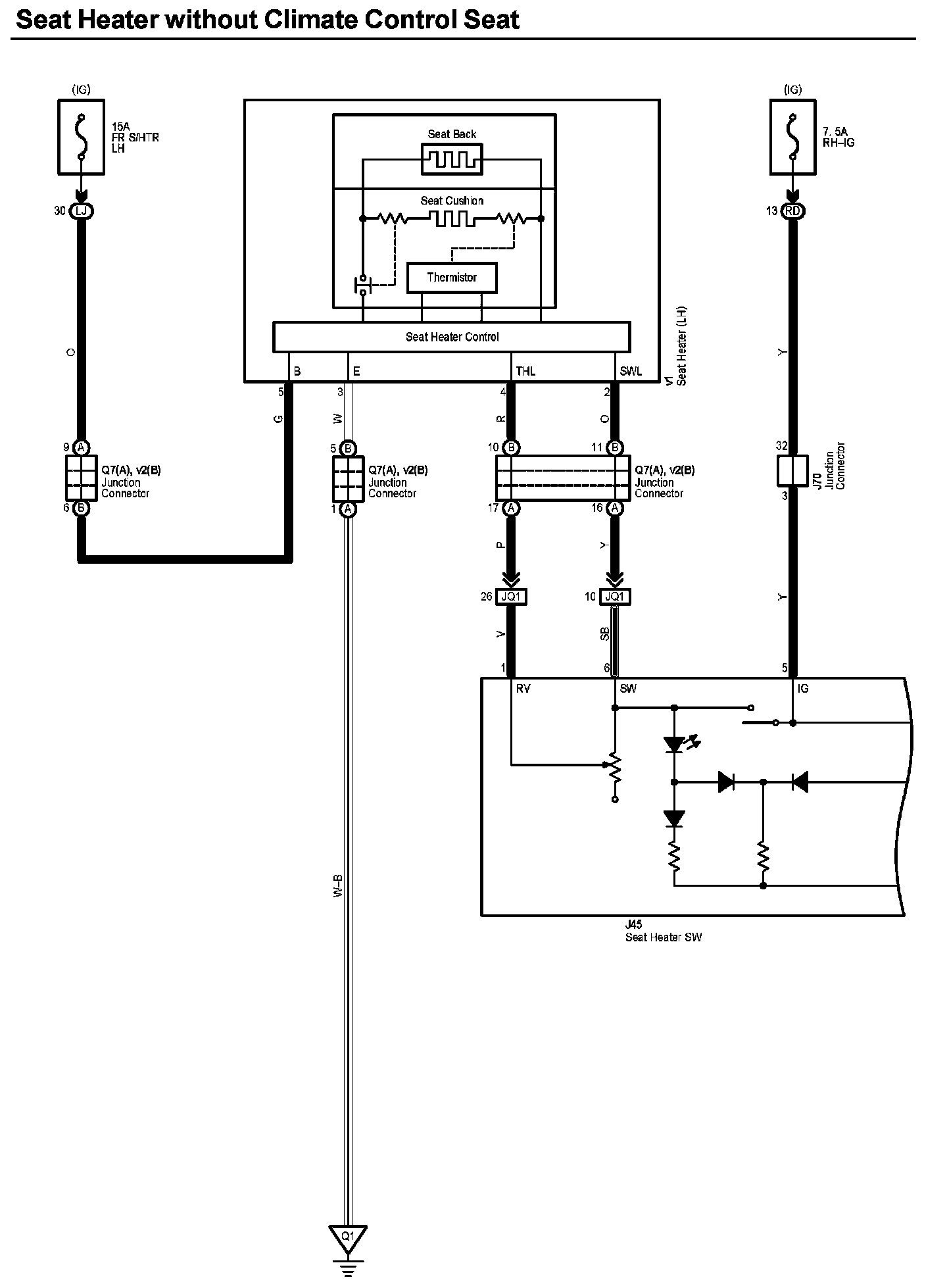

Seat Heater Without Climate Control Seat (Part 1):

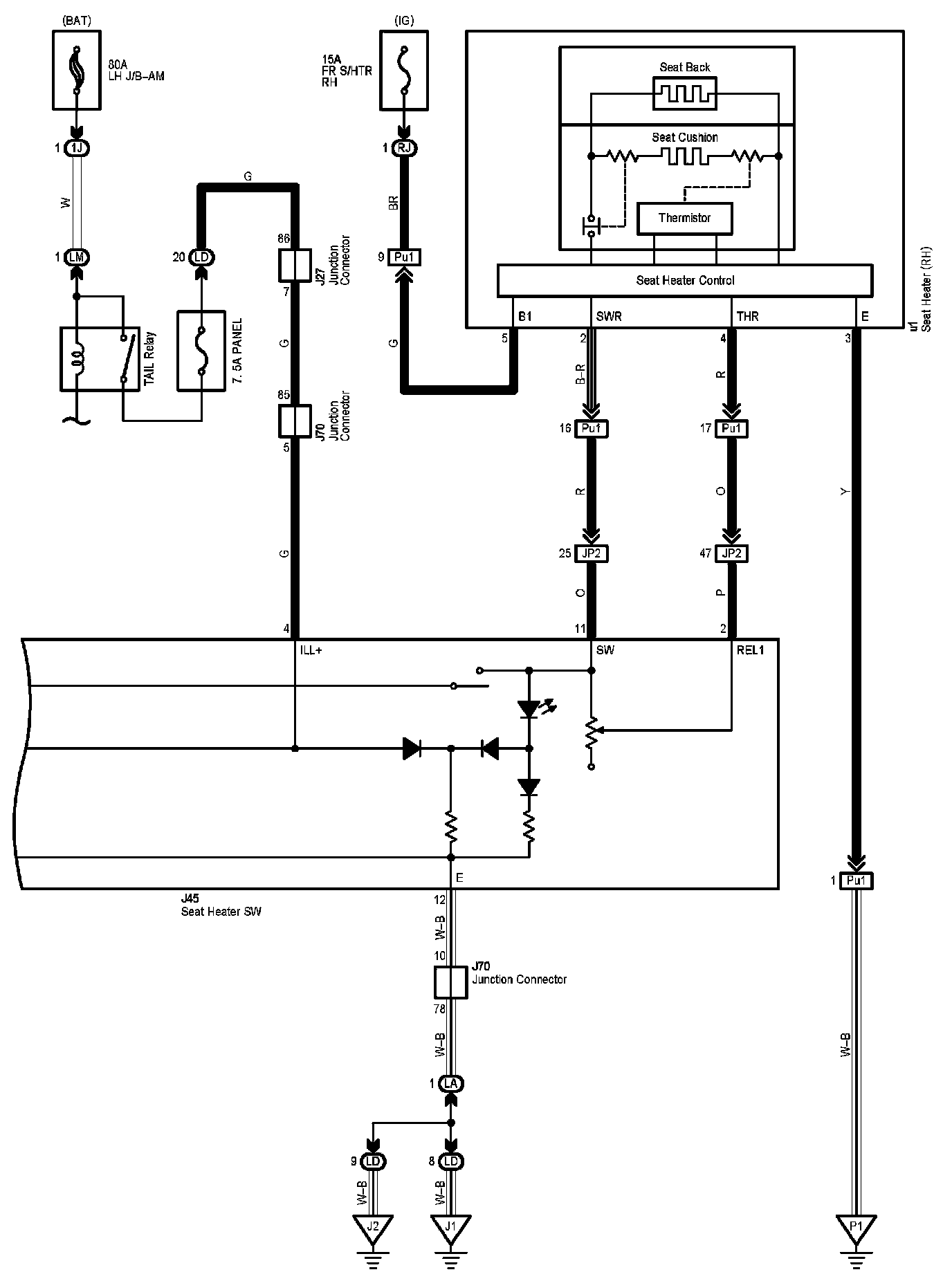

Seat Heater Without Climate Control (Seat Part 2):

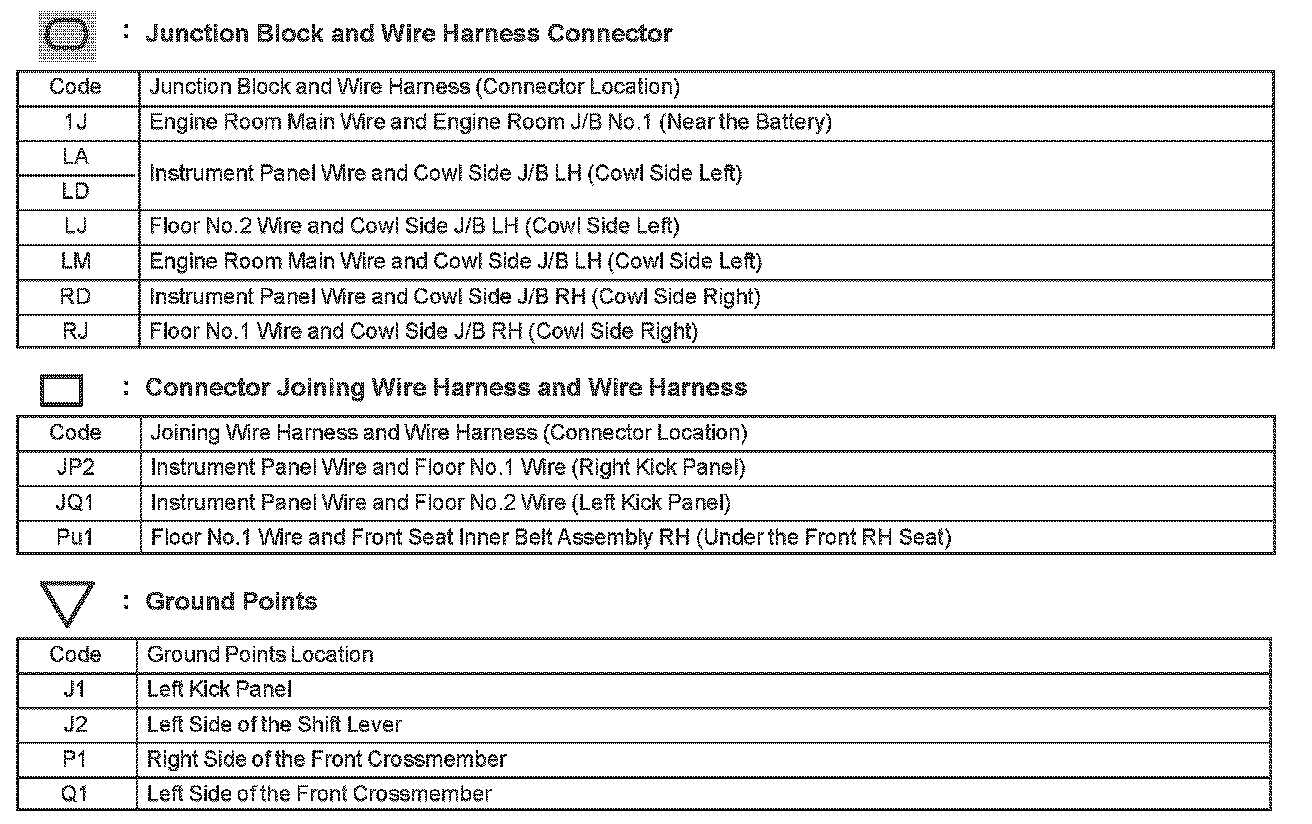

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
