Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

1. CHECK SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY (SLIDING ROOF ECU)

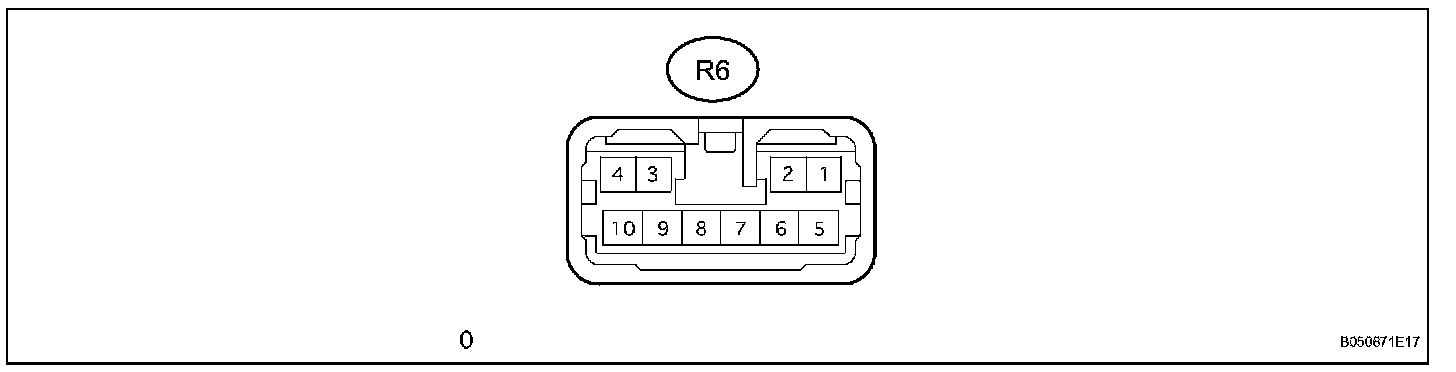

a. Disconnect the R6 ECU connector.

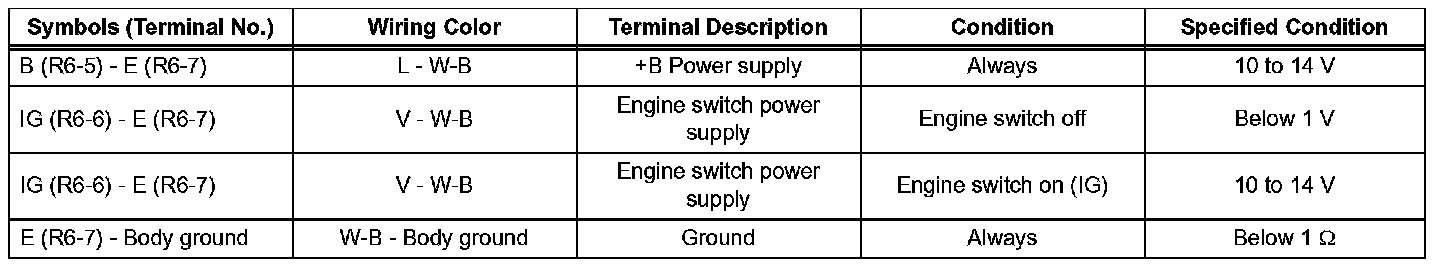

b. Measure the resistance and voltage of the wire harness side connector.




c. Reconnect the R6 ECU connector.

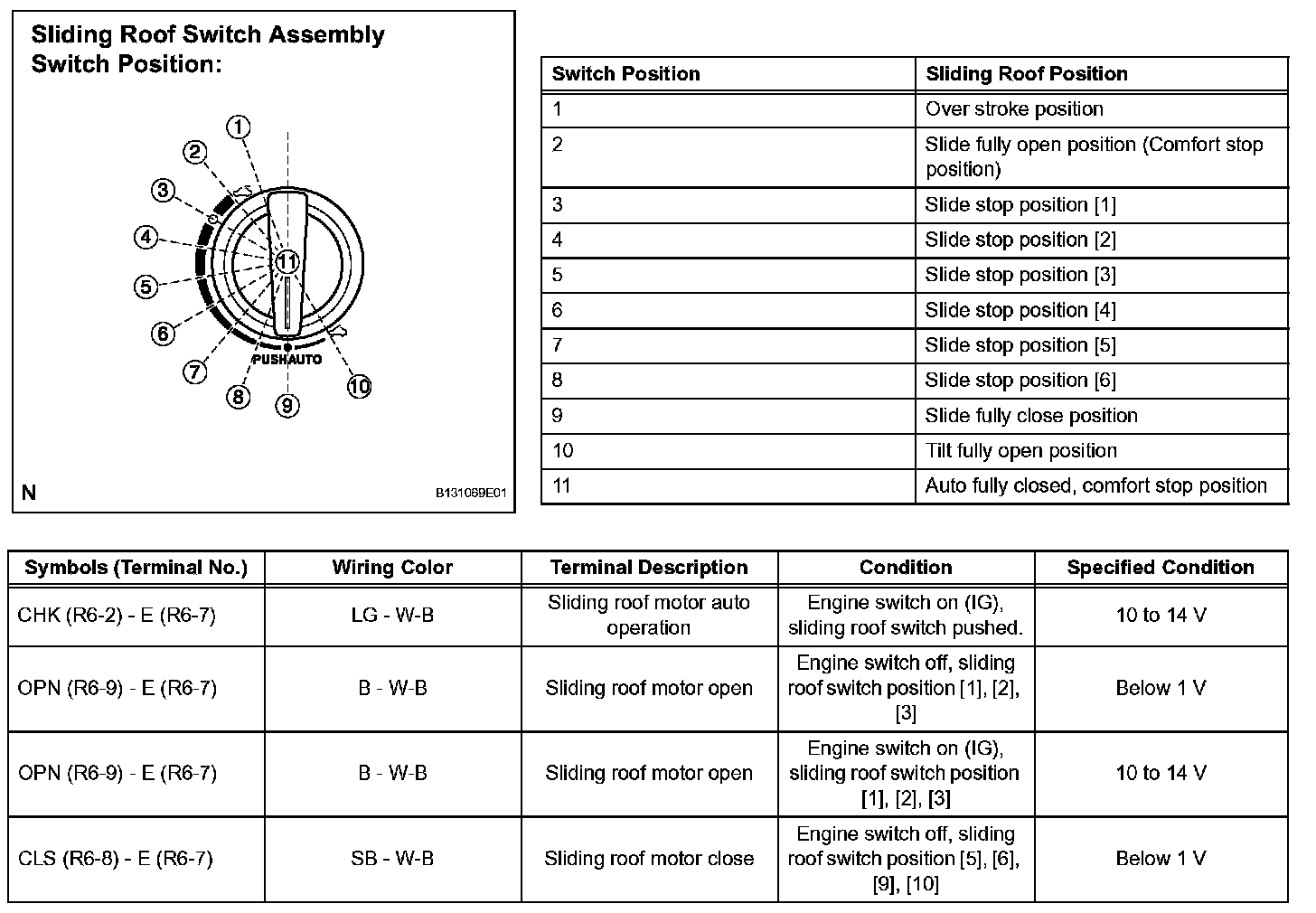

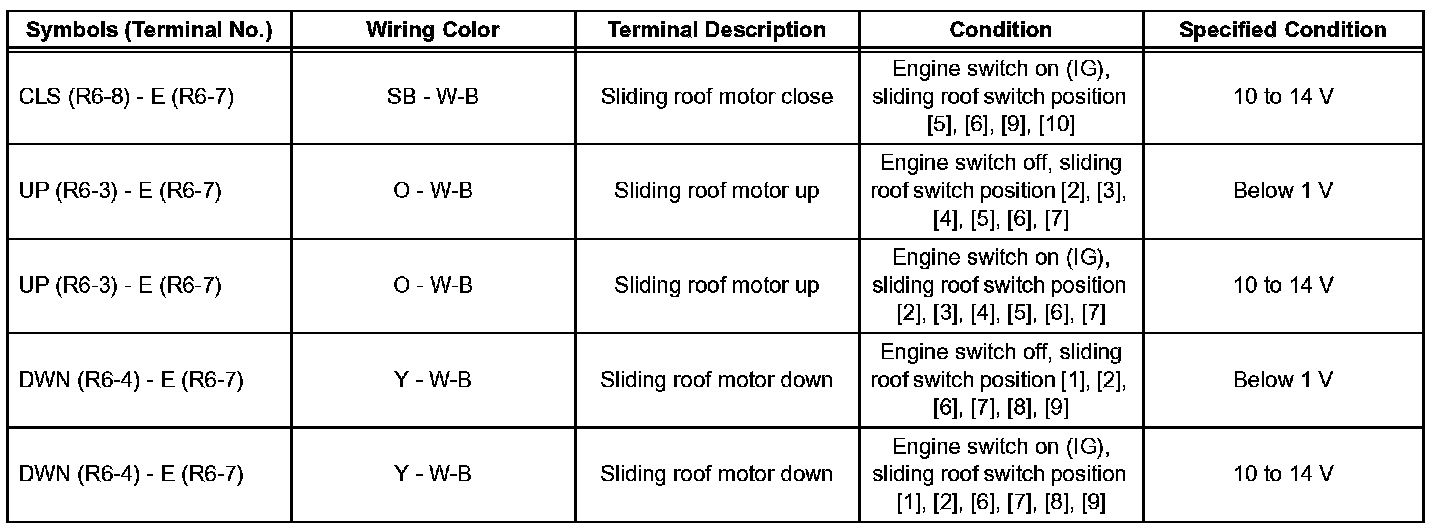

d. Measure the voltage of the connector.
If the result is not as specified, the ECU may have a malfunction.
