Sliding Roof Control Switch Circuit
Sliding Roof Control Switch CircuitDESCRIPTION
The sliding roof drive gear sub-assembly (sliding roof ECU) receives slide switch and tilt switch signals and drives its built-in motor.

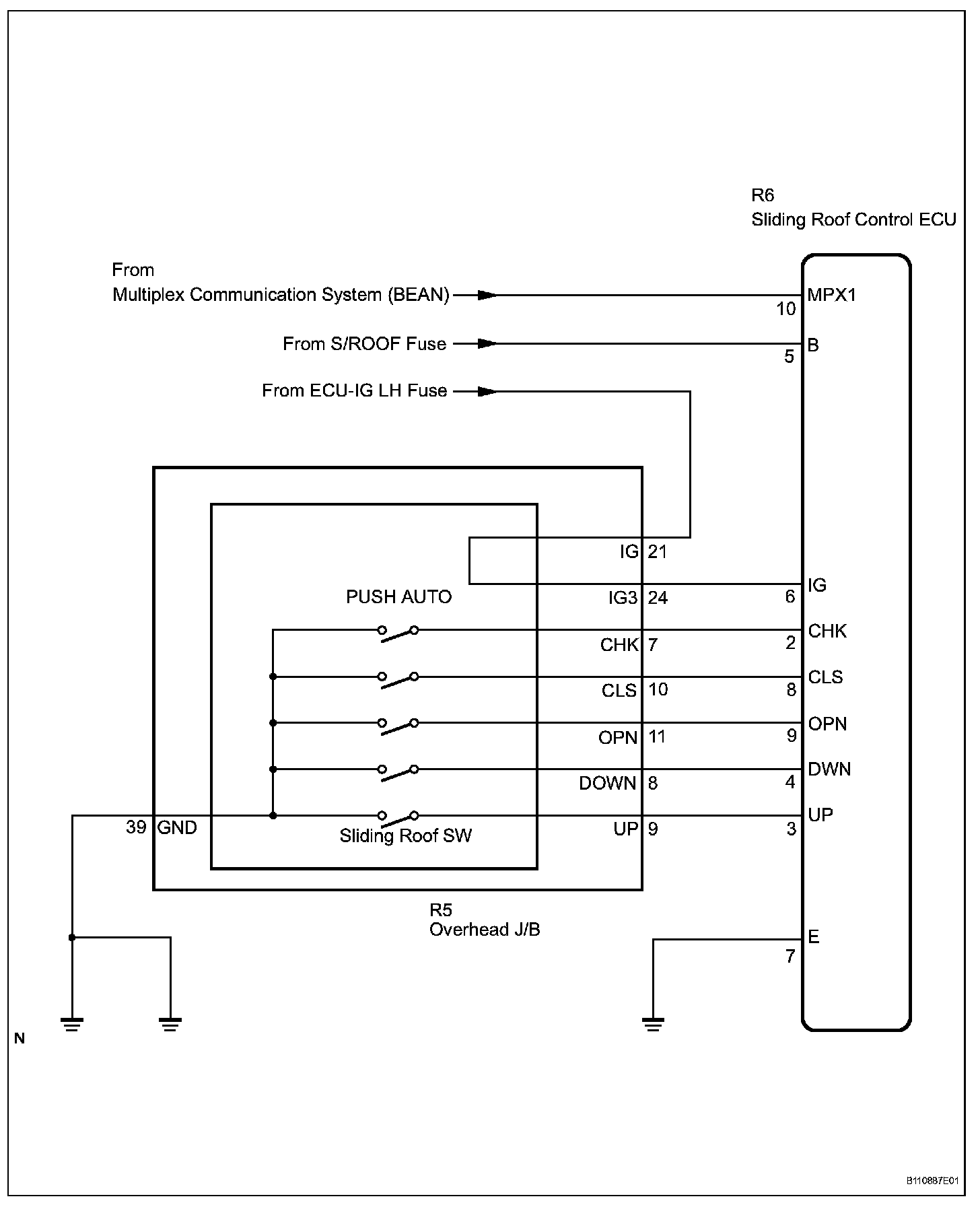

Wiring Diagram:
Step 1-2:
Step 2(continued):

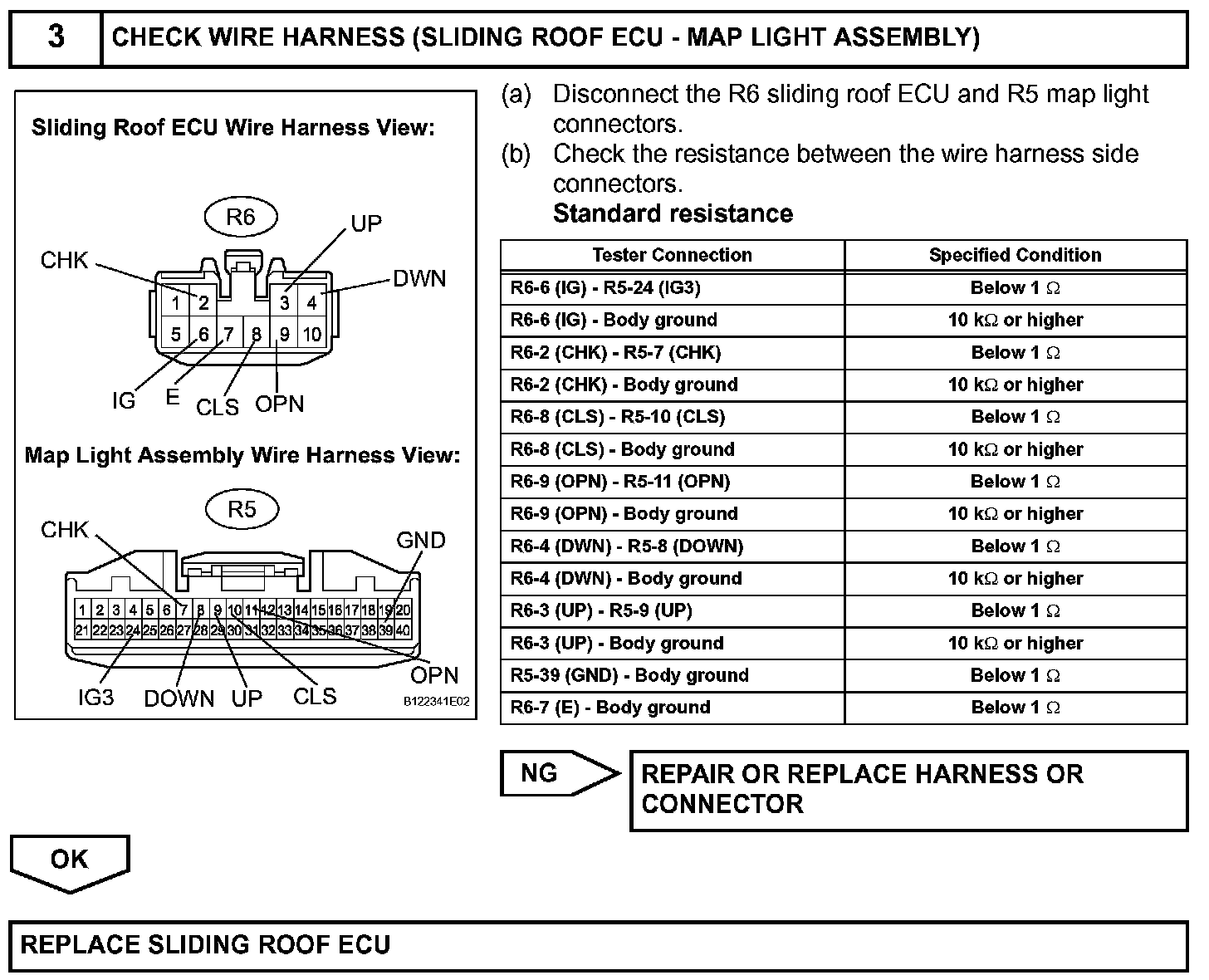

Step 3:

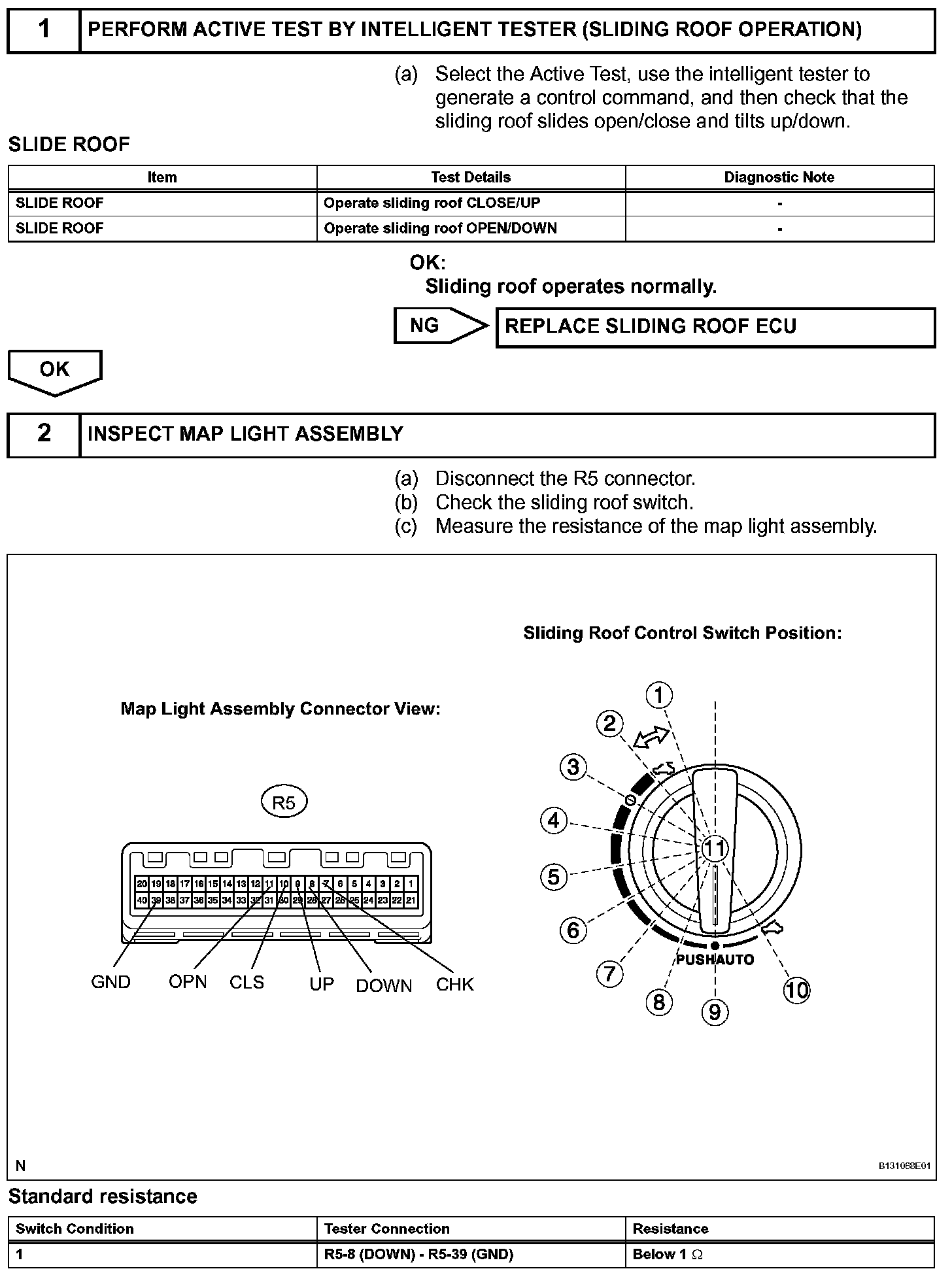

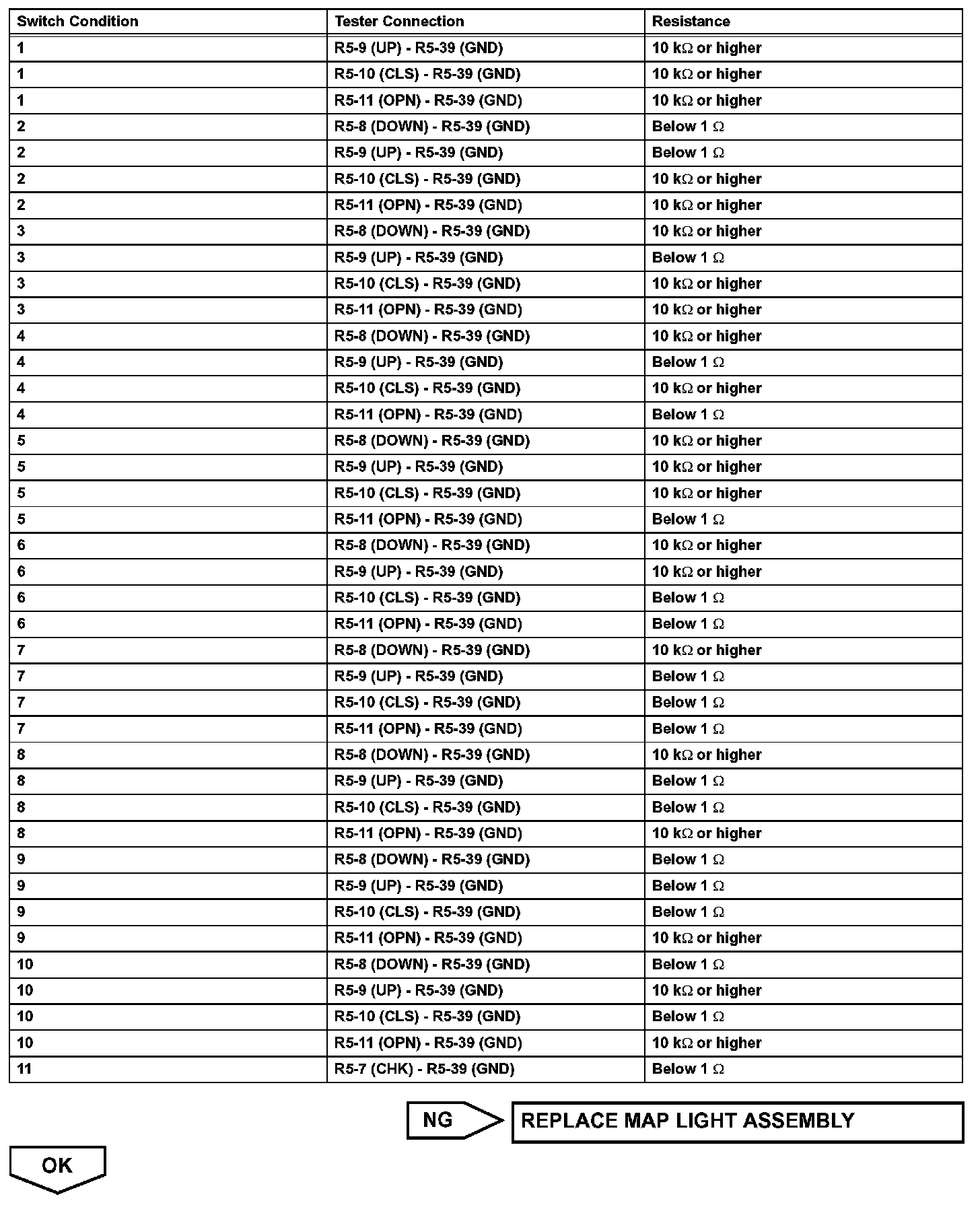

INSPECTION PROCEDURE
