Overhaul
DISASSEMBLY
1. REMOVE SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY

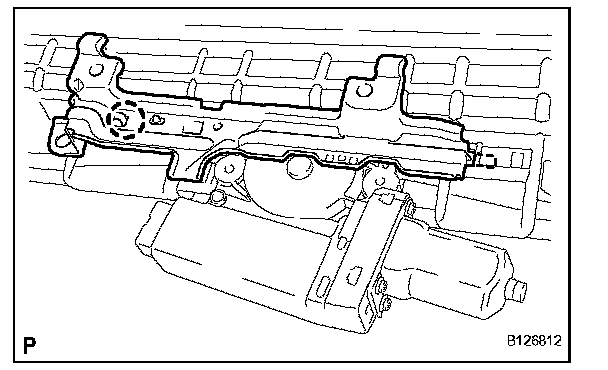

a. Disengage the claw and remove the sliding roof drive gear bracket.

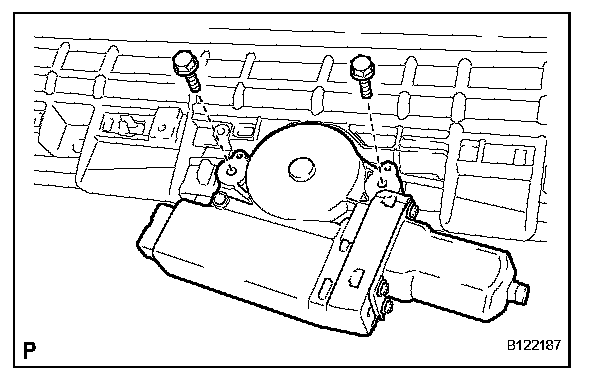

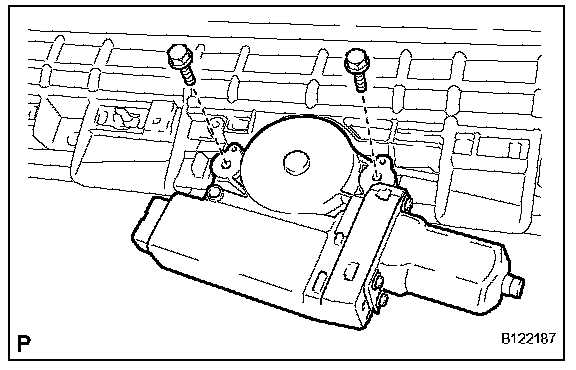

b. Remove the 2 bolts and sliding roof drive gear sub-assembly.
2. REMOVE SUNSHADE TRIM SUB-ASSEMBLY

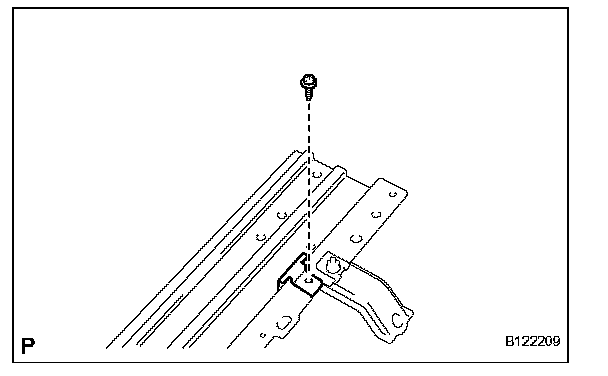

a. Remove the 2 screws and sliding roof piece sub-assembly LH and RH.
b. Slide and remove the sunshade trim sub-assembly.
3. REMOVE SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY
NOTE: Do not disassemble the sliding roof drive cable sub-assembly except when replacing it.

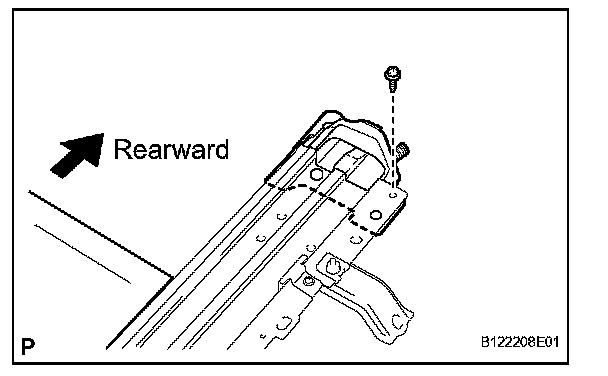

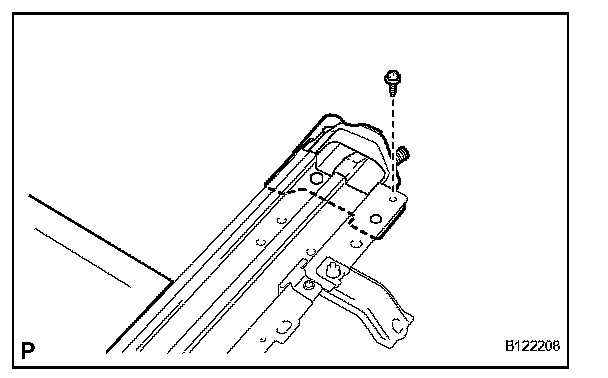

a. Remove the 2 screws and sliding roof side stoppers.

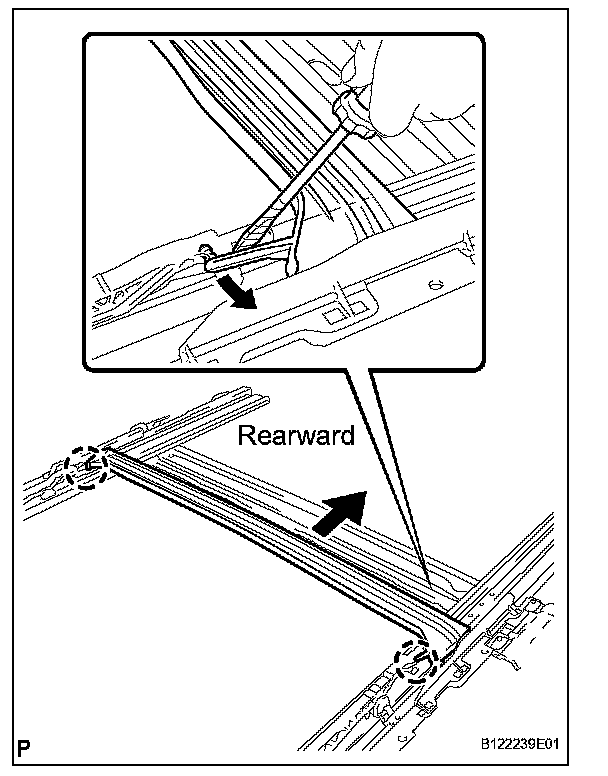

b. Using a screwdriver, disengage the 2 claws.Then slide the sliding roof drip channel rearward to remove it.
HINT: Tape the screwdriver tip before use.

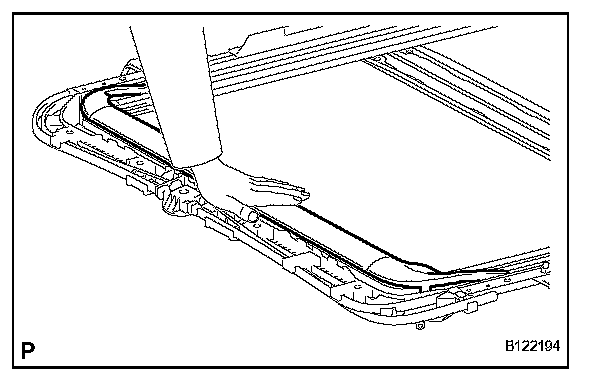

c. Hold down the window deflector.

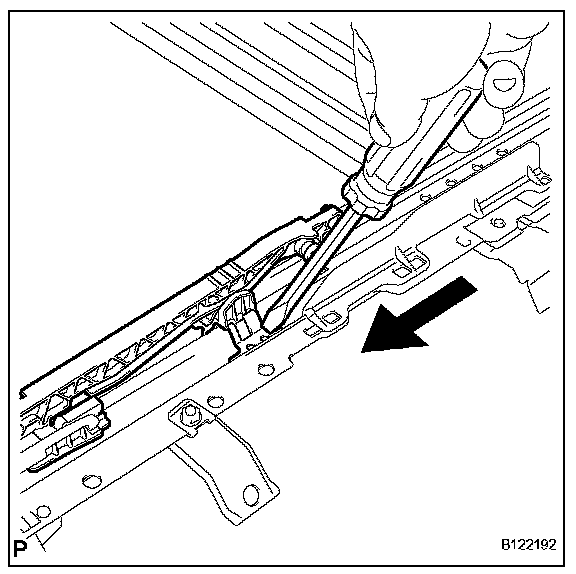

d. Using a screwdriver, slide the sliding roof drive cable sub-assembly in the direction indicated by the arrow in the illustration to remove it.
REASSEMBLY
1. INSTALL SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY
a. Hold down the window deflector.

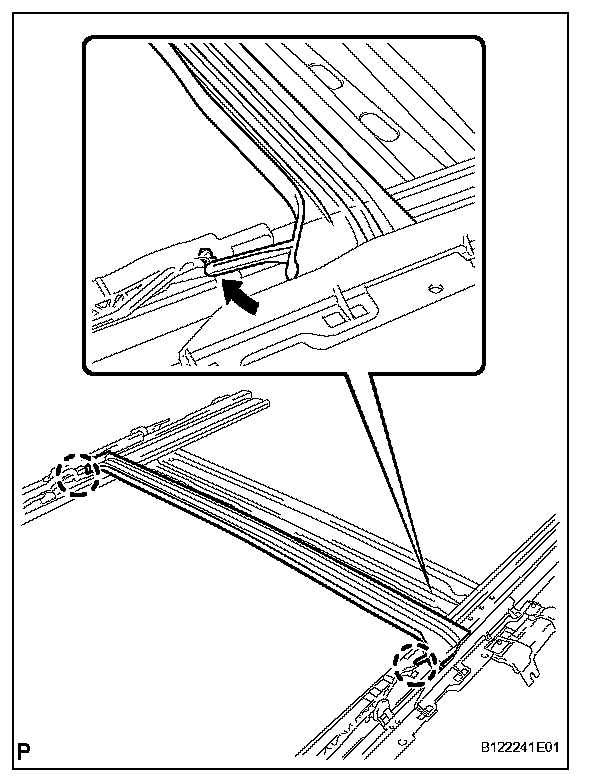

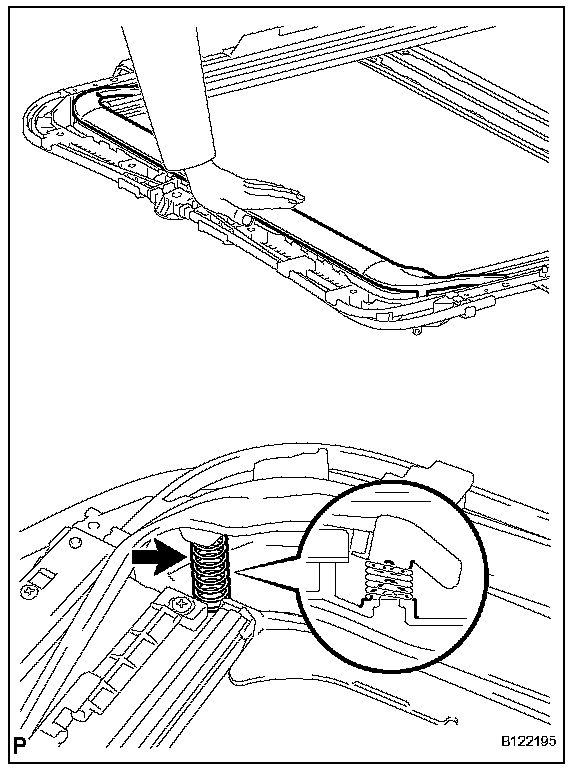

NOTE: Check and be sure that the spring indicated by the arrow in the illustration is securely installed.

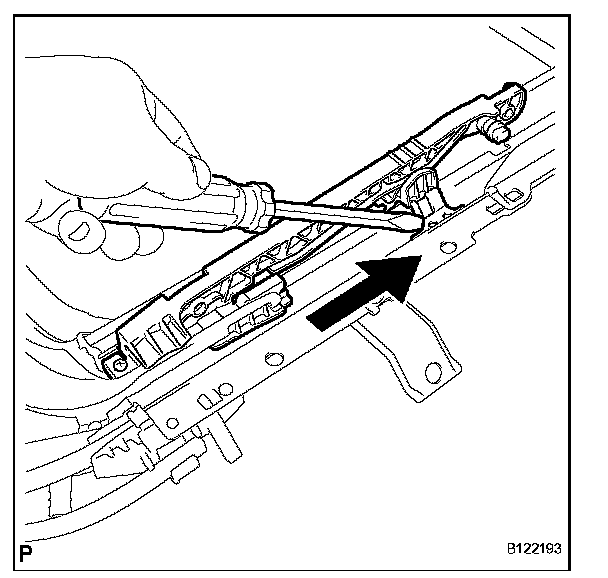

b. Using a screwdriver, slide the sliding roof drive cable sub-assembly in the direction indicated by the arrow in the illustration to install it.
c. Engage the 2 claws and install the sliding roof drip channel.

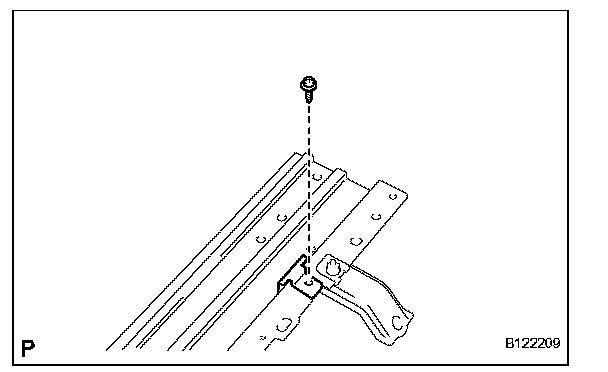

d. Install the 2 sliding roof side stoppers with the 2 screws.
Torque: 2.0 N.m (20 kgf.cm, 18 in.lbf)
2. ADJUST FULLY CLOSED POSITION

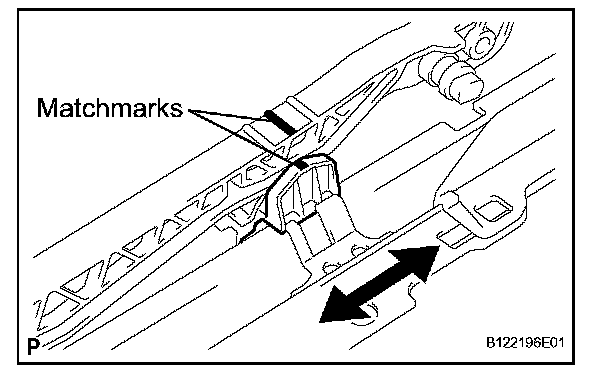

a. Using a screwdriver, slide the sliding roof drive cable sub-assembly in either direction as indicated by the arrows in the illustration and align the matchmarks.
HINT: Tape the screwdriver tip before use.
3. INSTALL SUNSHADE TRIM SUB-ASSEMBLY
a. Insert the sunshade trim into the sliding roof housing sub-assembly.
b. Install the sliding roof piece sub-assembly LH and RH with the 2 screws.
Torque: 2.0 N.m (20 kgf.cm, 18 in.lbf)
4. INSTALL SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY
a. Install the sliding roof drive gear sub-assembly with the 2 bolts.
Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

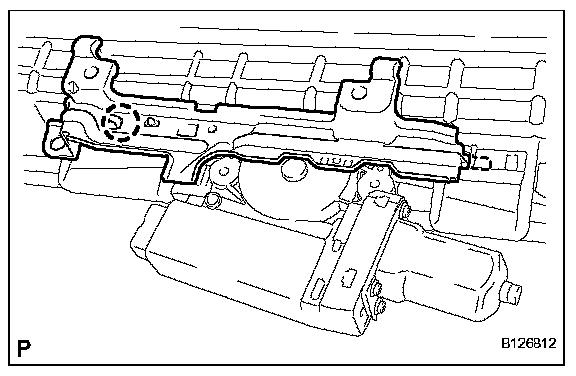

b. Engage the claw and install the sliding roof drive gear bracket.
