Reverse Shift-Linked Function Of Power Mirrors Do Not Operate
Reverse Shift-linked Function of Power Mirrors do not OperateDESCRIPTION
A/T models:
After the ECM receives a reverse signal from the park/neutral position switch, the ECM sends a reverse signal to the outer mirror control ECU via the CAN and BEAN communication systems. The outer mirror control ECU activates the mirror motor in response to the reverse signal.
M/T models:
After the main body ECU RH (cowl side J/B RH) receives a reverse signal from the back up light switch, the ECU sends a reverse signal to the outer mirror control ECU via the BEAN communication system. The outer mirror control ECU activates the mirror motor in response to the reverse signal.

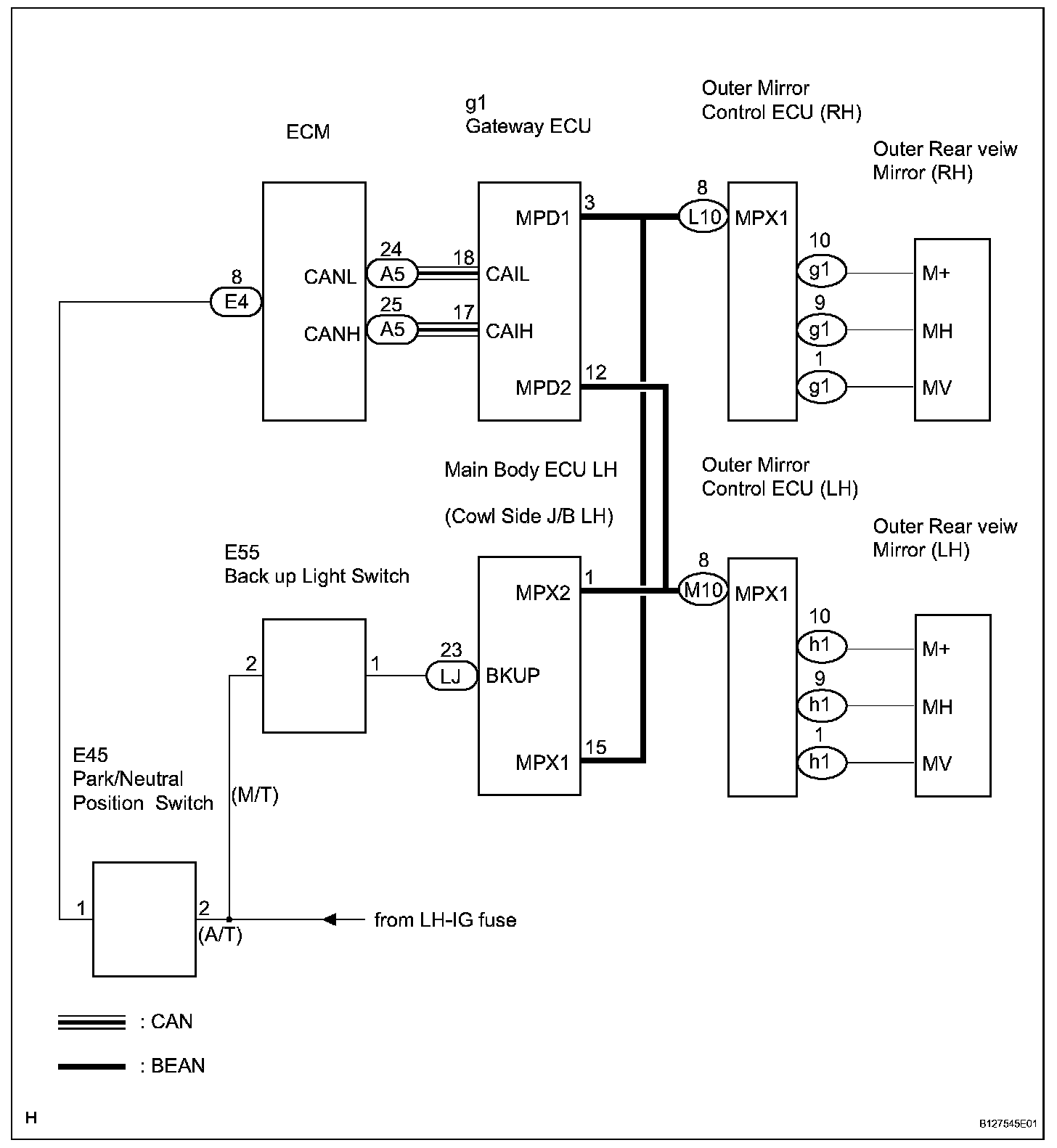

Wiring Diagram:
Step 1:

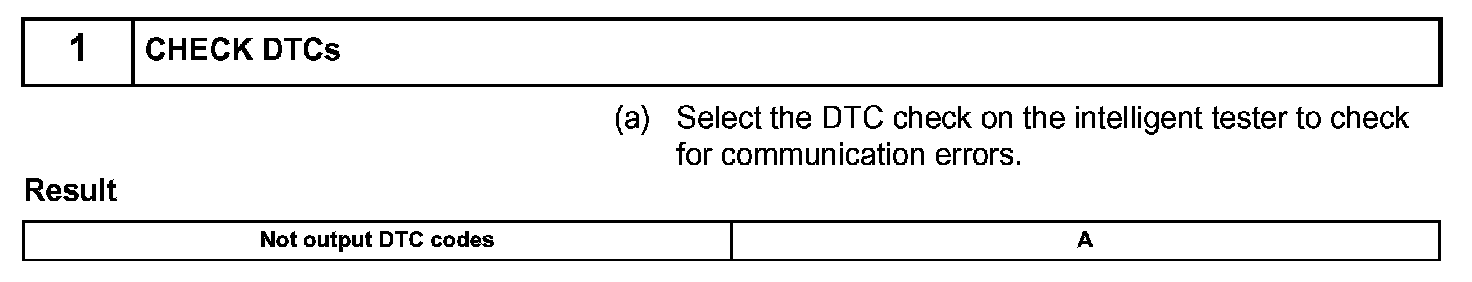

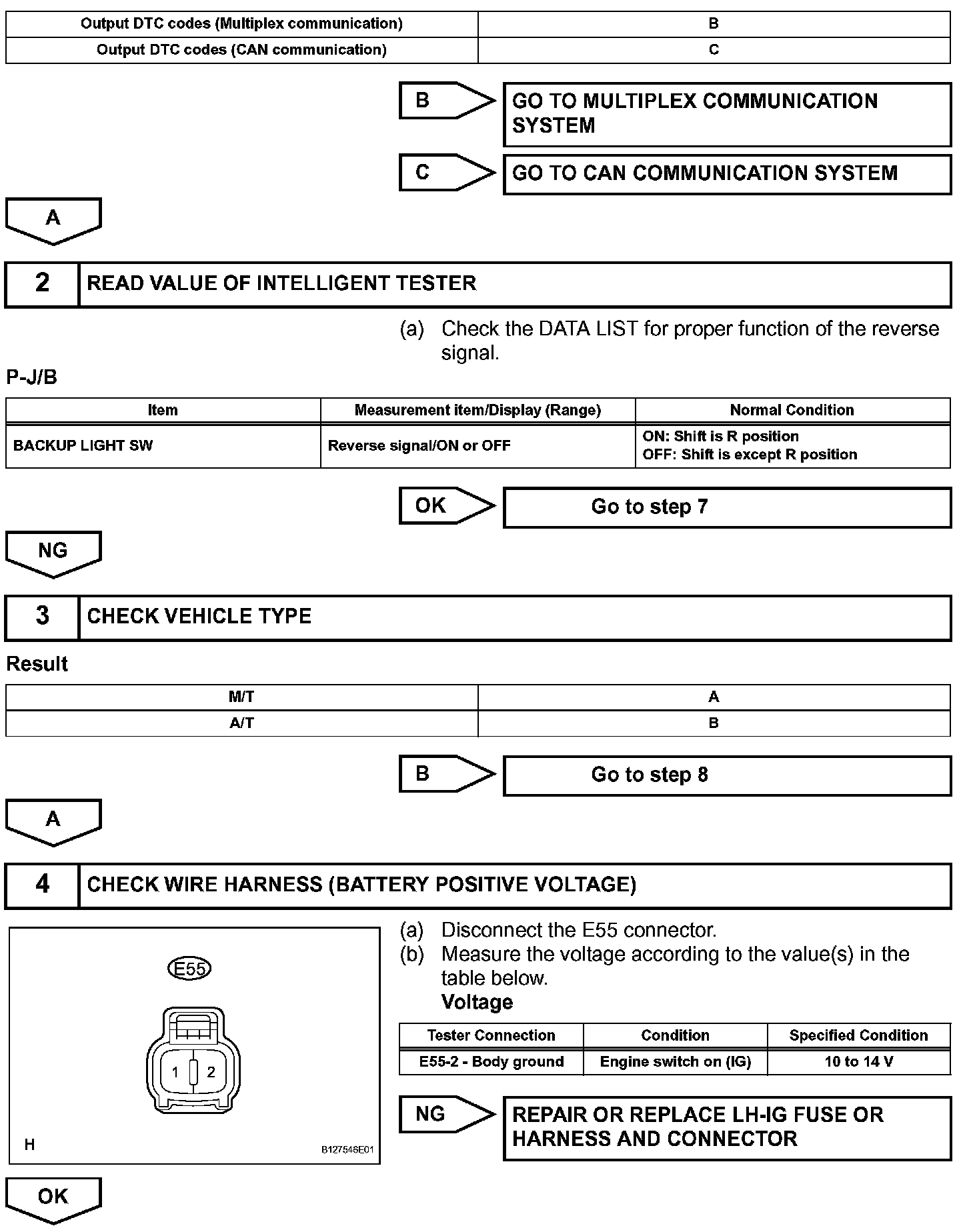

Step 1(continued)-4:
Step 5-6:

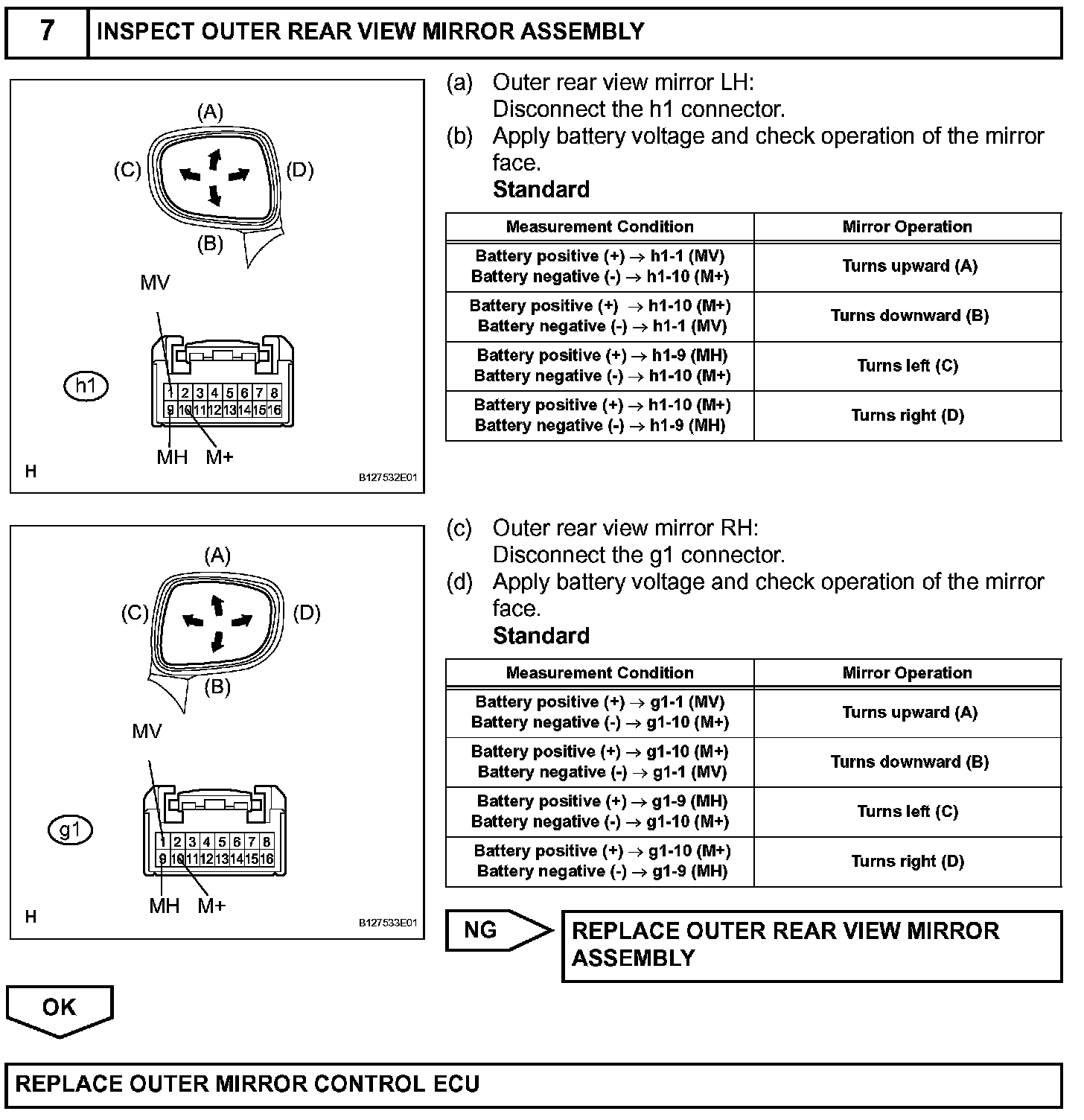

Step 7:

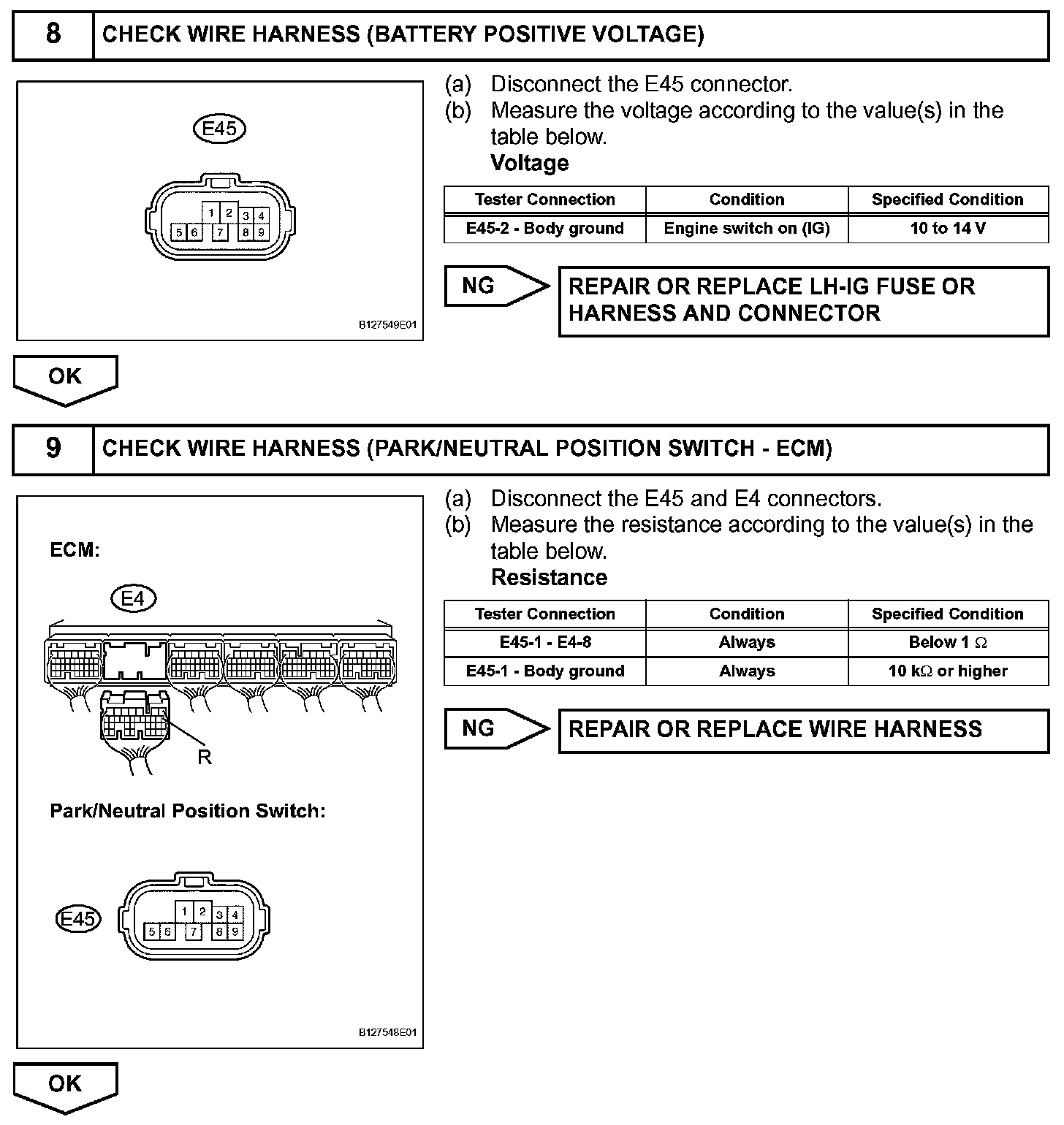

Step 8-9:

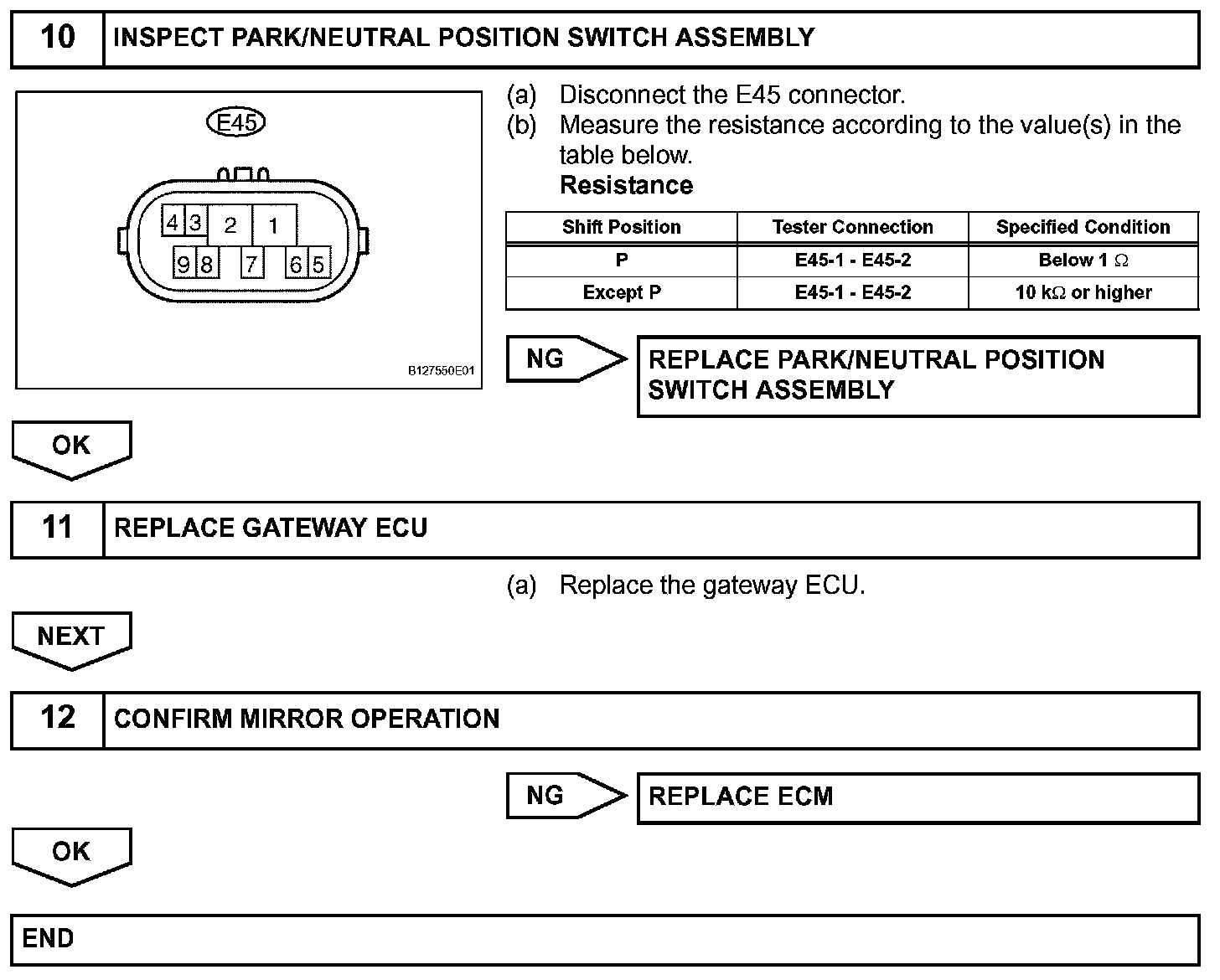

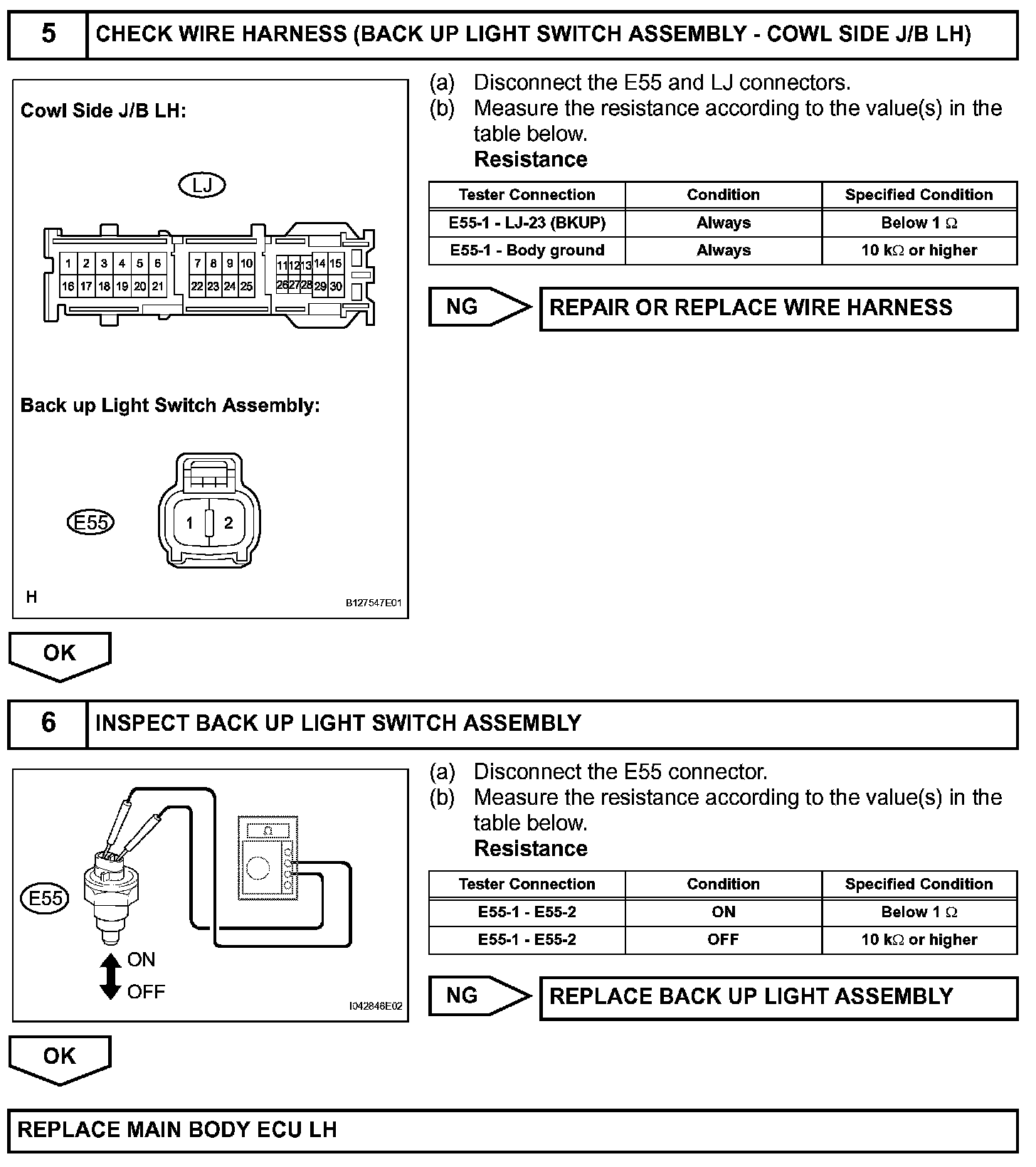

Step 10-12:
INSPECTION PROCEDURE
