Pinout Values and Diagnostic Parameters
TERMINALS OF ECU1. CHECK OUTER MIRROR CONTROL ECU LH

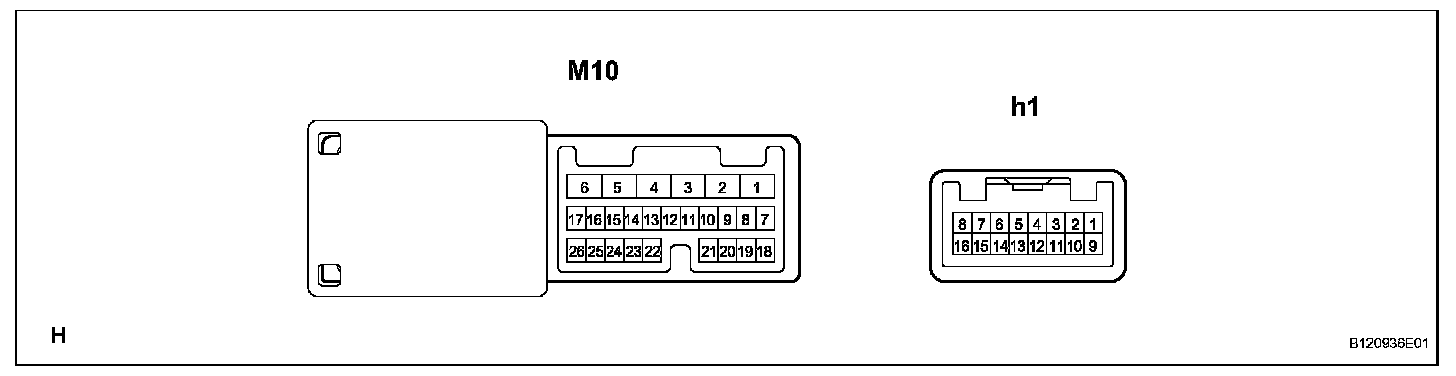

a. Disconnect the M10 connector.

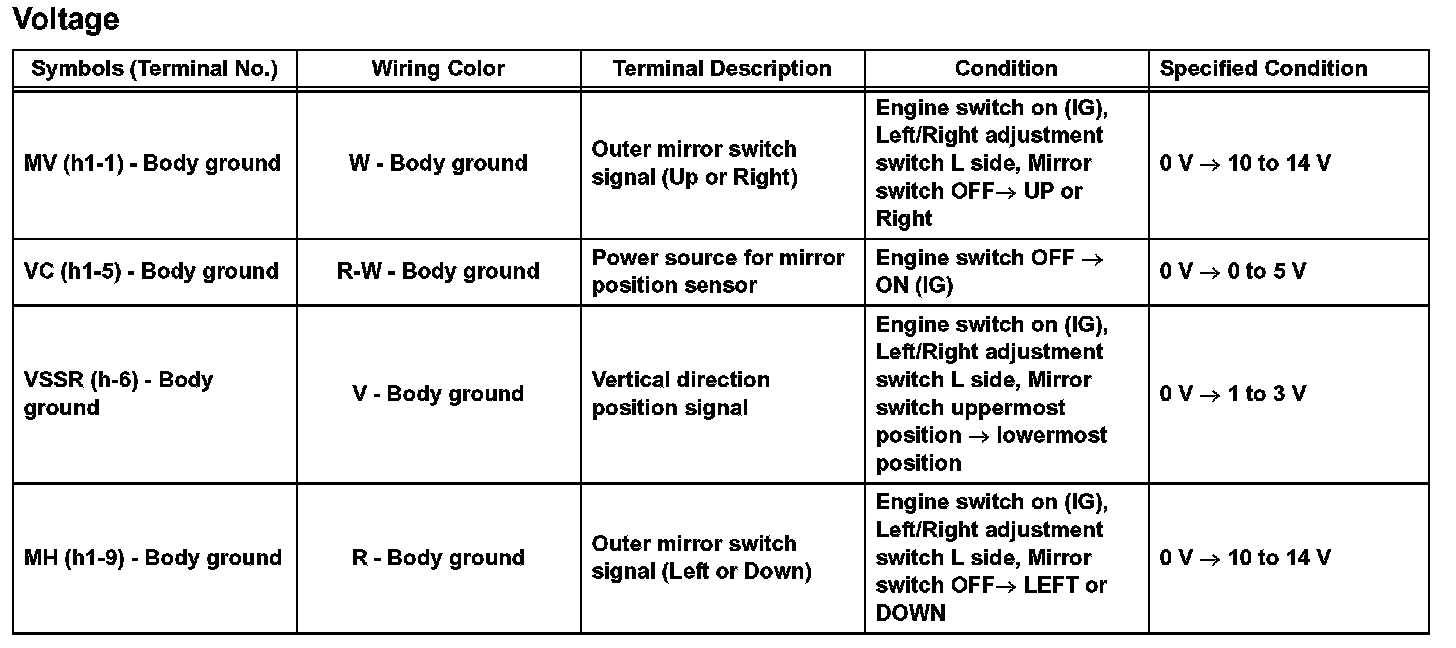

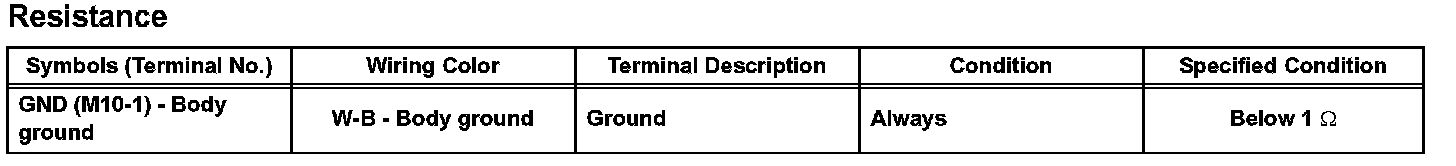

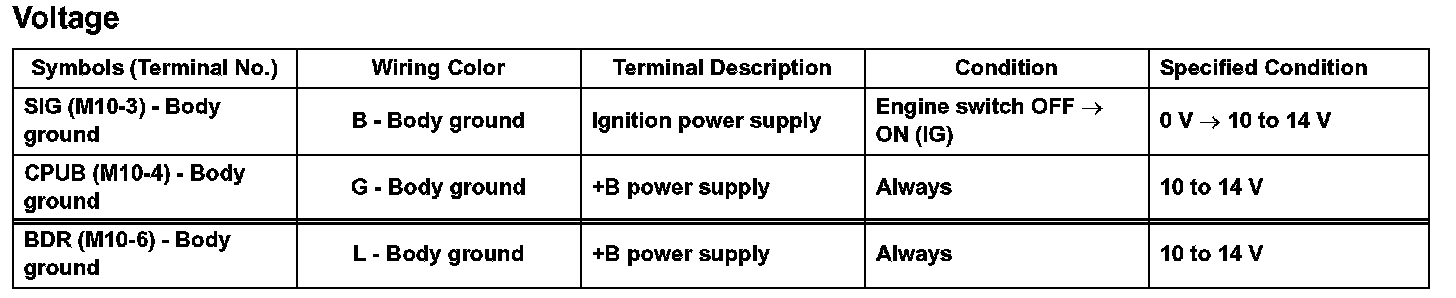

b. Measure the voltage and resistance according to the value(s) in the table.
If the result is not as specified, there may be a malfunction on the wire harness side.
c. Reconnect the M10 connector.
Part 1:
Part 2:

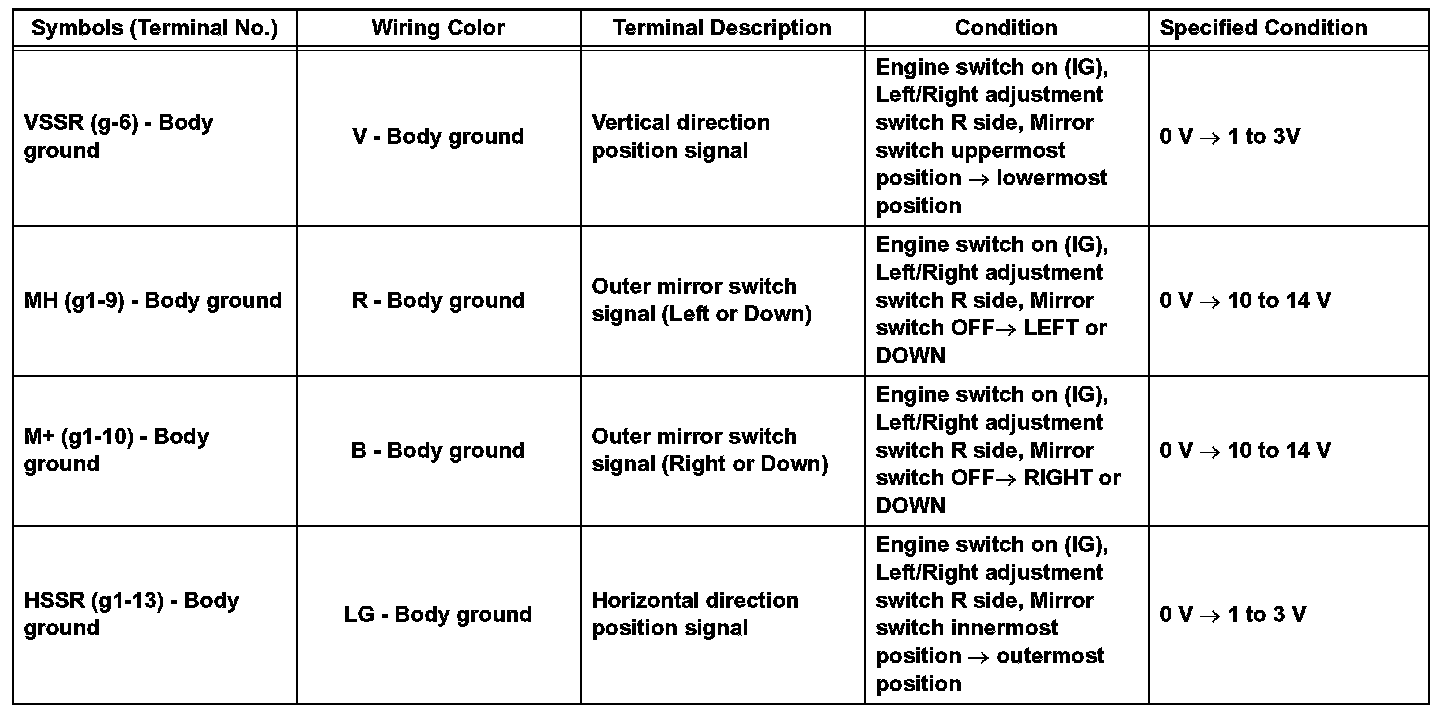

d. Measure the voltage according to the value(s) in the table.
2. CHECK OUTER MIRROR CONTROL ECU RH

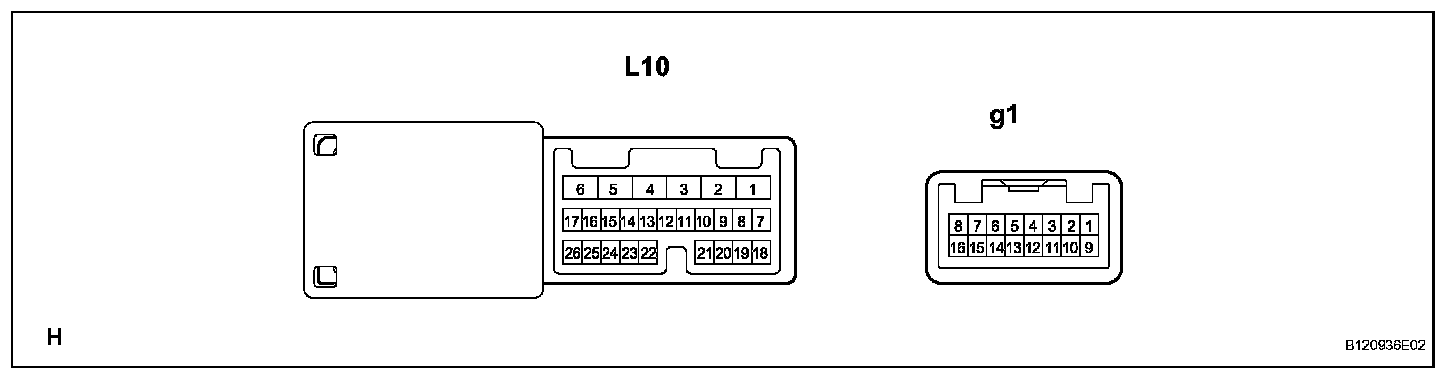

a. Disconnect the L10 connector.

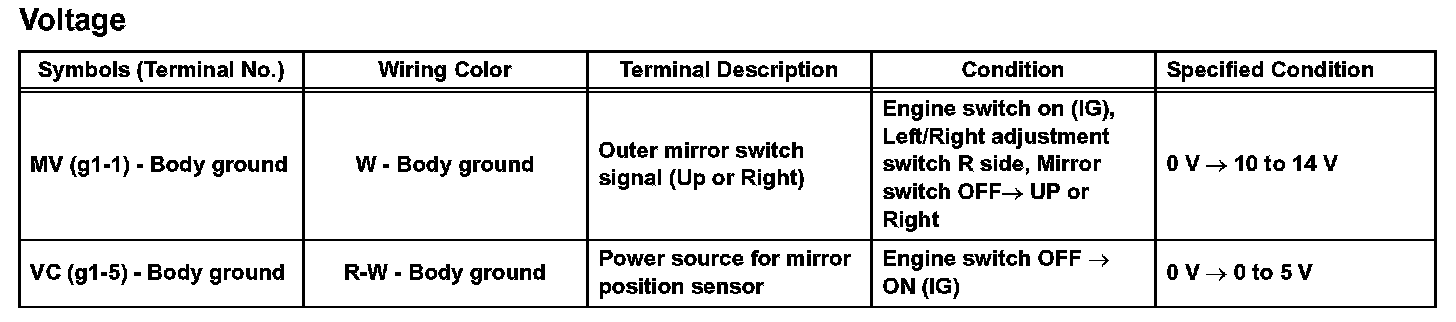

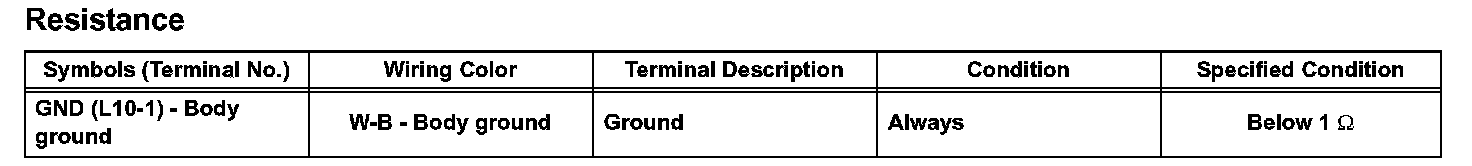

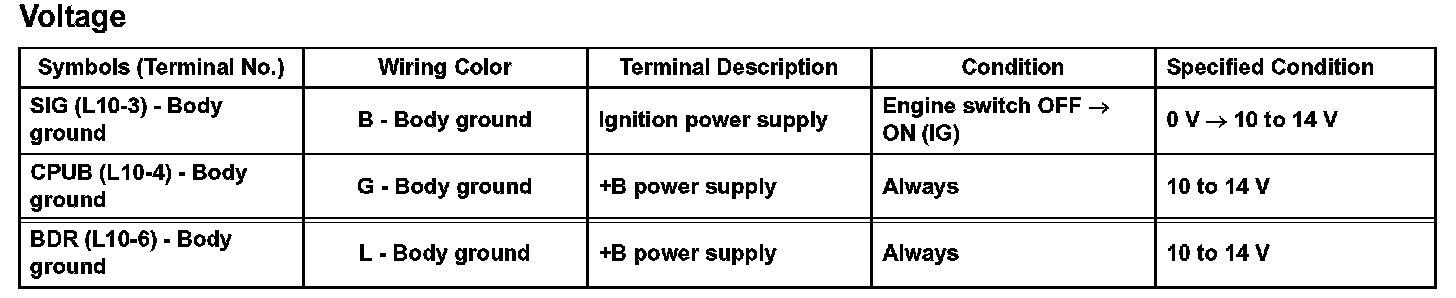

b. Measure the voltage and resistance according to the value(s) in the table.
If the result is not as specified, there may be a malfunction on the wire harness side.
c. Reconnect the L10 connector.
Part 1:
Part 2:
d. Measure the voltage according to the value(s) in the table.
