Power Source Circuit

Power Source Circuit

DESCRIPTION

This is the power source circuit for the outer mirror control ECU.

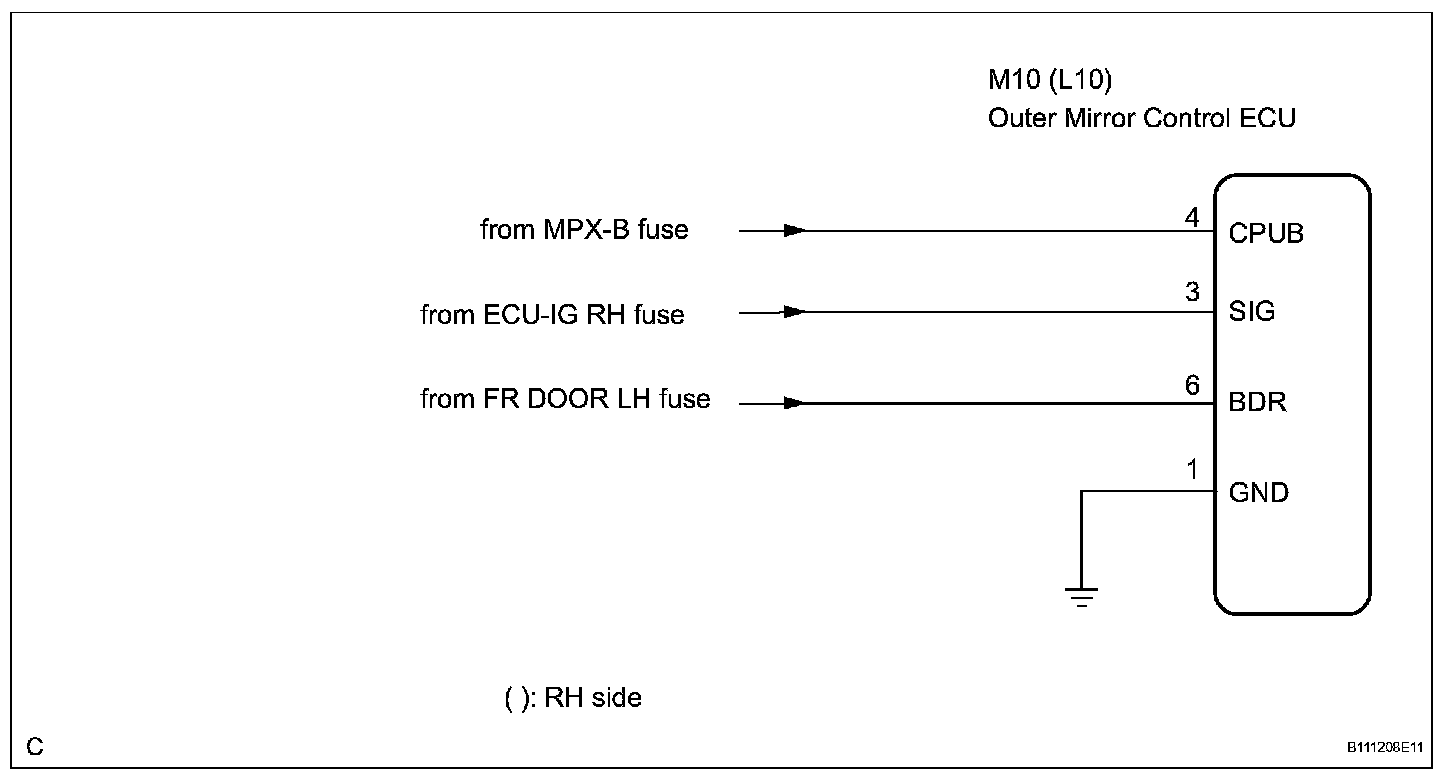

Wiring Diagram:

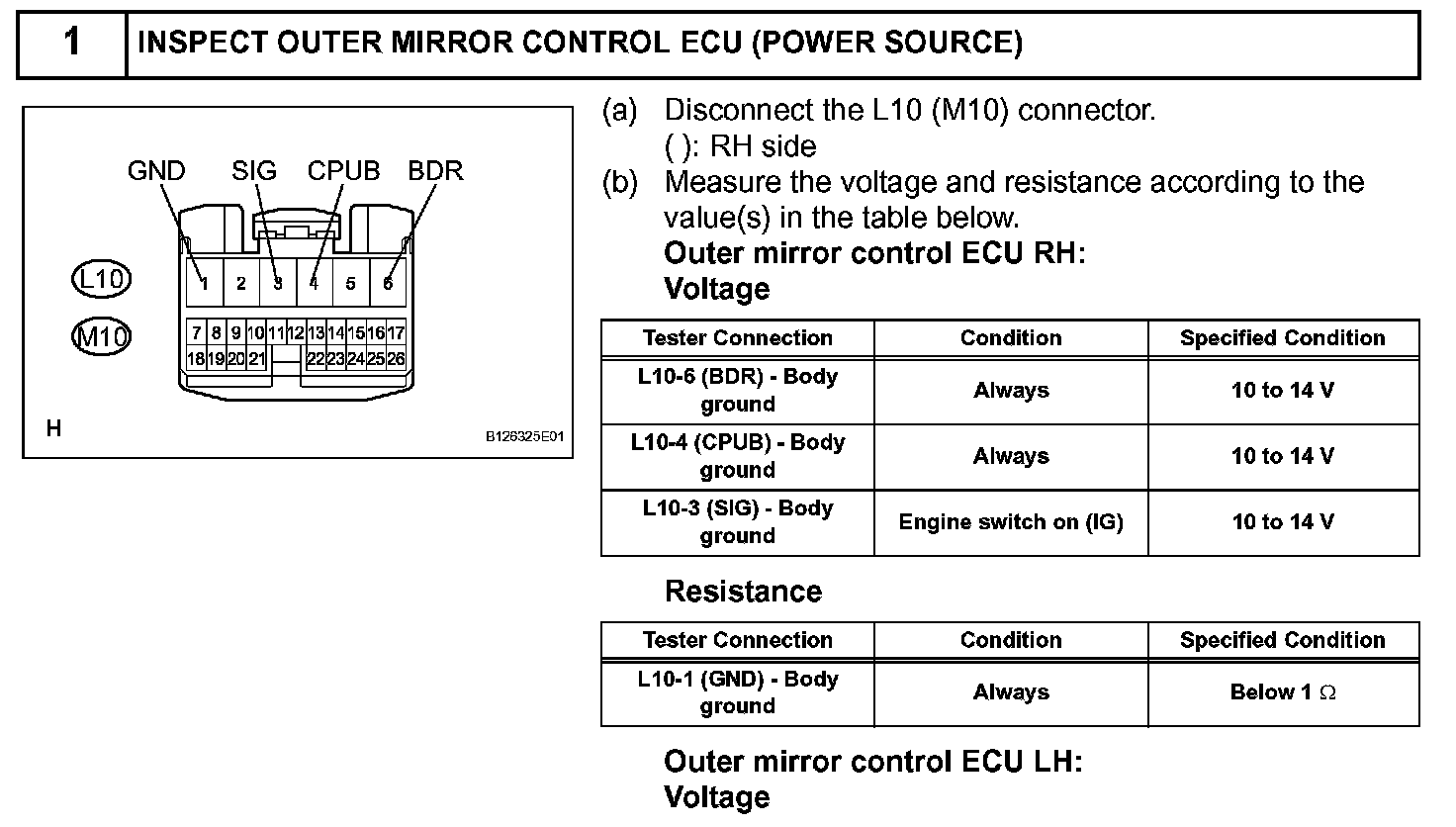

Step 1:

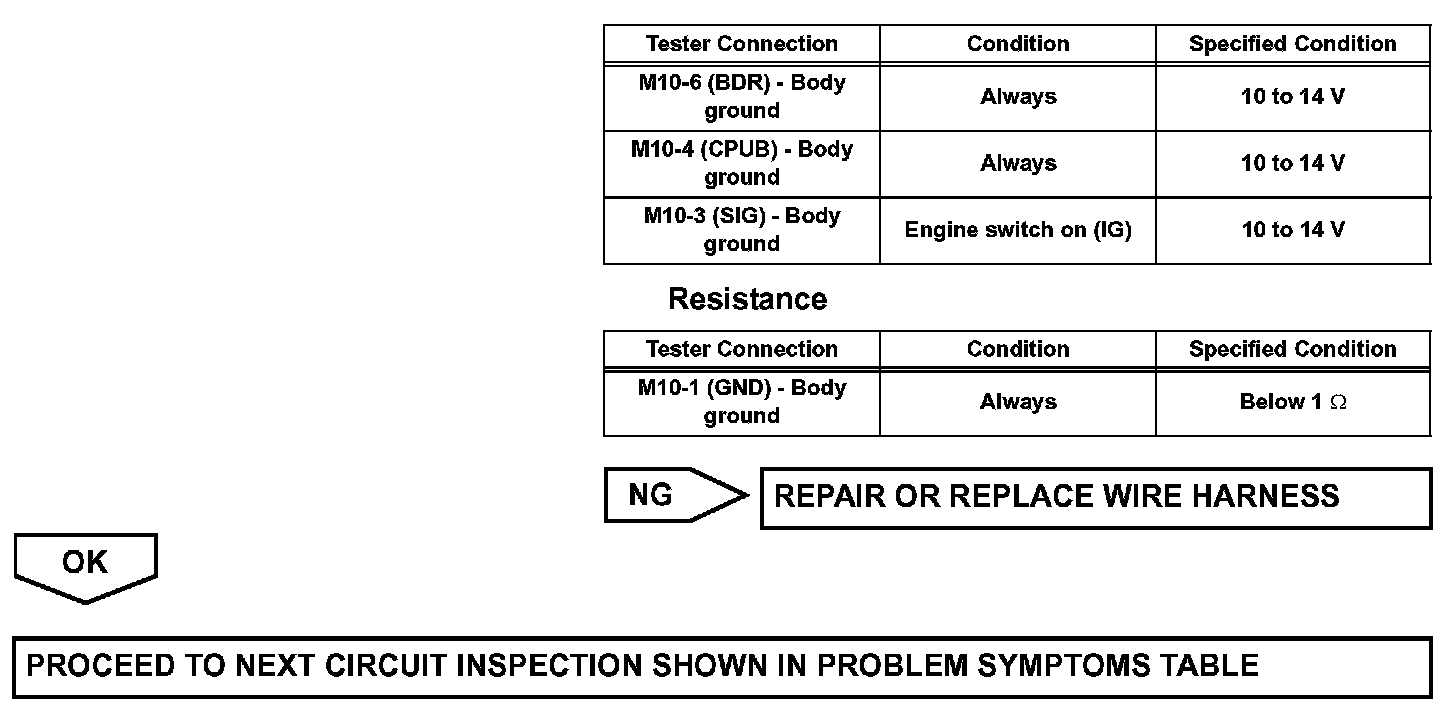

Step 1(continued):




INSPECTION PROCEDURE
