Front Passenger Side Door UNLOCK Detection Switch Circuit

Front Passenger Side Door UNLOCK Detection Switch Circuit

DESCRIPTION

The front passenger door unlock detection switch is built into the front passenger door lock assembly. The switch turns on when the front passenger door is locked and turns off when the door is unlocked.
The main body ECU RH is connected to the front passenger door lock assembly via terminal LSWP and front passenger door lock/unlock state signals are input to the ECU.
The main body ECU RH applies voltage to the door unlock detection switch via terminal LSWP. When the door unlock detection switch is on (there is continuity between the switch terminals), a lock state signal is input to the ECU. When the switch is off (there is no continuity between the switch terminals), an unlock state signal is input.

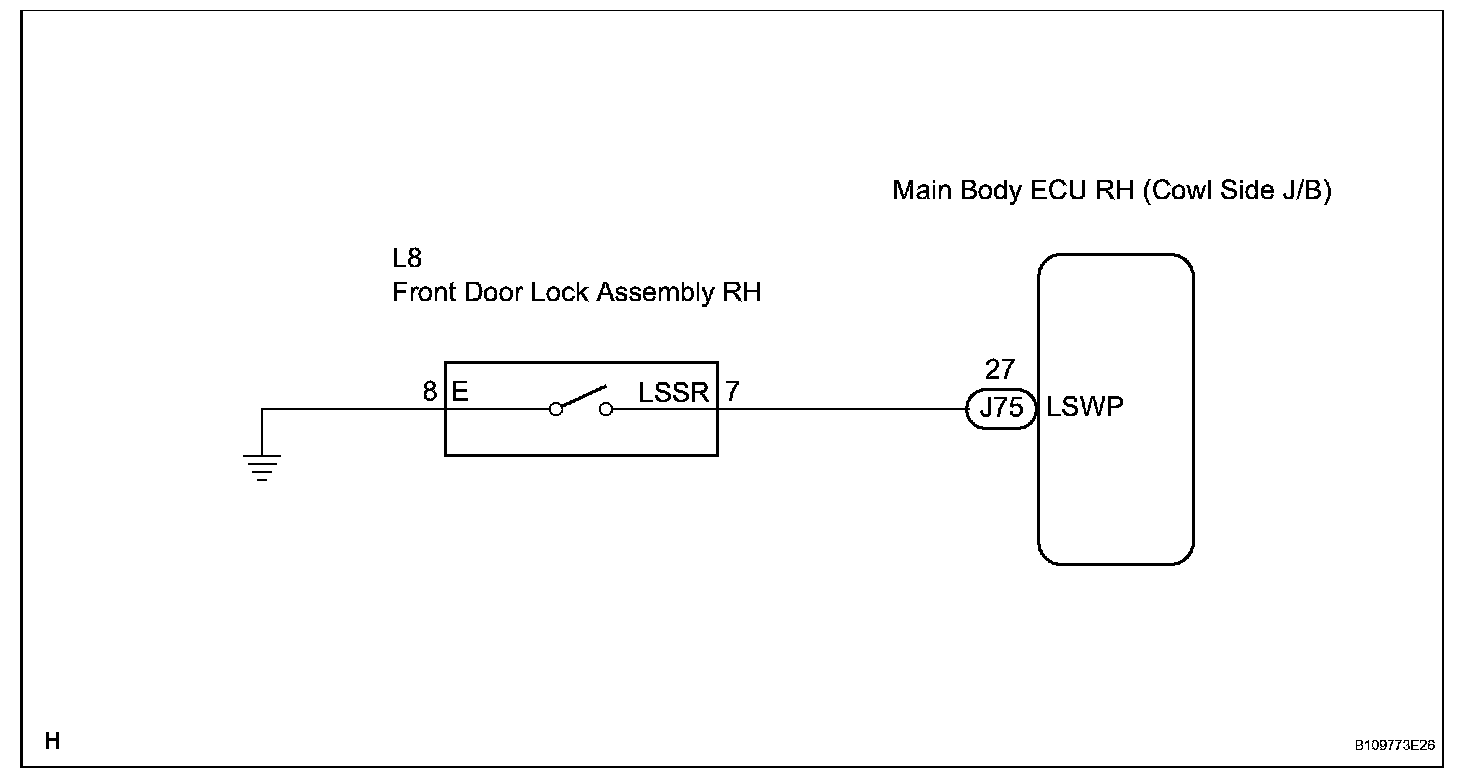

Wiring Diagram:

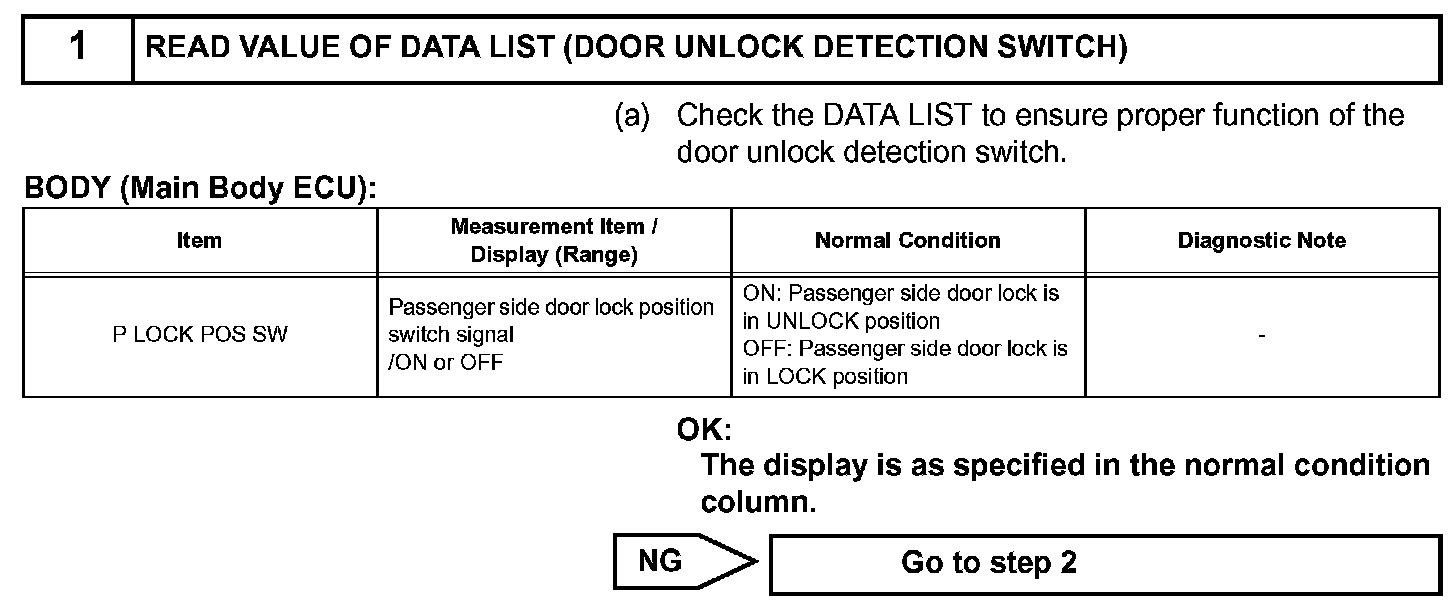

Step 1:

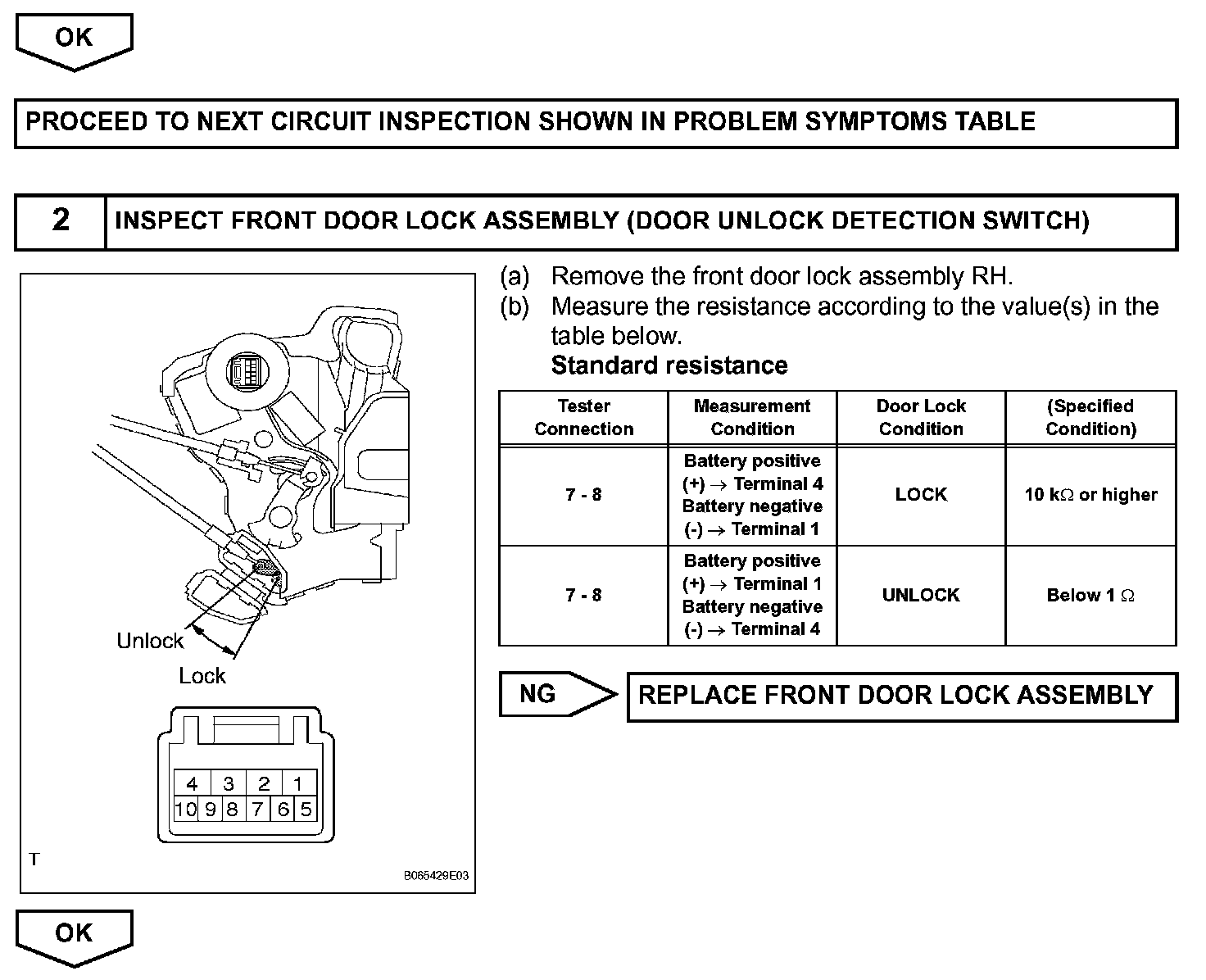

Step 1(continued)-2:

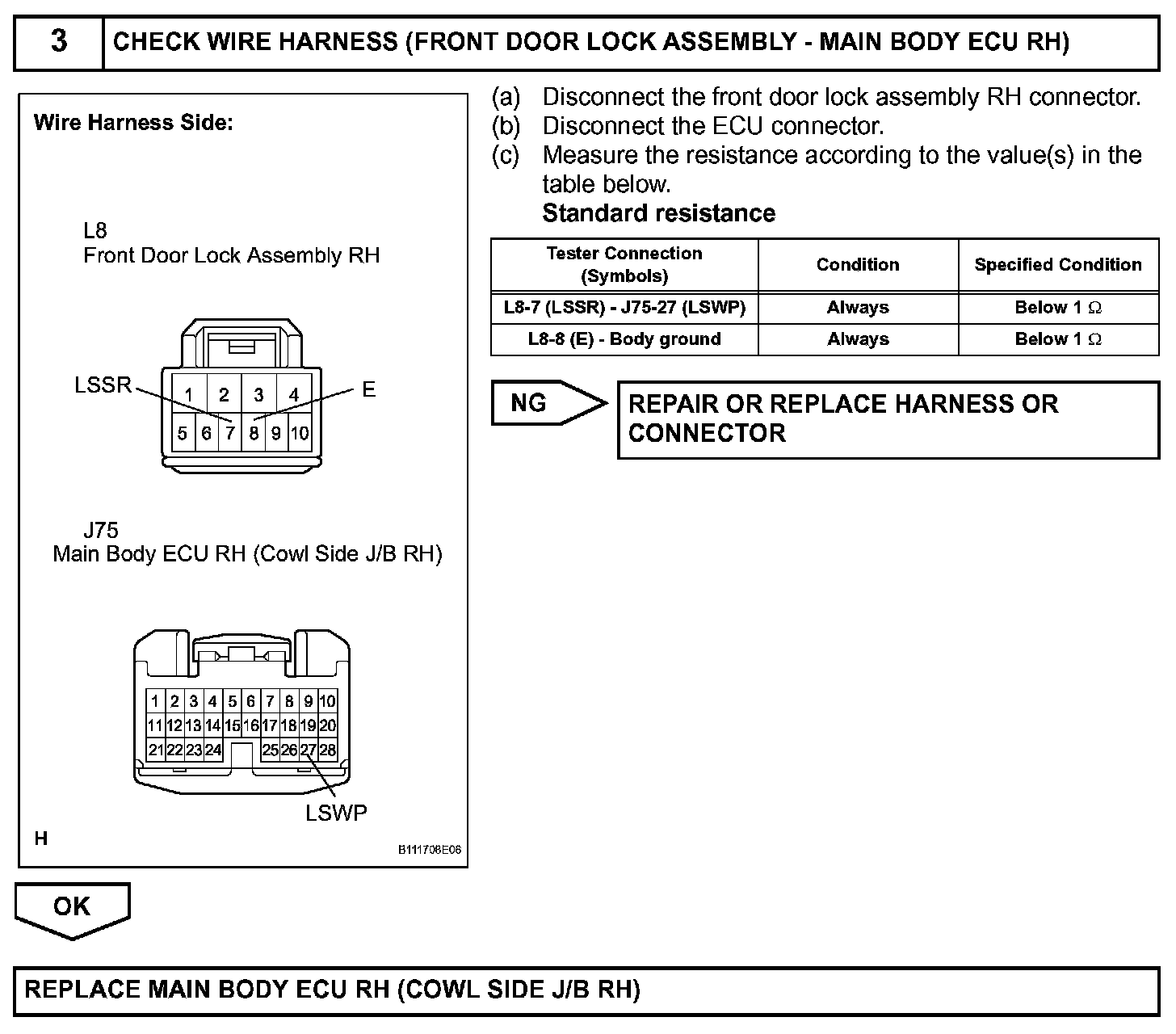

Step 3:

INSPECTION PROCEDURE
