Removal
ROOF HEADLININGRoof Headlining (Power Seat):
Roof Headlining (Manual Seat):
Roof Headlining:
Roof Headlining (Automatic Transmission):
Roof Headlining (Manual Transmission):
Roof Headlining:
Roof Headlining:
Roof Headlining:
Roof Headlining:
Roof Headlining (Automatic Transmission / 2WD):
Roof Headlining (Automatic Transmission / 4WD):
Roof Headlining (Manual Transmission):
Roof Headlining:
Roof Headlining:
Roof Headlining:
Roof Headlining (Without Sliding Roof):
Roof Headlining (With Sliding Roof):
Roof Headlining:
REMOVAL
1. REMOVE FRONT SEAT HEADREST ASSEMBLY (for Power Seat)
2. REMOVE FRONT OUTER SEAT TRACK BRACKET COVER LH (for Power Seat)
3. REMOVE FRONT INNER SEAT TRACK BRACKET COVER LH (for Power Seat)
4. REMOVE REAR OUTER SEAT TRACK COVER LH (for Power Seat)
5. REMOVE REAR INNER SEAT TRACK COVER LH (for Power Seat)
6. REMOVE FRONT SEAT ASSEMBLY LH (for Power Seat)
7. REMOVE FRONT OUTER SEAT TRACK BRACKET COVER RH (for Power Seat)
8. REMOVE FRONT INNER SEAT TRACK BRACKET COVER RH (for Power Seat)
9. REMOVE REAR OUTER SEAT TRACK COVER RH (for Power Seat)
10. REMOVE REAR INNER SEAT TRACK COVER RH (for Power Seat)
11. REMOVE FRONT SEAT ASSEMBLY RH (for Power Seat)
12. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (for Manual Seat)
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag from deploying.
13. REMOVE FRONT SEAT HEADREST ASSEMBLY (for Manual Seat)
14. REMOVE FRONT INNER SEAT TRACK BRACKET COVER LH (for Manual Seat)
15. REMOVE FRONT OUTER SEAT TRACK BRACKET COVER LH (for Manual Seat)
16. REMOVE REAR OUTER SEAT TRACK COVER LH (for Manual Seat)
17. REMOVE REAR INNER SEAT TRACK COVER LH (for Manual Seat)
18. REMOVE FRONT SEAT ASSEMBLY LH (for Manual Seat)
19. REMOVE FRONT INNER SEAT TRACK BRACKET COVER RH (for Manual Seat)
20. REMOVE FRONT OUTER SEAT TRACK BRACKET COVER RH (for Manual Seat)
21. REMOVE REAR OUTER SEAT TRACK COVER RH (for Manual Seat)
22. REMOVE REAR INNER SEAT TRACK COVER RH (for Manual Seat)
23. REMOVE FRONT SEAT ASSEMBLY RH (for Manual Seat)
24. REMOVE REAR SEAT CUSHION ASSEMBLY
25. REMOVE REAR SEAT HEADREST ASSEMBLY
26. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY
27. REMOVE REAR SEATBACK ASSEMBLY
28. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
29. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
30. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission)
31. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission)
32. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)
33. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
34. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
35. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
36. REMOVE FRONT ASH RECEPTACLE SUB-ASSEMBLY
37. REMOVE CONSOLE BOX REGISTER ASSEMBLY
38. REMOVE CONSOLE BOX
39. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
40. REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL
41. REMOVE MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)
42. REMOVE INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)
43. REMOVE LOWER NO. 3 STEERING WHEEL COVER
44. REMOVE LOWER NO. 2 STEERING WHEEL COVER
45. REMOVE STEERING PAD
46. REMOVE STEERING WHEEL ASSEMBLY
47. REMOVE STEERING COLUMN COVER (for Power Tilt and Power Telescopic)
48. REMOVE STEERING COLUMN COVER (for Manual Tilt and Telescopic)
49. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
50. REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination)

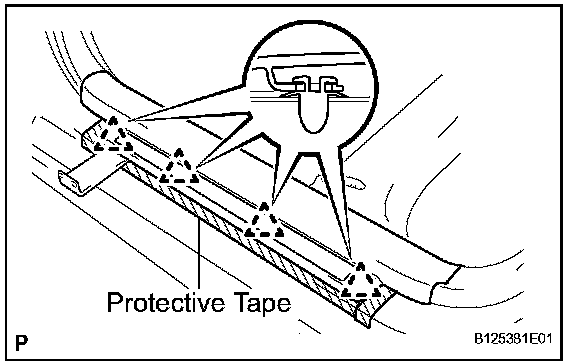

a. Put protective tape around the front door scuff plate.
b. Using a moulding remover, disengage the 4 clips.
c. Disengage the 7 claws and remove the front door scuff plate LH.
51. REMOVE FRONT DOOR SCUFF PLATE RH (w/o Illumination)
52. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination)
a. Put protective tape around the front door scuff plate.
b. Using a moulding remover, disengage the 4 clips.
c. Disengage the 7 claws and remove the front door scuff plate LH.
d. Disconnect the connector.
53. REMOVE FRONT DOOR SCUFF PLATE RH (w/ Illumination)
54. REMOVE FRONT DOOR OPENING TRIM COVER LH

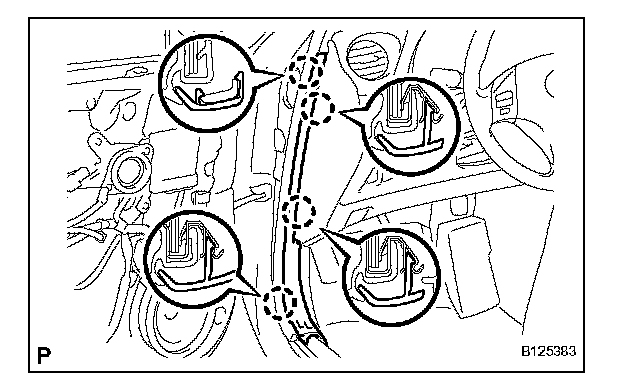

a. Disengage the 4 claws and remove the front door opening trim cover LH.
55. REMOVE FRONT DOOR OPENING TRIM COVER RH

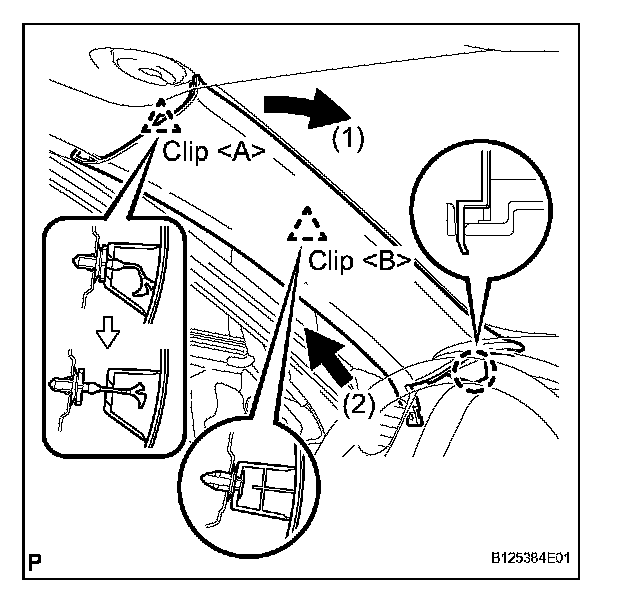

56. REMOVE FRONT PILLAR GARNISH LH
a. Disengage the 2 clips from the vehicle body.
b. Cut off the clip .
c. Disengage the claw and remove the front pillar garnish LH.
d. Remove the clip from the vehicle body.

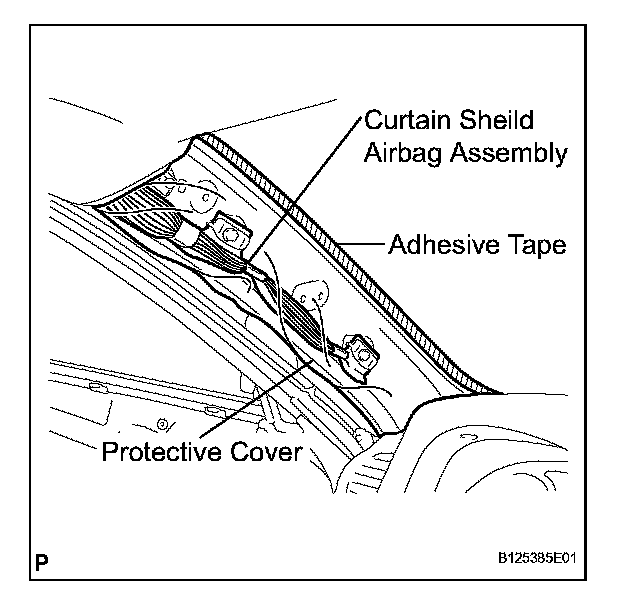

e. Protect the curtain shield airbag assembly.
1. Thoroughly cover the airbag with a cloth or nylon sheet and fix the ends of the cover with adhesive tape, as shown in the illustration.
NOTICE: Cover the curtain shield airbag with a protective cover as soon as the front pillar garnish is removed.
57. REMOVE FRONT PILLAR GARNISH RH
58. REMOVE SIDE INSTRUMENT PANEL LH
59. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
60. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
61. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY
62. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
63. REMOVE COMBINATION METER ASSEMBLY
64. REMOVE SIDE INSTRUMENT PANEL RH
65. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
66. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY
67. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
68. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
69. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
70. REMOVE NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
71. REMOVE FRONT STEREO COMPONENT SPEAKER ASSEMBLY (w/ Front Center Speaker)
72. REMOVE NO. 2 CONSOLE BOX DUCT (for Automatic Transmission)
73. REMOVE NO. 1 CONSOLE BOX DUCT (for Automatic Transmission)
74. REMOVE NO. 2 CONSOLE BOX DUCT (for Manual Transmission)
75. DISCONNECT PASSENGER AIRBAG CONNECTOR
76. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY
77. REMOVE INSTRUMENT PANEL CLIP
78. REMOVE INSTRUMENT PANEL STAY
79. REMOVE REAR NO. 1 FLOOR PANEL BRACE (for 2GR-FSE)
80. REMOVE FRONT CENTER FLOOR BRACE (for 2GR-FSE)
81. DISCONNECT OXYGEN SENSOR (for 2GR-FSE)
82. REMOVE FRONT EXHAUST PIPE ASSEMBLY (for 2GR-FSE)
83. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR (for2GR-FSE)
84. SEPARATE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (for 2GR-FSE)
85. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY (for 2GR-FSE)
86. REMOVE REAR NO. 1 FLOOR PANEL BRACE (for 4GR-FSE 2WD)
87. REMOVE FRONT CENTER FLOOR BRACE (for 4GR-FSE 2WD)
88. DISCONNECT OXYGEN SENSOR (for 4GR-FSE 2WD)
89. REMOVE FRONT EXHAUST PIPE ASSEMBLY (for 4GR-FSE 2WD)
90. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR (for 4GR-FSE 2WD)
91. SEPARATE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (for 4GR-FSE 2WD)
92. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY (for 4GR-FSE 2WD)
93. REMOVE REAR NO. 1 FLOOR PANEL BRACE (for 4GR-FSE 4WD)
94. REMOVE FRONT CENTER FLOOR BRACE (for 4GR-FSE 4WD)
95. DISCONNECT OXYGEN SENSOR (for 4GR-FSE 4WD)
96. REMOVE FRONT EXHAUST PIPE ASSEMBLY (for 4GR-FSE 4WD)
97. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR (for 4GR-FSE 4WD)
98. SEPARATE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (for 4GR-FSE 4WD)
99. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY (for 4GR-FSE 4WD)
100. REMOVE NO. 1 SHIFT AND SELECT LEVER BOOT (for Manual Transmission)
101. REMOVE SHIFT LEVER CAP (for Manual Transmission)
102. REMOVE FLOOR SHIFT LEVER ASSEMBLY (for Manual Transmission)

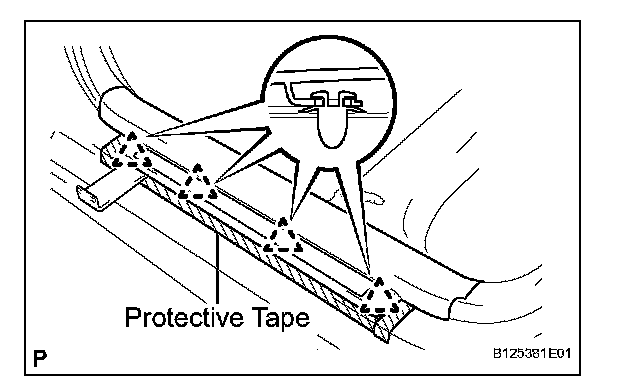

103. REMOVE REAR DOOR SCUFF PLATE LH

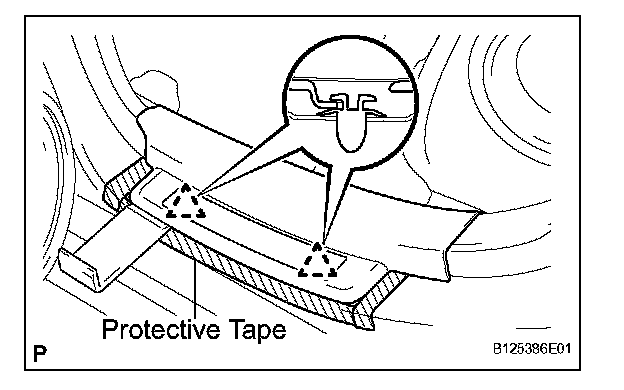

a. Put protective tape around the rear door scuff plate.
b. Using a moulding remover, disengage the 2 clips.
c. Disengage the 5 claws and remove the the rear door scuff plate LH.
104. REMOVE REAR DOOR SCUFF PLATE RH
105. REMOVE LAP BELT OUTER ANCHOR COVER
a. Disengage the 2 claws and remove the lap belt outer anchor cover.
HINT: Use the same procedure to remove the cover on the other side.

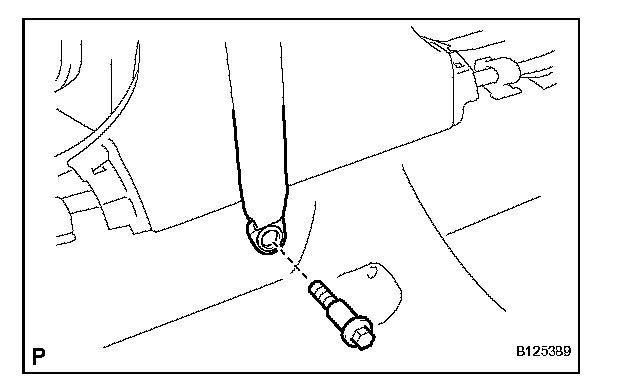

106. SEPARATE FRONT SEAT OUTER BELT ASSEMBLY LH
a. Remove the bolt and separate the front seat outer belt assembly LH.
107. SEPARATE FRONT SEAT OUTER BELT ASSEMBLY RH

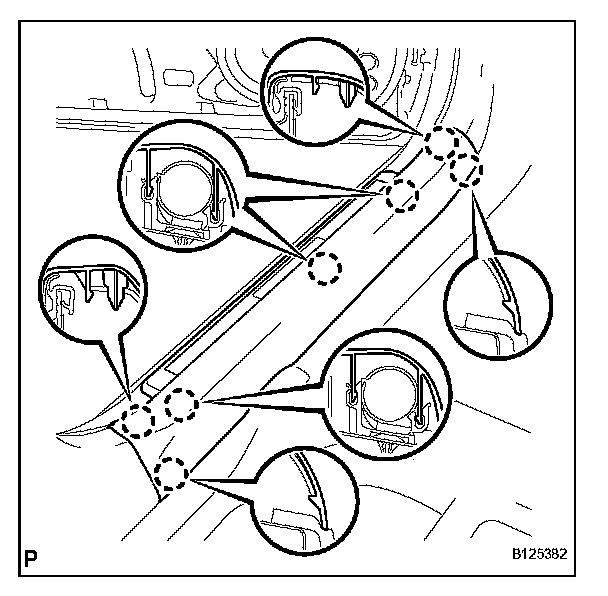

108. REMOVE LOWER CENTER PILLAR GARNISH LH

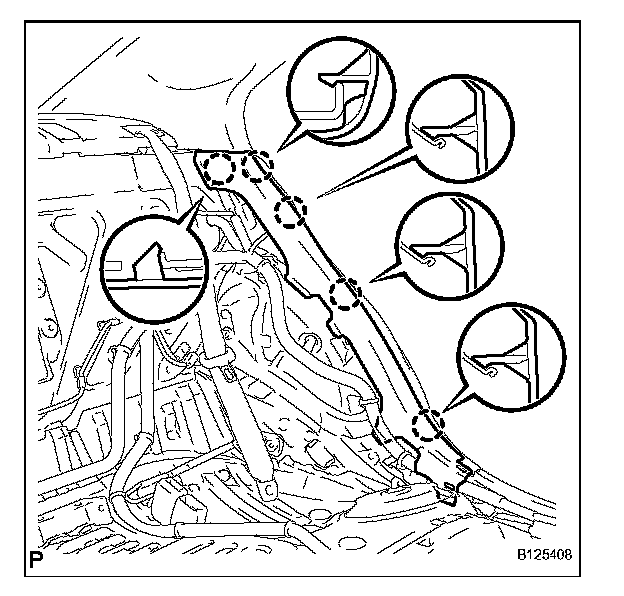

a. Disengage the 3 claws and 5 clips, and remove the lower center pillar garnish LH.
109. REMOVE LOWER CENTER PILLAR GARNISH RH
110. REMOVE CENTER PILLAR GARNISH LH
a. Remove the 2 screws.
b. Disengage the 2 claws and remove the center pillar garnish LH by pulling it down.
111. REMOVE CENTER PILLAR GARNISH RH
112. REMOVE REAR SEAT SIDE GARNISH LH
a. Disengage the 5 claws and remove the rear seat side garnish LH.
113. REMOVE REAR SEAT SIDE GARNISH RH

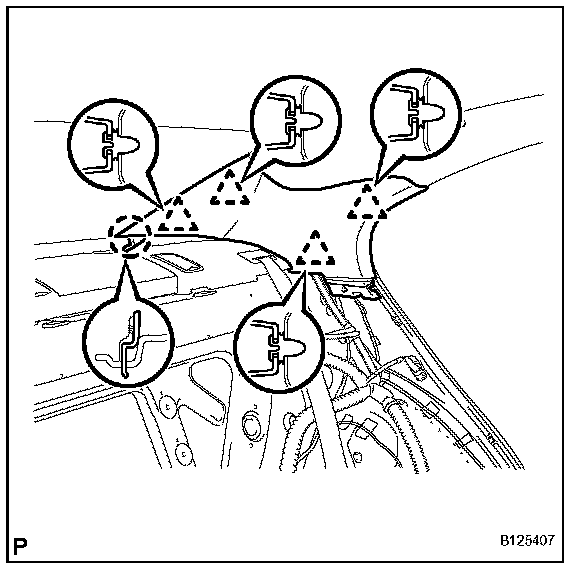

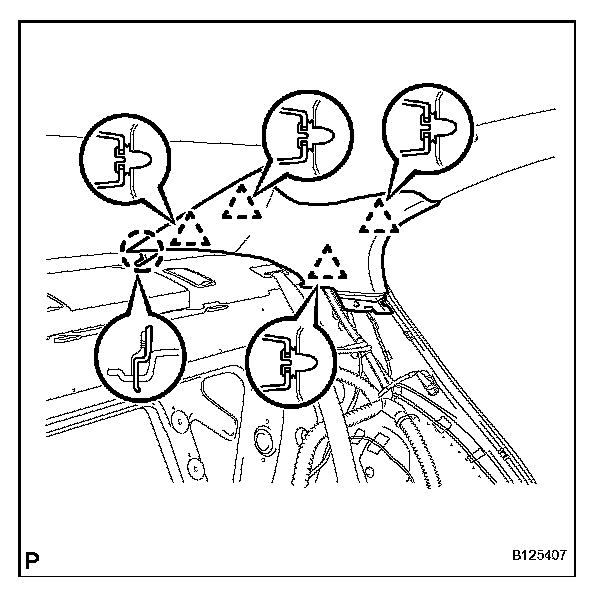

114. REMOVE ROOF SIDE INNER GARNISH LH
a. Disengage the 4 clips and claw, and remove the roof side inner garnish LH.
115. REMOVE ROOF SIDE INNER GARNISH RH
116. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER
117. REMOVE RAIN SENSOR

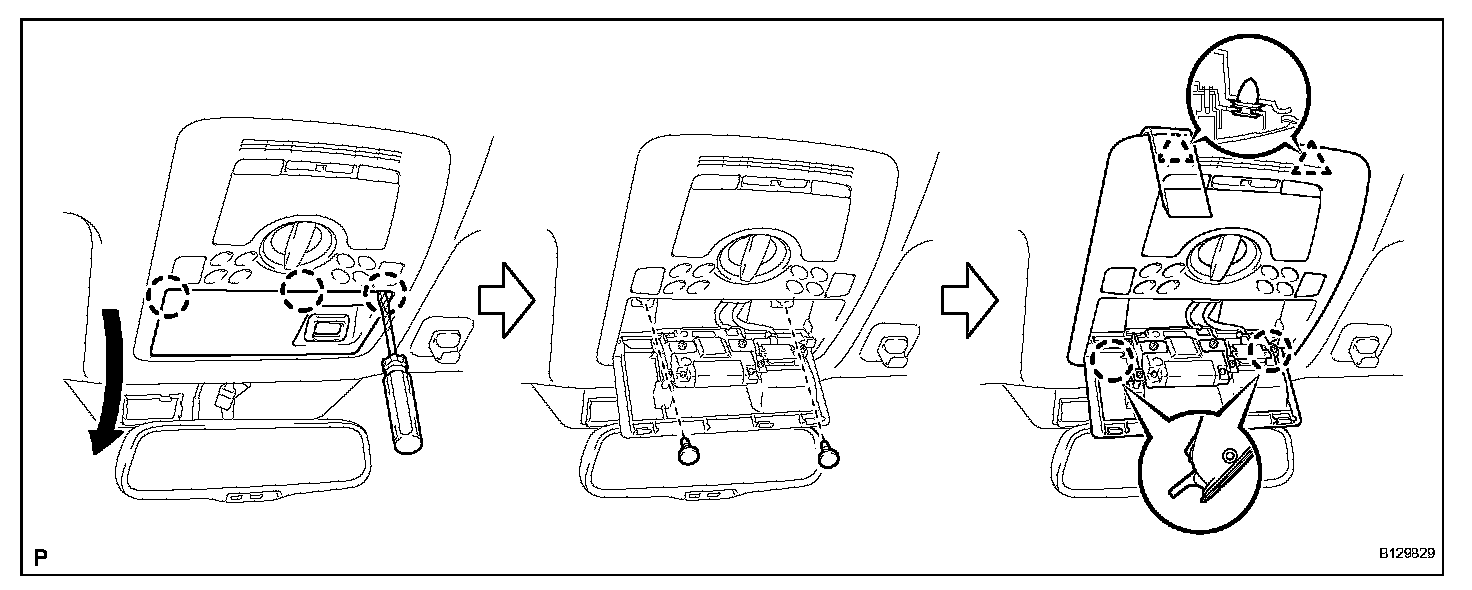

118. REMOVE MAP LIGHT ASSEMBLY (w/o Sliding Roof)
a. Using a screwdriver, disengage the 3 claws and open the cover.
b. Remove the 2 screws.
c. Using a moulding remover, disengage the 2 clips.
d. Disconnect the connector. Remove the map light assembly.

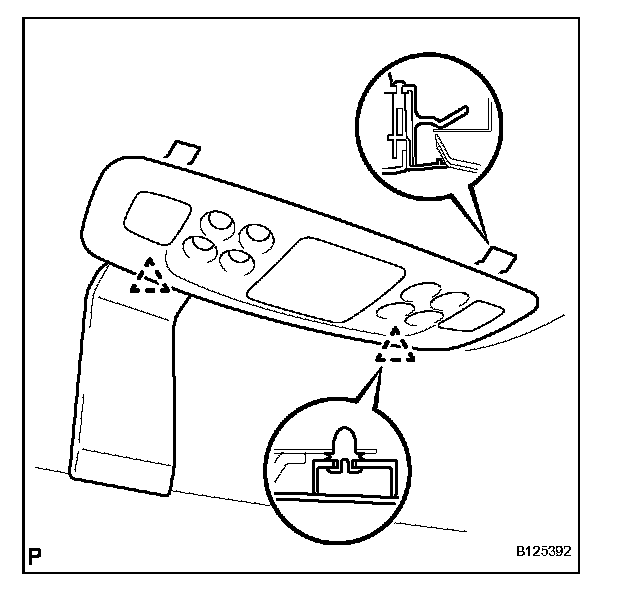

119. REMOVE MAP LIGHT ASSEMBLY (w/ Sliding Roof)
a. Using a screwdriver, disengage the 3 claws and open the cover.
b. Remove the 2 screws.
c. Using a moulding remover, disengage the 2 clips.
d. Disconnect the connector. Remove the map light assembly.
120. REMOVE SPOT LIGHT ASSEMBLY
a. Using a moulding remover, disengage the 2 clips.
b. Disconnect the connector. Remove the spot light assembly.

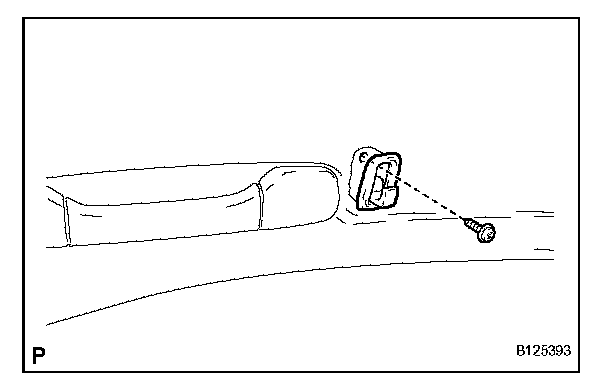

121. REMOVE COAT HOOK
a. Remove the screw and coat hook.
HINT: Use the same procedure to remove the hook on the other side.
122. REMOVE ASSIST GRIP SUB-ASSEMBLY

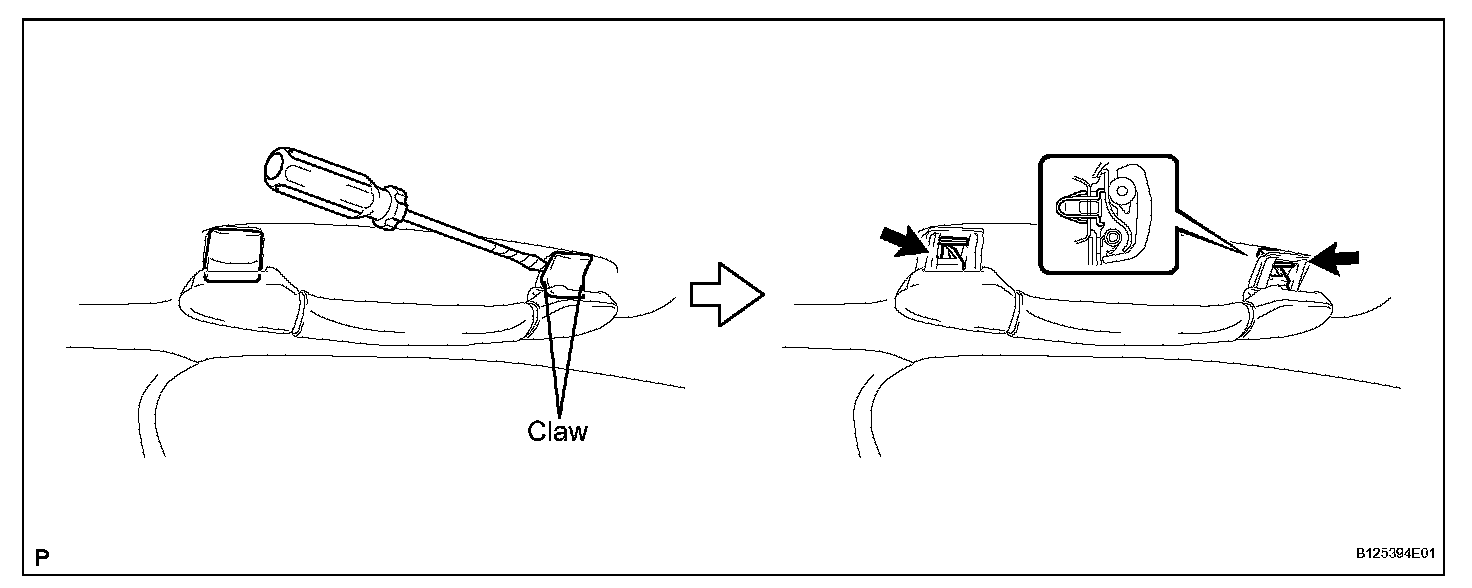

a. Using a screwdriver, disengage the 4 claws and remove the 2 assist grip covers.
HINT: Tape the screwdriver tip before use.
b. Disengage the 2 clips and remove the assist grip sub-assembly.
HINT: Use the same procedure for the other 3 assist grips.

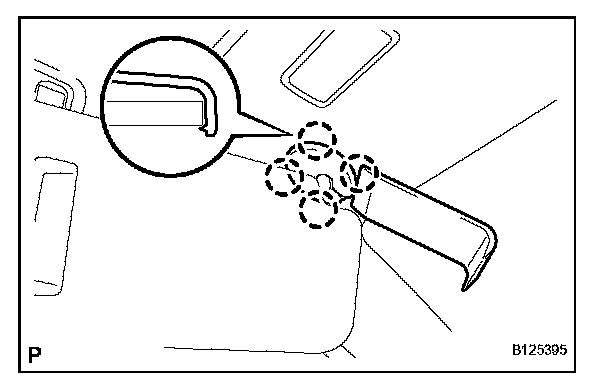

123. REMOVE VISOR BRACKET COVER
a. Using a moulding remover, disengage the 4 claws and remove the visor bracket cover.
HINT: Use the same procedure to remove the cover on the other side.
124. REMOVE VISOR ASSEMBLY LH

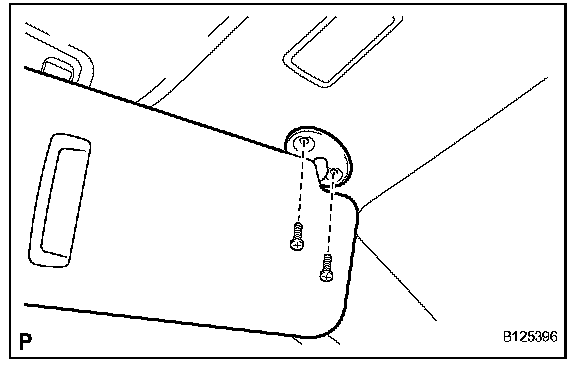

a. Remove the 2 screws and visor assembly LH.
125. REMOVE VISOR ASSEMBLY RH

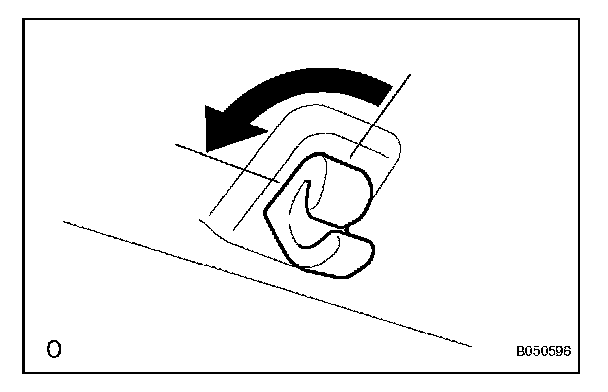

126. REMOVE VISOR HOLDER
a. Remove the visor holder by turning it counterclockwise.
HINT: Use the same procedure to remove the holder on the other side.

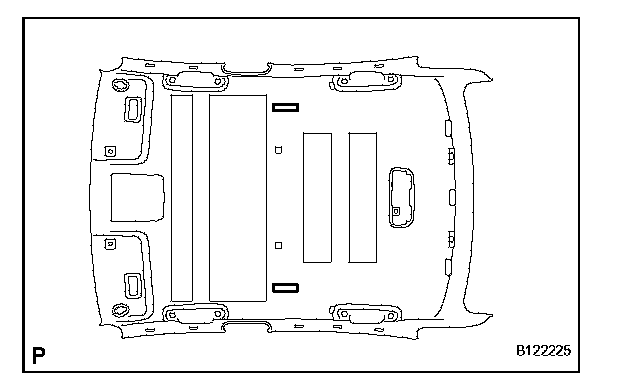

127. REMOVE ROOF HEADLINING ASSEMBLY (w/o Sliding Roof)

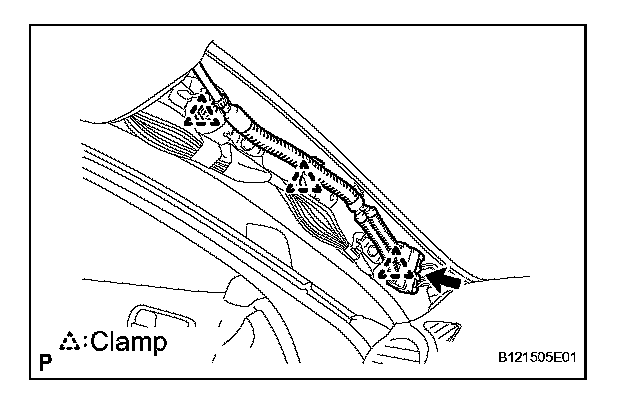

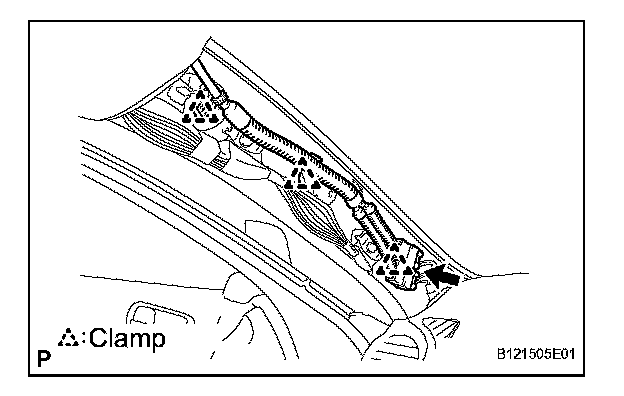

a. Disconnect the roof wire connector and disengage each clamp from the front pillar LH.
b. Disconnect each connector from the map light assembly.
c. Disengage the hook, 10 claws and 2 clips.

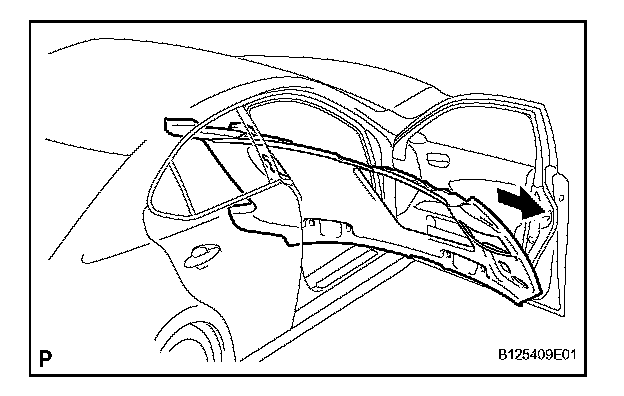

d. Remove the roof headlining assembly from the vehicle through the front right door.

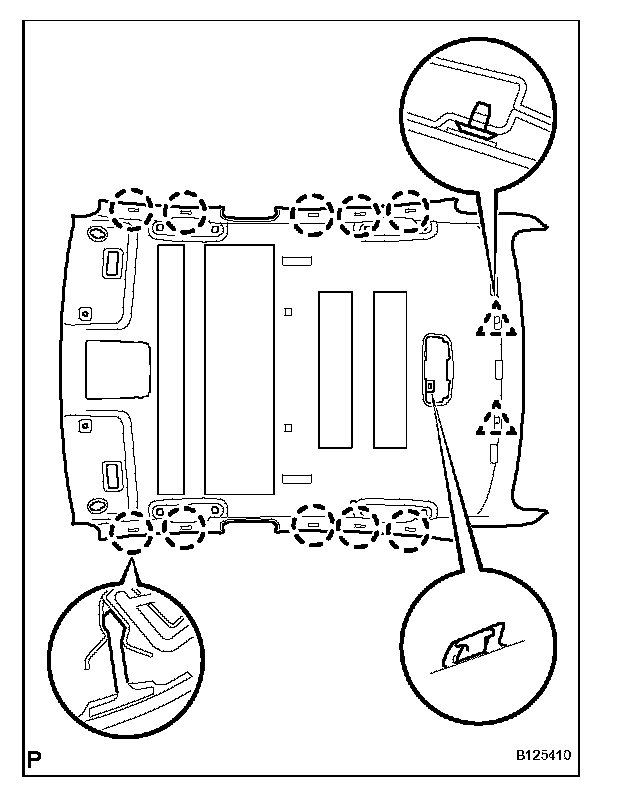

128. REMOVE ROOF HEADLINING ASSEMBLY (w/ Sliding Roof)
a. Disconnect the roof wire connector and disengage each clamp from the front pillar LH.
b. Disconnect each connector from the map light assembly.
c. Disengage the hook, 10 claws, 8 fasteners and 2 clips.
d. Remove the roof headlining assembly from the vehicle through the front right door.

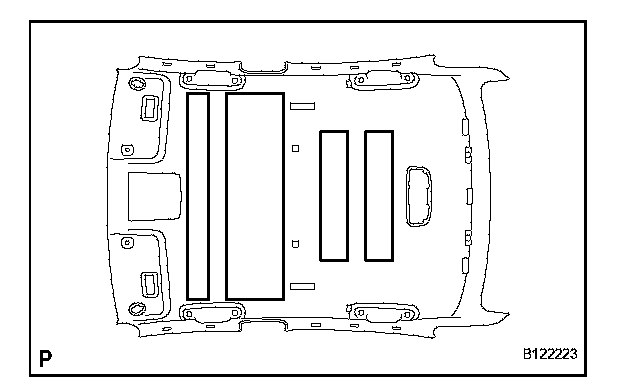

129. REMOVE ROOF SILENCER PAD (w/o Sliding Roof)
a. Remove the roof silencer pad.
130. REMOVE REAR SIDE RAIL SPACER (w/o Sliding Roof)
a. Remove the rear side rail spacer.
131. REMOVE ROOF HEADLINING PAD (w/o Sliding Roof)
a. Remove the roof headlining pad.

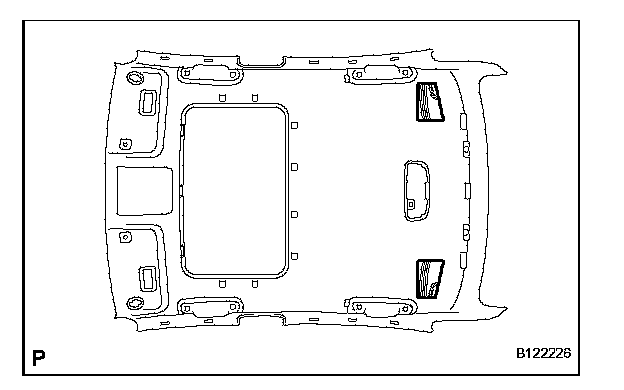

132. REMOVE REAR SIDE RAIL SPACER (w/ Sliding Roof)
a. Remove the rear side rail spacer.

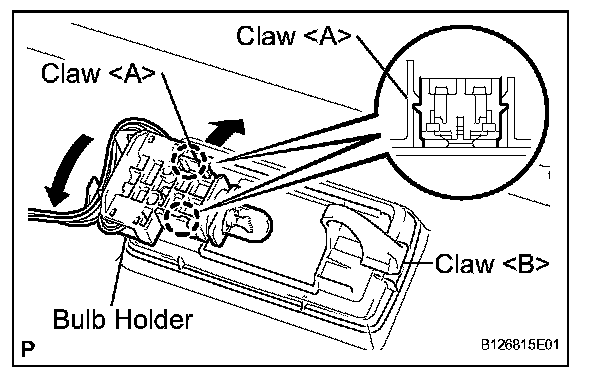

133. REMOVE VANITY LIGHT ASSEMBLY
a. Disengage the claw and separate the bulb holder from the vanity light, as shown in the illustration.
b. Disengage the claw and remove the vanity light assembly.
HINT: Use the same procedure to remove the light on the other side.
134. REMOVE NO. 1 ROOF WIRE
a. Remove the double-sided tape and roof wire.
135. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
136. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
137. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

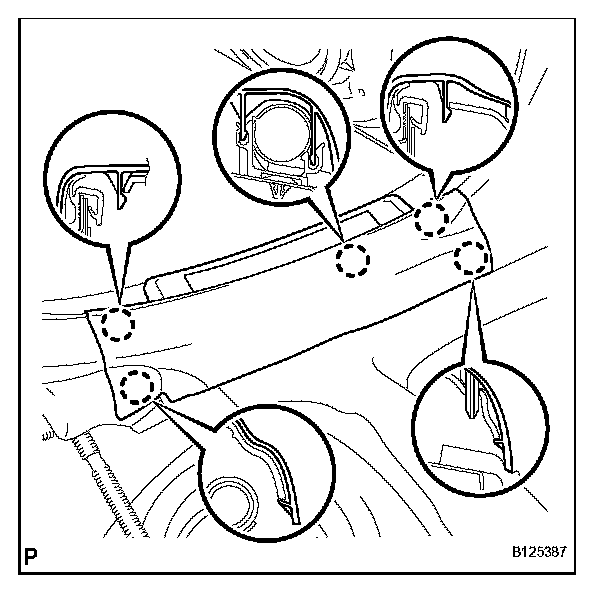

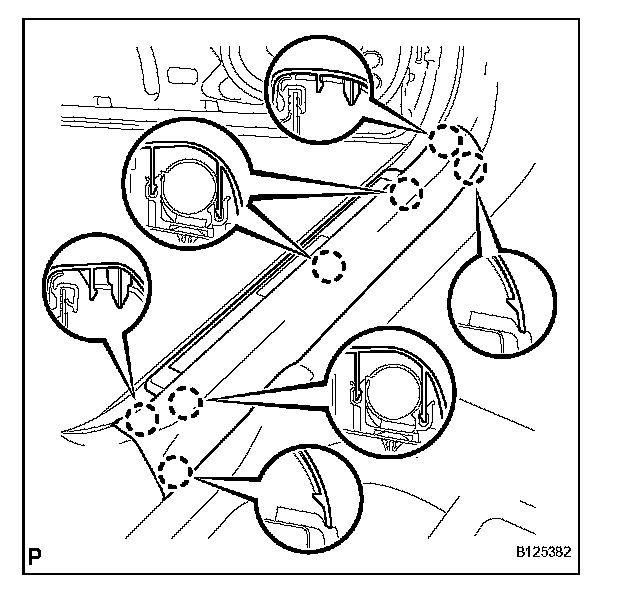

138. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
