Foot Rest: Service and Repair

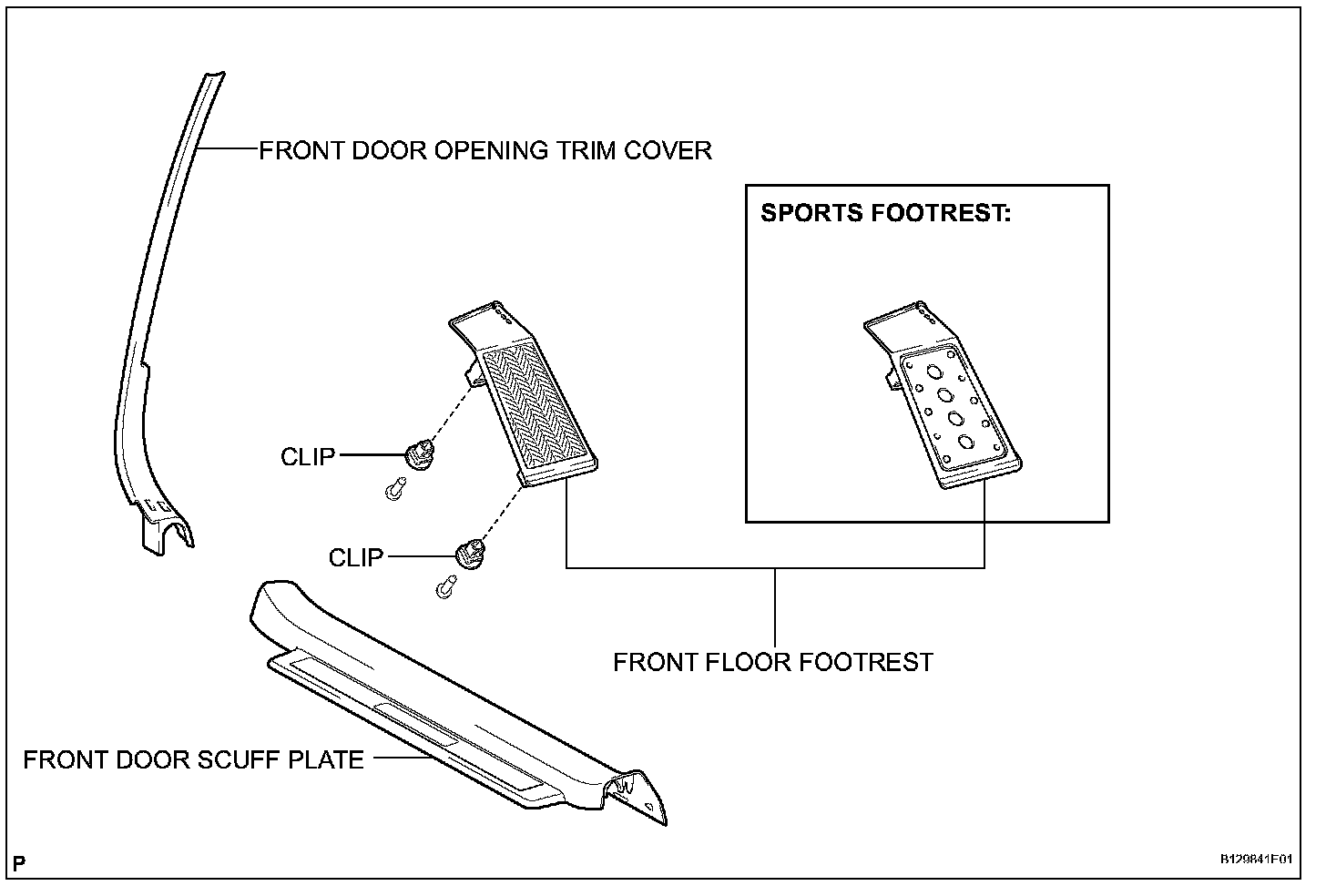

FRONT FLOOR FOOTREST

Front Floor Footrest:

REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE
2. REMOVE FRONT DOOR OPENING TRIM COVER
3. REMOVE FRONT FLOOR FOOTREST

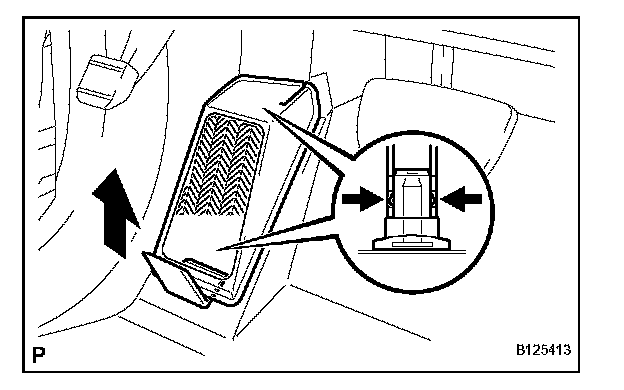

a. Using a moulding remover, disengage the 2 clips and remove the front floor footrest.
b. Turn back the floor carpet in order to remove the 2 clips.

INSTALLATION

1. INSTALL FRONT FLOOR FOOTREST

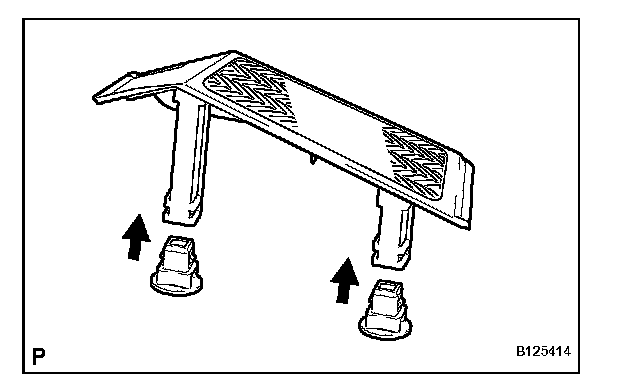

a. Install the 2 clips on the front floor footrest.

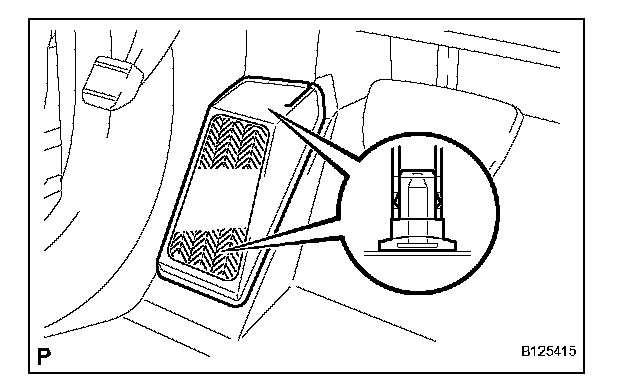

b. Install the front floor footrest onto the 2 studs that protrude from the vehicle floor.

2. INSTALL FRONT DOOR OPENING TRIM COVER
3. INSTALL FRONT DOOR SCUFF PLATE
