Console Lamp: Testing and Inspection

INSPECTION

1. INSPECT CONSOLE BOX LIGHT




a. Remove the console box light.

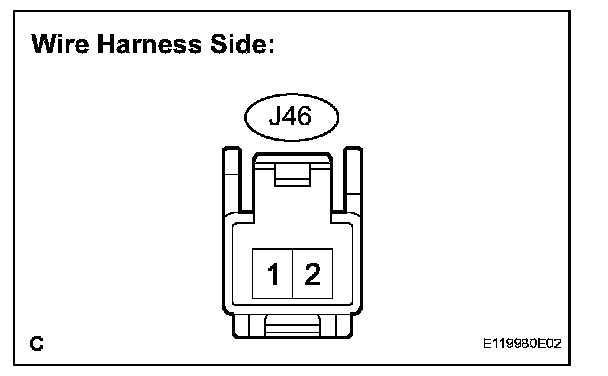

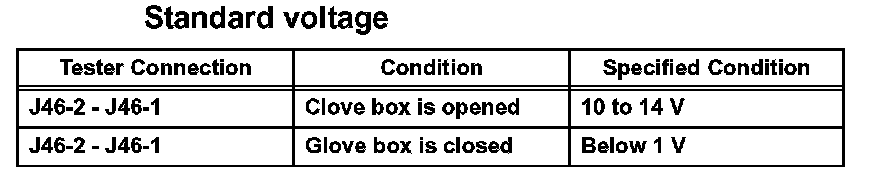

b. Measure the voltage of the connector.

If the result is not as specified, repair or replace wire harness or connector.

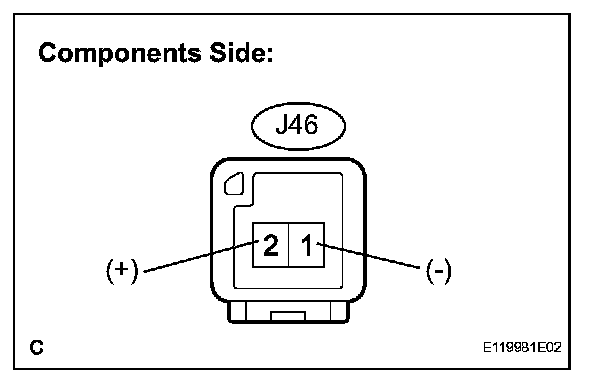

c. Connect the (+) lead from the battery to terminal 2 and the (-) lead to terminal 1.
d. Check that the console box light comes on.
OK: Comes on

If the result is not as specified, replace the console box light.
