Luggage Compartment Door Opener Circuit

Luggage Compartment Door Opener Circuit

DESCRIPTION
While the main body ECU RH has received the OFF signal from the luggage compartment opener main switch , the main body ECU RH activates the luggage compartment door lock motor when the ON signal from the luggage compartment door opener inner switch is received.

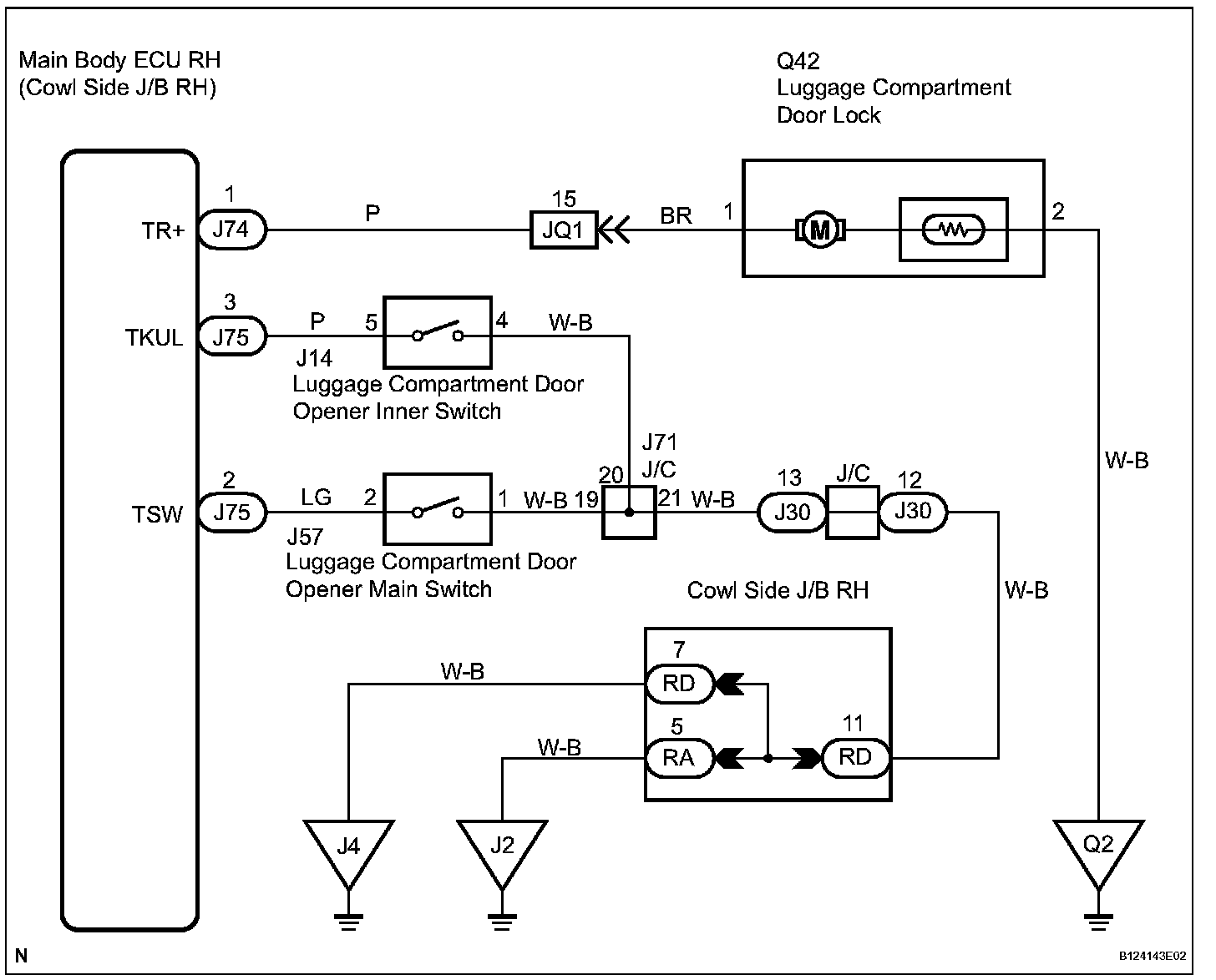

Wiring Diagram:

Step 1:

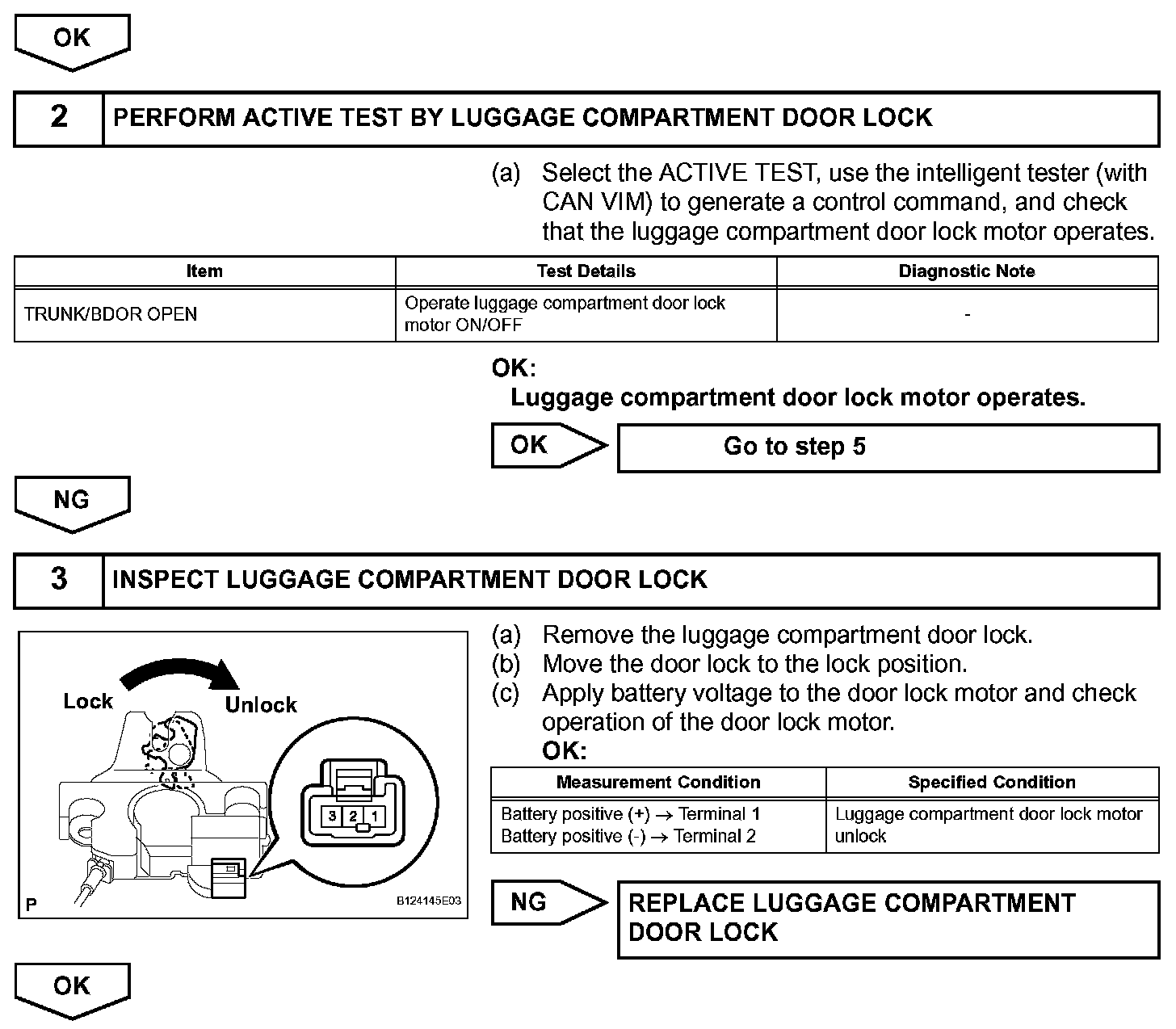

Step 1(continued)-3:

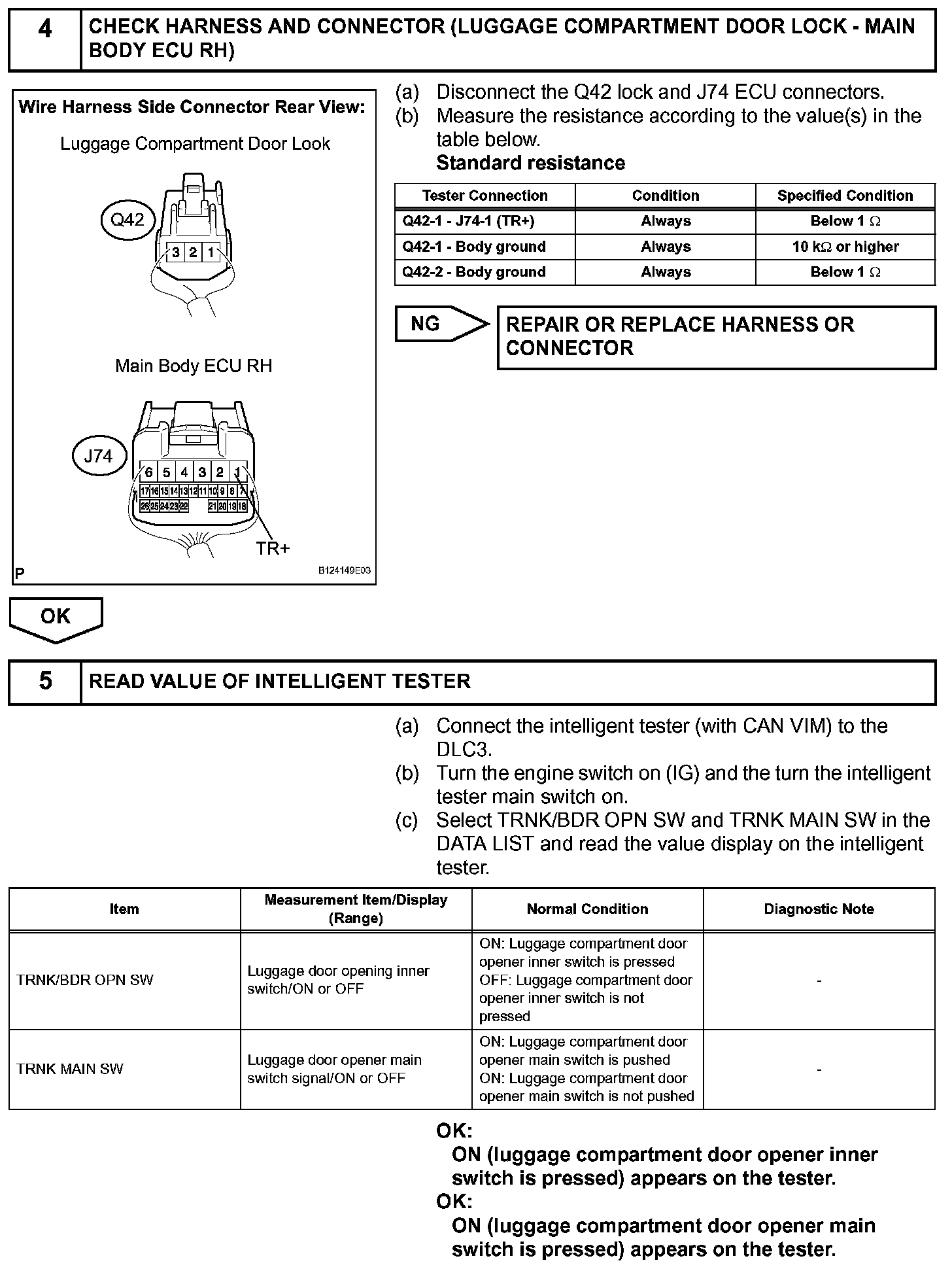

Step 4-5:

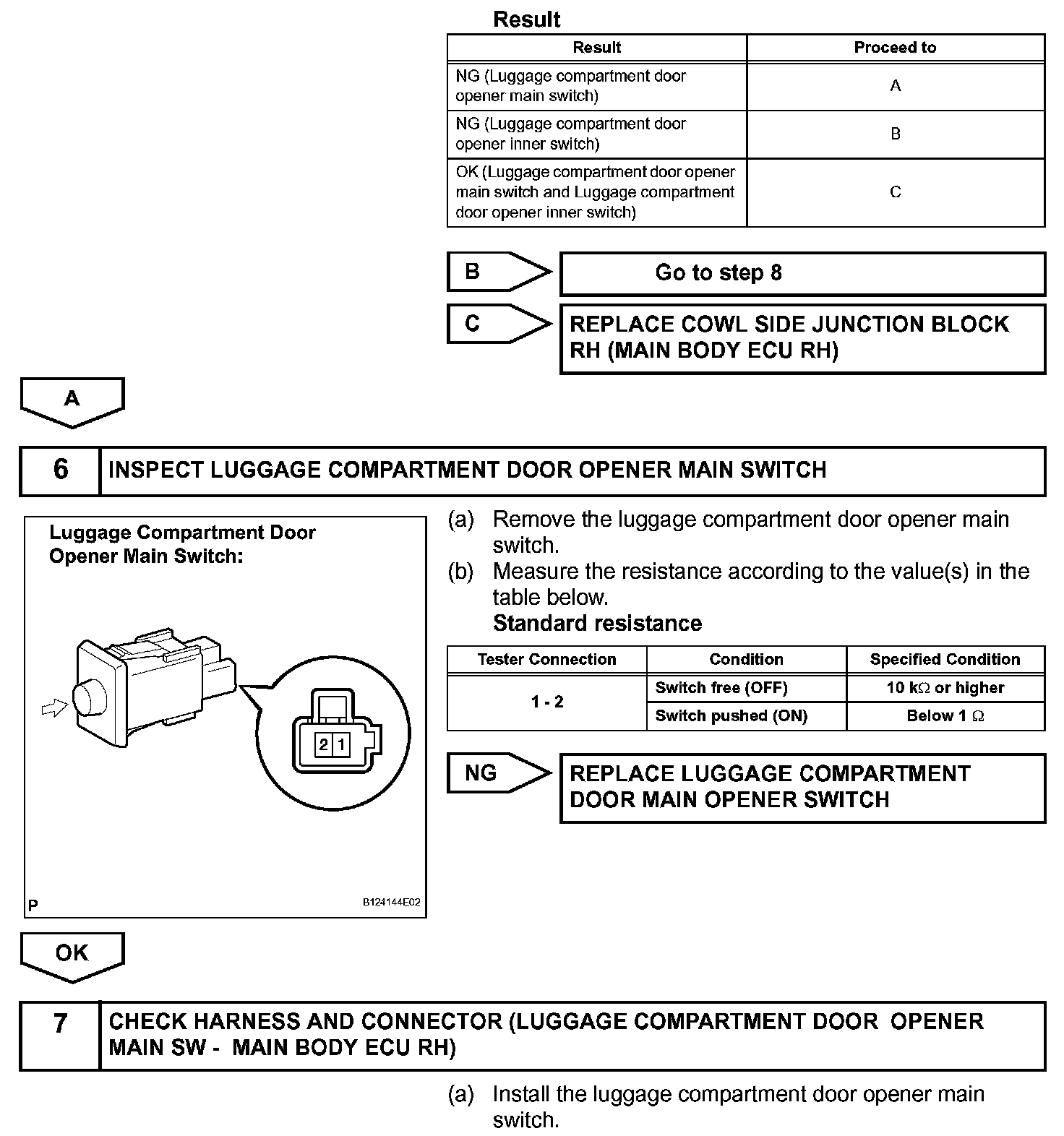

Step 5(continued)-7:

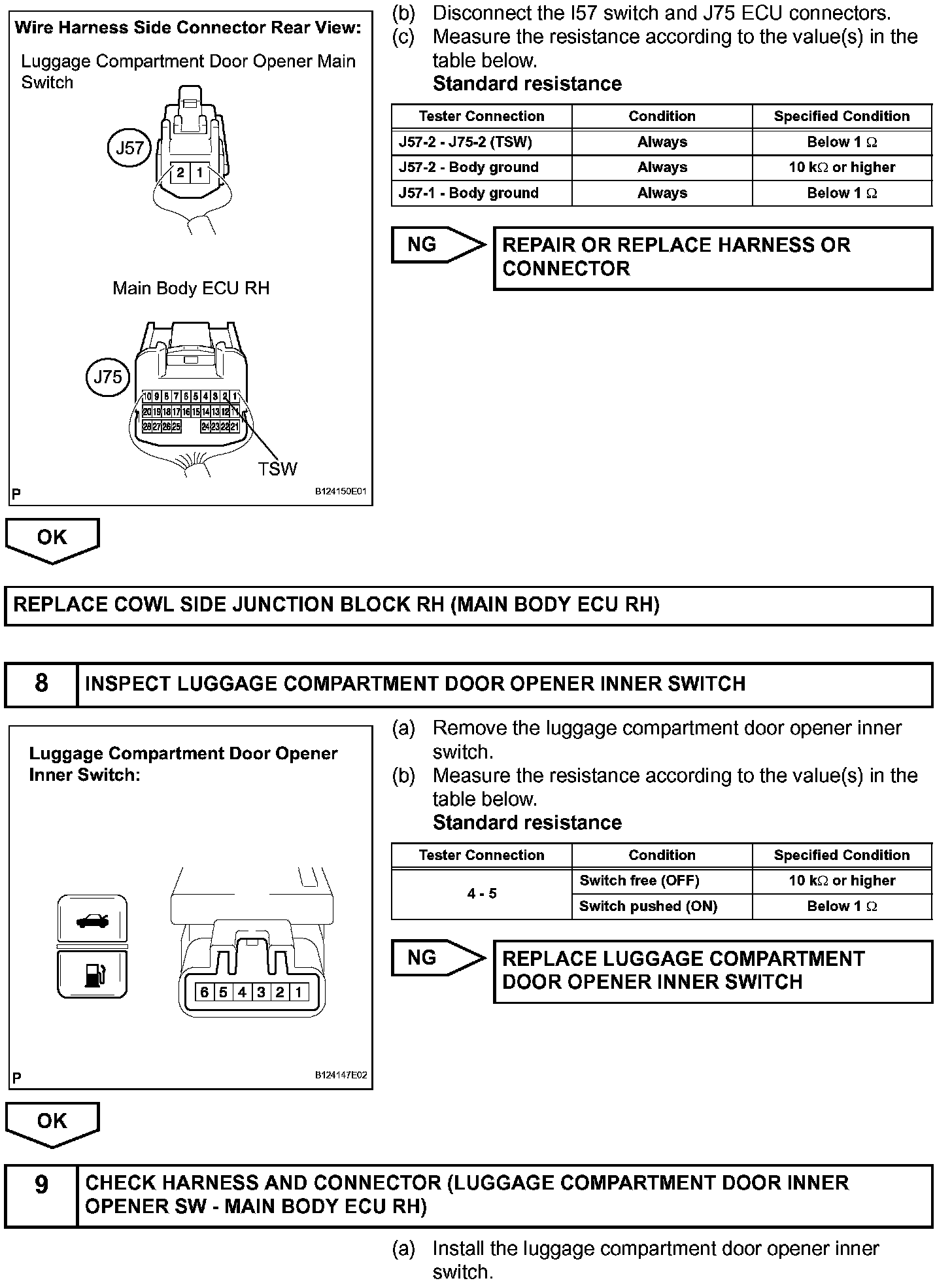

Step 7(continued)-9:

Step 9(continued):

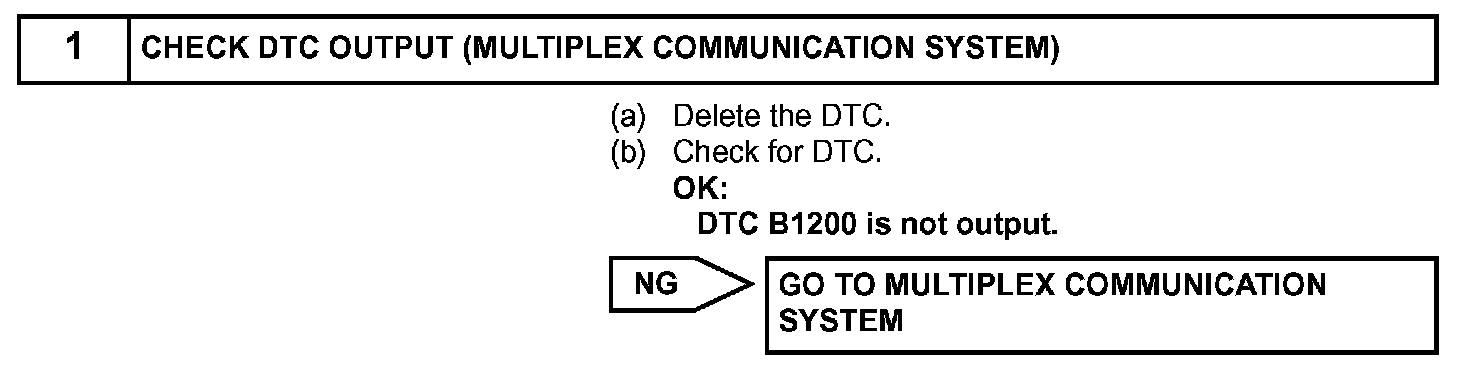

INSPECTION PROCEDURE
