Hood: Testing and Inspection
HOODON-VEHICLE INSPECTION
1. INSPECT HOOD SUB-ASSEMBLY

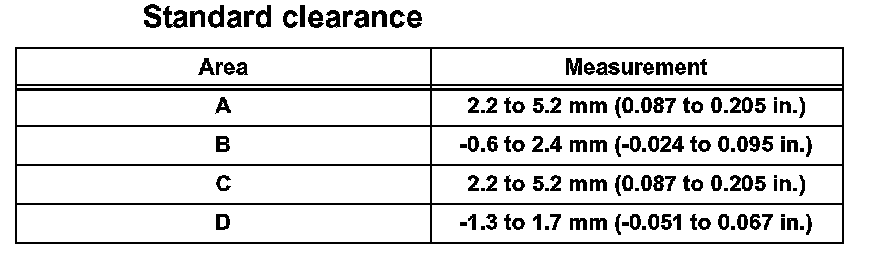

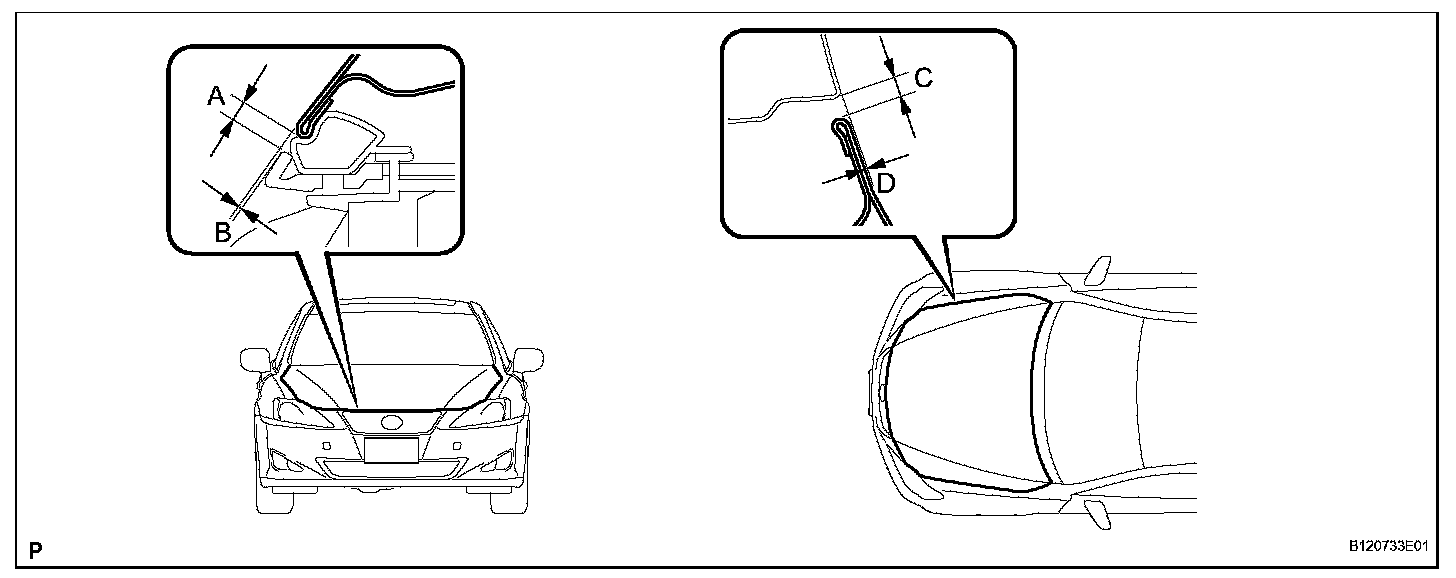

a. Check that the clearance measurements of areas A to D are within each standard range.
ON-VEHICLE INSPECTION
1. INSPECT HOOD SUB-ASSEMBLY
a. Check that the clearance measurements of areas A to D are within each standard range.
