Hood: Service and Repair

DISPOSAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed given for the LH side.

1. DISPOSE OF HOOD SUPPORT ASSEMBLY




a. Horizontally fix the hood support in a vise with the piston-rod pulled out.

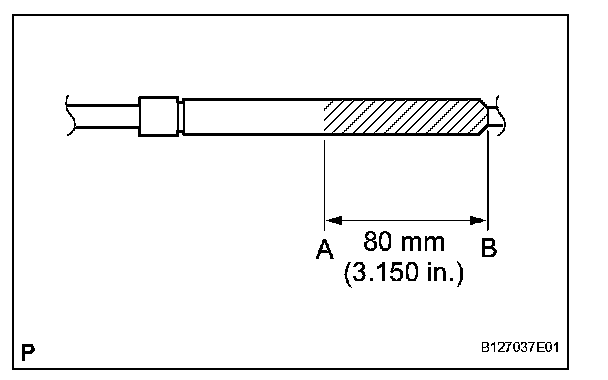

b. Wear safety glasses. Gradually cut a part between A and B shown in the illustration using a metal saw and gradually release the gas.

NOTE: Although the gas inside the hood support is colorless, odorless and harmless, there is a possibility that metal debris could scatter.Therefore, cover it with a piece of cloth or other material.
