Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

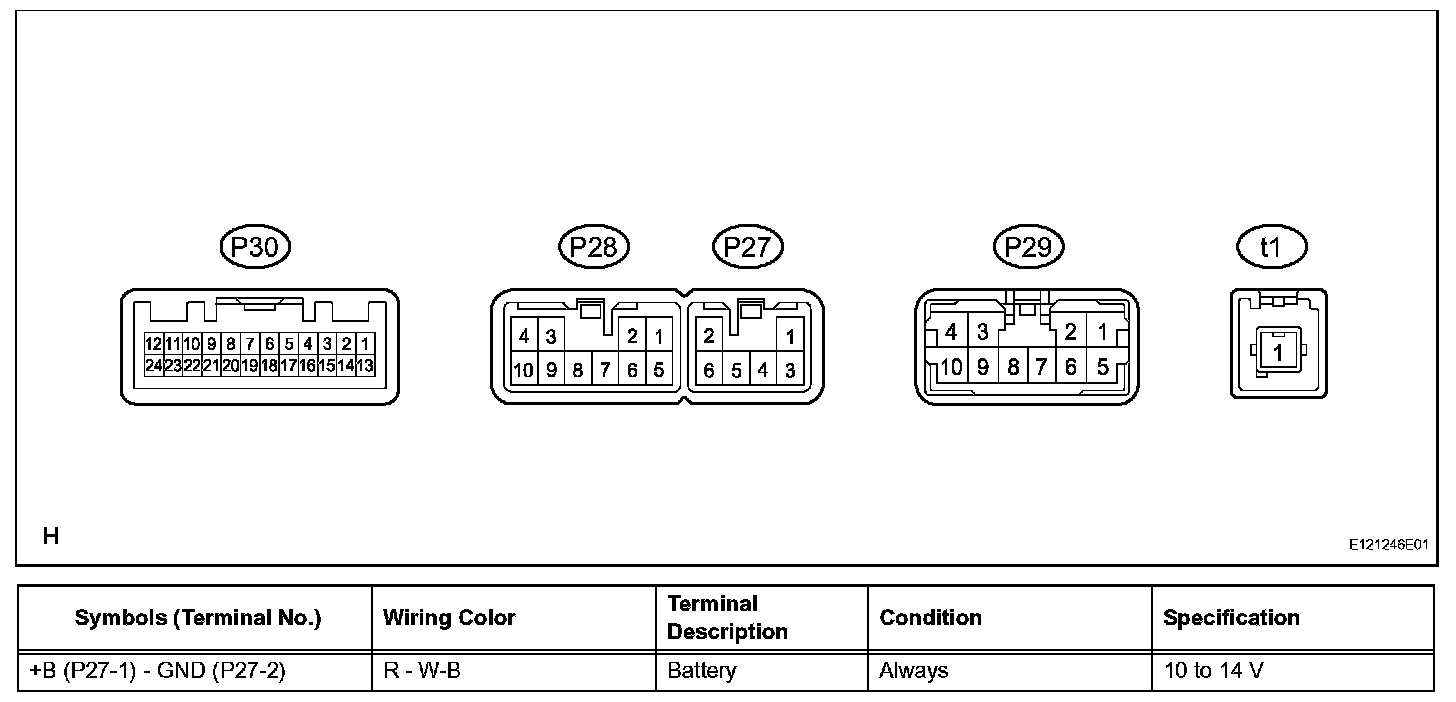

Terminals Of Control Module/Pinouts-Radio Receiver (Part 1):

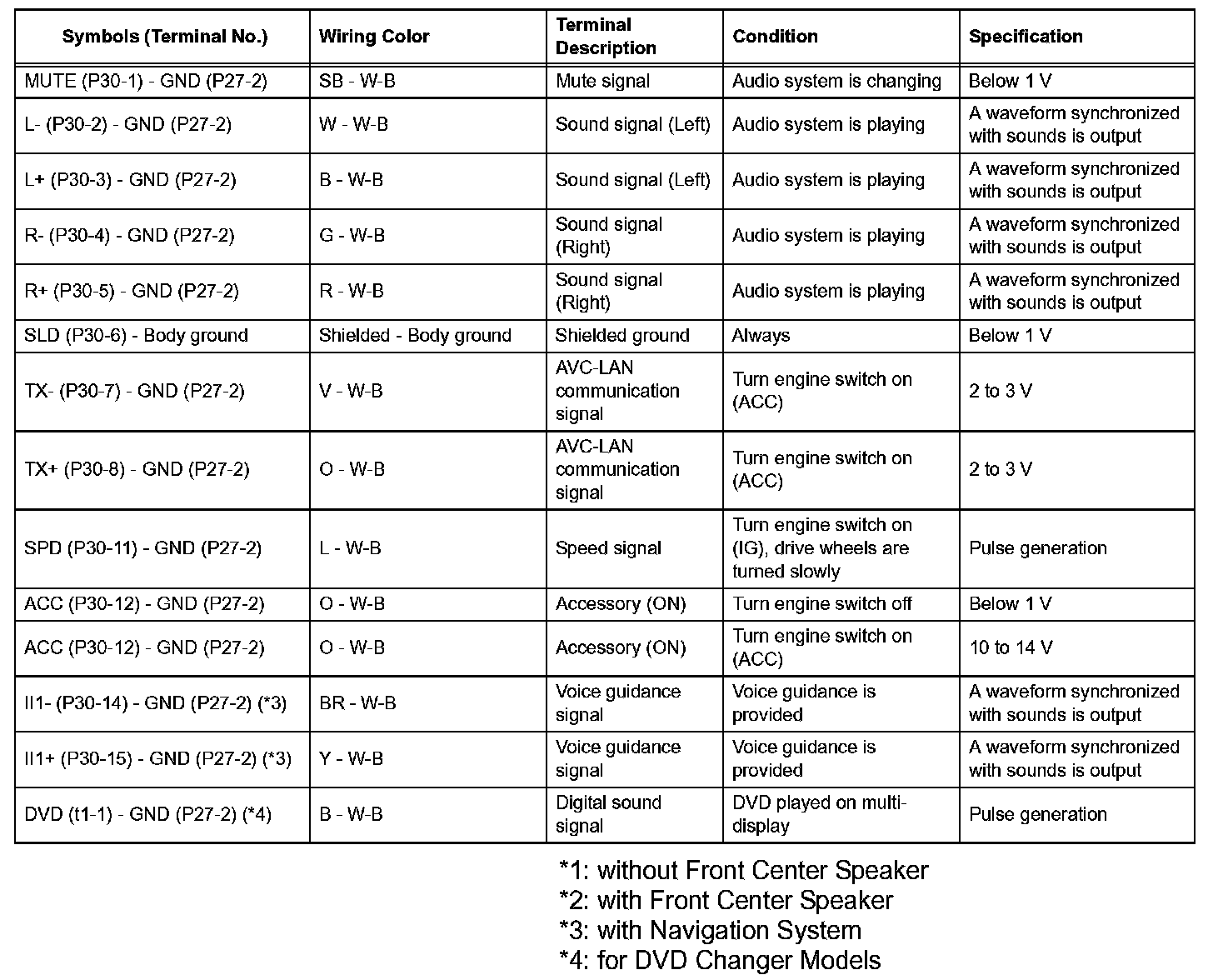

Terminals Of Control Module/Pinouts-Radio Receiver (Part 2):

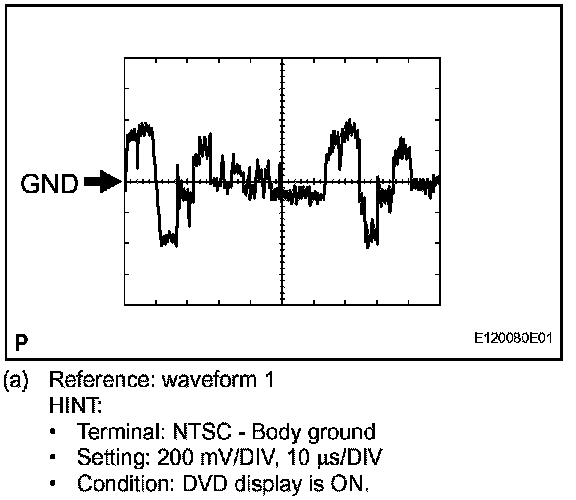

Oscilloscope Waveforms:

1. RADIO RECEIVER

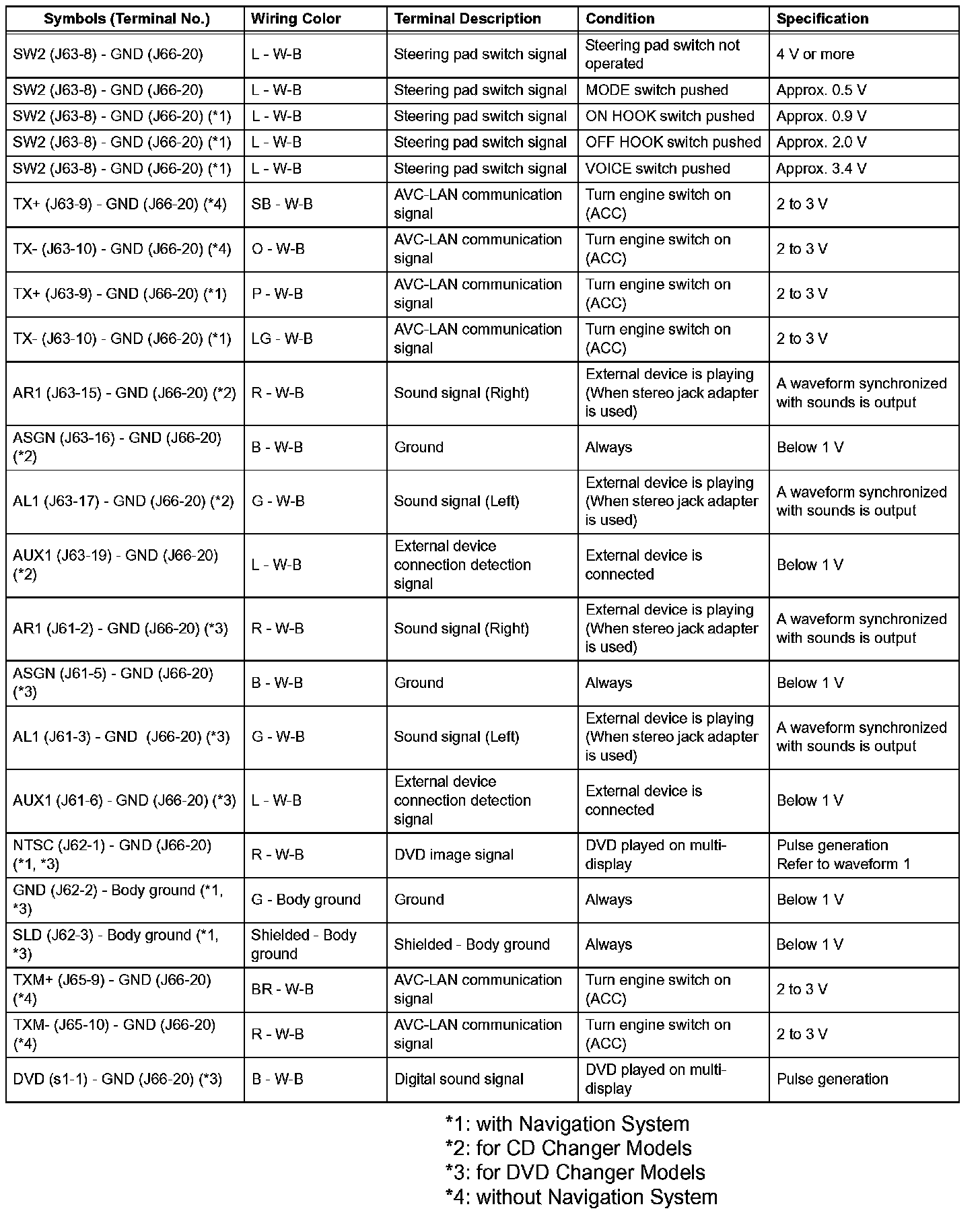

Terminals Of Control Module/Pinouts-Integration Control & Panel Assembly (Without Navigation System):

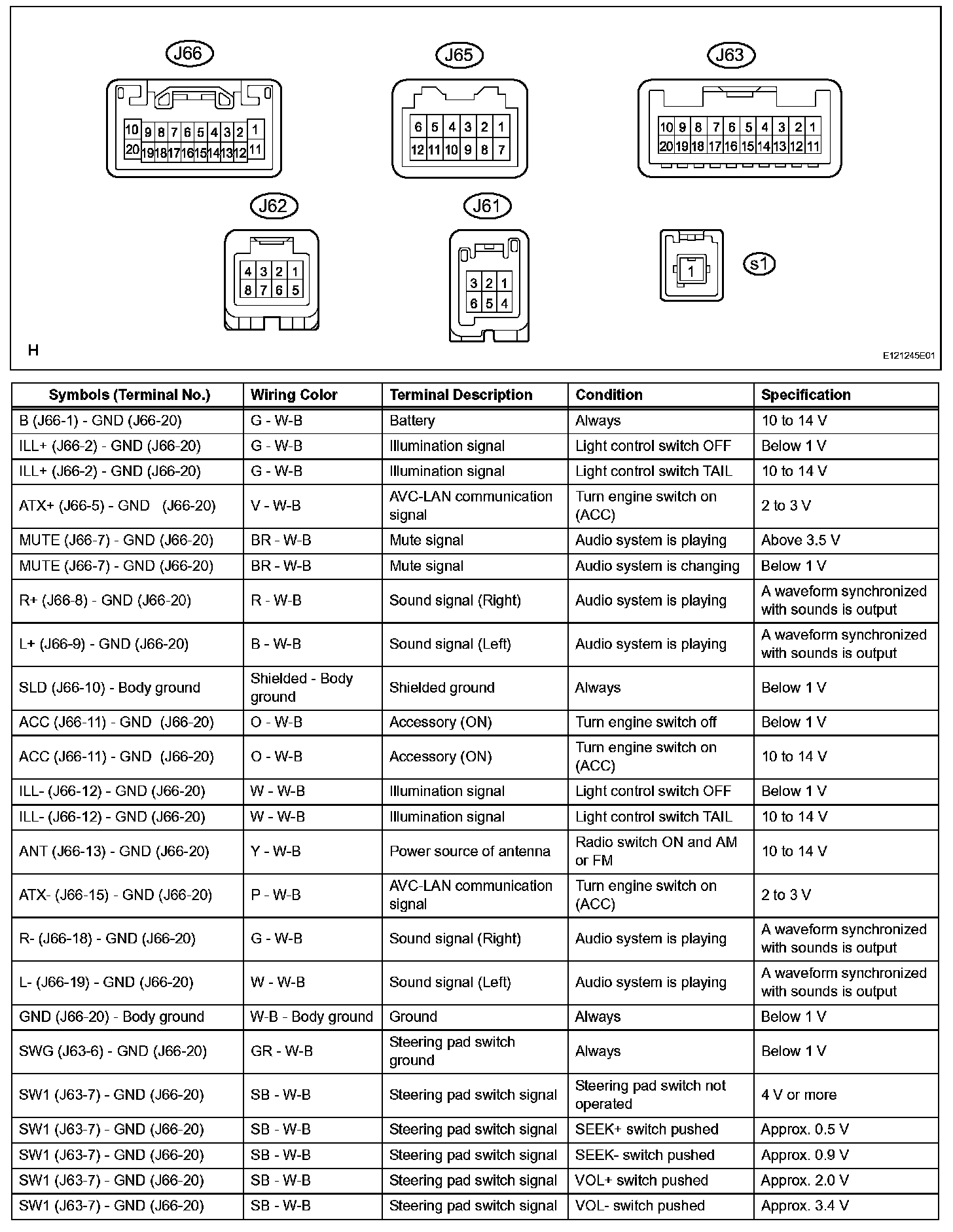

2. INTEGRATION CONTROL & PANEL ASSEMBLY (WITHOUT NAVIGATION SYSTEM)

Terminals Of Control Module/Pinouts-Sterio Component Amplifier (Part 1):

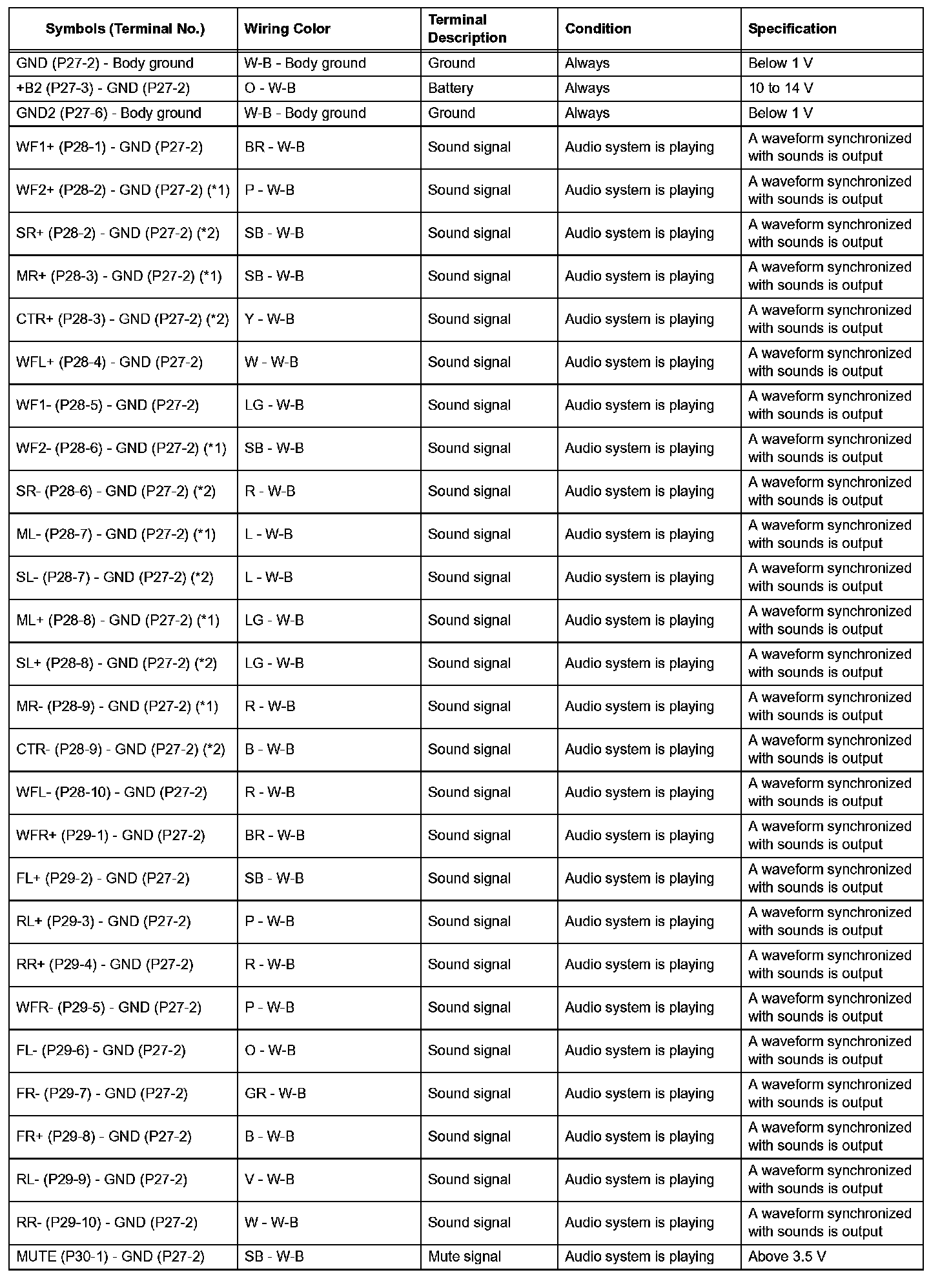

Terminals Of Control Module/Pinouts-Sterio Component Amplifier (Part 2):

Terminals Of Control Module/Pinouts-Sterio Component Amplifier (Part 3):

3. STEREO COMPONENT AMPLIFIER

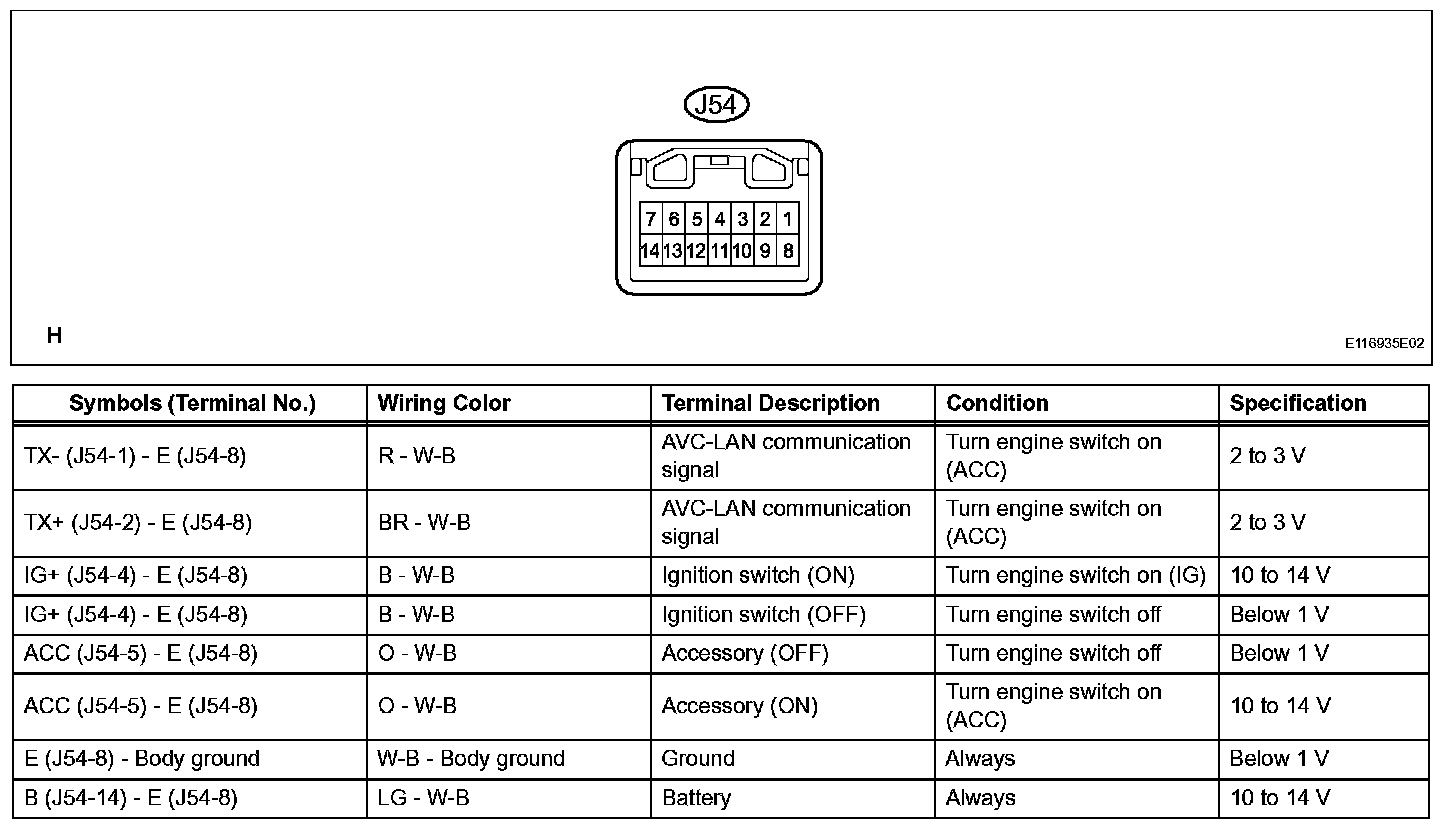

4. GATEWAY ECU
