Integration Control and Panel Assembly Communication Error

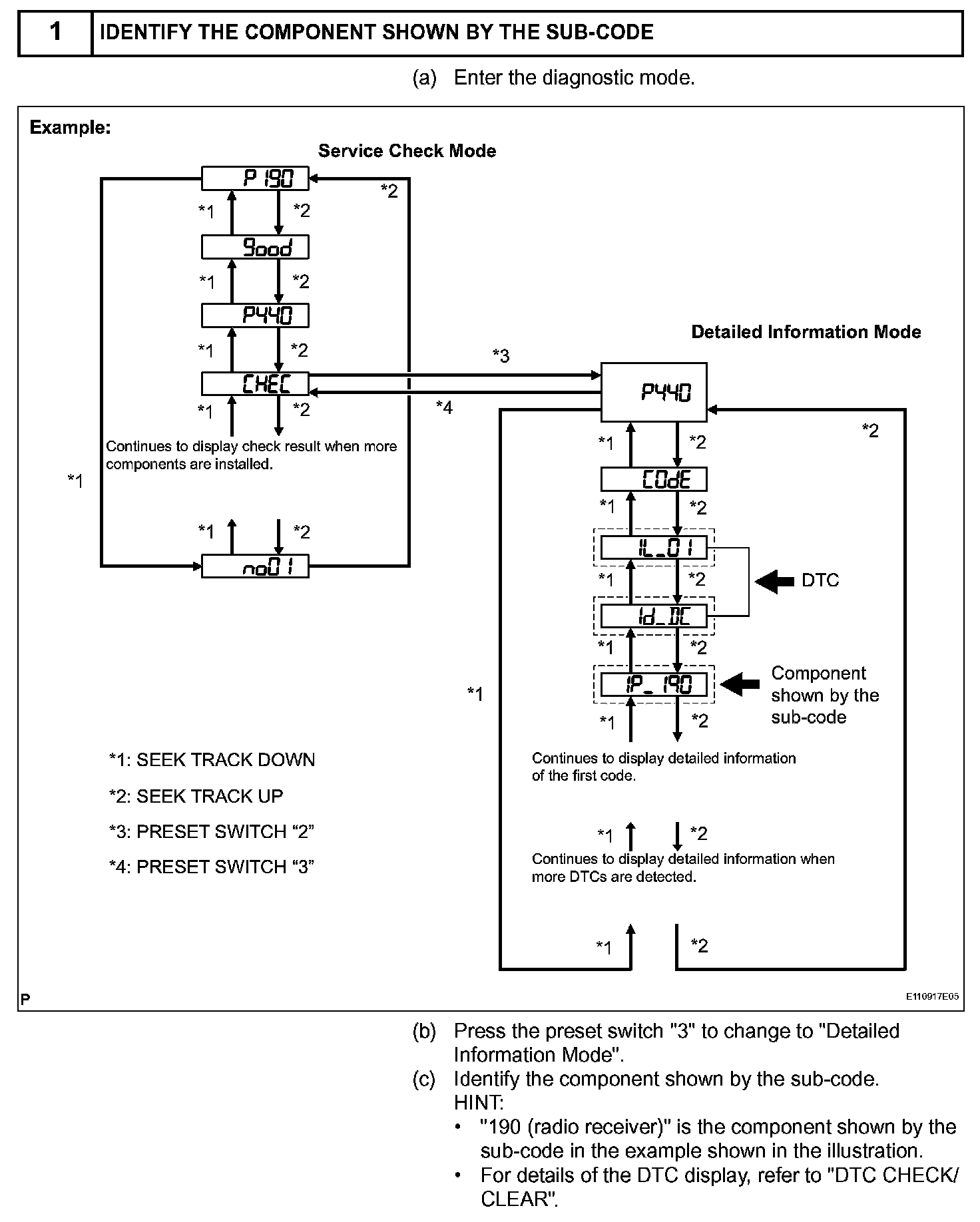

Step 1:

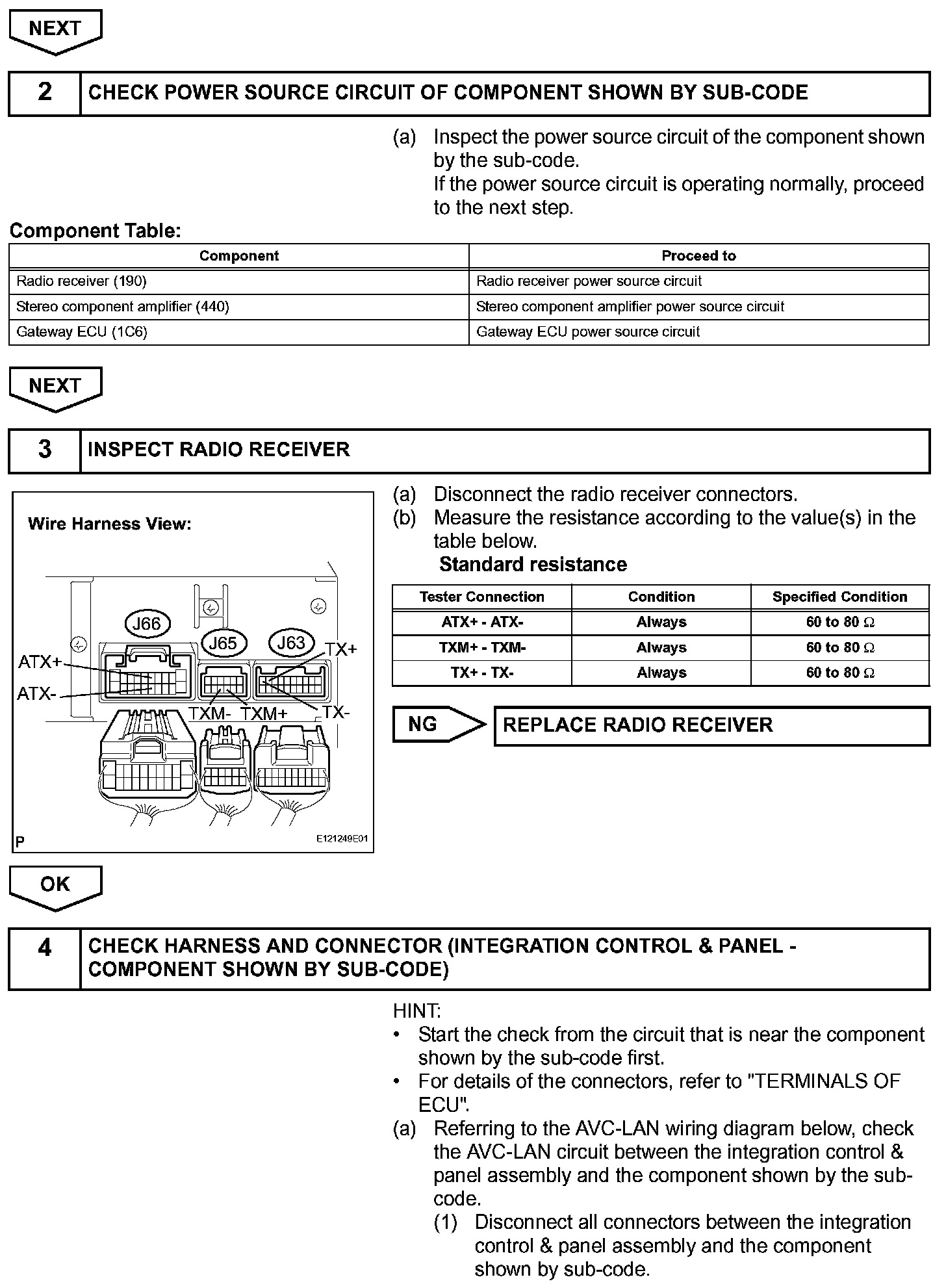

Step 1(continued)-4:

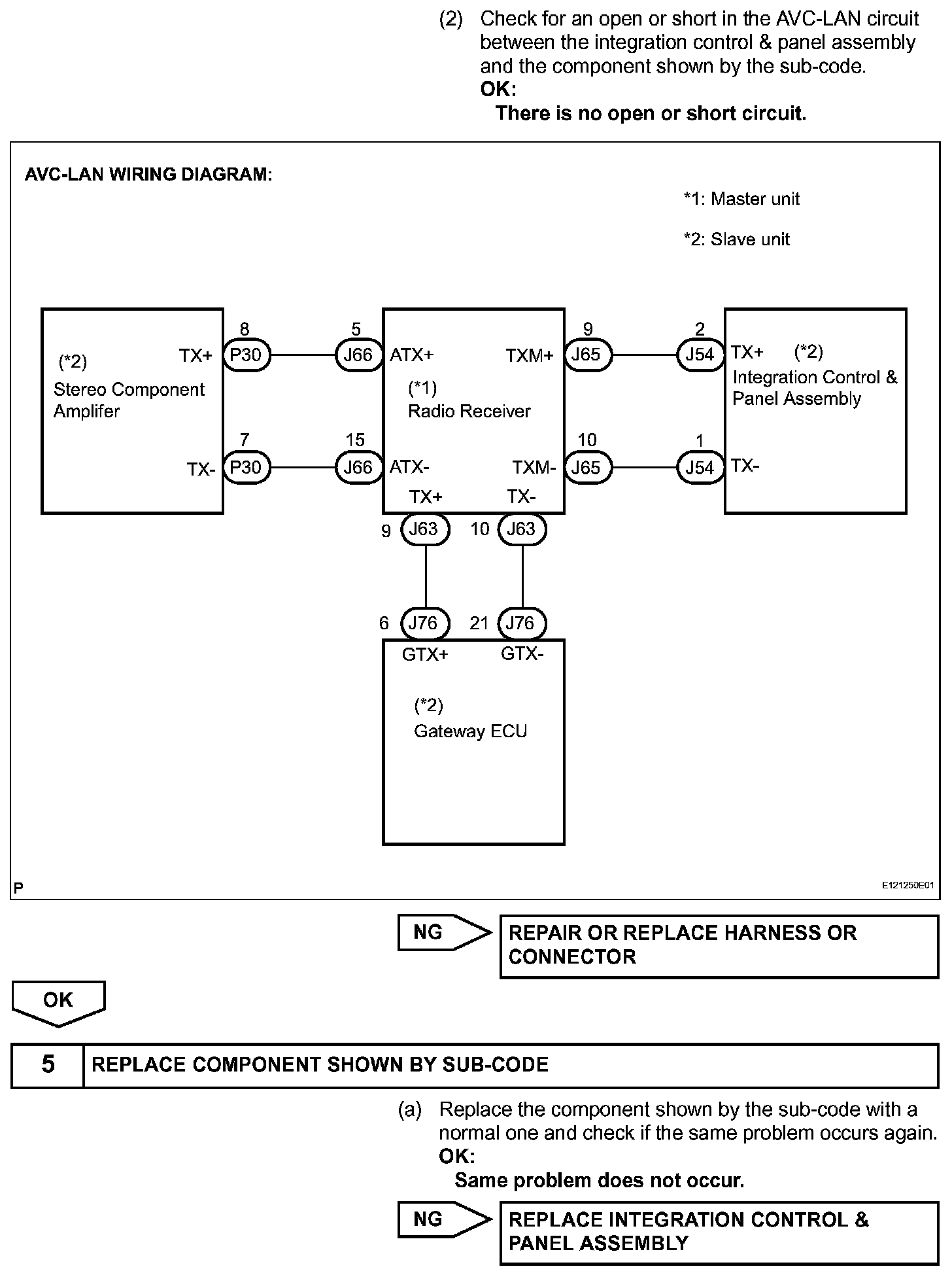

Step 4(continued)-5:

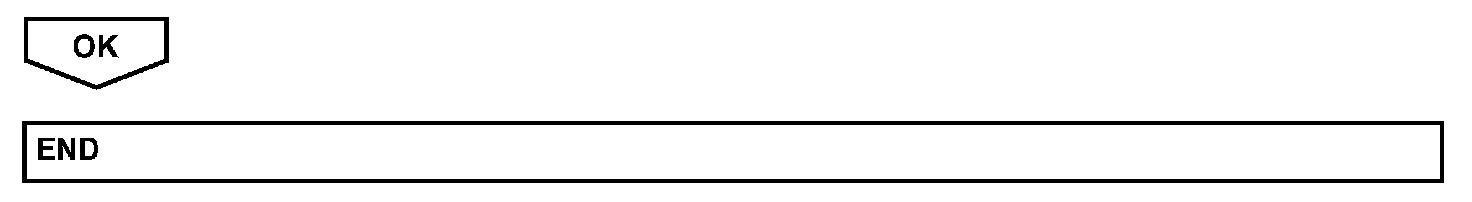

Step 5(continued):
