Illumination Circuit

Illumination Circuit

DESCRIPTION

Power is supplied to the radio receiver, integration control & panel assembly and steering pad switch assembly illumination when the light control switch is in the TAIL or HEAD position.

NOTE: The vehicle is equipped with an SRS (Supplemental Restraint System) which includes components such as airbags. Before servicing (including removal or installation of parts), be sure to refer to Restraint System Service Precaution.

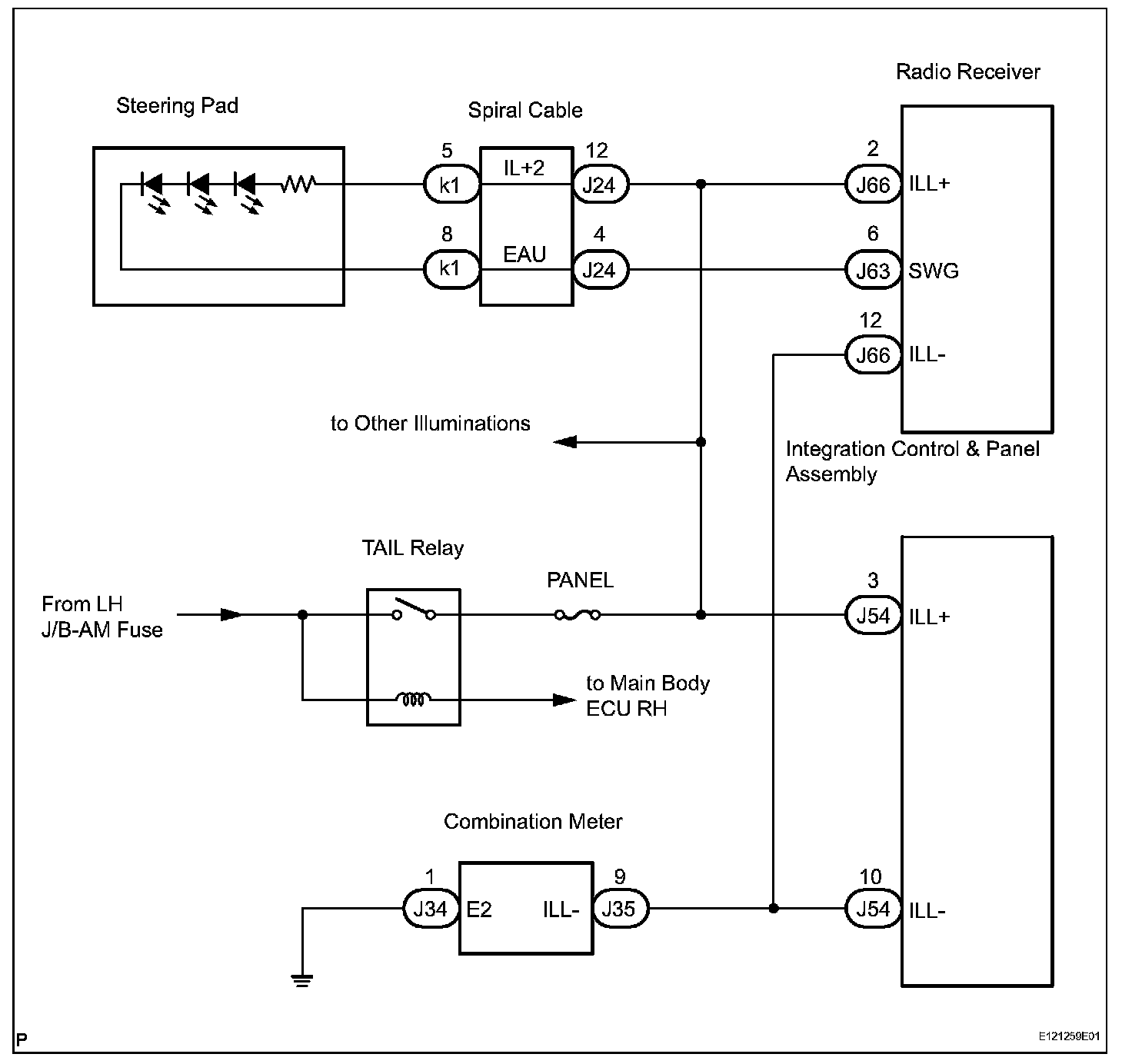

Wiring Diagram:

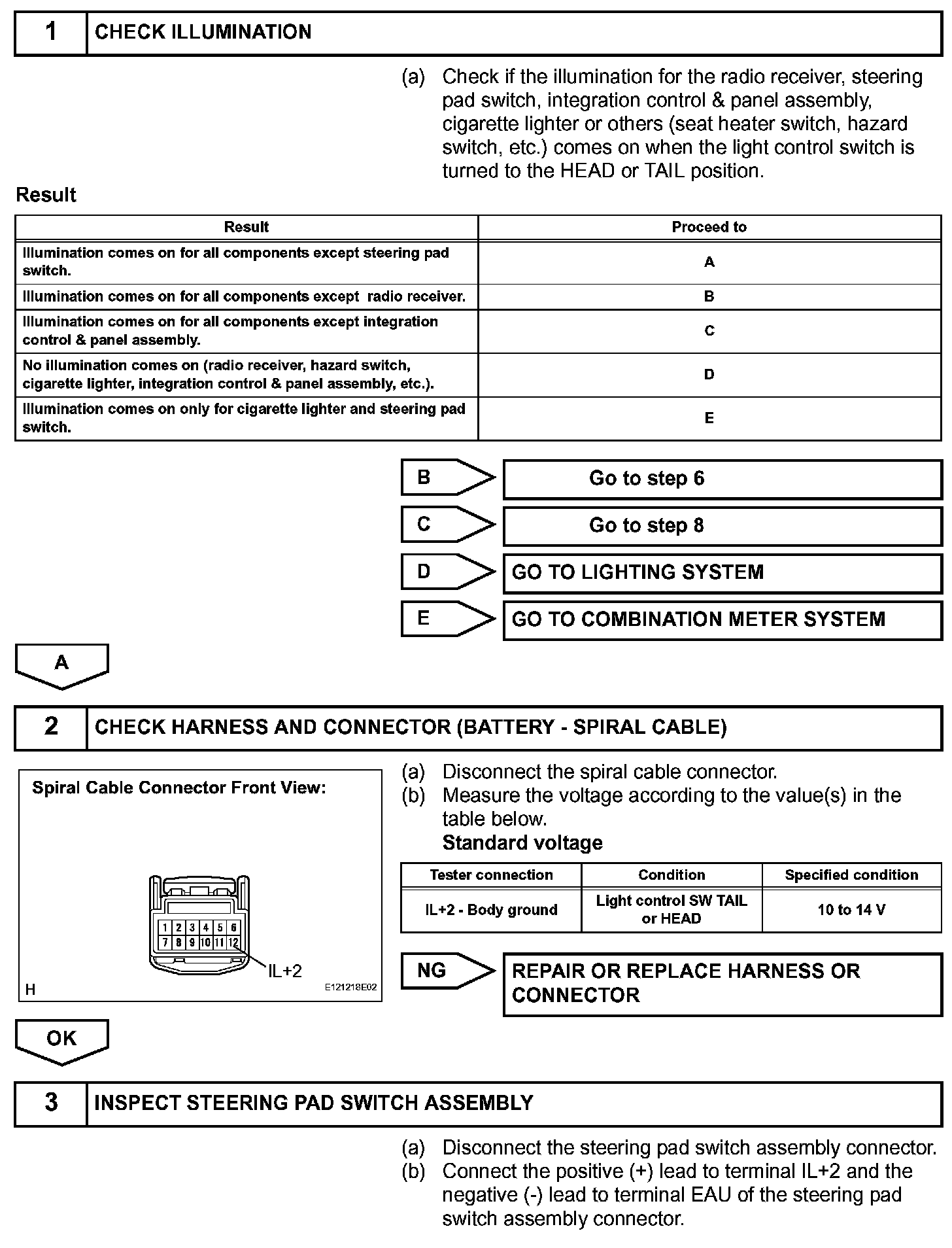

Step 1-3:

Step 3(continued):

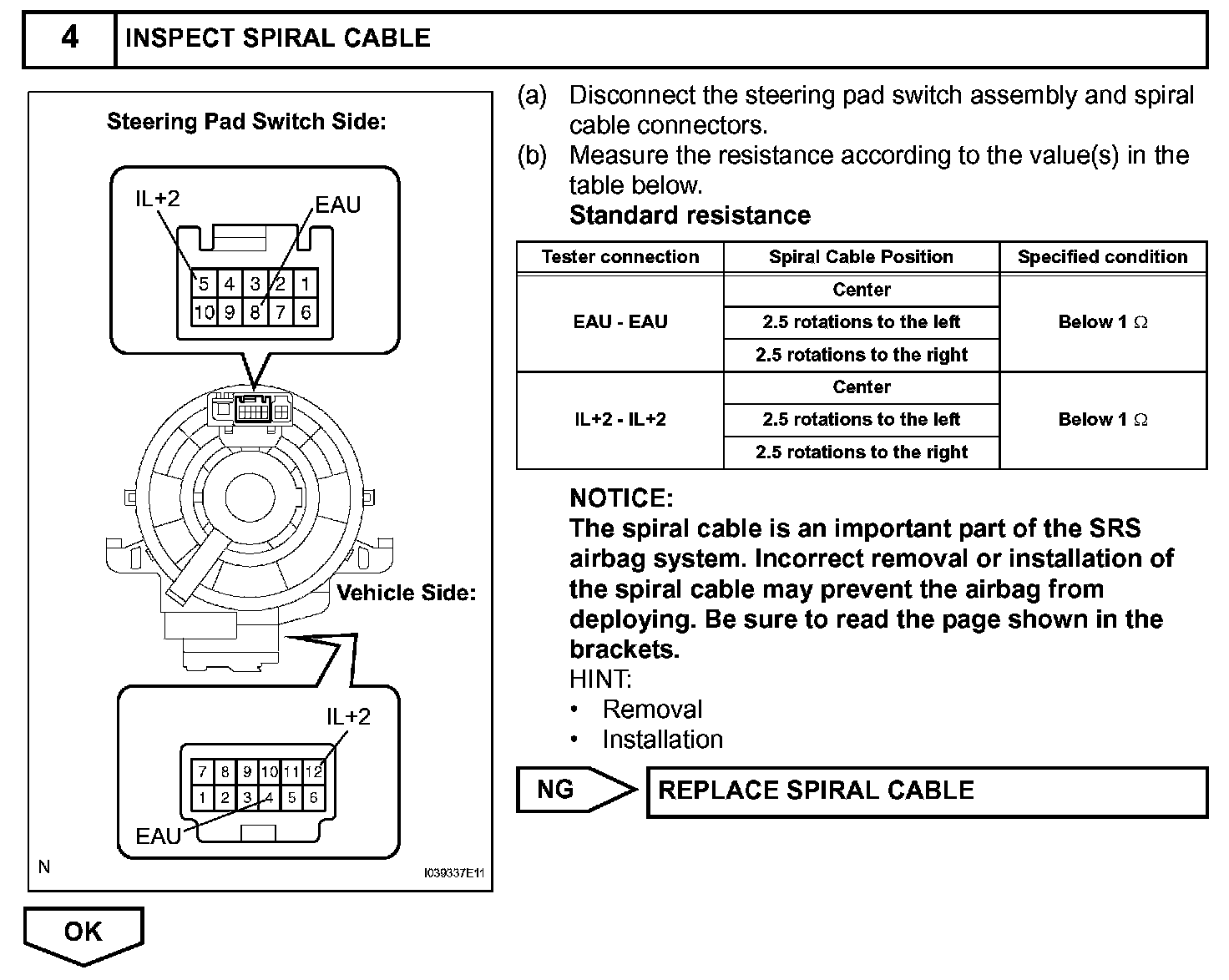

Step 4:

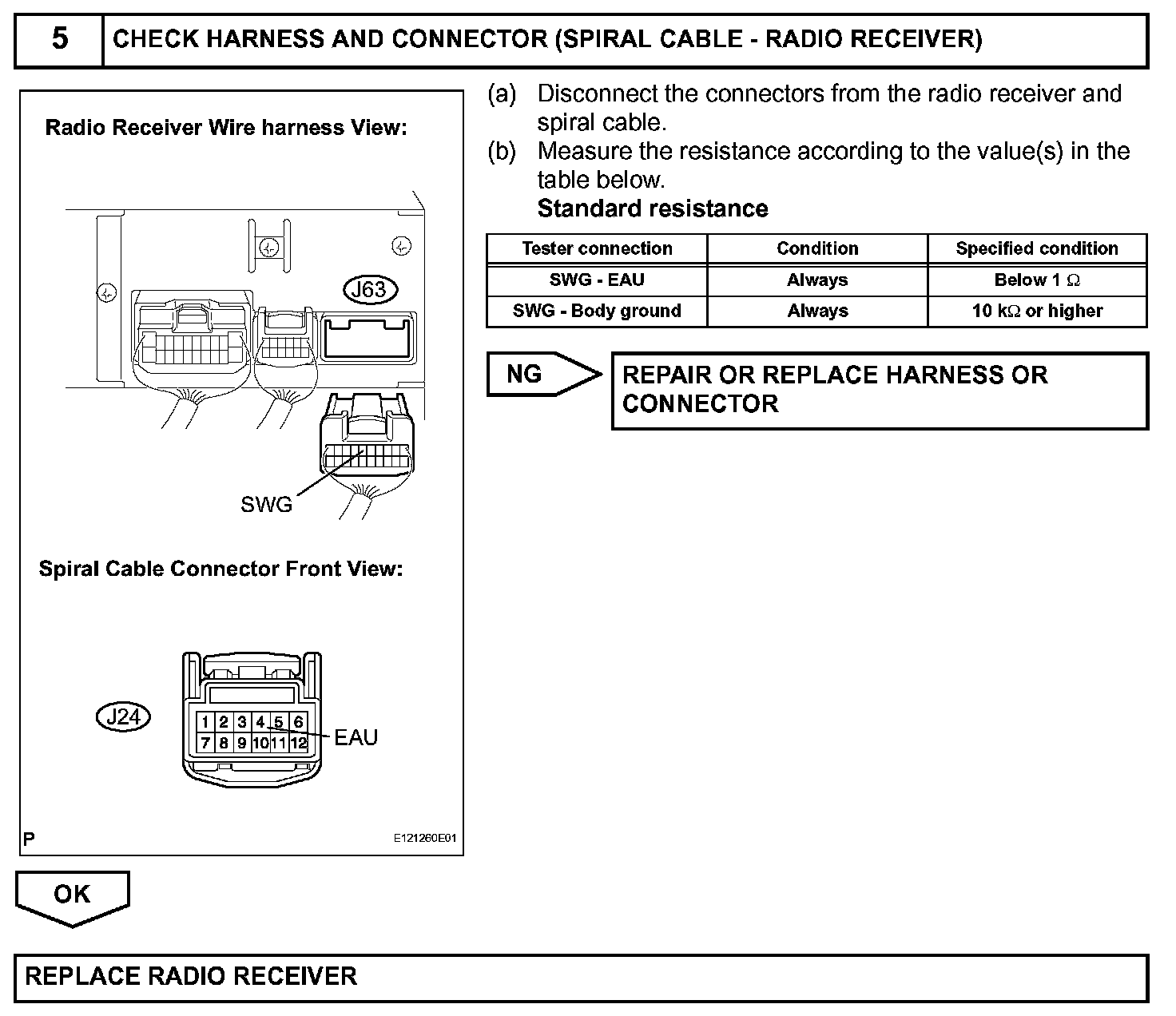

Step 5:

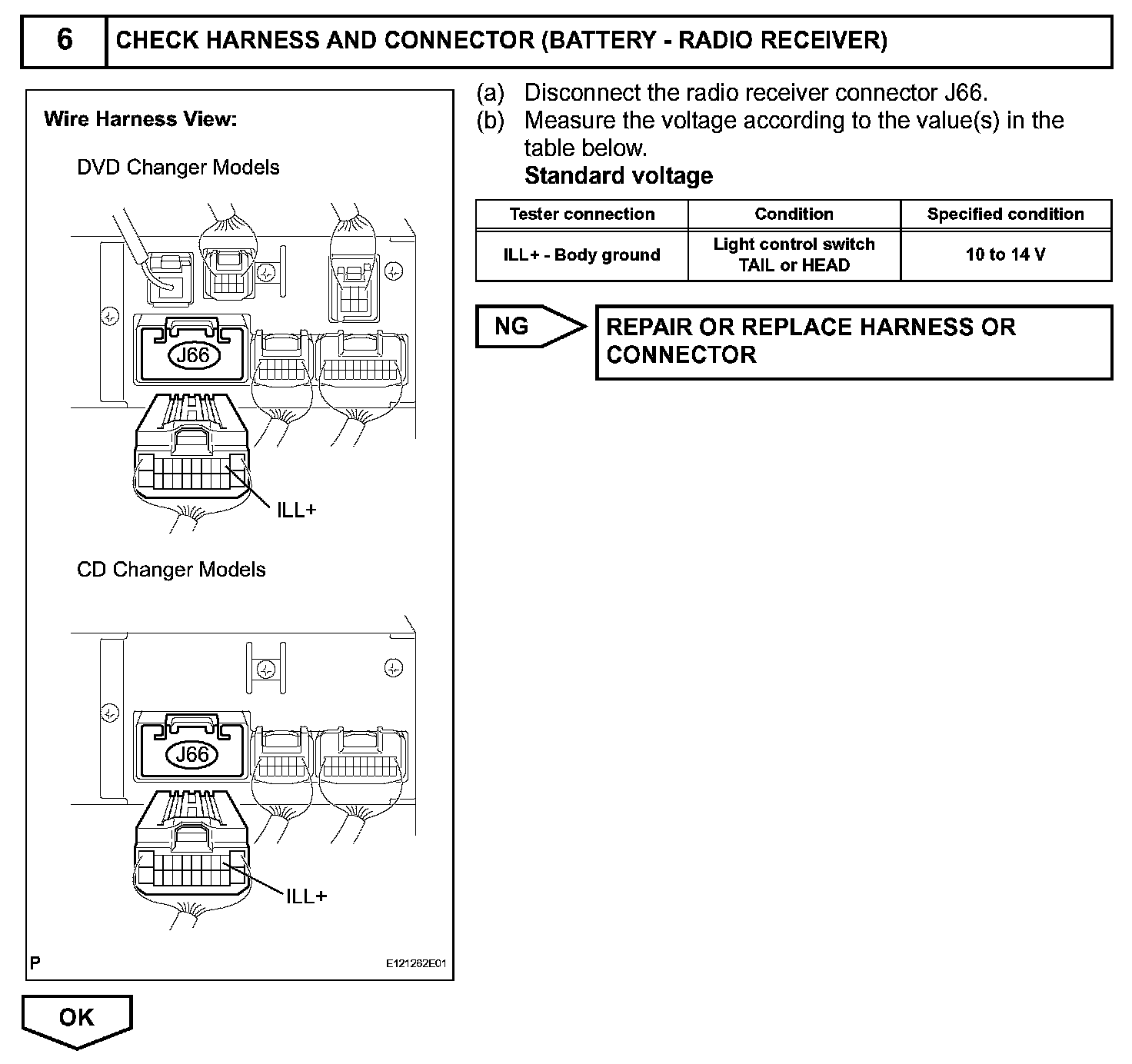

Step 6:

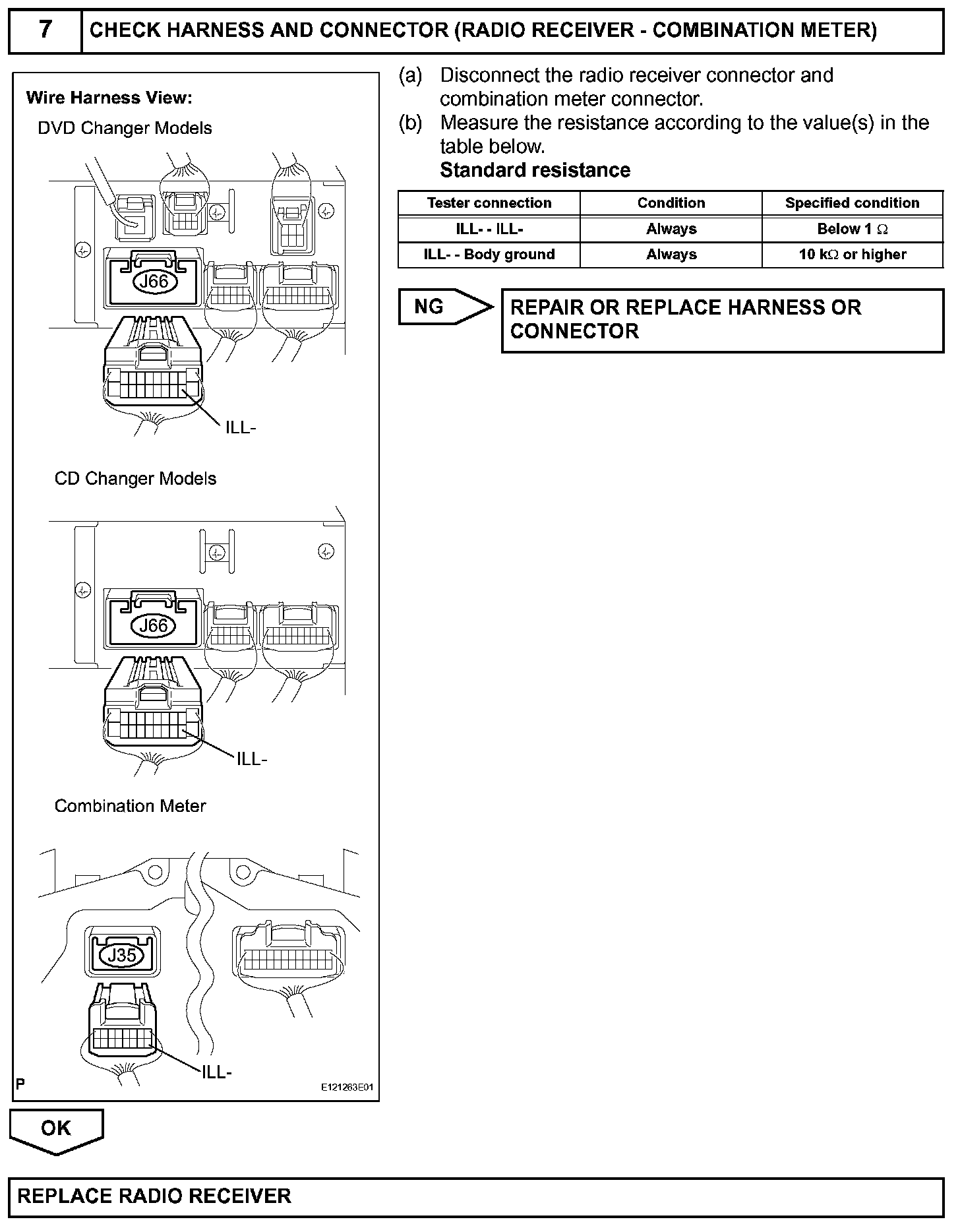

Step 7:

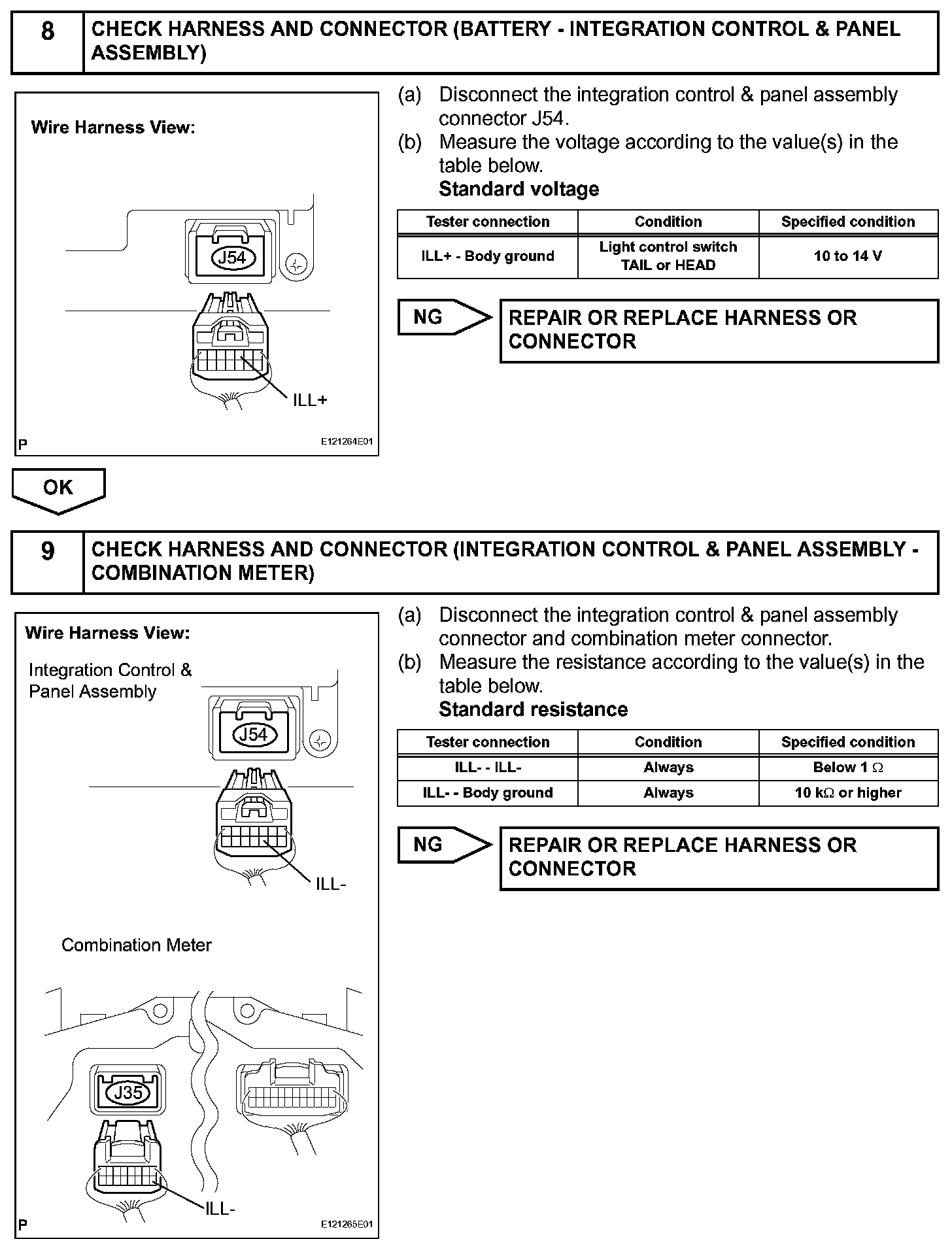

Step 8-9:

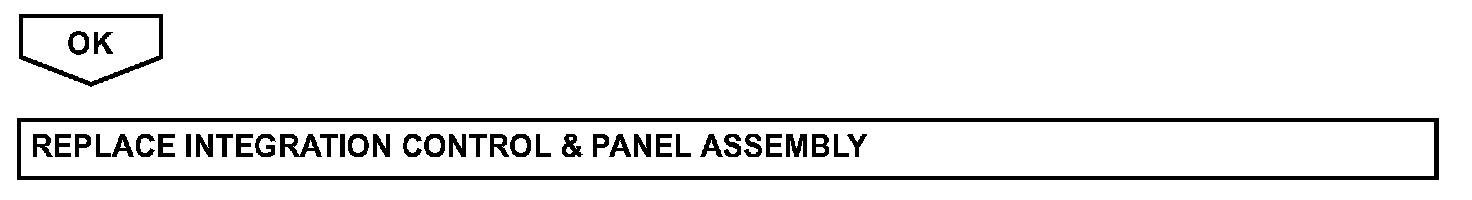

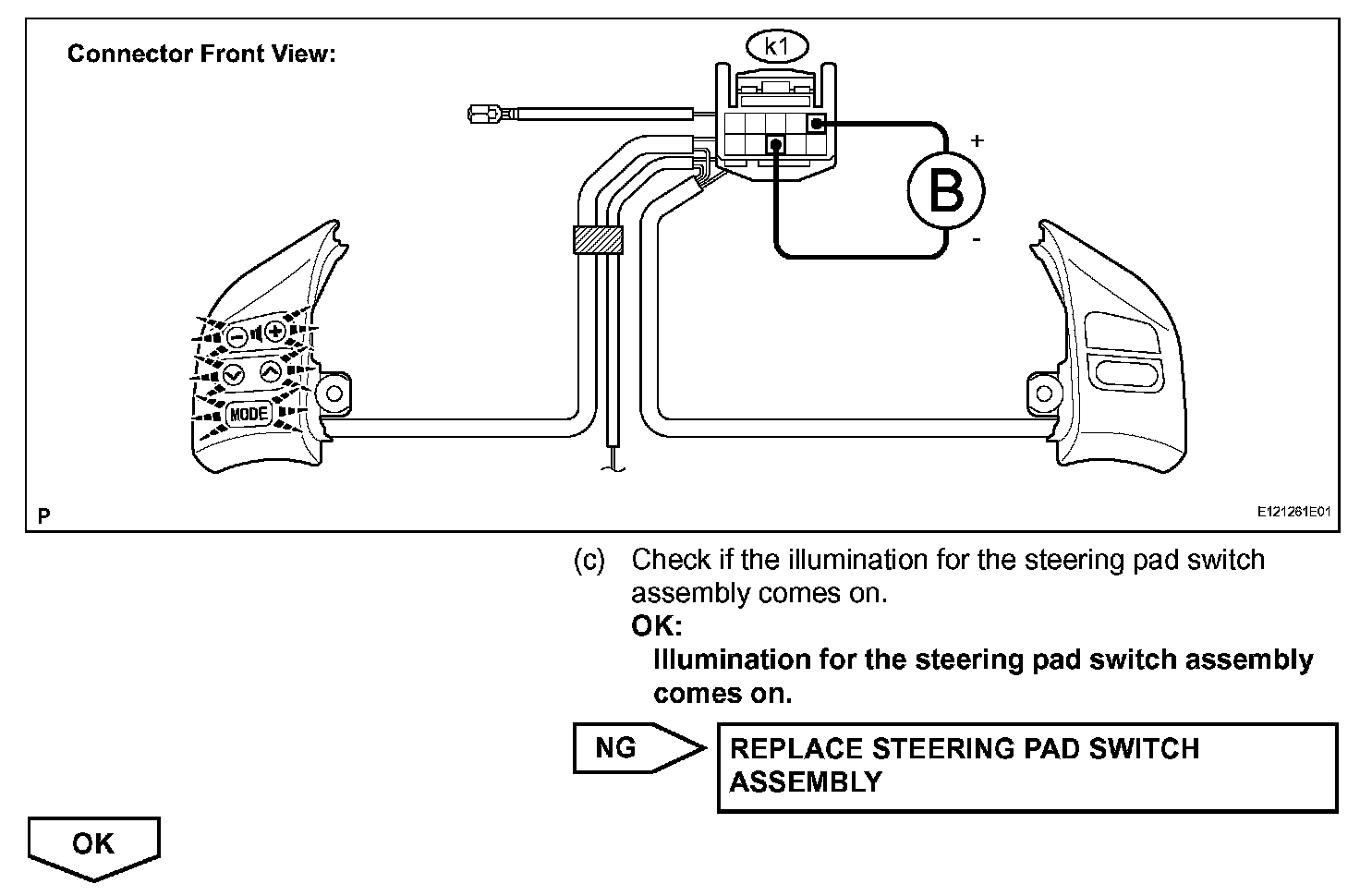

Step 9(continued):

INSPECTION PROCEDURE
